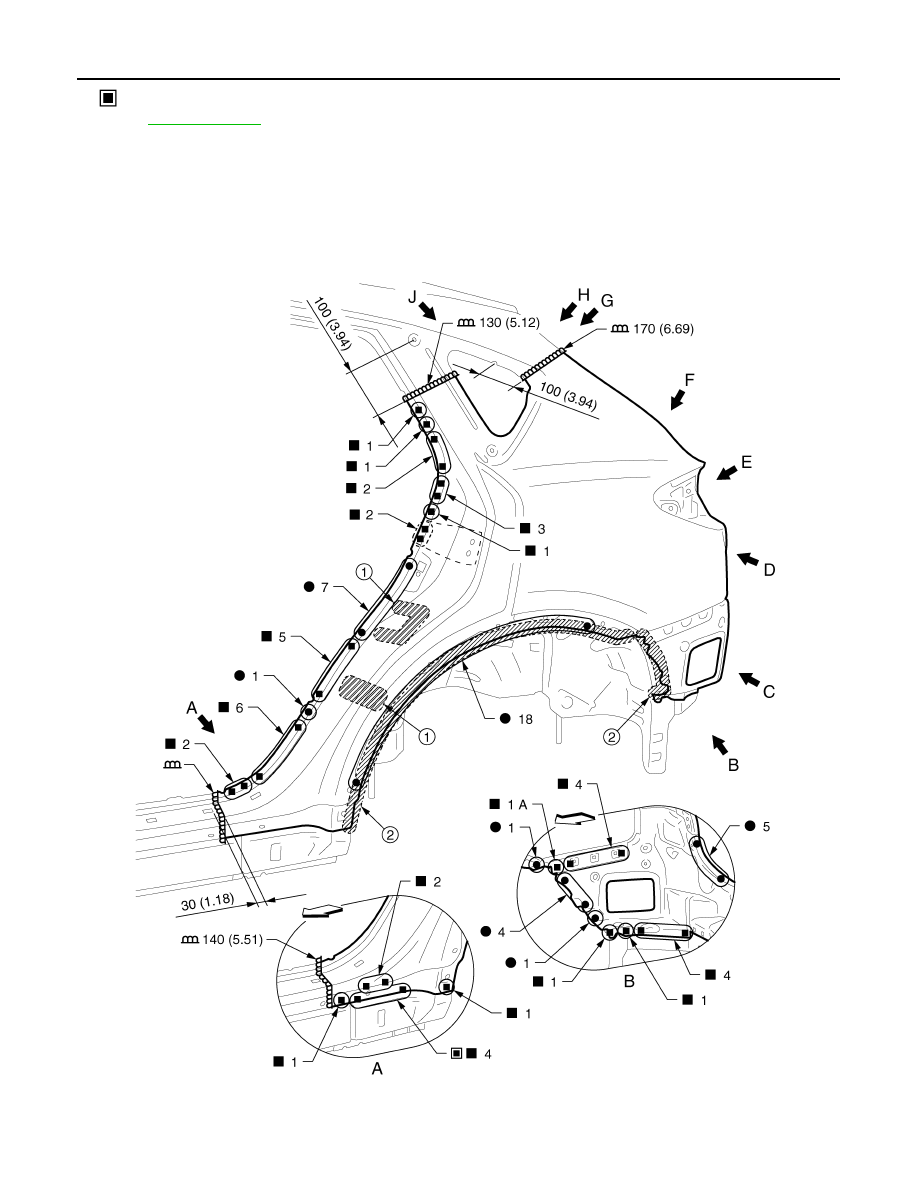

View N, R: Before installing outer sill
View P: Before installing outer sill and center pillar reinforcement

Rear Fender

INFOID:0000000003757476

Remove the tail pillar assembly and rear fender extension from the rear fender assembly service part for eas-
ier installation.

: Perform the plug welding instead of the laser welding.

Refer to

GI-4, "Components"

 for symbols in the figure.

1.

Urethane foam

2.

Body sealing

Unit: mm (in)

JSKIA0613GB

REPLACEMENT OPERATIONS

BRM-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

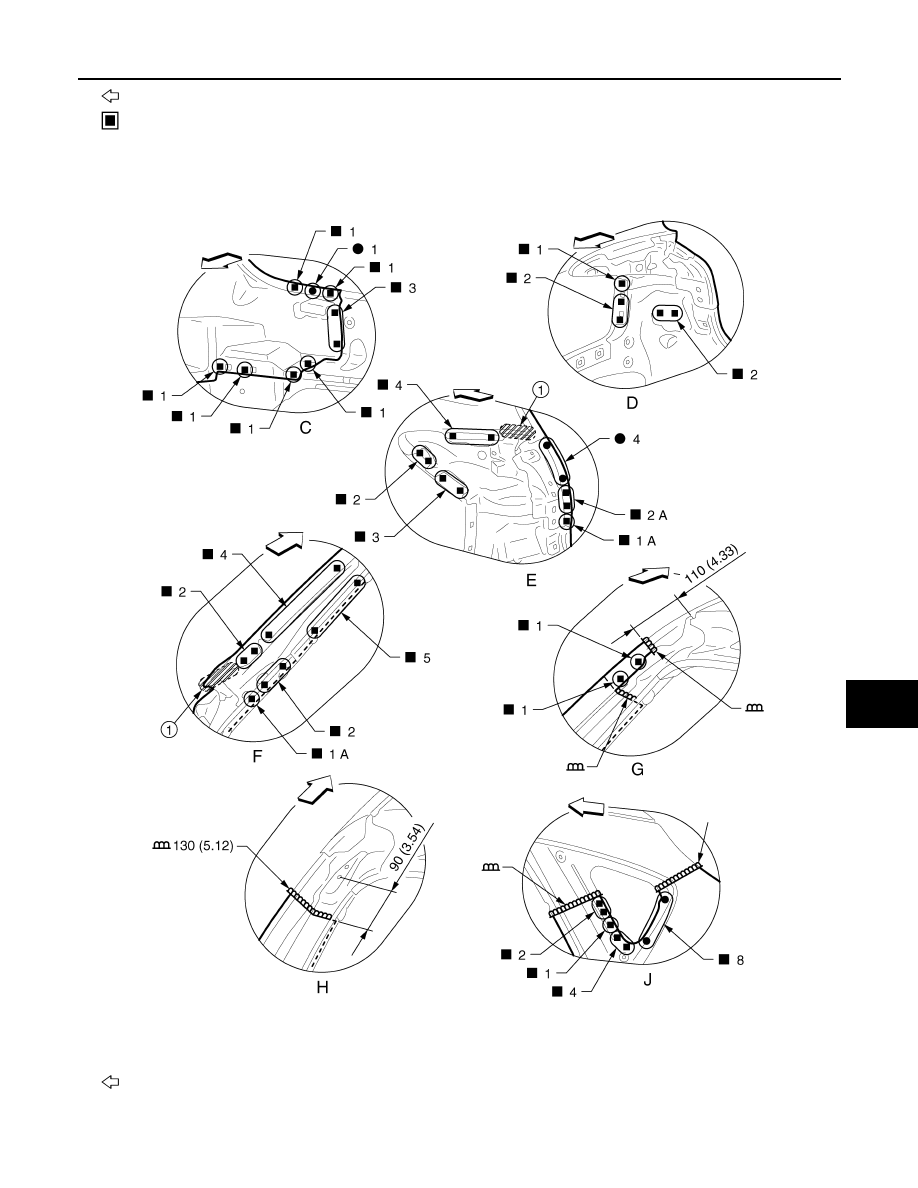

View H: Before installing rear fender

: Vehicle front

: Perform the plug welding instead of the laser welding.

Replacement parts

l

Rear fender assembly (LH)

1.

Urethane foam

Unit: mm (in)

: Vehicle front

JSKIA0614GB

BRM-64

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Rear Panel

INFOID:0000000003757477

Rear End Crossmember

INFOID:0000000003757483

Work after rear panel has been removed.

: Vehicle front

: An equivalent welding portion with the same dimensions is on the opposite side.

Replacement parts

l

Rear panel assembly

JSKIA0615ZZ

REPLACEMENT OPERATIONS

BRM-65

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Floor Rear

INFOID:0000000003757478

Work after rear panel and rear end crossmember assembly have been removed.

: Vehicle front

: An equivalent welding portion with the same dimensions is on the opposite side.

Replacement parts

l

Rear end crossmember assembly

JSKIA0616ZZ
