BRM-58

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

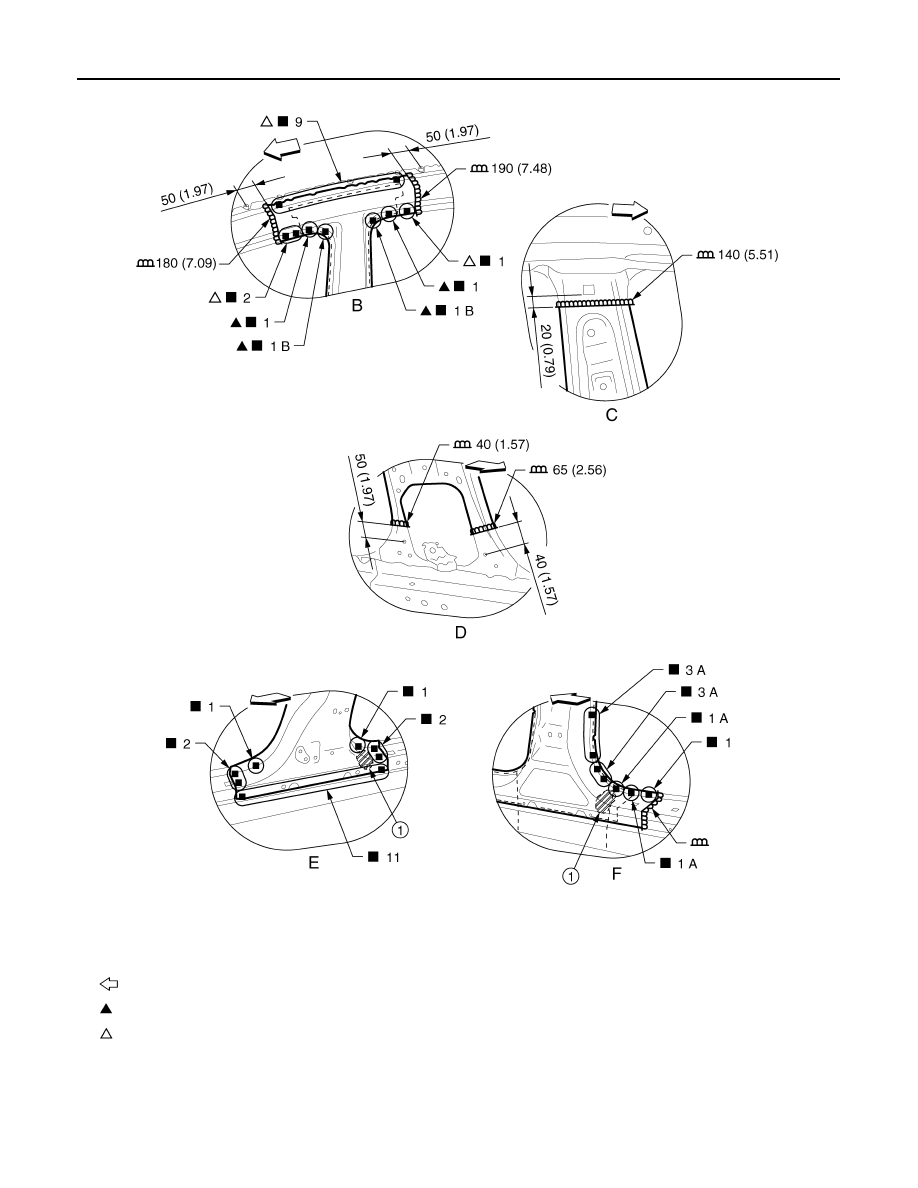

View E: Before installing outer front side body

Outer Sill

INFOID:0000000003757475

Work after hoodledge reinforcement has been removed.

1.

Urethane foam

Unit: mm (in)

: Vehicle front

: Drill

φ

10 mm (0.39 in) hole for the plug welding hole (ultra high strength steel plate).

: Drill

φ

11 mm (0.43 in) hole for the plug welding hole (ultra high strength steel plate).

JSKIA0609GB

REPLACEMENT OPERATIONS

BRM-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Remove the front pillar brace and the center pillar reinforcement (reusable).

1.

Urethane foam

2.

Body sealing

Unit: mm (in)

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

: Perform the plug welding instead of the laser welding.

Replacement parts

JSKIA0610GB

BRM-60

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

View A: Before installing outer sill and front pillar brace

l

Outer sill (LH)

l

Outer sill reinforcement (LH)

l

Upper outer rear wheelhouse exten-
sion (LH)

l

Lower outer rear wheelhouse exten-
sion (LH)

1.

Urethane foam

Unit: mm (in)

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

: Perform the plug welding instead of the laser welding.

JSKIA0611GB

REPLACEMENT OPERATIONS

BRM-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

View E: Before installing outer sill
View F: Before installing outer sill and outer sill reinforcement
View G: Before installing outer sill, outer sill reinforcement, upper outer rear wheelhouse extension and lower
outer rear wheelhouse extension
View H: Before installing outer sill, outer sill reinforcement and upper outer rear wheelhouse extension
View J: Outer sill reinforcement (replacement parts)

1.

Urethane foam

Unit: mm (in)

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

JSKIA0612GB
