BRM-18

< REMOVAL AND INSTALLATION >

BODY SEALING

: Vehicle front

: Sealed portions

JSKIA0591ZZ

BODY SEALING

BRM-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

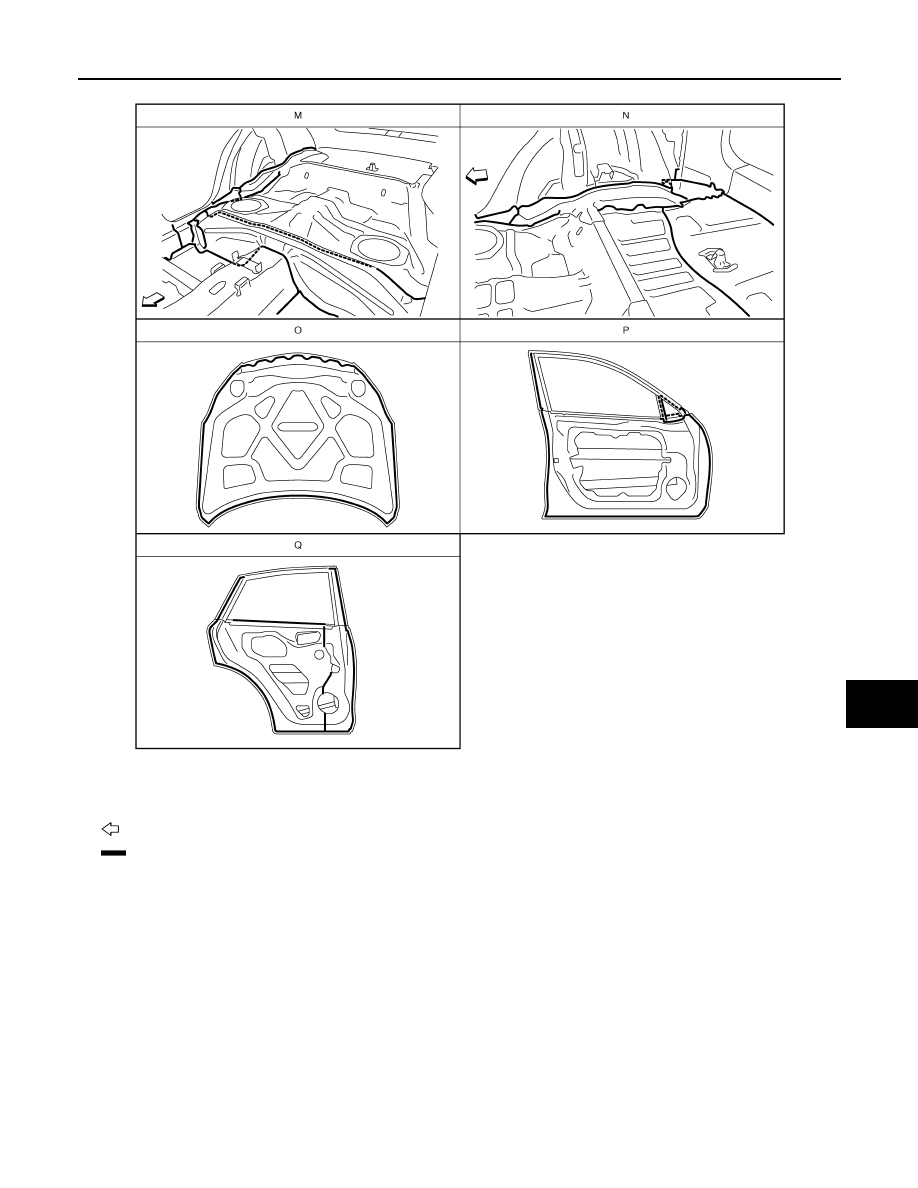

: Vehicle front

: Sealed portions

JSKIA0588ZZ

BRM-20

< REMOVAL AND INSTALLATION >

BODY CONSTRUCTION

BODY CONSTRUCTION

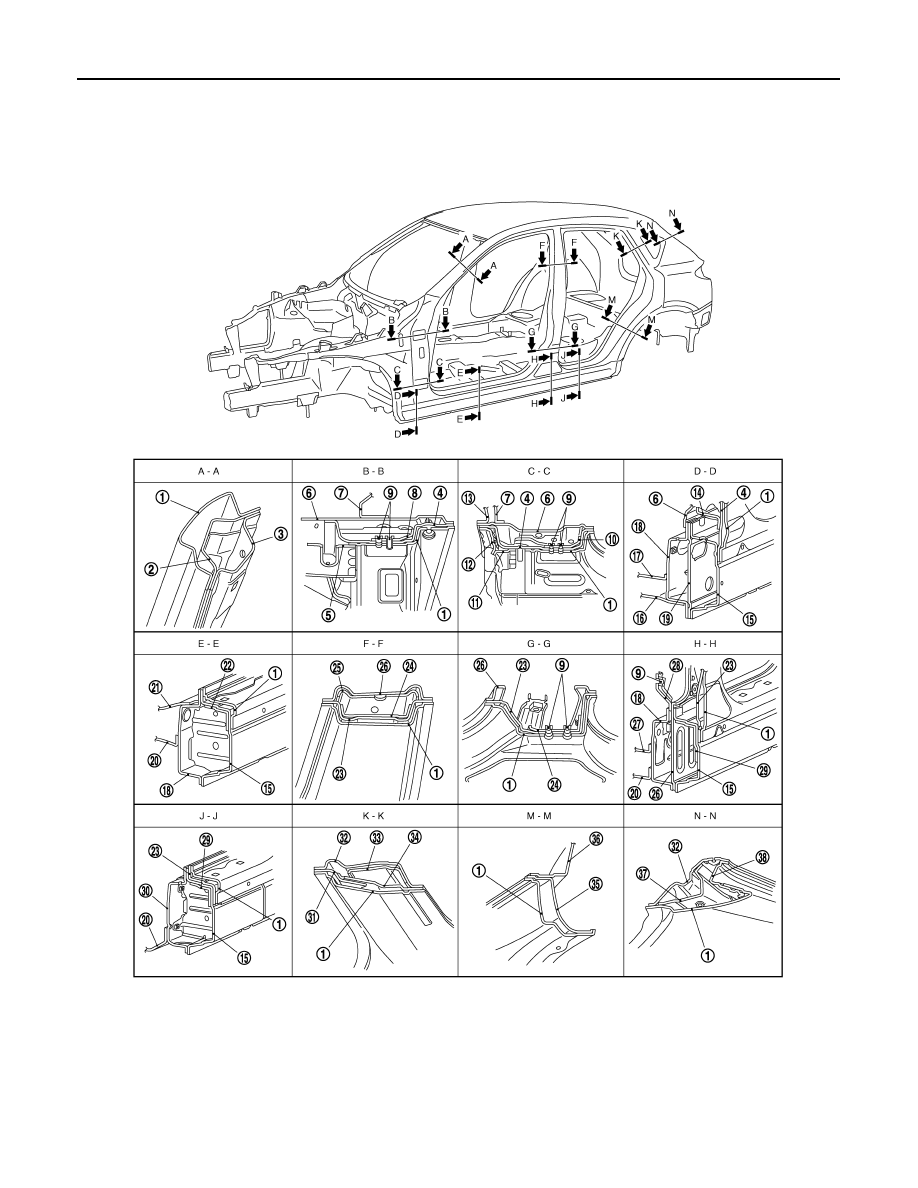

Body Construction

INFOID:0000000003134495

1.

Outer side body

2.

Outer front pillar reinforcement

3.

Upper inner front pillar

4.

Front pillar hinge brace

5.

Hoodledge reinforcement

6.

Upper rear hoodledge

7.

Upper dash

8.

Upper hinge plate

9.

Weld nut

JSKIA0589ZZ

BODY CONSTRUCTION

BRM-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

10. Lower hinge plate

11.

Rear hoodledge reinforcement

12. Hoodledge reinforcement gusset

13. Lower dash crossmember

14. Lower front pillar gusset

15. Outer sill reinforcement

16. Front side member outrigger

17. Lower dash

18. Inner sill

19. Lower front pillar reinforcement

20. Front floor

21. Front floor gusset

22. Outer sill extension

23. Center pillar reinforcement

24. Center pillar seat belt reinforcement

25. Center pillar seat belt anchor

26. Inner center pillar

27. 3rd crossmember

28. Seat belt anchor

29. Center sill reinforcement

30. Rear side member front

31. Side roof rail reinforcement

32. Inner rear pillar

33. Upper rear pillar seat belt anchor

34. Inner rear pillar reinforcement

35. Outer rear wheelhouse

36. Inner rear wheelhouse

37. Upper back pillar reinforcement
