WHEEL SENSOR

BRC-107

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ON-VEHICLE REPAIR

WHEEL SENSOR

FRONT WHEEL SENSOR

FRONT WHEEL SENSOR : Exploded View

INFOID:0000000003133001

NOTE:
The above figure shows left side. Right side is the mirror image.

FRONT WHEEL SENSOR : Removal and Installation

INFOID:0000000003133002

REMOVAL

Be careful with the following when removing sensor.

CAUTION:

• Do not twist sensor harness as much as possible, when removing it. Pull sensors out without pulling

sensor harness.

• Be careful to avoid damaging sensor edges or rotor teeth. Remove wheel sensor first before remov-

ing front or rear wheel hub. This is to avoid damage to sensor wiring and loss of sensor function.

INSTALLATION

Be careful with the following when installing wheel sensor. Tighten installation bolts to the specified torques.
Refer to

BRC-107, "FRONT WHEEL SENSOR : Exploded View"

.

CAUTION:

• When installing, make sure there is no foreign material such as iron chips on and in the mounting

hole of the wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove
any foreign material and clean the mount.

1.

Front LH wheel sensor connector

2.

Front LH wheel sensor

3.

Bracket

A.

White line (slant line)

: Vehicle front

Refer to GI section

GI-4, "Components"

 for symbol marks in the figure.

JSFIA0194GB

BRC-108

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

WHEEL SENSOR

• When installing wheel sensor, be sure to press rubber grommets in until they lock at locations

shown above in the figure. When installed, harness must not be twisted.

• When you see the harness of the wheel sensor from the front side of the vehicle ensure that the

white lines (A) are not twisted.

REAR WHEEL SENSOR

REAR WHEEL SENSOR : Exploded View

INFOID:0000000003291967

REAR WHEEL SENSOR : Removal and Installation

INFOID:0000000003291968

REMOVAL

Be careful with the following when removing sensor.

CAUTION:

• Do not twist sensor harness as much as possible, when removing it. Pull sensors out without pulling

sensor harness.

• Be careful to avoid damaging sensor edges or rotor teeth. Remove wheel sensor first before remov-

ing front or rear wheel hub. This is to avoid damage to sensor wiring and loss of sensor function.

INSTALLATION

Be careful with the following when installing wheel sensor. Tighten installation bolts to the specified torques.
Refer to

BRC-108, "REAR WHEEL SENSOR : Exploded View"

.

CAUTION:

• When installing, make sure there is no foreign material such as iron chips on and in the mounting

hole of the wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove
any foreign material and clean the mount.

• When installing a rear LH wheel sensor, be sure to pass the wheel sensor harness under the breather

hose.

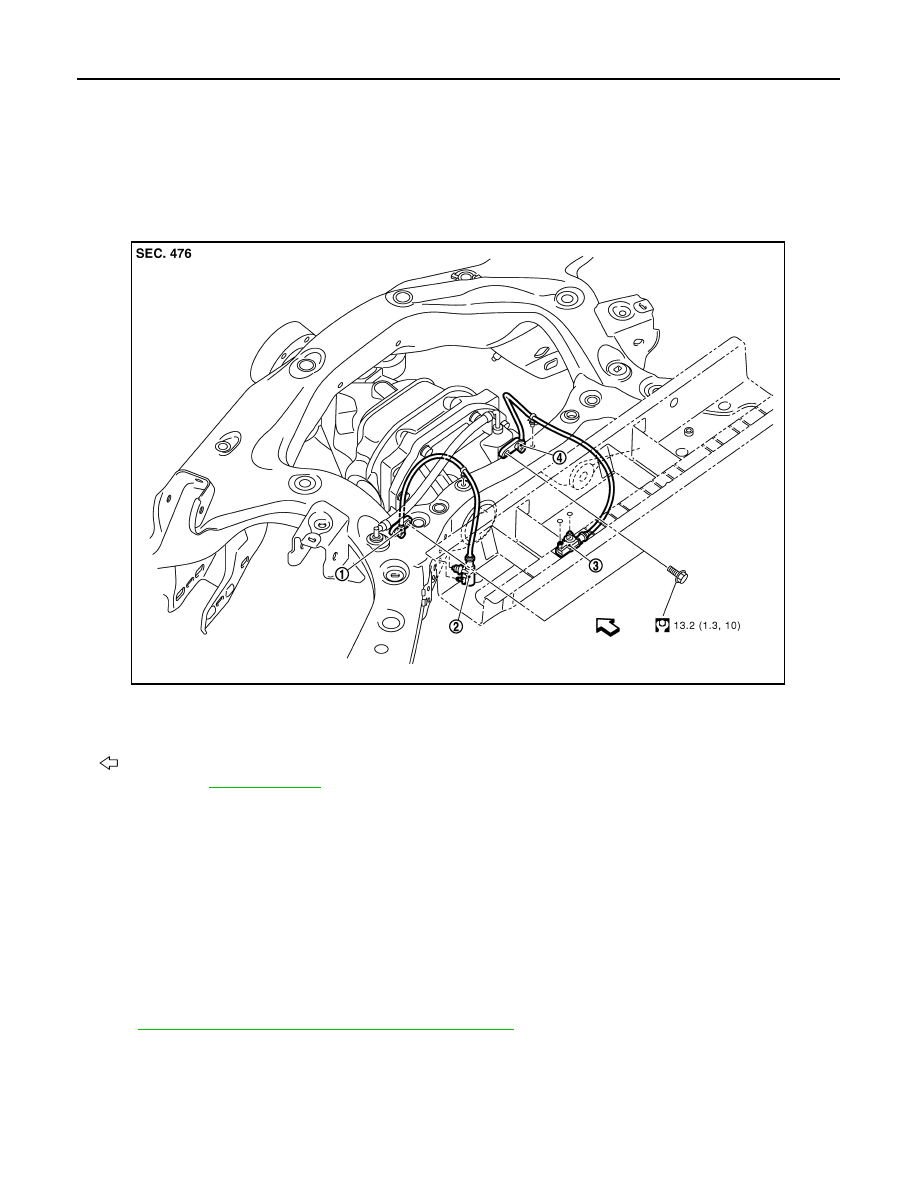

1.

Rear LH wheel sensor

2.

Rear LH wheel sensor connector

3.

Rear RH wheel sensor connector

4.

Rear RH wheel sensor

: Vehicle front

Refer to GI section

GI-4, "Components"

 for symbol marks in the figure.

JSFIA0195GB

SENSOR ROTOR

BRC-109

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

SENSOR ROTOR

FRONT SENSOR ROTOR

FRONT SENSOR ROTOR : Exploded View

INFOID:0000000003133003

Refer to

FAX-6, "Exploded View"

 (2WD models),

FAX-16, "Exploded View"

 (AWD models).

FRONT SENSOR ROTOR : Removal and Installation

INFOID:0000000003133004

REMOVAL

Sensor rotor cannot be disassembled. Remove the sensor rotor together with hub bearing assembly. Refer to

FAX-6, "Exploded View"

 (2WD models),

FAX-16, "Exploded View"

 (AWD models).

INSTALLATION

Sensor rotor cannot be disassembled. Install the sensor rotor together with hub bearing assembly. Refer to

FAX-6, "Exploded View"

 (2WD models),

FAX-16, "Exploded View"

 (AWD models).

REAR SENSOR ROTOR

REAR SENSOR ROTOR : Exploded View

INFOID:0000000003133005

REAR SENSOR ROTOR : Removal and Installation

INFOID:0000000003133006

REMOVAL

• Follow the procedure below to remove rear sensor rotor.
- Remove side flange. Refer to

RAX-9, "Exploded View"

.

- Using a bearing replacer (suitable tool) and puller (suitable tool), remove sensor rotor from side flange.

INSTALLATION

CAUTION:

Do not reuse sensor rotor.
• Follow the procedure below to install rear sensor rotor.
- Using a drifts, press rear sensor rotor onto side flange.

- Install side flange. Refer to

RAX-9, "Exploded View"

.

1.

Side flange

2.

Rear wheel sensor rotor

Refer to GI section

GI-4, "Components"

 for symbol marks in the figure.

JSFIA0054JP

A: Drift [SST: ST30720000 (J-25405)]

B: Drift [SST: ST27863000 (

)]

C: Drift [SST: KV40104710 (

)]

SFIA3387E

BRC-110

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Exploded View

INFOID:0000000003133007

Removal and Installation

INFOID:0000000003133008

REMOVAL

CAUTION:

• Before servicing, disconnect the battery cable from negative terminal.
• To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being dam-

aged. To install, use flare nut crowfoot and torque wrench.

• Do not apply excessive impact to ABS actuator and electric unit (control unit), such as dropping it.
• Do not remove and install actuator by holding harness.
• After work is completed, bleed air from brake tube. Refer to

BR-11, "Bleeding Brake System"

.

1.

Remove hoodledge cover (LH). Refer to

EXT-22, "Exploded View"

.

2.

Disconnect ABS actuator and electric unit (control unit) connector.

3.

Loosen brake tube flare nuts, then remove brake tubes from ABS actuator and electric unit (control unit).

4.

Remove tire (front LH side).

5.

Remove fender protector (rear): (front LH side). Refer to

EXT-25, "FENDER PROTECTOR : Exploded

View"

.

6.

Remove ABS actuator and electric unit (control unit) bracket mounting nuts.

7.

Remove ABS actuator and electric unit (control unit) from vehicle.

1.

ABS actuator and electric unit (control
unit)

2.

Connector

3.

Bushing

4.

Bracket

A.

From master cylinder secondary side B.

From master cylinder primary side

C.

To front LH brake caliper

D.

To rear RH brake caliper

E.

To Rear LH brake caliper

F.

To front RH brake caliper

: Vehicle front

Refer to GI section

GI-4, "Components"

 for symbol marks in the figure.

JSFIA0196GB
