ABS

BRC-23

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Except for USA

7.

Front wheel sensor

8.

VDC OFF switch

9.

Yaw rate/side G sensor

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Inside brake master cylinder cover

D.

Steering knuckle

E.

Instrument driver lower panel

F.

Under center console

G.

Rear final drive assembly

JSFIA0235GB

BRC-24

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

ABS

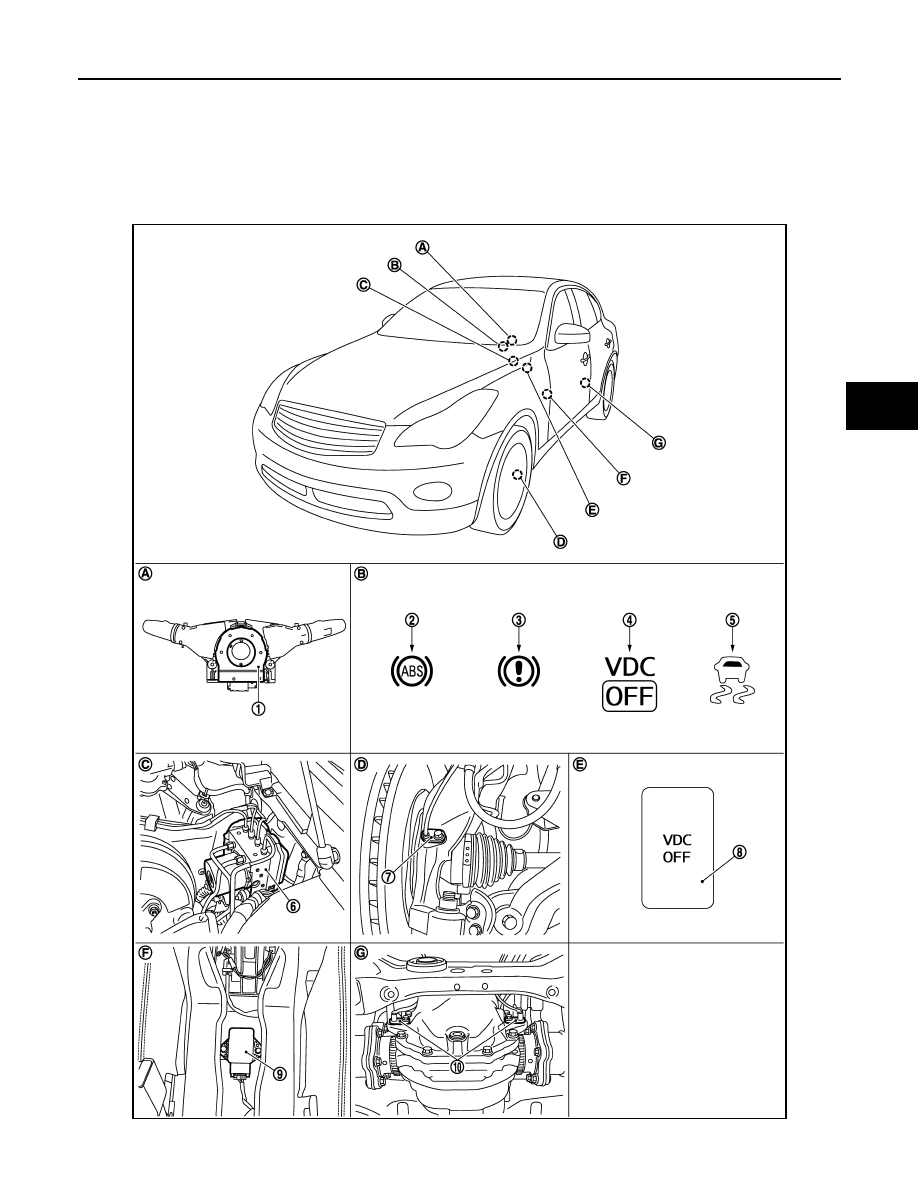

Component Description

INFOID:0000000003430105

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

VDC OFF switch

9.

Yaw rate/side G sensor

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Inside brake master cylinder cover

D.

Steering knuckle

E.

Instrument driver lower panel

F.

Under center console

G.

Rear final drive assembly

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-44, "Description"

Motor

Actuator relay (main relay)

BRC-46, "Description"

Solenoid valve

BRC-53, "Description"

Pressure sensor

BRC-58, "Description"

VDC switch-over valve
(USV1, USV2, HSV1, HSV2)

BRC-66, "Description"

Wheel sensor

BRC-35, "Description"

Yaw rate/side G sensor

BRC-63, "Description"

Steering angle sensor

BRC-60, "Description"

VDC OFF switch

BRC-79, "Description"

ABS warning lamp

BRC-81, "Description"

Brake warning lamp

BRC-82, "Description"

VDC OFF indicator lamp

BRC-83, "Description"

SLIP indicator lamp

BRC-84, "Description"

EBD

BRC-25

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

EBD

System Diagram

INFOID:0000000003430106

With LDP

Without LDP

JSFIA0227GB

JSFIA0228GB

BRC-26

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

EBD

System Description

INFOID:0000000003132872

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then is electronically controls the rear
braking force (brake fluid pressure) to reducing and reduces rear wheel slippage. Accordingly it improves
vehicle stability.

• Electrical system diagnosis by CONSULT-III is available.
