Infiniti EX35. Manual - part 286





AV

FRONT CAMERA

AV-925

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

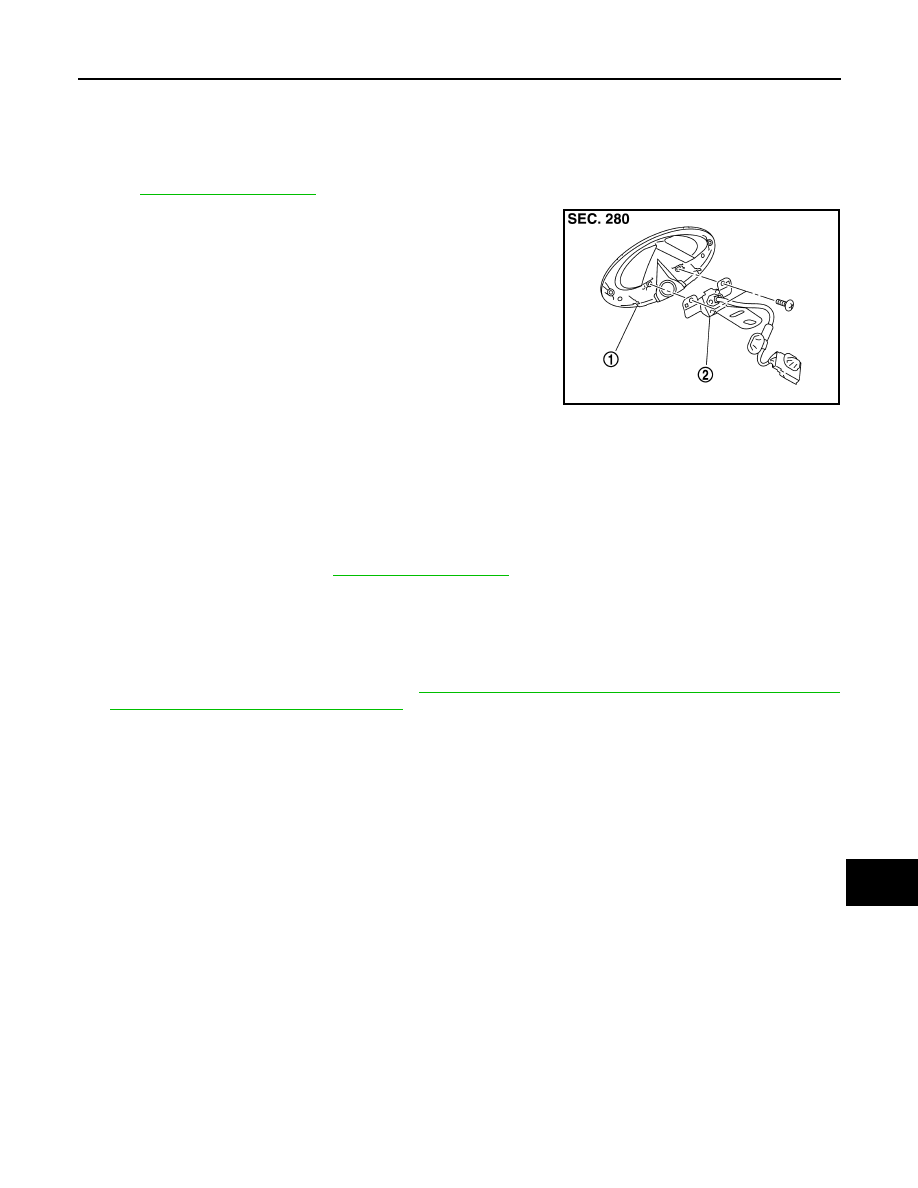

FRONT CAMERA

Exploded View

INFOID:0000000003528825

REMOVAL

Refer to

EXT-20, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003528826

REMOVAL

1.

Remove harness clip and connector clip from front camera bracket.

2.

Remove front emblem. Refer to

EXT-20, "Exploded View"

.

3.

Remove front emblem mounting screws.

4.

Remove front camera.

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-438, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Special Repair Requirement"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.

JPNIA0899ZZ

1.

Front emblem

2.

Front camera

AV-926

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

REAR CAMERA

REAR CAMERA

Exploded View

INFOID:0000000003528828

DISASSEMBLY

Removal and Installation

INFOID:0000000003528829

REMOVAL

1.

Remove back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Remove back door outside finisher upper. Refer to

EXT-48, "Exploded View"

.

3.

Remove back door outside finisher lower. Refer to

EXT-48, "Exploded View"

.

4.

Remove rear camera mounting screws and rear camera harness connector.

5.

Remove rear camera.

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-438, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Special Repair Requirement"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.

JPNIA0884ZZ

1.

Rear view camera

AV

SIDE CAMERA LH

AV-927

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

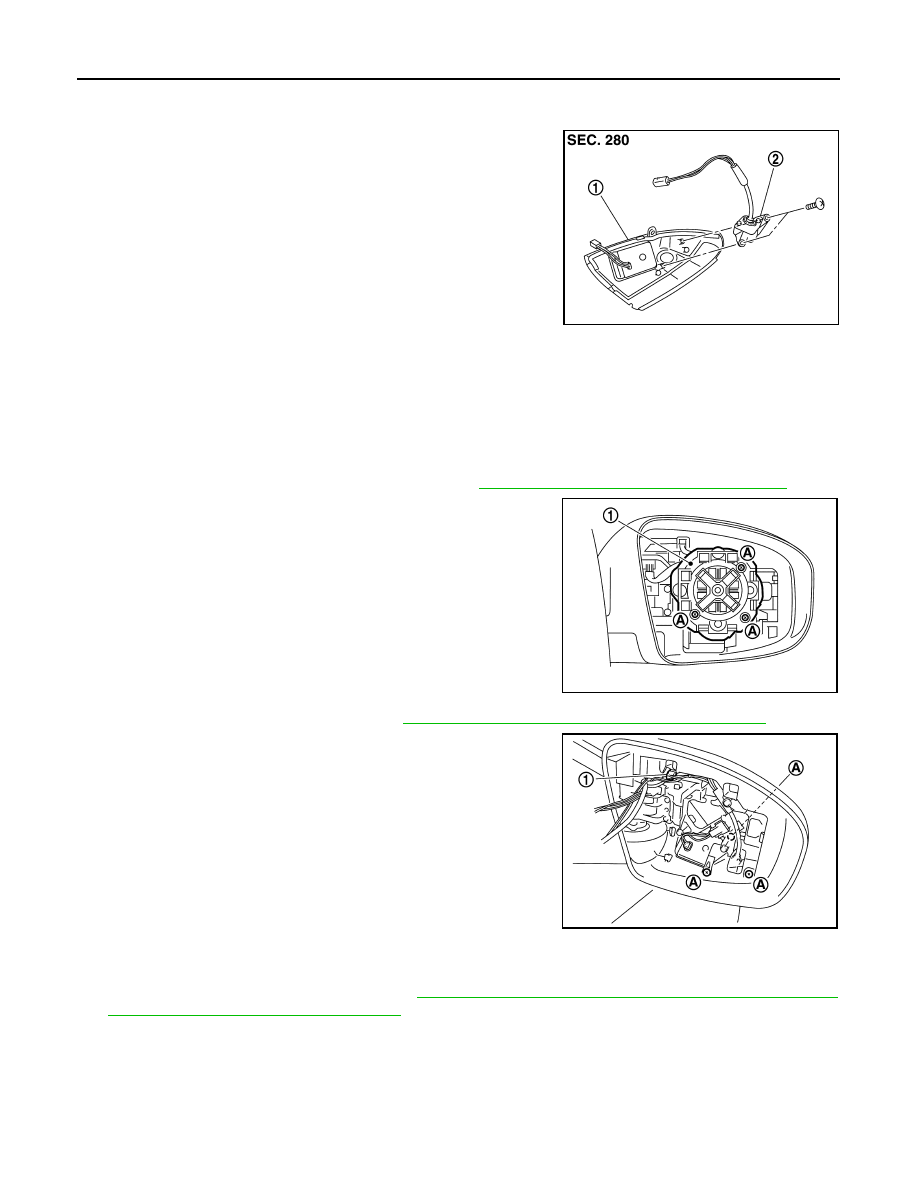

SIDE CAMERA LH

Exploded View

INFOID:0000000003528831

Removal and Installation

INFOID:0000000003528832

REMOVAL

1.

Remove door mirror glass (driver side). Refer to

MIR-53, "GLASS MIRROR : Exploded View"

.

2.

Remove screws (A), and door mirror actuator connector, and
then door mirror actuator (1).

3.

Remove door mirror under cover. Refer to

MIR-54, "DOOR MIRROR COVER : Exploded View"

.

4.

Remove screws (A) and connector (1), and then remove side
camera (LH).

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-438, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Special Repair Requirement"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.

JPNIA0900ZZ

1.

Side camera (LH)

2.

Door mirror under cover

JSNIA1255ZZ

JPNIA0901ZZ

AV-928

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

SIDE CAMERA RH

SIDE CAMERA RH

Exploded View

INFOID:0000000003567094

Removal and Installation

INFOID:0000000003567095

REMOVAL

1.

Remove door mirror glass (passenger side). Refer to

MIR-53, "GLASS MIRROR : Exploded View"

.

2.

Remove screws (A) and door mirror actuator connector, and
then door mirror actuator (1).

3.

Remove door mirror under cover. Refer to

MIR-54, "DOOR MIRROR COVER : Exploded View"

.

4.

Remove screws (A) and connector (1), and then remove side
camera (RH).

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-438, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Special Repair Requirement"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.

JPNIA0902ZZ

1.

Side camera (RH)

2.

Side camera lamp assembly

JSNIA1256ZZ

JPNIA0903ZZ
