Infiniti EX35. Manual - part 285

AV

CAMERA CONTROL UNIT

AV-921

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

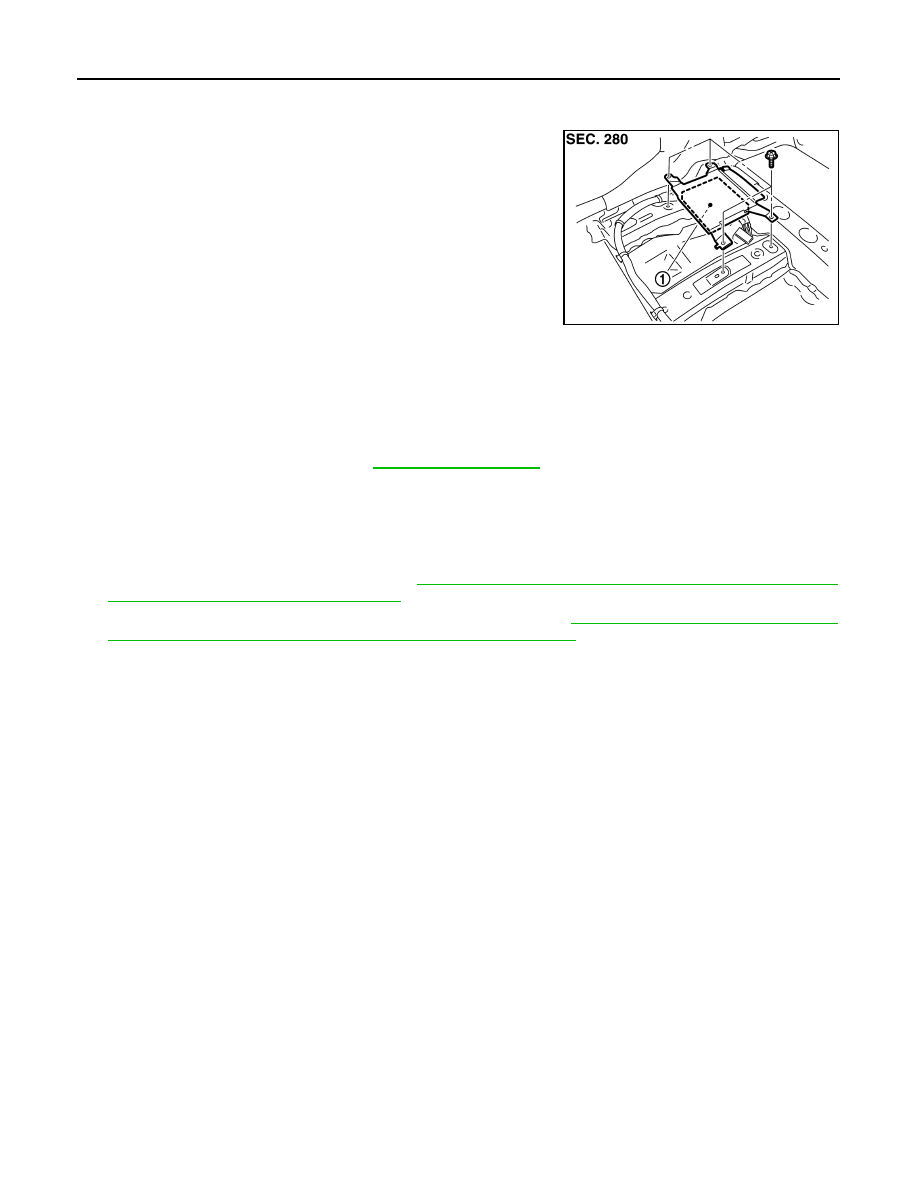

CAMERA CONTROL UNIT

Exploded View

INFOID:0000000003160801

Removal and Installation

INFOID:0000000003160802

REMOVAL

1.

Remove front seat (LH side). Refer to

SE-87, "Exploded View"

.

2.

Remove floor carpet. Keep a service area.

3.

Remove camera control unit.

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Perform predicted course line center position adjustment. Refer to

AV-437, "PREDICTED COURSE LINE

CENTER POSITION ADJUSTMENT : Special Repair Requirement"

.

JPNIA0883ZZ

1.

Camera control unit

AV-922

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

AROUND VIEW MONITOR CONTROL UNIT

AROUND VIEW MONITOR CONTROL UNIT

Exploded View

INFOID:0000000003528834

Removal and Installation

INFOID:0000000003528835

REMOVAL

1.

Remove front seat (LH side). Refer to

SE-87, "Exploded View"

.

2.

Remove floor carpet. Keep a service area.

3.

Remove around view monitor control unit.

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Perform camera image calibration. Refer to

AV-438, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Special Repair Requirement"

.

3.

Perform predicted course line center position adjustment. Refer to

AV-437, "PREDICTED COURSE LINE

CENTER POSITION ADJUSTMENT : Special Repair Requirement"

.

CAUTION:

Perform the calibration and perform the writing to the around view monitor control unit when remov-
ing and replacing each camera, removing the camera mounting parts (front grille, door mirror, etc.)
and replacing the around view monitor control unit.

JPNIA0898ZZ

1.

Around view monitor control unit

AV

REAR VIEW CAMERA

AV-923

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW CAMERA

Exploded View

INFOID:0000000003160804

DISASSEMBLY

Removal and Installation

INFOID:0000000003160805

REMOVAL

1.

Remove back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Remove back door outside finisher upper. Refer to

EXT-48, "Exploded View"

.

3.

Remove back door outside finisher lower. Refer to

EXT-48, "Exploded View"

.

4.

Remove rear view camera mounting screws and rear view camera harness connector.

5.

Remove rear view camera.

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Adjust the guide line position if the guide line position is shifted after installing the rear view camera. Refer
to

AV-924, "Adjustment"

.

JPNIA0884ZZ

1.

Rear view camera

AV-924

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW CAMERA

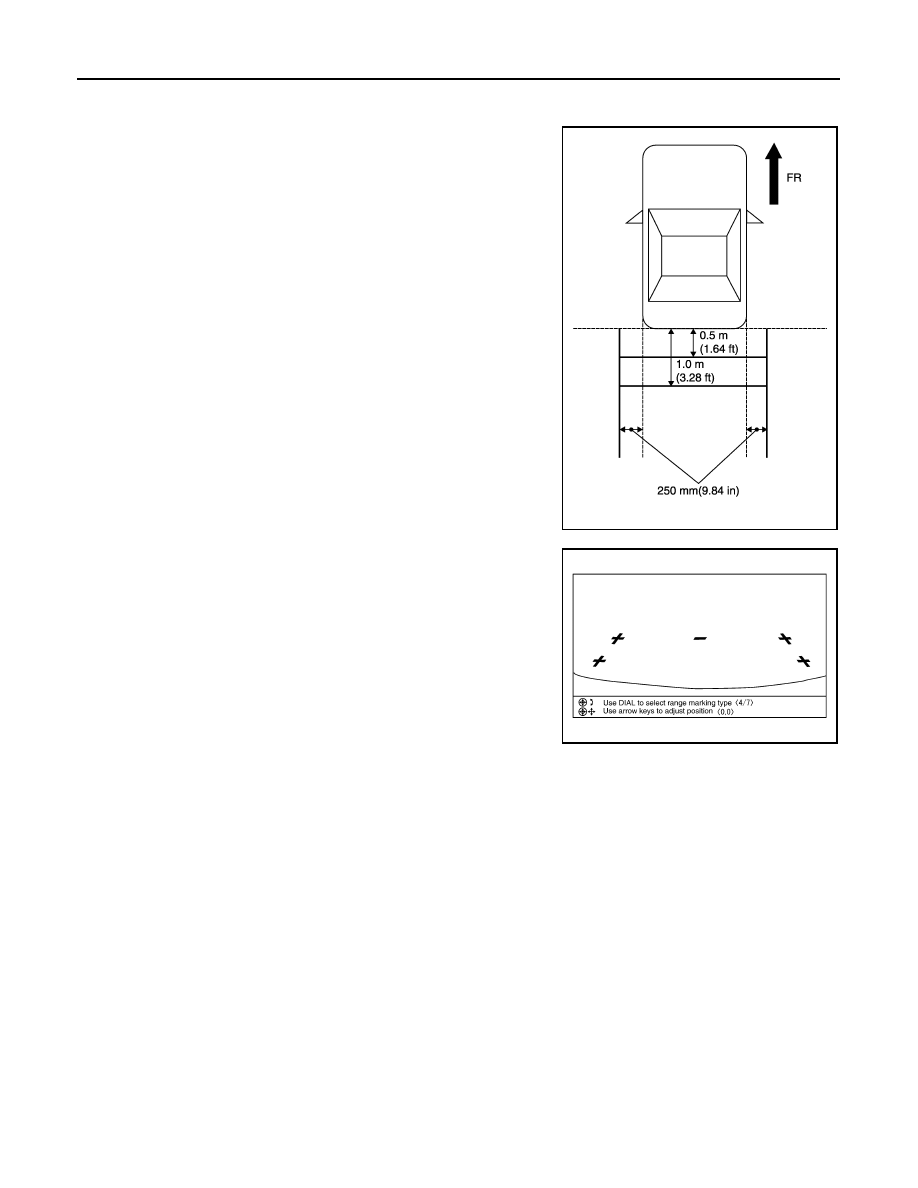

Adjustment

INFOID:0000000003160806

1.

Draw lines on rearward area of the vehicle passing through the
following points: 250 mm (9.84 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust offset of rear view camera” mode of Confirma-
tion/Adjustment mode.

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with up/down/left/right switches so that its position is
aligned with the guiding line. Press “”

CAUTION:

Never operate other function such as pressing BACK while writing index data.
If Confirmation/Adjustment mode does not function in the above procedure, perform one of the
following service to adjust the index again.
• Remove battery for five min. Then reconnect battery.
• Remove camera control unit connector for five min. Then reconnect camera control unit connec-

tor.

JPNIA0967GB

Selected pattern

: 7

Up/Down adjustment range

:

−

20 – 20

Left/Right adjustment range

:

−

20 – 20

SKIB3689E
