Infiniti EX35. Manual - part 284

AV

AUXILIARY INPUT JACKS

AV-917

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

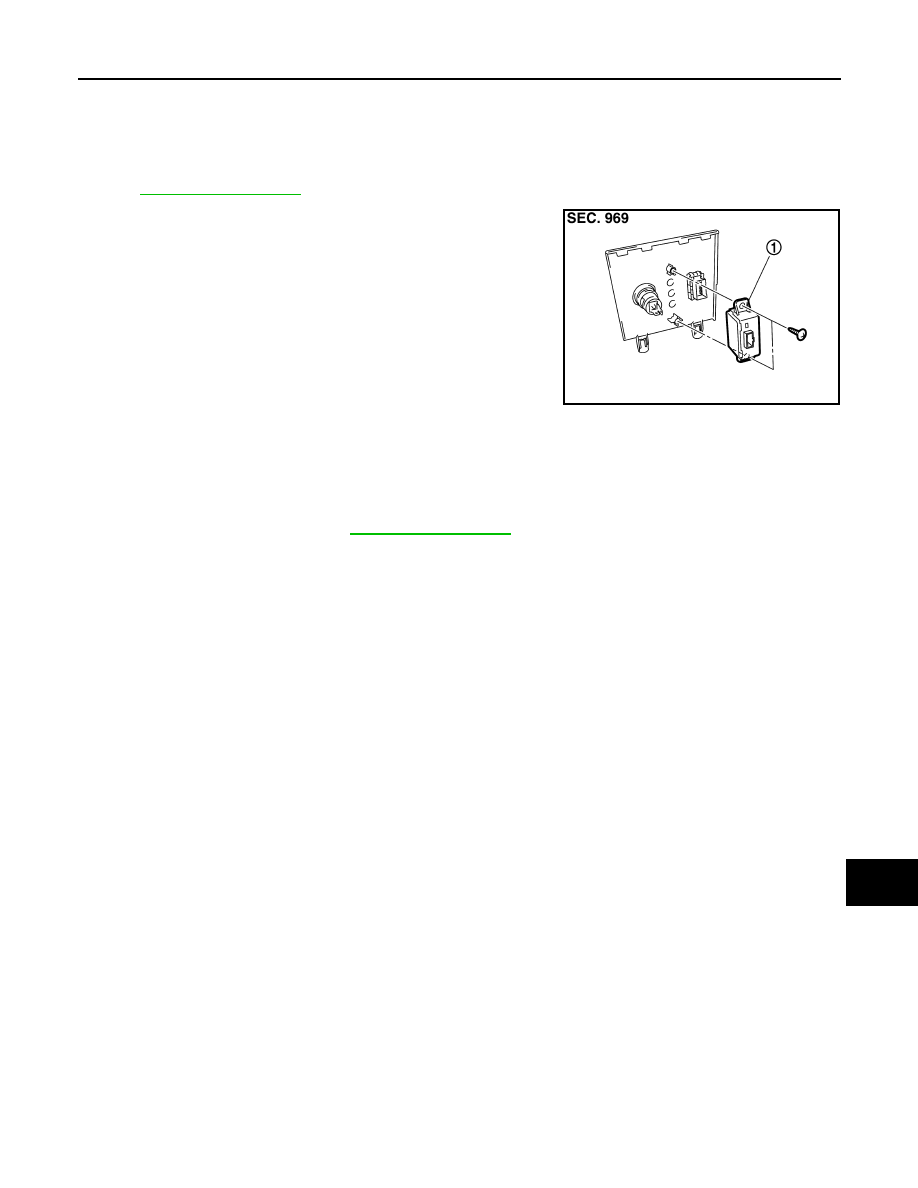

AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000003160794

REMOVAL

Refer to

IP-22, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003160795

REMOVAL

1.

Remove console finisher. Refer to

IP-22, "Exploded View"

.

2.

Remove auxiliary mounting screws.

3.

Remove auxiliary input jacks.

INSTALLATION

Installation is the reverse order of removal.

JPNIA0882ZZ

1.

Auxiliary input jacks

AV-918

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000003160796

REMOVAL

Refer to

INT-26, "NORMAL ROOF : Exploded View"

 (normal roof) or

INT-30, "SUNROOF : Exploded View"

(sunroof).

DISASSEMBLY

Removal and Installation

INFOID:0000000003160797

REMOVAL

1.

Remove map lamp assembly. Refer to

INT-26, "NORMAL ROOF : Exploded View"

 (normal roof) or

INT-

30, "SUNROOF : Exploded View"

 (sunroof).

2.

Remove microphone (1), stretching pawls of map lamp assem-
bly.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0132ZZ

1.

Microphone

JSNIA0132ZZ

AV

GPS ANTENNA

AV-919

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

Exploded View

INFOID:0000000003160798

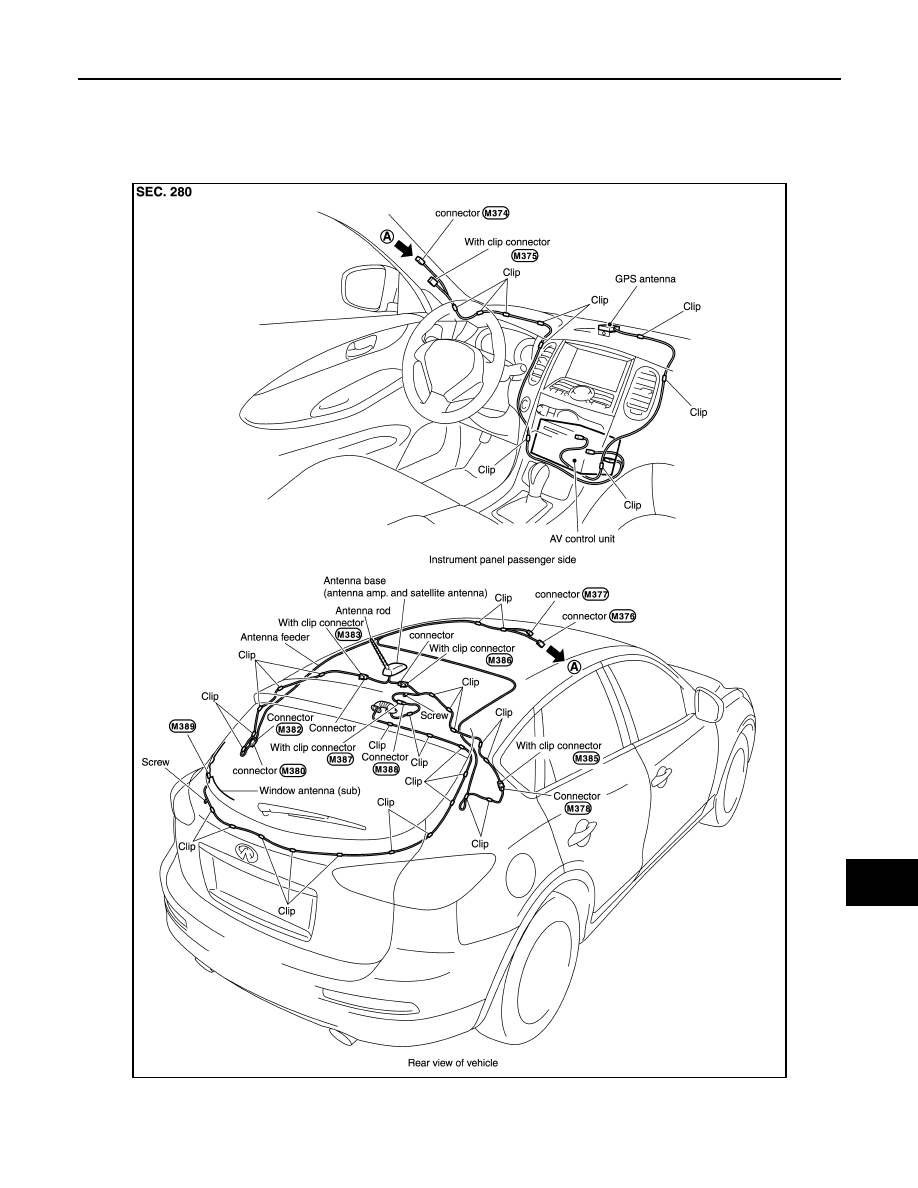

Harness Layout

INFOID:0000000003160799

JPNIA0896GB

AV-920

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

GPS ANTENNA

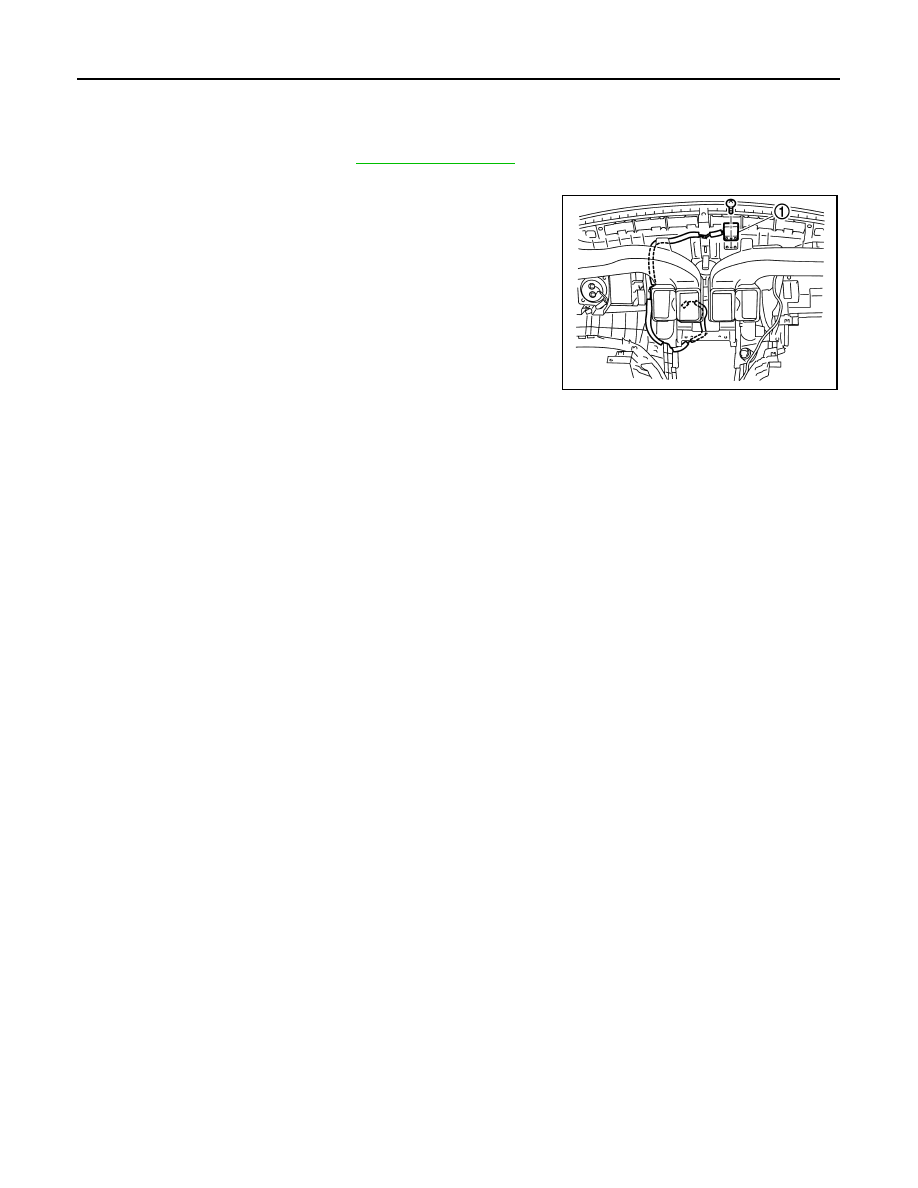

Removal and Installation

INFOID:0000000003160800

REMOVAL

1.

Remove instrument panel. Refer to

IP-11, "Exploded View"

.

2.

Remove GPS antenna mounting screw.

3.

Remove GPS antenna (1).

INSTALLATION

Installation is the reverse order of removal.

JPNIA0897ZZ
