Infiniti EX35. Manual - part 283





AV

MULTIFUNCTION SWITCH

AV-913

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000003160786

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003160787

REMOVAL

1.

Remove cluster lid D. Refer to

IP-11, "Exploded View"

.

2.

Remove multifunction switch mounting screws.

3.

Remove multifunction switch.

INSTALLATION

Installation is the reverse order of removal.

JPNIA0881ZZ

1.

Multifunction switch

2.

Cluster lid D

AV-914

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

PRESET SWITCH

PRESET SWITCH

Exploded View

INFOID:0000000003160788

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003160789

REMOVAL

1.

Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Remove preset switch mounting screws.

3.

Remove preset switch.

INSTALLATION

Installation is the reverse order of removal.
NOTE:
When installing preset switch, do not allow the print wire that connects preset switch and multifunction switch
to get caught in between AV control unit and preset switch.

1.

Clock

2.

Cluster lid C

3.

Preset switch

JSNIA0107ZZ

1.

Clock

2.

Preset switch

A.

Screw

B.

Screw

C.

Screw

JSNIA0127ZZ

AV

IPOD ADAPTER

AV-915

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

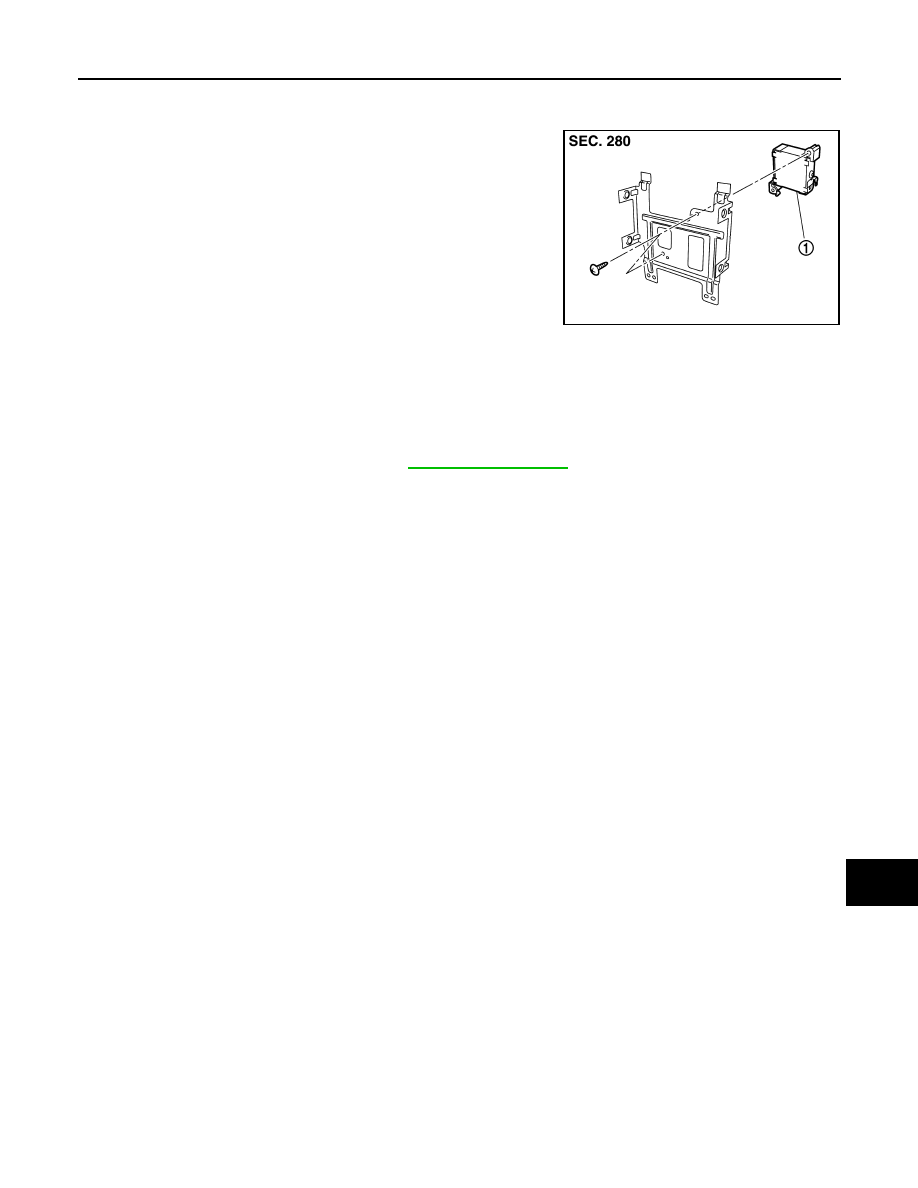

IPOD ADAPTER

Exploded View

INFOID:0000000003567026

Removal and Installation

INFOID:0000000003567027

REMOVAL

1.

Remove display unit with bracket. Refer to

IP-11, "Exploded View"

.

2.

Remove display from display bracket.

3.

Remove iPod adapter mounting screws.

4.

Remove iPod adapter.

INSTALLATION

Install in the reverse order of removal.

JPNIA0891ZZ

1.

iPod adapter

AV-916

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

IPOD CONNECTOR

IPOD CONNECTOR

Exploded View

INFOID:0000000003567029

REMOVAL

Refer to

IP-22, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003567030

REMOVAL

1.

Remove console finisher. Refer to

IP-22, "Exploded View"

.

2.

Push the pawl from the back of console finisher to remove iPod connector.

INSTALLATION

Install in the reverse order of removal.

JPNIA0892ZZ

1.

iPod connector
