Infiniti EX35. Manual - part 276

AV

SONAR CONTROL UNIT (WITH AROUND VIEW MONITOR)

AV-885

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

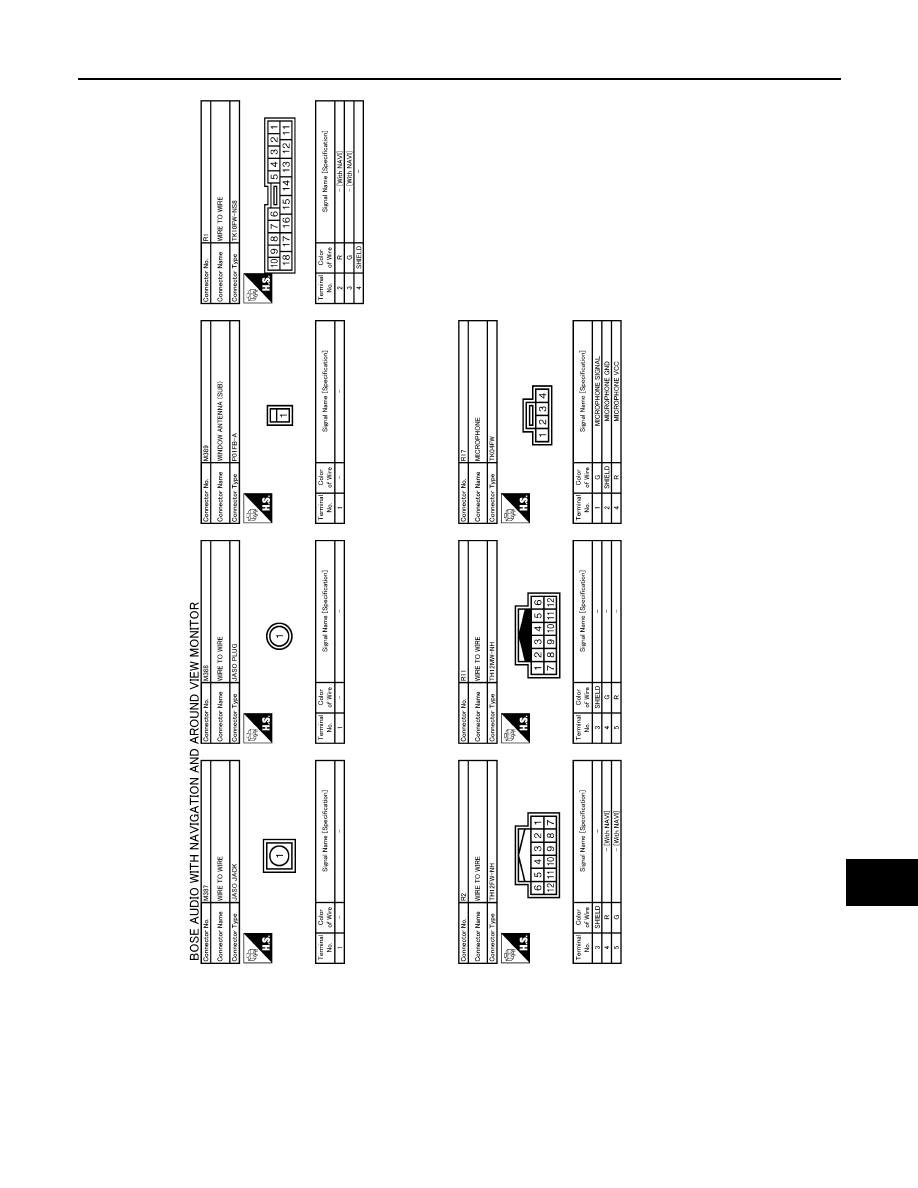

JCNWM0811GB

AV-886

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

SONAR CONTROL UNIT (WITH AROUND VIEW MONITOR)

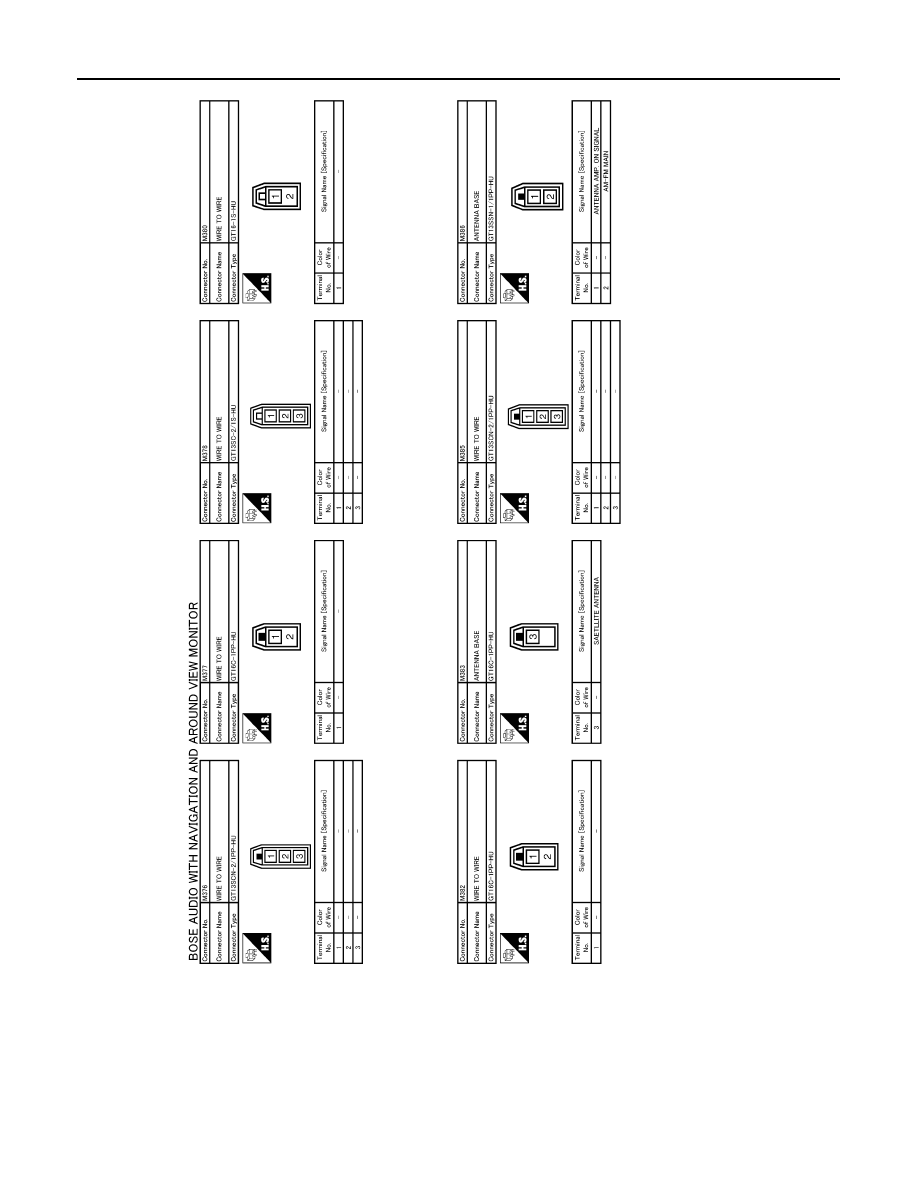

JCNWM0812GB

AV

SONAR CONTROL UNIT (WITH AROUND VIEW MONITOR)

AV-887

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Fail-Safe

INFOID:0000000003160756

• Sonar control unit has diagnosis function which can detect corner sensor malfunction and sensor harness

disconnection.

• It transmits the malfunction status to around view monitor control unit and informs the malfunction to the user

by displaying continuously red sonar indicator.

JCNWM0813GB

AV-888

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

SONAR CONTROL UNIT (WITH AROUND VIEW MONITOR)

DTC Index

INFOID:0000000003160757

NOTE:
“TIME” means the following.
• 0: Means detected malfunction at present. (From malfunction detection to turning ignition switch OFF)
• 1–39: Means detected malfunction in past.

DTC

Display item

Malfunction is detected when...

Reference

B2700

CORNER SENSOR [FL] [B2700]

Corner sensor front left is malfunctioning.

AV-536

B2701

SENSOR HARNESS OPEN [CR-FL] [B2701]

Corner sensor front left harness circuit is open.

AV-537

B2702

CORNER SENSOR [FR] [B2072]

Corner sensor front right is malfunctioning.

AV-538

B2703

SENSOR HARNESS OPEN [CR-FR] [B2703]

Corner sensor front right harness circuit is open.

AV-539

B2704

CORNER SENSOR [RL] [B2704]

Corner sensor rear left is malfunctioning.

AV-540

B2705

SENSOR HARNESS OPEN [CR-RL] [B2705]

Corner sensor rear left harness circuit is open.

AV-541

B2706

CORNER SENSOR [RR] [B2706]

Corner sensor rear right is malfunctioning.

AV-542

B2707

SENSOR HARNESS OPEN [CR-RR] [B2707]

Corner sensor rear right harness circuit is open.

AV-543
