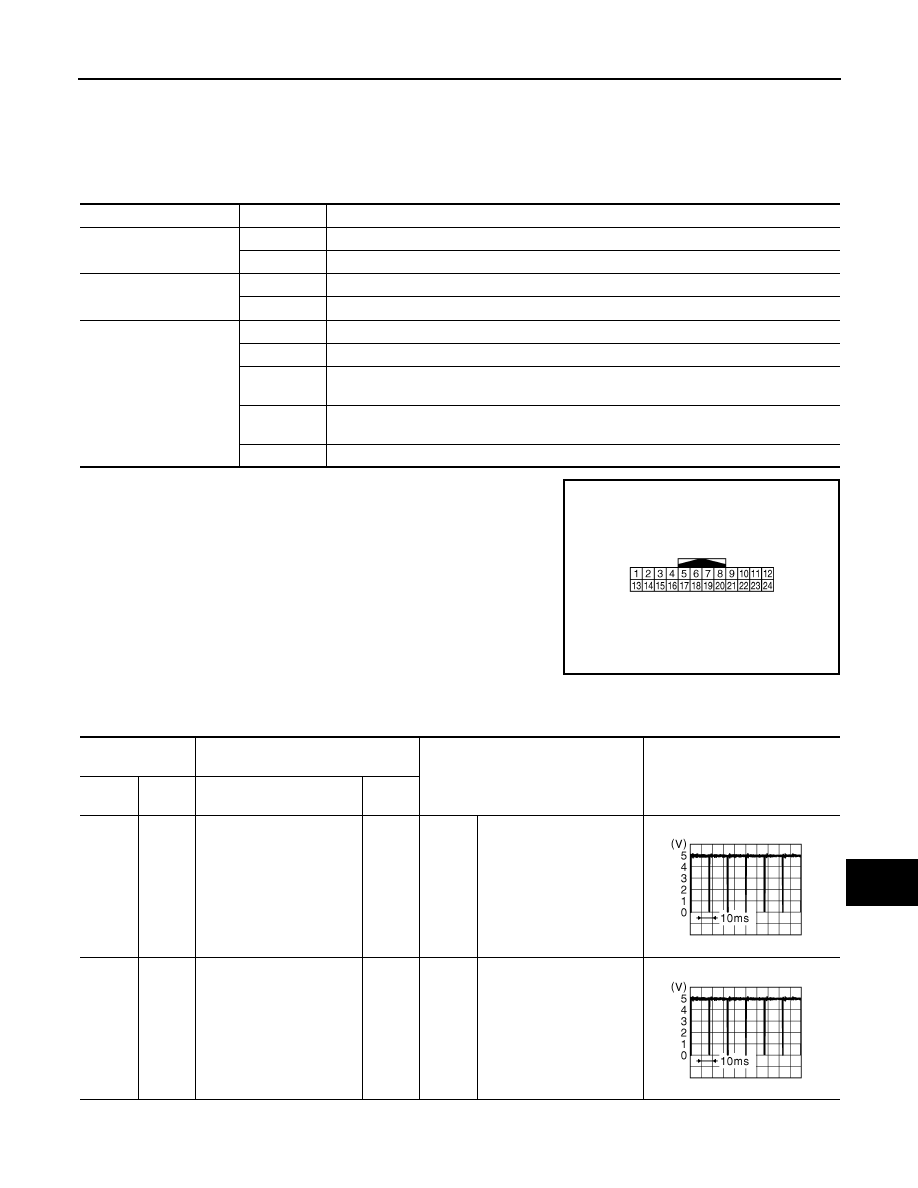

SONAR CONTROL UNIT (WITH AROUND VIEW MONITOR)

Reference Value

INFOID:0000000003160754

VALUES ON THE DIAGNOSIS TOOL

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor Item

Display

Description

SONAR OPE

On

Around view monitor operating (sonar operating).

Off

Around view monitor non-operating (sonar non-operating).

BUZZER OUTPUT

On

Buzzer is output condition.

Off

Buzzer is not output condition.

CR SEN [FL]
CR SEN [FR]
CR SEN [RL]
CR SEN [RR]

ERROR

When a sensor is abnormal.

LV.0

When a sensor is not detection.

LV.2

The distance between the corner sensor and an obstacle is 50 cm (19.6 in) or more and
less then 60 cm (23.6 in).

LV.3

The distance between the corner sensor and an obstacle is 30 cm (11.8 in) or more and
less then 50 cm (19.6 in).

LV.4

The distance between corner sensor and an obstacle less than 30 cm (11.8 in).

JSNIA0303ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

3

(R)

12

(B)

Corner sensor signal front
LH

Input

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

4

(W)

12

(B)

Corner sensor signal front
RH

Input

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

JSNIA0837GB

JSNIA0837GB

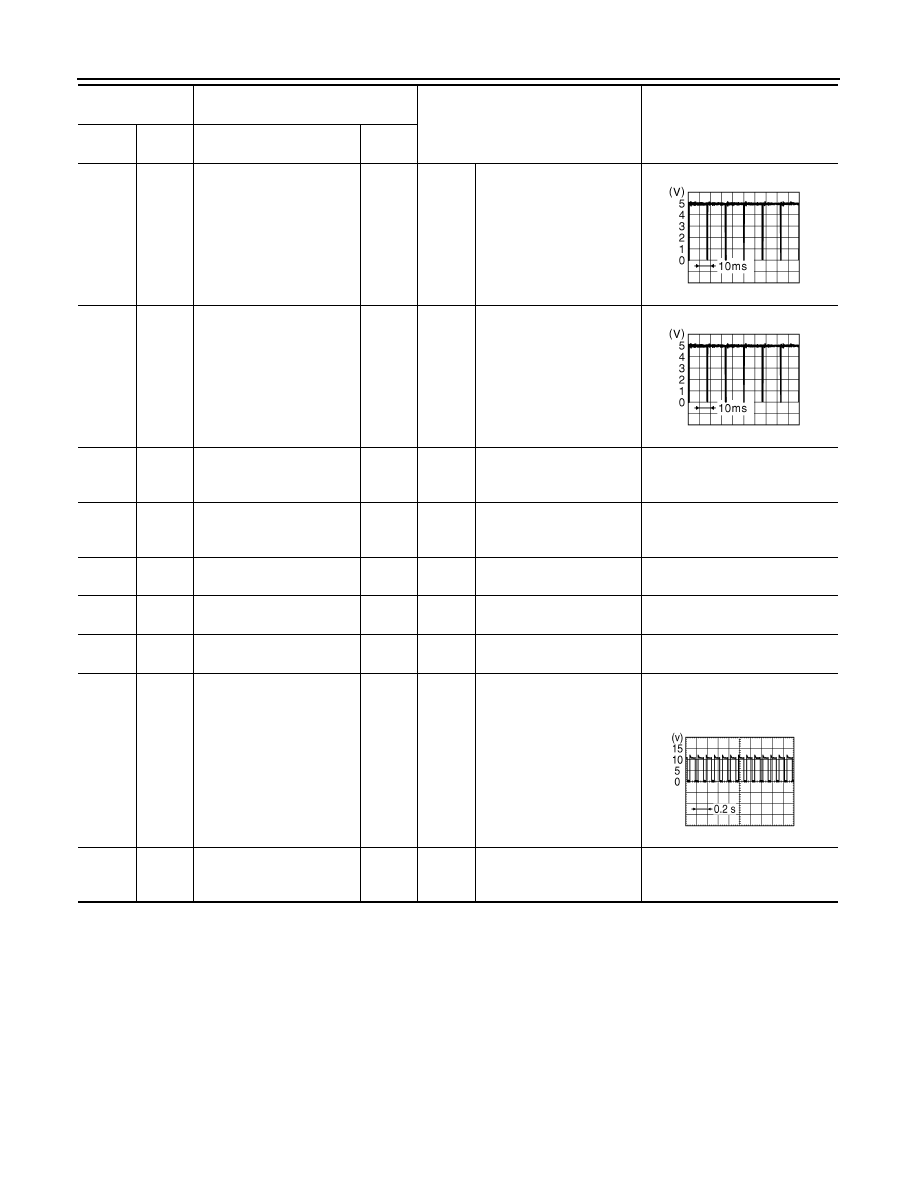

AV-866

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

SONAR CONTROL UNIT (WITH AROUND VIEW MONITOR)

Wiring Diagram - BOSE AUDIO WITH NAVIGATION AND AROUND VIEW MONITOR
-

INFOID:0000000003737139

Click here to view the eWD.
NOTE:

5

(W)

12

(B)

Corner sensor signal rear
LH

Input

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

6

(W/R)

12

(B)

Corner sensor signal rear
RH

Input

Ignition

switch

ON

“CAMERA” switch is ON or
shift position is “R”.

12

(B)

Ground

Sensor ground

Ignition

switch

ON

0  V

13

(V)

Ground

ACC power supply

Input

Ignition

switch

ACC

12.0 V

18

(O)

K-line (CONSULT-III)

19

(G)

AV communication (H)

Input/

Output

20

(R)

AV communication (L)

Input/

Output

23

(GR)

Ground

Buzzer drive signal

Output

Ignition

switch

ON

When buzzer operation

NOTE:
Waveform period changes due to
the distance to an obstacle.

24

(B)

Ground

Ground

Ignition

switch

ON

0  V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

JSNIA0837GB

JSNIA0837GB

SKIB8943E
