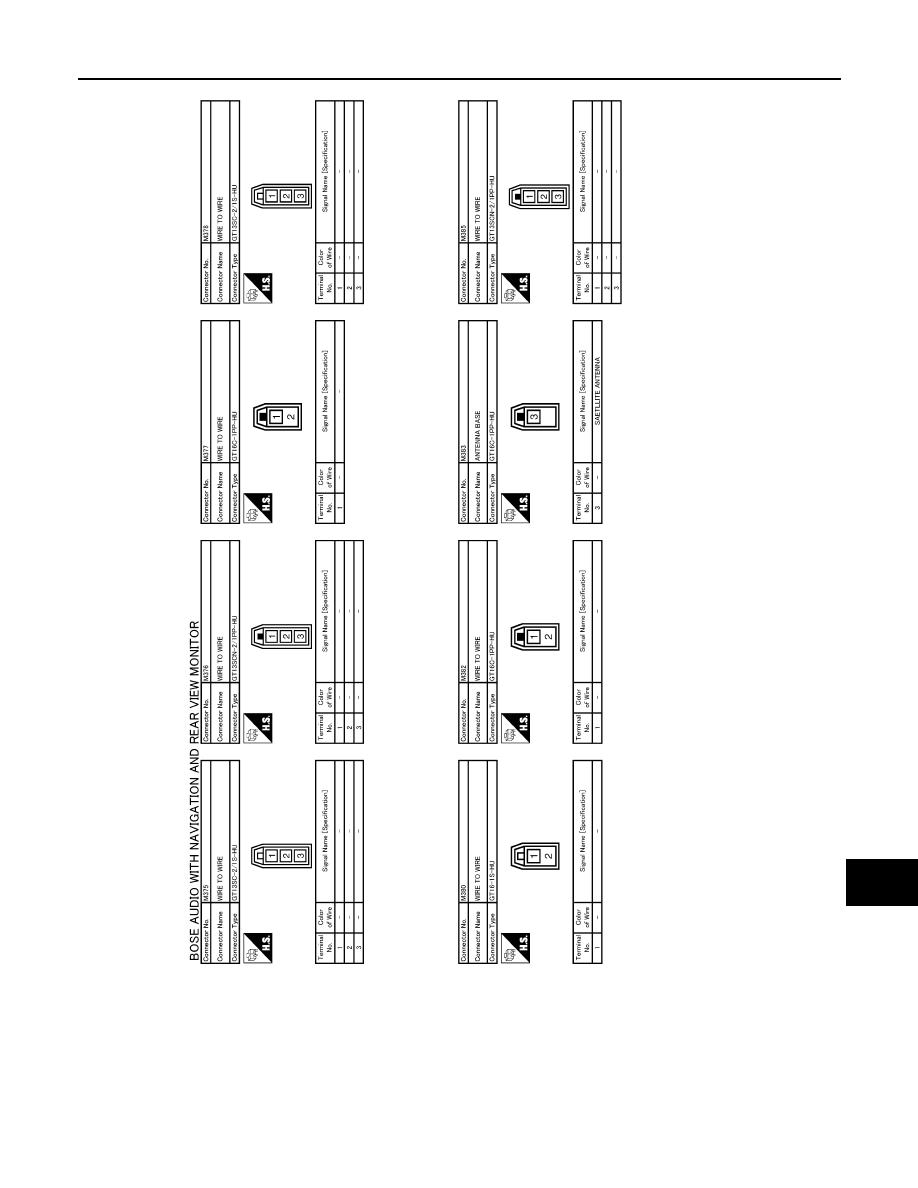

AV

CAMERA CONTROL UNIT

AV-837

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWM0791GB

AV-838

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

CAMERA CONTROL UNIT

JCNWM0792GB

AV

AROUND VIEW MONITOR CONTROL UNIT

AV-839

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AROUND VIEW MONITOR CONTROL UNIT

Reference Value

INFOID:0000000003160752

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA0833ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

2

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

3

(P)

Ground

Ignition signal

Input

Ignition

switch

ON

—

Battery voltage

4

(GR)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

5

(O)

Ground

Illumination signal

Input

Ignition

switch

OFF

Lighting switch is OFF.

0 V

Lighting switch is ON.

12.0 V

6

(SB)

Ground

Vehicle speed signal
(8-pulse)

Input

Ignition

switch

ON

When vehicle speed is ap-
prox. 40 km/h (25 MPH)

7

(G)

Ground

Reverse signal

Input

Ignition

switch

ON

R position

12.0 V

Other than R position

0 V

13

(B)

Ground

Control signal

—

Ignition

switch

ON

—

0  V

SKIA6649J

AV-840

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AROUND VIEW MONITOR CONTROL UNIT

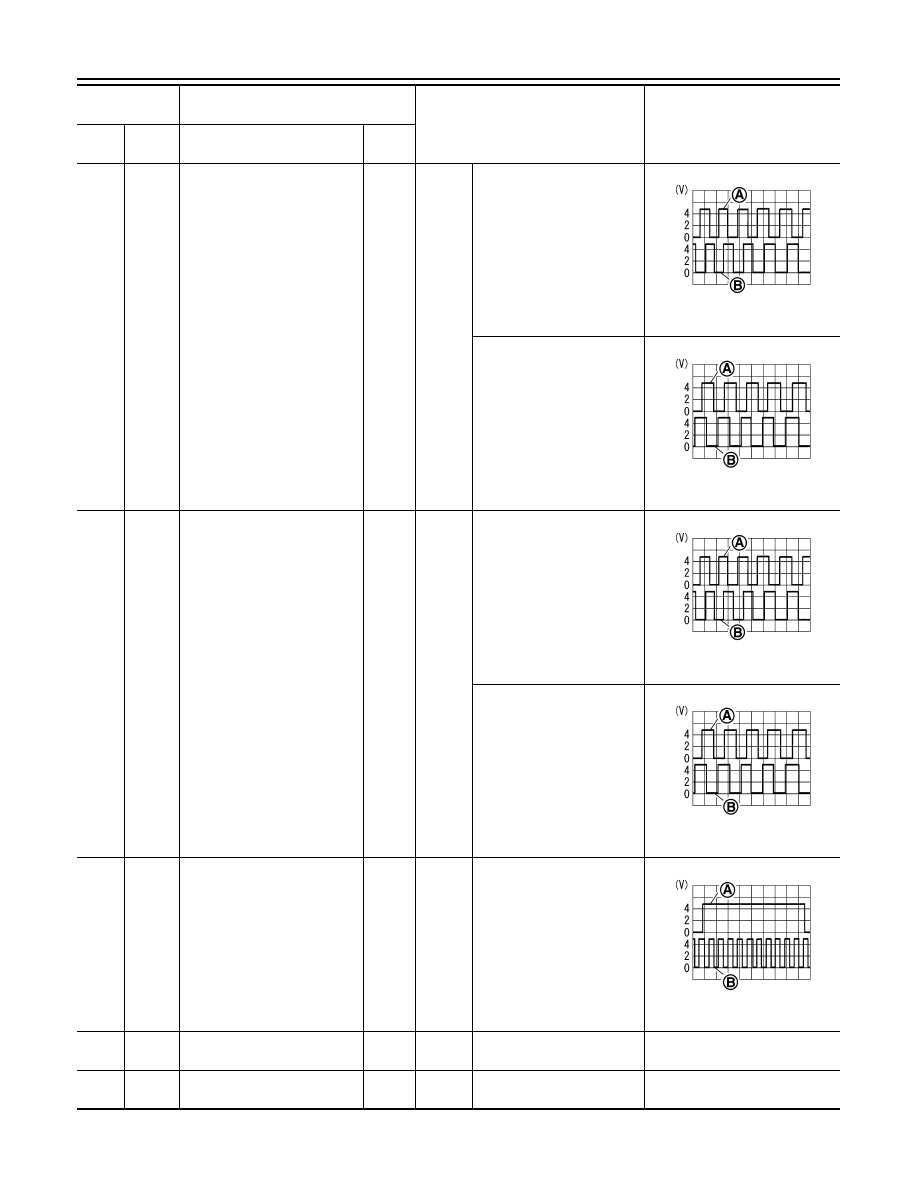

14

(L)

Ground

Sensor signal 1

Input

Ignition

switch

ON

Turn the steering to the right

A: Sensor signal 1
B: Sensor signal 2

Turn the steering to the left

A: Sensor signal 1
B: Sensor signal 2

15

(BR)

Ground

Sensor signal 2

Input

Ignition

switch

ON

Turn the steering to the right

A: Sensor signal 1
B: Sensor signal 2

Turn the steering to the left

A: Sensor signal 1
B: Sensor signal 2

16

(R)

Ground

Sensor signal 3

Input

Ignition

switch

ON

Turn the steering around the
neutral position

A: Sensor signal 3
B: Sensor signal 1

17

(G)

—

AV communication signal (H)

Input/

Output

—

—

—

18

(Y)

—

AV communication signal (L)

Input/

Output

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3827E

SKIB3828E

SKIB3827E

SKIB3828E

SKIB3829E
