Infiniti EX35. Manual - part 232

AV

BOSE AMP.

AV-709

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE AMP.

Reference Value

INFOID:0000000003160746

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA1223ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(Y)

10

(G)

Sound signal rear door
speaker LH

Output

Ignition

switch

ON

Audio output

2

(SB)

3

(V)

Sound signal rear door
speaker RH

Output

Ignition

switch

ON

Audio output

4

(B)

5

(P)

Sound signal front door
speaker LH

Output

Ignition

switch

ON

Audio output

6

(L)

7

(W)

Sound signal front squawk-
er LH

Output

Ignition

switch

ON

Audio output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV-710

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

BOSE AMP.

8

(LG)

13

(Y)

Sound signal front door
speaker RH

Output

Ignition

switch

ON

Audio output

9

(G)

14

(R)

Sound signal woofer and
rear squawker (LH and RH)

Output

Ignition

switch

ON

Audio output

11

(GR)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

12

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

15

(B)

28

(G)

Sound signal center speak-
er

Output

Ignition

switch

ON

Audio output

17

(O)

Ground

Mode change signal

Input

Ignition

switch

ON

Driver's Audio Stage ON

0 V

Driver's Audio Stage OFF

8.5 V

18

(P)

32

(L)

Sound signal front LH

Input

Ignition

switch

ON

Audio output

19

(R)

20

(G)

Sound signal front RH

Input

Ignition

switch

ON

Audio output

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV

BOSE AMP.

AV-711

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WITHOUT REAR VIEW MONITOR AND AROUND VIEW MONITOR

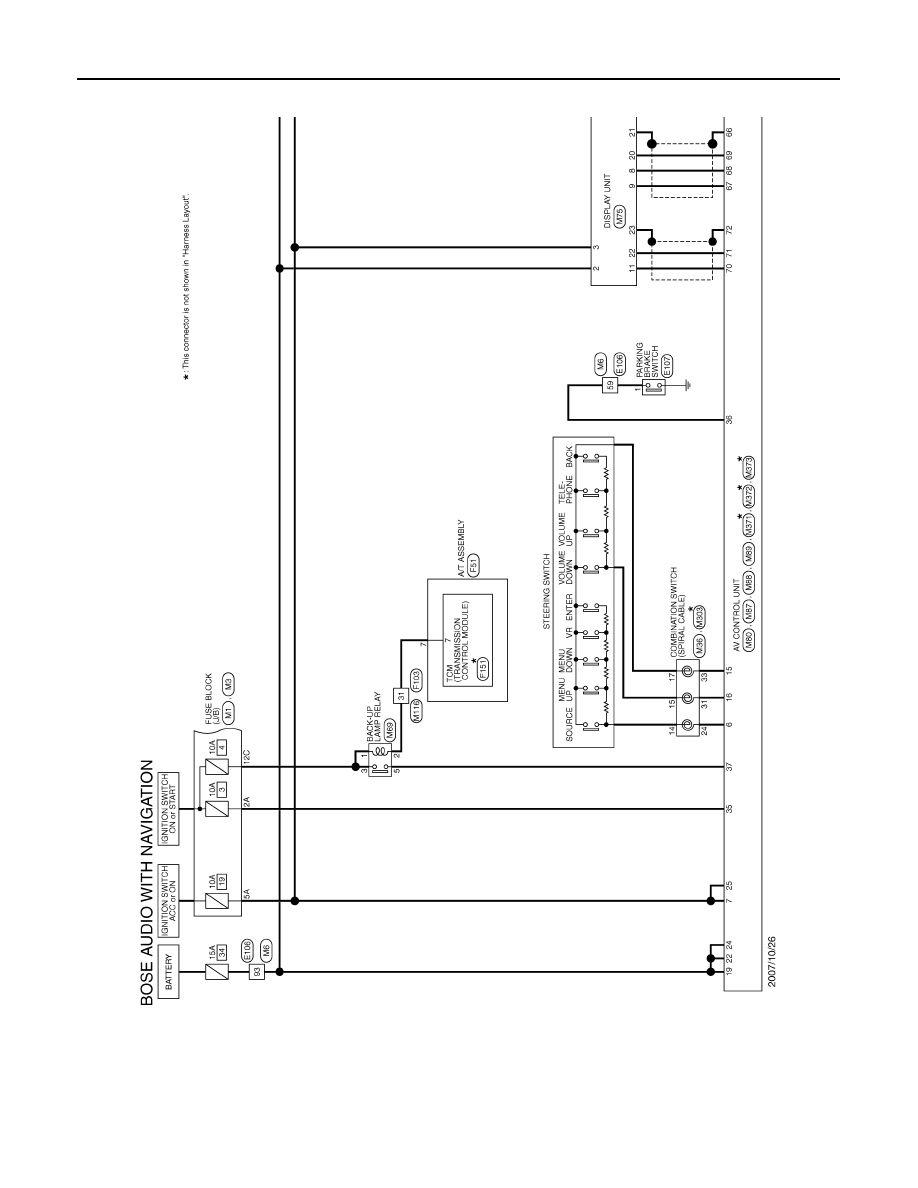

WITHOUT REAR VIEW MONITOR AND AROUND VIEW MONITOR : Wiring Diagram
- BOSE AUDIO WITH NAVIGATION -

INFOID:0000000003737131

Click here to view the eWD.
NOTE:

21

(V)

22

(SB)

Sound signal rear LH

Input

Ignition

switch

ON

Audio output

23

(BR)

33

(Y)

Sound signal rear RH

Input

Ignition

switch

ON

Audio output

25

(GR)

Ground

Woofer amp. ON signal

Output

Ignition

switch

ACC

—

12.0 V

37

(BR)

27

(R)

Sound signal front squawk-
er RH

Output

Ignition

switch

ON

Audio output

31

(W)

Ground

Amp. ON signal

Input

Ignition

switch

ACC

—

12.0 V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

AV-712

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

BOSE AMP.

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

JCNWM0761GB
