AV

INSPECTION AND ADJUSTMENT

AV-441

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Target line preparation procedure 1

3.

Put the points FM and RM (mark) 75 cm (29.5 in) from the points FM0 and RM0 individually.

4.

Route the vinyl string through the points FM and RM using a triangle scale, and then fix it at approximately
1.5 m (59 in) on both sides with packing tape.

5.

Put the points FL, FR, RL, and RR (mark) to both right and left [vehicle width / 2 + 30 cm (11.8 in)] from the
points FM and RM.

Target line preparation procedure 2

6.

Draw the lines of the points FL – RL and FR – RR with vinyl string, and fix it with packing tape.

7.

Put a mark on the center of each axle, draw vertical lines to the lines of the points FL – RL and FR – RR
from the marks on the center of the axle using a triangle scale, and then fix the lines using packing tape.

JSNIA1054ZZ

1.

Thread

2.

Weight

3.

Point FM0 (mark)

4.

Point RM0 (mark)

5.

Packing tape (to fix the vinyl string)

6.

Vinyl string

JSNIA0921ZZ

1.

Point FM

2.

Point RM

3.

Triangle scale

4.

Point FL (mark)

5.

Point FR (mark)

6.

Point RL (mark)

7.

Point RR (mark)

A.

75 cm (29.5 in)

B.

Approx. 1.5 m (59 in)

C.

30 cm (11.8 in)
[Vehicle width/ 2 + 30 cm (11.8 in)
from the points FM and RM]

AV-442

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

INSPECTION AND ADJUSTMENT

Target line preparation procedure 3

Perform “Calibrating Camera Image”
1.

Select “Camera Cont.” of “Confirmation/ Adjustment” mode, and then set to “Calibrating Camera Image”
mode.

2.

Overlap the target lines drawn on the ground with the calibration
marker on the screen by operating the center dial and upper/
lower/left/right switches of multifunction switch on each screen
of “Rear Camera”, “Pass-Side Camera”, “Front Camera”, “Dr-
Side Camera”.

3.

“Writing...” is displayed by pressing the “ENTER” switch, and then the adjustment result is written to the
around view monitor control unit.

CAUTION:

Check that “Writing...” is displayed. Do never perform other operations while “Writing...” is dis-
played.

>> GO TO 6.

6.

PERFORM “FINE TUNING OF BIRDS-EYE VIEW”

This mode is designed to align the boundary between each camera image that could not be aligned in the
“Calibrating Camera Image” mode.
1.

Select “Camera Cont.” of “Confirmation/ Adjustment” mode, and then set to “Fine Tuning of Birds-Eye
View” mode.

JSNIA0922ZZ

1.

Point FL

2.

Point FR

3.

Point RL

4.

Point RR

5.

Center position of axle

6.

Triangle scale

Adjustment range

Rotation direction (Center
dial)

: 31 patterns (16 on the
center)

Upper/lower direction (up-
per/lower switch)

99 – 99

Left/right direction (left/right
switch)

99 – 99

JSNIA1053GB

AV

INSPECTION AND ADJUSTMENT

AV-443

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

2.

Operate the center dial and upper/lower/left/right switch to over-
lap the marker on the screen and the target lines on the ground.
NOTE:
Move the “+”- mark on the camera position to adjustment by
pressing the “CAMERA” switch.

3.

When the target line is overlapped on the marker, press the
“ENTER” switch to write the adjustment result to the around
view monitor control unit.

CAUTION:

Check that “Writing...” is displayed. Do never perform other
operations while “Writing...” is displayed.
NOTE:
• It can be initialized to the NISSAN factory default condition with “Initialize Camera Image Calibration” of

“Calibrating Camera Image”.

• The adjustment value is cancelled on this mode by performing “Initialize Camera Image Calibration”.

>> Calibration end

JSNIA1055GB

AV-444

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

FUNCTION DIAGNOSIS

MULTI AV SYSTEM

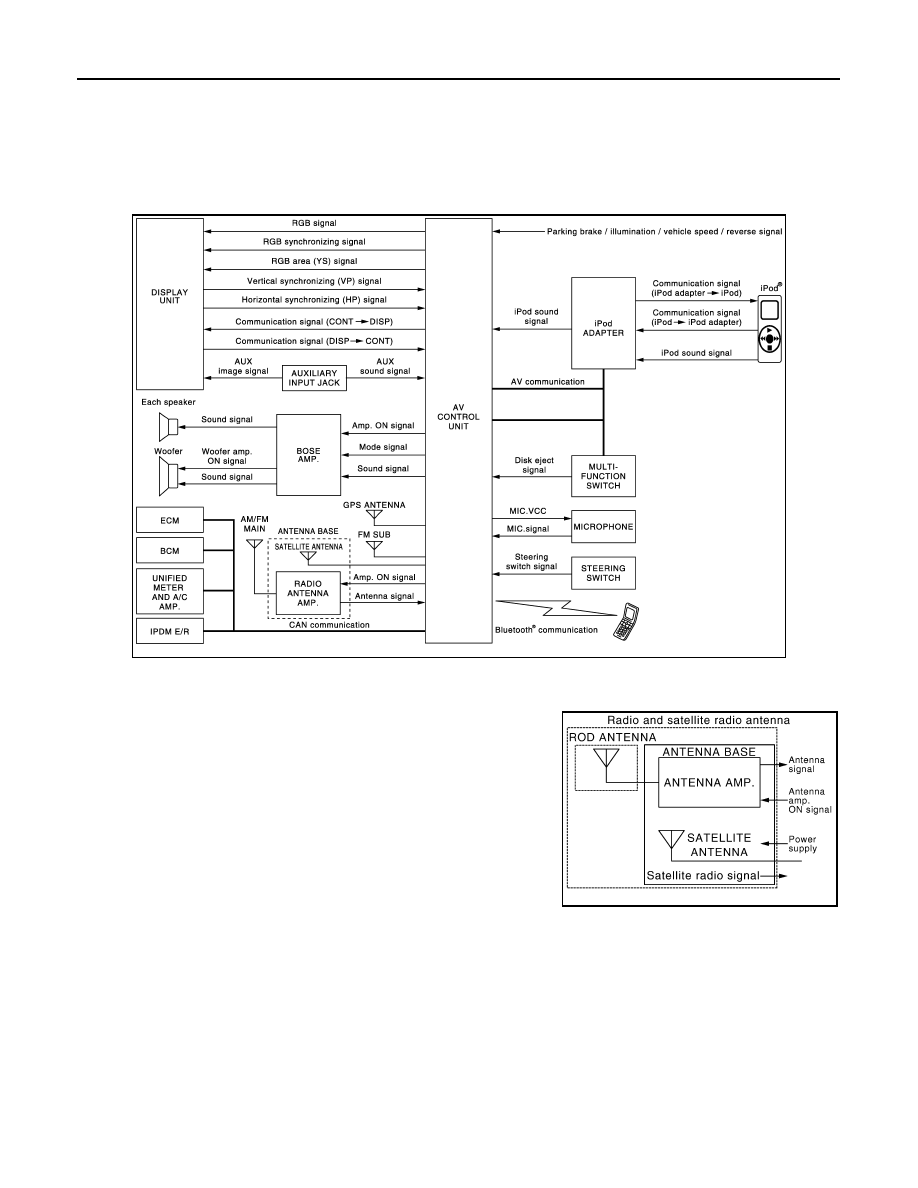

System Diagram

INFOID:0000000003160599

WITHOUT REAR VIEW MONITOR AND AROUND VIEW MONITOR

NOTE:
• The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION

SWITCH virtually.

• A radio antenna base integrated with radio antenna and satellite

radio antenna is adopted.

JSNIA0694GB

JSNIA1062GB
