Infiniti EX35. Manual - part 161





AV

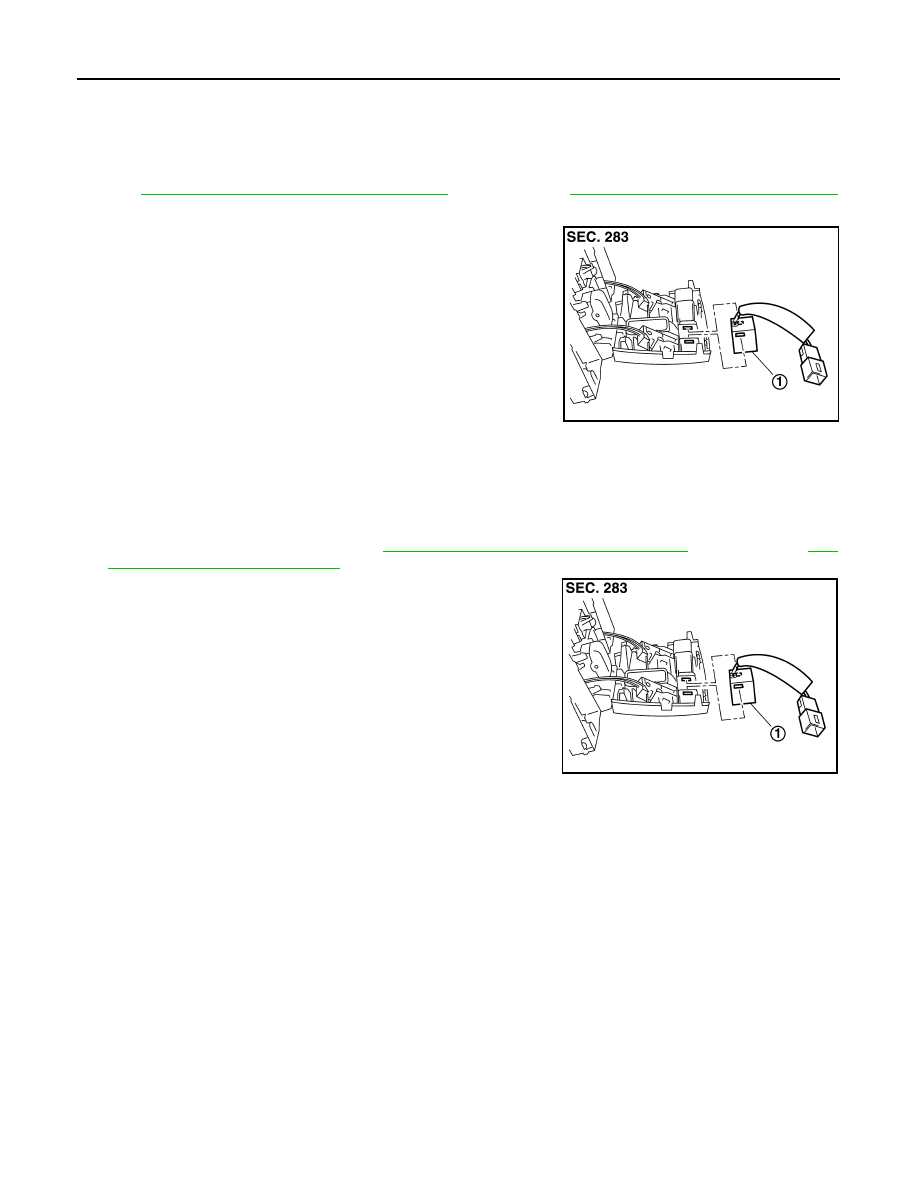

IPOD ADAPTER

AV-425

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

IPOD ADAPTER

Exploded View

INFOID:0000000003573765

Removal and Installation

INFOID:0000000003573766

REMOVAL

1.

Remove display unit with bracket. Refer to

IP-11, "Exploded View"

.

2.

Remove display from display bracket.

3.

Remove iPod adapter mounting screws.

4.

Remove iPod adapter.

INSTALLATION

Install in the reverse order of removal.

JPNIA0891ZZ

1.

iPod adapter

AV-426

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

IPOD CONNECTOR

IPOD CONNECTOR

Exploded View

INFOID:0000000003573767

REMOVAL

Refer to

IP-22, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003573768

REMOVAL

1.

Remove console finisher. Refer to

IP-22, "Exploded View"

.

2.

Push the pawl from the back of console finisher to remove iPod connector.

INSTALLATION

Install in the reverse order of removal.

JPNIA0892ZZ

1.

iPod connector

AV

AUXILIARY INPUT JACKS

AV-427

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000003573770

REMOVAL

Refer to

IP-22, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003573771

REMOVAL

1.

Remove console finisher. Refer to

IP-22, "Exploded View"

.

2.

Remove auxiliary mounting screws.

3.

Remove auxiliary input jacks.

INSTALLATION

Installation is the reverse order of removal.

JPNIA0882ZZ

1.

Auxiliary input jacks

AV-428

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000003573772

REMOVAL

Refer to

INT-26, "NORMAL ROOF : Exploded View"

 (normal roof) or

INT-30, "SUNROOF : Exploded View"

(sunroof).

DISASSEMBLY

Removal and Installation

INFOID:0000000003573773

REMOVAL

1.

Remove map lamp assembly. Refer to

INT-26, "NORMAL ROOF : Exploded View"

 (normal roof) or

INT-

30, "SUNROOF : Exploded View"

 (sunroof).

2.

Remove microphone (1), stretching pawls of map lamp assem-
bly.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0132ZZ

1.

Microphone

JSNIA0132ZZ
