Infiniti EX35. Manual - part 159

AV

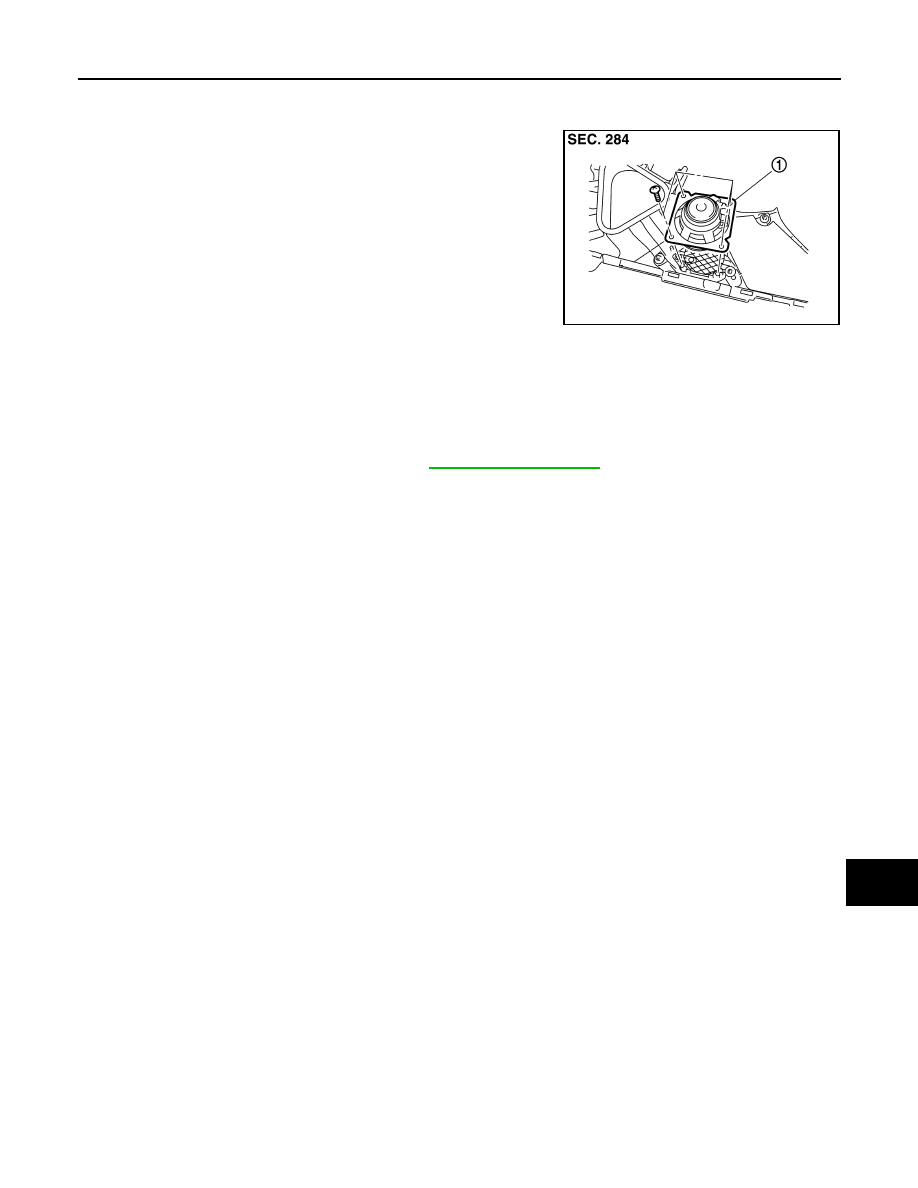

REAR SQUAWKER

AV-417

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR SQUAWKER

Exploded View

INFOID:0000000003573753

Removal and Installation

INFOID:0000000003573754

REMOVAL

1.

Remove luggage side finisher upper. Refer to

INT-34, "Exploded View"

.

2.

Remove rear squawker mounting screws.

3.

Remove rear squawker.

INSTALLATION

Installation is the reverse order of removal.

JPNIA0887ZZ

1.

Rear squawker

AV-418

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

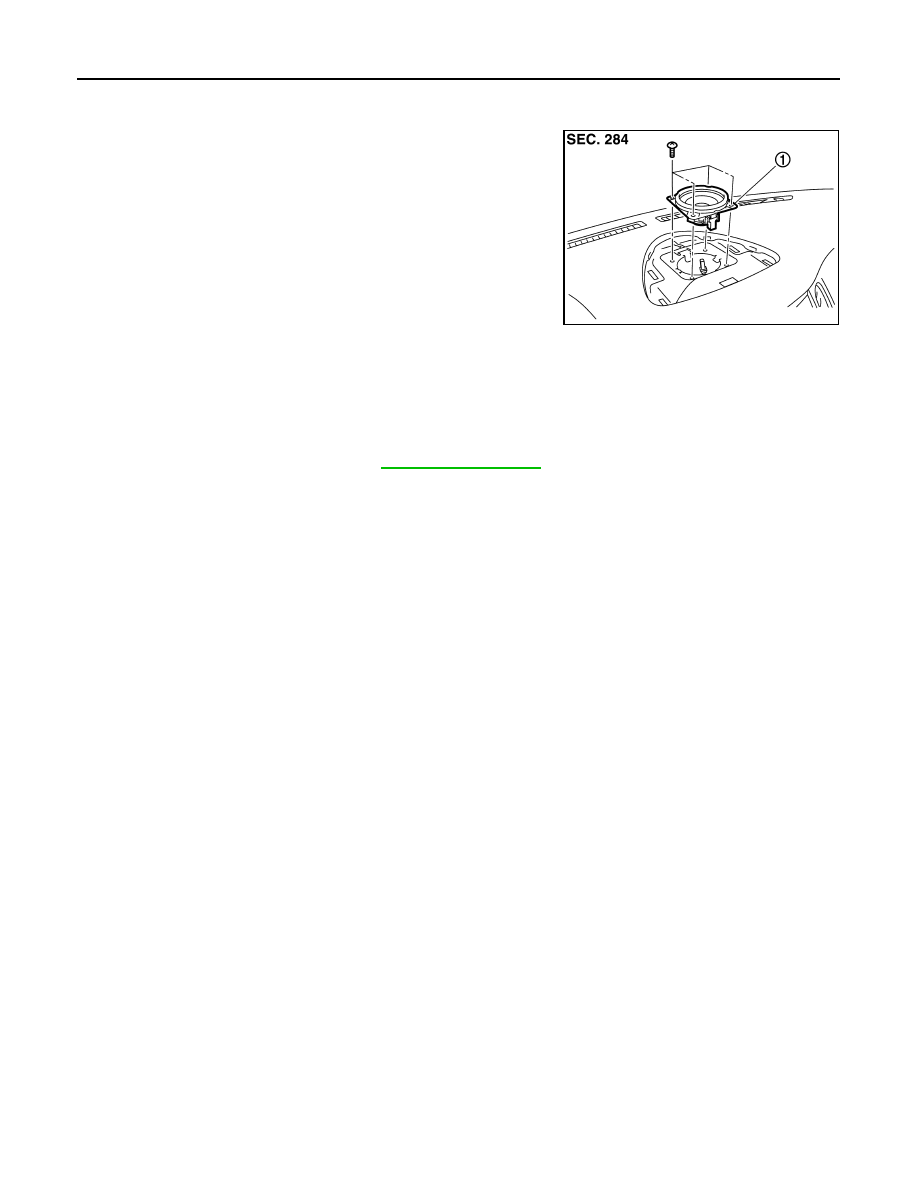

CENTER SPEAKER

CENTER SPEAKER

Exploded View

INFOID:0000000003573755

Removal and Installation

INFOID:0000000003573756

REMOVAL

1.

Remove center speaker grille. Refer to

IP-11, "Exploded View"

.

2.

Remove center speaker mounting screws, lift up the center speaker and disconnect center speaker con-
nector.

3.

Remove center speaker.

INSTALLATION

Installation is the reverse order of removal.

JPNIA0886ZZ

1.

Center speaker

AV

WOOFER

AV-419

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WOOFER

Exploded View

INFOID:0000000003573757

Removal and Installation

INFOID:0000000003573758

REMOVAL

1.

Remove Luggage finisher center. Refer to

INT-34, "Exploded View"

.

2.

Remove woofer clamp.

3.

Remove harness clip and woofer connector.

4.

Remove woofer.

INSTALLATION

Installation is the reverse order of removal.

JPNIA0888ZZ

1.

Woofer clamp

2.

Woofer

AV-420

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AMP.

BOSE AMP.

Exploded View

INFOID:0000000003573759

Removal and Installation

INFOID:0000000003573760

REMOVAL

1.

Remove Luggage floor spacer (LH). Refer to

INT-34, "Exploded View"

.

2.

Remove BOSE amp. mounting nuts.

3.

Remove BOSE amp..

INSTALLATION

Installation is the reverse order of removal.

JPNIA0889ZZ

1.

BOSE amp.
