Infiniti EX35. Manual - part 158

AV

DISPLAY UNIT

AV-413

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISPLAY UNIT

Exploded View

INFOID:0000000003573745

Removal and Installation

INFOID:0000000003573746

REMOVAL

1.

Remove cluster lid D. Refer to

IP-11, "Exploded View"

.

2.

Remove display unit mounting screws.

3.

Remove display unit.

INSTALLATION

Installation is the reverse order of removal.

JPNIA0875ZZ

1.

Display unit

AV-414

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000003573747

Removal and Installation

INFOID:0000000003573748

REMOVAL

1.

Remove front door finisher. Refer to

INT-11, "DRIVER SIDE : Exploded View"

 (driver side) or

INT-14,

"PASSENGER SIDE : Exploded View"

 (passenger side).

2.

Remove front door speaker mounting bolts, disconnect the front door speaker connector.

3.

Remove front door speaker.

INSTALLATION

Installation is the reverse order of removal.

JPNIA0876ZZ

1.

Front door speaker

AV

REAR DOOR SPEAKER

AV-415

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

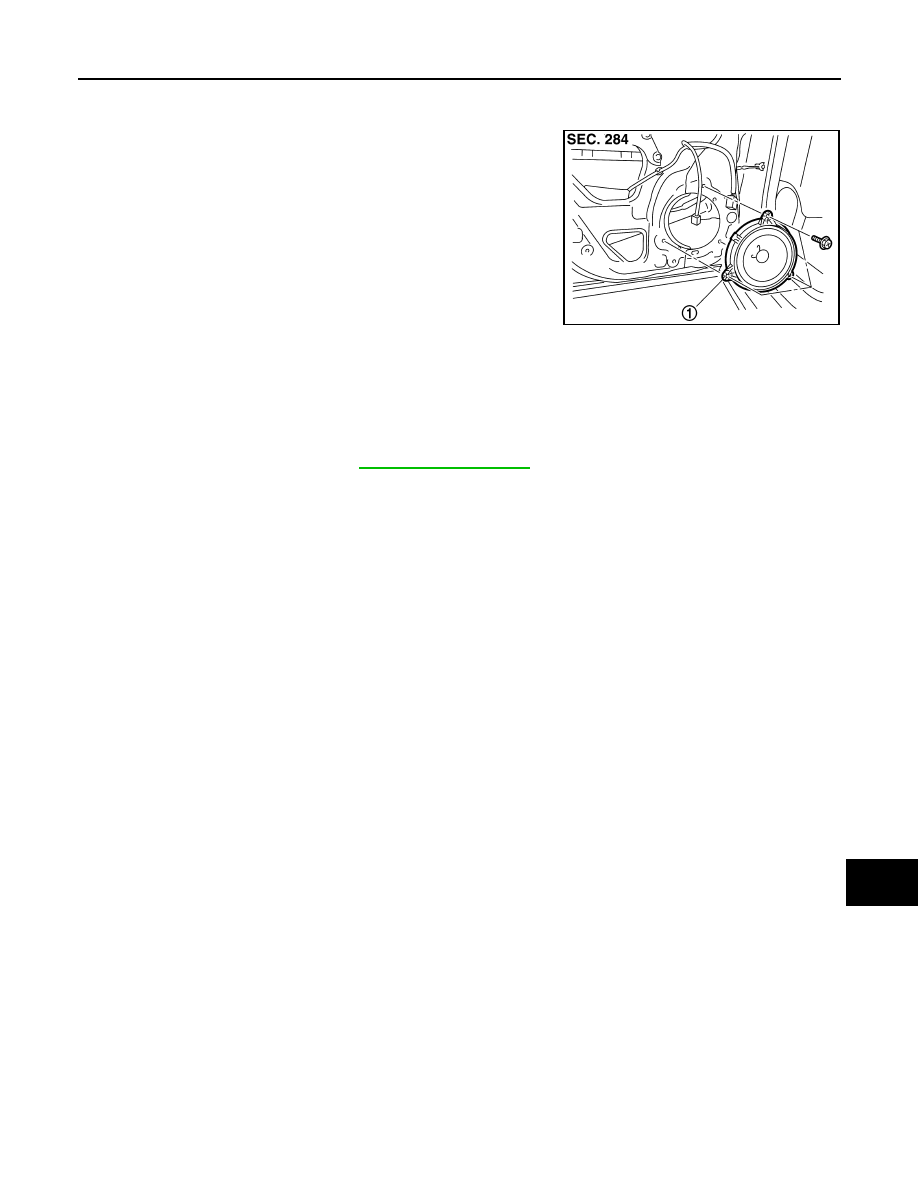

REAR DOOR SPEAKER

Exploded View

INFOID:0000000003573749

Removal and Installation

INFOID:0000000003573750

REMOVAL

1.

Remove rear door finisher. Refer to

INT-17, "Exploded View"

.

2.

Remove rear door speaker mounting bolts, disconnect the rear door speaker connector.

3.

Remove rear door speaker.

INSTALLATION

Installation is the reverse order of removal.

JPNIA0877ZZ

1.

Rear door speaker

AV-416

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

FRONT SQUAWKER

FRONT SQUAWKER

Exploded View

INFOID:0000000003573751

Removal and Installation

INFOID:0000000003573752

REMOVAL

1.

Lift up the speaker grille with squawker. Refer to

IP-11, "Exploded View"

.

2.

Disconnect the front squawker connector.

3.

Remove front squawker mounting screws.

4.

Remove front squawker.

INSTALLATION

Installation is the reverse order of removal.

JPNIA0878ZZ

1.

Front squawker

2.

Speaker grille
