Infiniti EX35. Manual - part 1551





WW-56

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

75

(GR)

Ground

Passenger door an-
tenna (+)

Output

When the pas-
senger door re-
quest switch is
operated with ig-
nition switch OFF

When Intelligent Key is in
the antenna detection area

When Intelligent Key is not
in the antenna detection
area

76

(V)

Ground

Driver door antenna
(

)

Output

When the driver
door request
switch is operat-
ed with ignition
switch OFF

When Intelligent Key is in
the antenna detection area

When Intelligent Key is not
in the antenna detection
area

77

(LG)

Ground

Driver door antenna
(+)

Output

When the driver
door request
switch is operat-
ed with ignition
switch OFF

When Intelligent Key is in
the antenna detection area

When Intelligent Key is not
in the antenna detection
area

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

BCM (BODY CONTROL MODULE)

WW-57

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

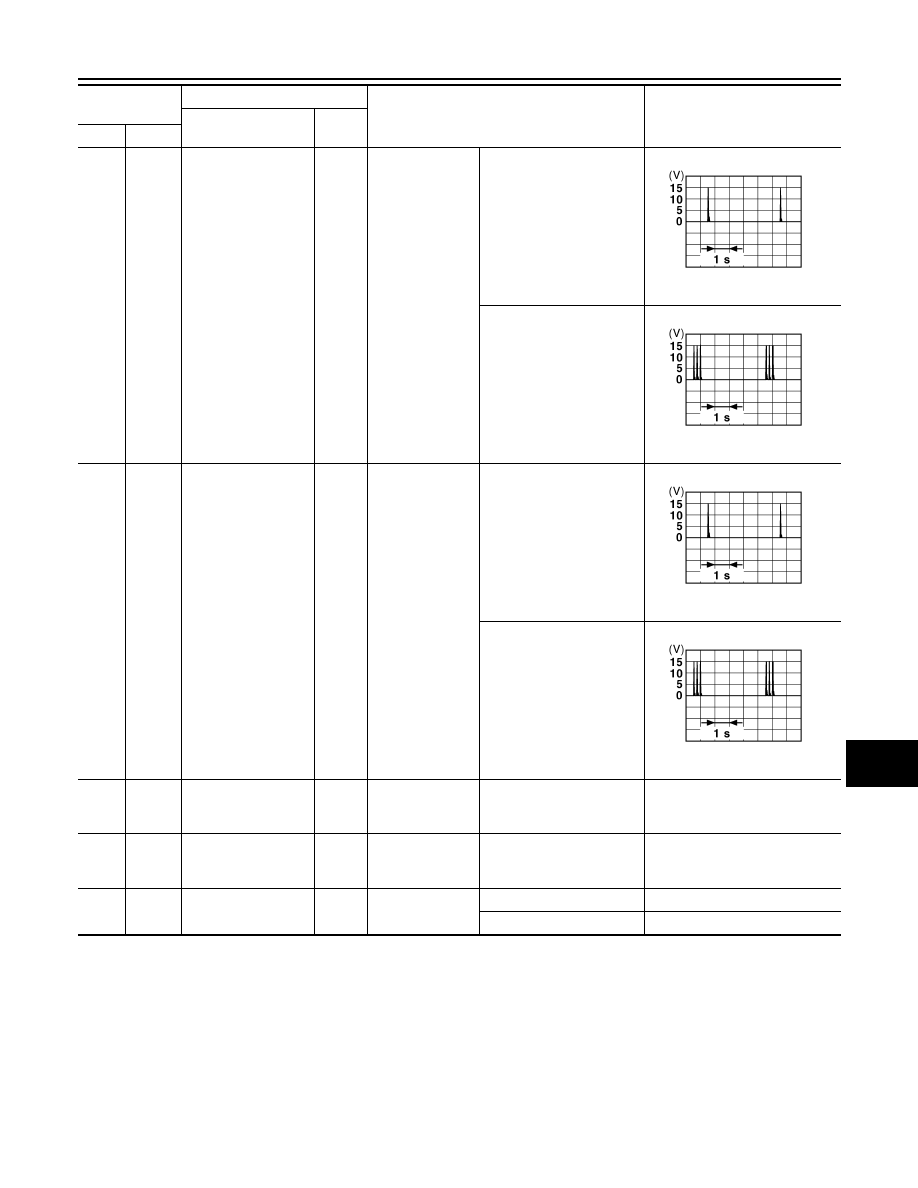

78

(Y)

Ground

Room antenna (

(Instrument panel)

Output

Ignition switch
OFF

When Intelligent Key is in
the passenger compart-
ment

When Intelligent Key is not
in the passenger compart-
ment

79

(BR)

Ground

Room antenna (+)
(Instrument panel)

Output

Ignition switch
OFF

When Intelligent Key is in
the passenger compart-
ment

When Intelligent Key is not
in the passenger compart-
ment

80

(GR)

Ground

NATS antenna amp
(Built in key slot)

Input/

Output

During waiting

Ignition switch is pressed
while inserting the key into
the key slot.

Just after pressing ignition
switch. Pointer of tester should
move.

81

(W)

Ground

NATS antenna amp
(Built in key slot)

Input/

Output

During waiting

Ignition switch is pressed
while inserting the key into
the key slot.

Just after pressing ignition
switch. Pointer of tester should
move.

82

(R)

Ground

Ignition relay [Fuse
block (J/B)] control

Output

Ignition switch

OFF or ACC

0 V

ON

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

WW-58

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

83

(Y)

Ground

Remote keyless entry
receiver signal

Input/

Output

During waiting

When operating either button on the key

87

(BR)

Ground

Combination switch
INPUT 5

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

1.4 V

Front fog lamp switch ON
(Wiper intermittent dial 4)

1.3 V

Rear wiper switch ON
(Wiper intermittent dial 4)

1.3 V

Any of the conditions below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 6
• Wiper intermittent dial 7

1.3 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA0064GB

JMKIA0065GB

JPMIA0041GB

JPMIA0037GB

JPMIA0039GB

JPMIA0040GB

BCM (BODY CONTROL MODULE)

WW-59

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

88

(V)

Ground

Combination switch
INPUT 3

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

1.4 V

Lighting switch HI
(Wiper intermittent dial 4)

1.3 V

Lighting switch 2ND
(Wiper intermittent dial 4)

1.3 V

Rear washer switch ON
(Wiper intermittent dial 4)

1.3 V

Any of the conditions below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 3

1.3 V

89

(BR)

Ground

Push-button ignition
switch (Push switch)

Input

Push-button igni-
tion switch (push
switch)

Pressed

0 V

Not pressed

Battery voltage

90

(P)

Ground

CAN-L

Input/

Output

91

(L)

Ground

CAN-H

Input/

Output

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JPMIA0041GB

JPMIA0036GB

JPMIA0037GB

JPMIA0039GB

JPMIA0040GB
