WW-12

< FUNCTION DIAGNOSIS >

REAR WIPER AND WASHER SYSTEM

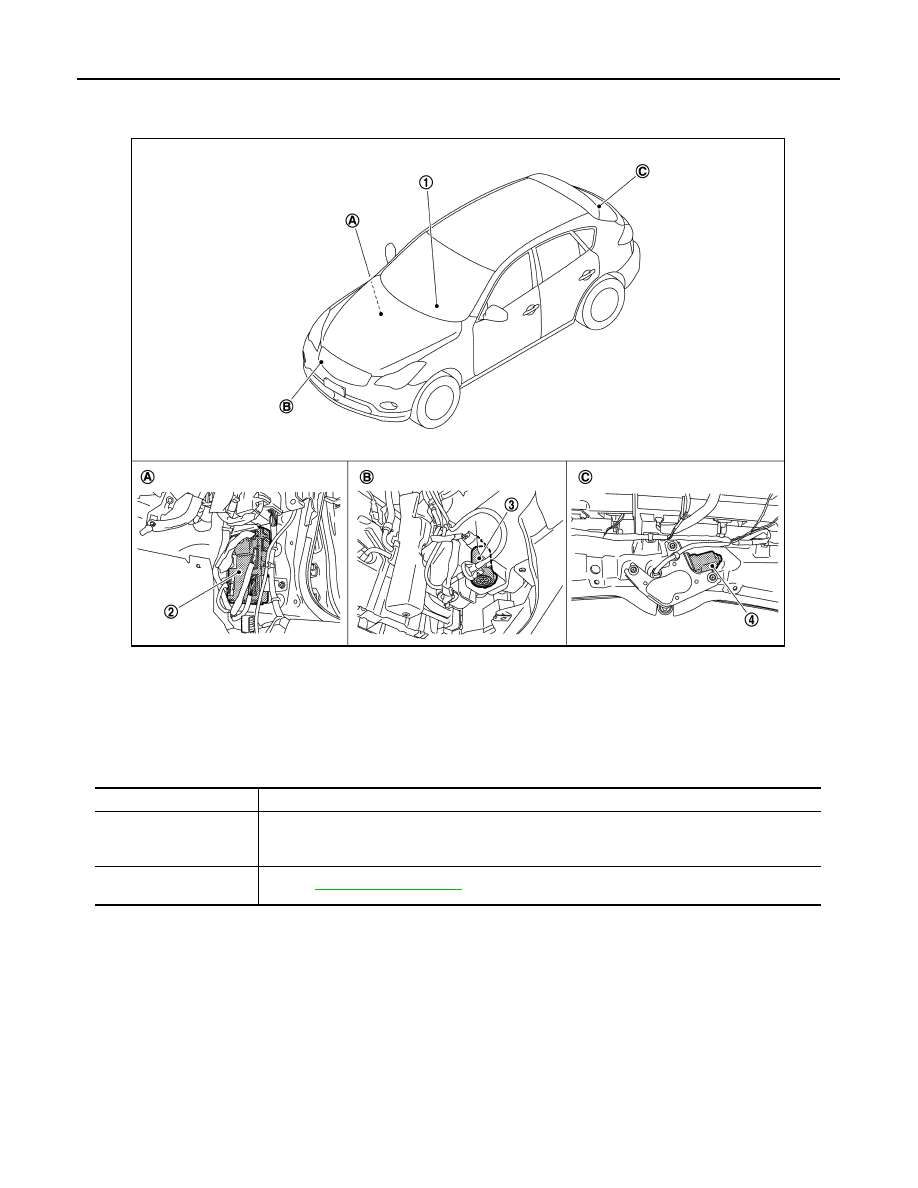

Component Parts Location

INFOID:0000000003591487

Component Description

INFOID:0000000003591488

1.

Combination switch

2.

BCM

3.

Washer pump

4.

Rear wiper motor

A.

Dash side lower (Passenger side)

B.

Radiator core support (RH)

C.

Back door trim finisher lower inside

JPLIA0984ZZ

Part

Description

BCM

• Judges each switch status by the combination switch reading function.
• Supplies power to the rear wiper motor.
• Performs the auto stop control of the rear wiper.

Combination switch
(Wiper & washer switch)

Refer to

BCS-8, "System Diagram"

.

DIAGNOSIS SYSTEM (BCM)

WW-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000003769969

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:

*: This item is displayed, but is not used.

FREEZE FRAME DATA (FFD) AND IGN COUNTER

Freeze Frame Data

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

—

AIR CONDITONER*

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

IVIS - NATS

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

—

TRUNK*

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONITOR)

×

×

×

WW-14

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

The BCM records the following condition at the moment a particular DTC is detected.
• Vehicle Speed
• Odd Trip Meter
• Vehicle Condition (BCM detected condition)

IGN Counter

IGN counter indicates the number of times that ignition switch is turned ON after DTC is detected.
• The number is 0 when a malfunction is detected now.
• The number increases like 1

→

 2

→

 3...38

→

 39 after returning to the normal condition whenever ignition

switch OFF

→

 ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

WIPER

WIPER : CONSULT-III Function (BCM - WIPER)

INFOID:0000000003591501

WORK SUPPORT

*:Factory setting

DATA MONITOR

CONSULT screen terms

Description

SLEEP>LOCK

While turning BCM status from low power consumption mode to normal mode (Power supply
position is “LOCK”)

SLEEP>OFF

While turning BCM status from low power consumption mode to normal mode (Power supply
position is “OFF”.)

LOCK>ACC

While turning power supply position from “LOCK” to “ACC”

ACC>ON

While turning power supply position from “ACC” to “IGN”

RUN>ACC

While turning power supply position from “RUN” to “ACC” (Vehicle is stopping and selector
lever is except P position.)

CRANK>RUN

While turning power supply position from “CRANKING” to “RUN” (From cranking up the en-
gine to run it)

RUN>URGENT

While turning power supply position from “RUN“ to “ACC” (Emergency stop operation)

ACC>OFF

While turning power supply position from “ACC” to “OFF”

OFF>LOCK

While turning power supply position from “OFF” to “LOCK”

OFF>ACC

While turning power supply position from “OFF” to “ACC”

ON>CRANK

While turning power supply position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power supply position is “OFF”.) to low power
consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power supply position is “LOCK”.) to low pow-
er consumption mode

LOCK

Power supply position is “LOCK” (Ignition switch OFF with steering is locked.)

OFF

Power supply position is “OFF” (Ignition switch OFF with steering is unlocked.)

ACC

Power supply position is “ACC” (Ignition switch ACC)

ON

Power supply position is “IGN” (Ignition switch ON with engine stopped)

ENGINE RUN

Power supply position is “RUN” (Ignition switch ON with engine running)

CRANKING

Power supply position is “CRANKING” (At engine cranking)

Service item

Setting item

Description

WIPER SPEED
SETTING

On

With vehicle speed
(Front wiper intermittent time linked with the vehicle speed and wiper intermittent dial position)

Off*

Without vehicle speed
(Front wiper intermittent time linked with the wiper intermittent dial position)

DIAGNOSIS SYSTEM (BCM)

WW-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ACTIVE TEST

Monitor Item

[Unit]

Description

PUSH SW
[Off/On]

The switch status input from push-button ignition switch.

VEHICLE SPEED 1
[km/h]

The value of the vehicle speed signal received from unified meter and A/C amp. with CAN
communication.

FR WIPER HI
[Off/On]

Each switch status that BCM judges from the combination switch reading function.

FR WIPER LOW
[Off/On]

FR WASHER SW
[Off/On]

FR WIPER INT
[Off/On]

FR WIPER STOP
[Off/On]

Front wiper motor (stop position) status received from IPDM E/R with CAN communication.

INT VOLUME
[1

−

 7]

Each switch status that BCM judges from the combination switch reading function.

RR WIPER ON
[Off/On]

Each switch status that BCM judges from the combination switch reading function.

RR WIPER INT
[Off/On]

RR WASHER SW
[Off/On]

RR WIPER STOP
[Off/On]

Rear wiper motor (stop position) status input from the rear wiper motor.

Test item

Operation

Description

FR WIPER

Hi

Transmits the front wiper request signal (HI) to IPDM E/R with CAN communication to operate
the front wiper HI operation.

Lo

Transmits the front wiper request signal (LO) to IPDM E/R with CAN communication to operate
the front wiper LO operation.

INT

Transmits the front wiper request signal (INT) to IPDM E/R with CAN communication to operate
the front wiper INT operation.

Off

Stops transmitting the front wiper request signal to stop the front wiper operation.

RR WIPER

On

Outputs the voltage to operate the rear wiper motor.

Off

Stops the voltage to stop.
