Infiniti EX35. Manual - part 1512





WT-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Repair Work Flow

INFOID:0000000003579693

DETAILED FLOW

1.

VERIFY CUSTOMER COMPLAINTS

Interview the customer to obtain detailed information about the symptom.

>> GO TO 2.

2.

DETERMINE REFERENCE ITEM RELATED TO SYMPTOM

Check the symptom on the vehicle from the information obtained. (cruise test, warning lamp illumination or
blinking, etc.)

Is the symptom confirmed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

PRELIMINARY INSPECTION

1.

Check all tire pressures. Refer to

WT-104, "Tire Air Pressure"

.

2.

Check the low tire pressure warning lamp for illumination or blinking. Refer to

WT-84, "Symptom Table"

.

Is the malfunction finished?

YES

>> INSPECTION END

NO

>> GO TO 4.

4.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis. Record any DTCs and data displayed on CONSULT-III.
Is there any DTC displayed?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

CHECK SYMPTOM

Perform troubleshooting by symptom. Refer to

WT-84, "Symptom Table"

.

Is the causal factor identified?

YES

>> GO TO 7.

NO

>> GO TO 9.

6.

PERFORM THE SYSTEM DIAGNOSIS

Perform the diagnosis applicable to the displayed DTC. Refer to

WT-82, "DTC Index"

.

>> GO TO 7.

7.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the applicable part.

>> GO TO 8.

8.

CHECK SELF-DIAGNOSIS RESULT

1.

Erase DTCs. Refer to

WT-12, "AIR PRESSURE MONITOR : Diagnosis Description"

.

2.

Perform self-diagnosis again.

Is any DTC displayed?

YES

>> GO TO 6.

NO

>> GO TO 9.

DIAGNOSIS AND REPAIR WORK FLOW

WT-5

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

9.

FINAL CHECK

1.

Perform a cruise test.

2.

Check the warning lamp for illumination or blinking.

Is the malfunction corrected?

YES

>> INSPECTION END

NO

>> GO TO 4.

WT-6

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

TRANSMITTER WAKE UP OPERATION

TRANSMITTER WAKE UP OPERATION : Description

INFOID:0000000003579694

This procedure must be done after replacement of a transmitter, BCM, or rotation of wheels.

TRANSMITTER WAKE UP OPERATION : Special Repair Requirement

INFOID:0000000003579695

1.

TRANSMITTER WAKE UP OPERATION

1.

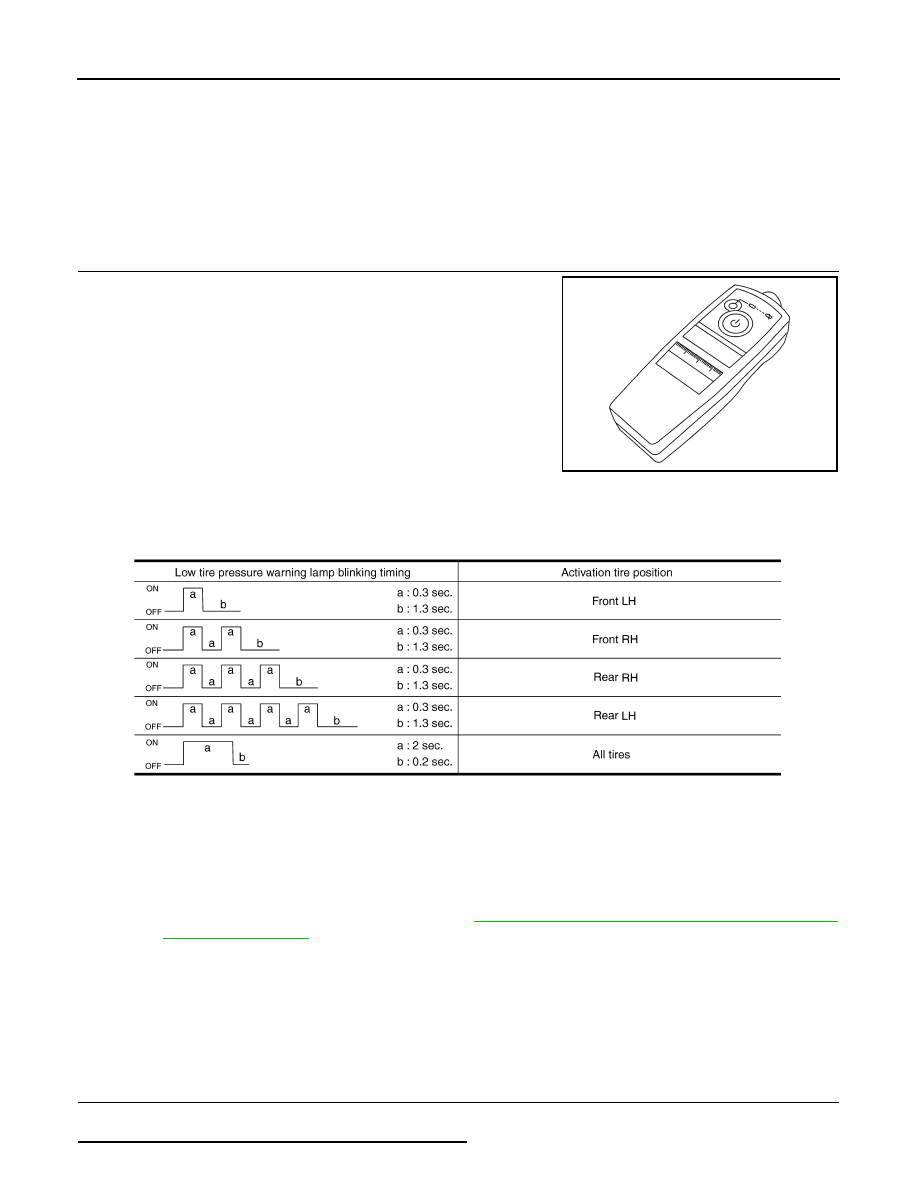

With the transmitter activation tool (J-45295) pushed against the
front-left transmitter, press and hold the button 5 seconds.

2.

When ignition switch ON, as the low tire pressure warning lamp blinks per the follow diagram, the respec-
tive transmitter then must be woken up.

3.

Register the ID of wheel that low tire pressure warning lamp blinks. When wake up of registered wheel
has been completed, turn signal lamp blinks two times.

4.

After completing wake up all transmitters, check that the low tire pressure warning lamp goes out.

>> Perform ID registration procedure. Refer to

WT-6, "ID REGISTRATION PROCEDURE : Special

Repair Requirement"

.

ID REGISTRATION PROCEDURE

ID REGISTRATION PROCEDURE : Description

INFOID:0000000003579696

This procedure must be done after replacing or rotating wheels, replacing transmitter or BCM.

ID REGISTRATION PROCEDURE : Special Repair Requirement

INFOID:0000000003579697

1.

ID REGISTRATION PREPARATION

1.

Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen, and select “ID REGIST”.

Is the transmitter activation tool used for ID registration?

SEIA0460E

SEIA0762E

INSPECTION AND ADJUSTMENT

WT-7

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

ID REGISTRATION (WITH TRANSMITTER ACTIVATION TOOL)

1.

With the transmitter activation tool (J-45295) pushed against the front-left transmitter position of the air
valve, press and hold the button for 5 seconds.

2.

Register the IDs in order from FR LH, FR RH, RR RH, to RR LH.
When ID registration of each wheel has been completed, turn signal lamp blinks.

3.

After completing all ID registrations, press “END” to complete the procedure.
NOTE:
Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results
display will not function properly.

Can ID registration of all transmitters be completed?

YES

>> ID registration END

NO

>> Inspect the tire pressure monitoring system. Refer to

WT-18, "Diagnosis Procedure"

.

3.

ID REGISTRATION (WITHOUT TRANSMITTER ACTIVATION TOOL)

1.

Adjust the tire pressure to the values shown in the table below for ID registration, and drive the vehicle at
40 km/h (25 MPH) or more for several minutes.
NOTE:
If ID registration is unable, buzzer beeps.

2.

After completing all ID registrations, press “END” to complete procedure.

3.

Inflate all tires to proper pressure. Refer to

WT-104, "Tire Air Pressure"

.

Can ID registration of all transmitters be completed?

YES

>> ID registration END

NO

>> Inspect the tire pressure monitoring system. Refer to

WT-18, "Diagnosis Procedure"

.

Activation tire position

Turn signal lamp

CONSULT-III

1

Front LH

2 times blinks

“Red”

“Green”

2

Front  RH

3

Rear  RH

4

Rear  LH

Tire position

Tire pressure kPa (kg/cm

2

, psi)

Front LH

240 (2.4, 34)

Front RH

220 (2.2, 31)

Rear RH

200 (2.0, 29)

Rear LH

180 (1.8, 26)

Activation tire position

CONSULT-III

Front LH

“Red”

“Green”

Front RH

Rear RH

Rear LH
