Infiniti EX35. Manual - part 1493





WCS

WARNING CHIME SYSTEM

WCS-27

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWM0722GB

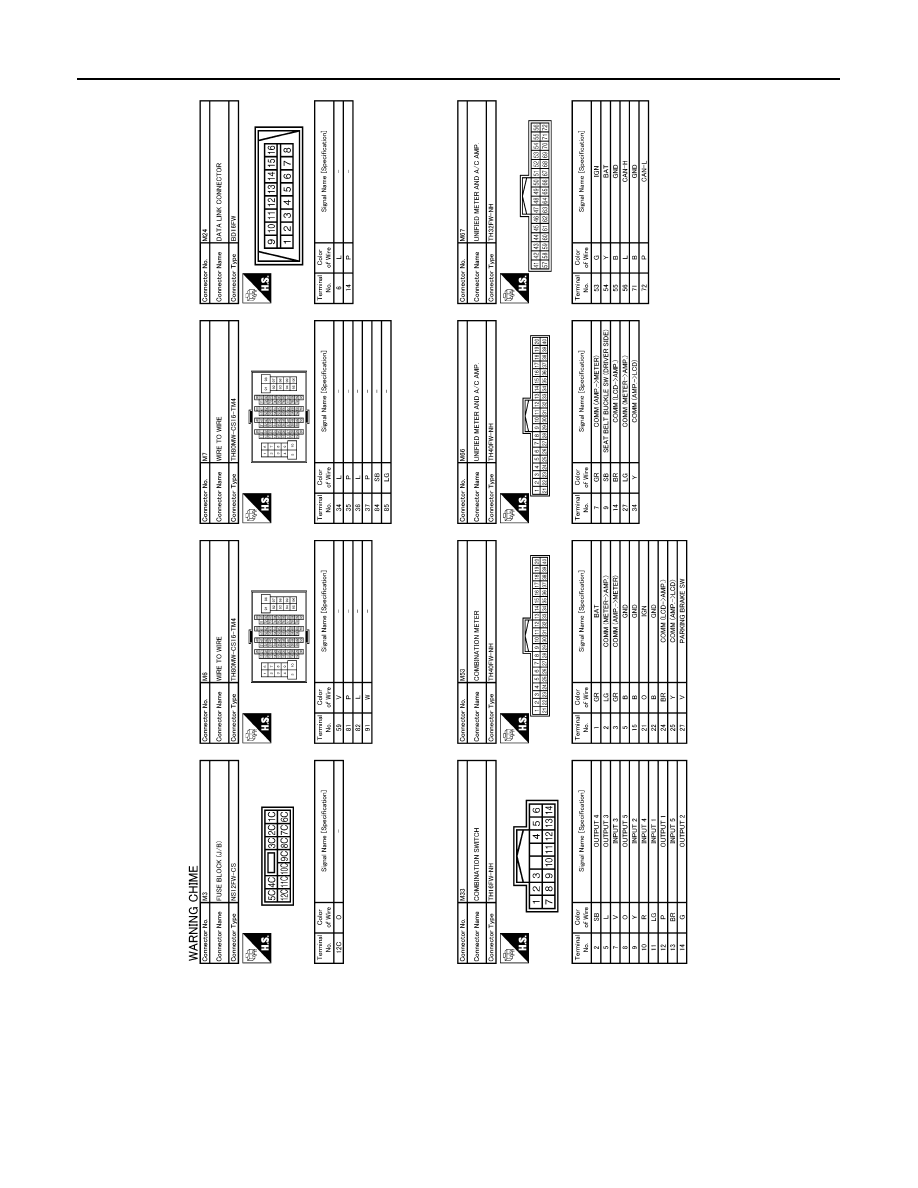

WCS-28

< COMPONENT DIAGNOSIS >

WARNING CHIME SYSTEM

JCNWM0723GB

WCS

WARNING CHIME SYSTEM

WCS-29

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWM0724GB

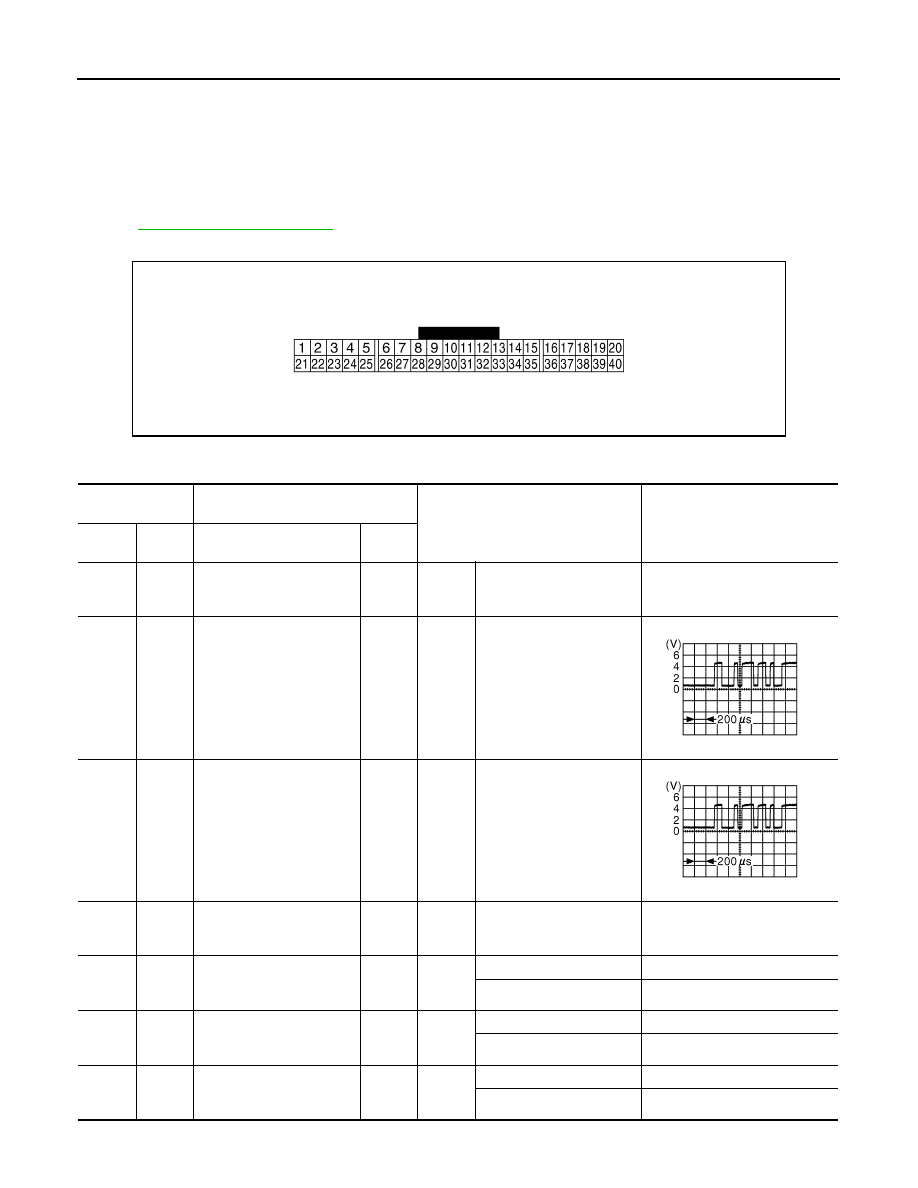

WCS-30

< ECU DIAGNOSIS >

COMBINATION METER

ECU DIAGNOSIS

COMBINATION METER

Reference Value

INFOID:0000000003554724

VALUES ON THE DIAGNOSIS TOOL

Refer to

WCS-43, "Reference Value"

.

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA0457ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

1

(GR)

Ground

Battery power supply

Input

Ignition
switch
OFF

Battery voltage

2

(LG)

Ground

Communication signal
(METER

 AMP.)

Output

Ignition
switch
ON

3

(GR)

Ground

Communication signal
(AMP.

 METER)

Input

Ignition
switch
ON

5

(B)

Ground

Ground

Ignition
switch
ON

0  V

6

(P)

Ground

Alternator signal

Input

Ignition
switch
ON

Charge warning lamp ON

0 V

Charge warning lamp OFF

Battery voltage

7

(LG)

Ground

Air bag signal

Input

Ignition
switch
ON

Air bag warning lamp ON

4 V

Air bag warning lamp OFF

0 V

10

(G)

Ground

Security signal

Input

Ignition
switch
OFF

Security warning lamp ON

0 V

Security warning lamp OFF

12 V

JSNIA0027GB

JSNIA0027GB
