WCS

WARNING CHIME SYSTEM

WCS-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

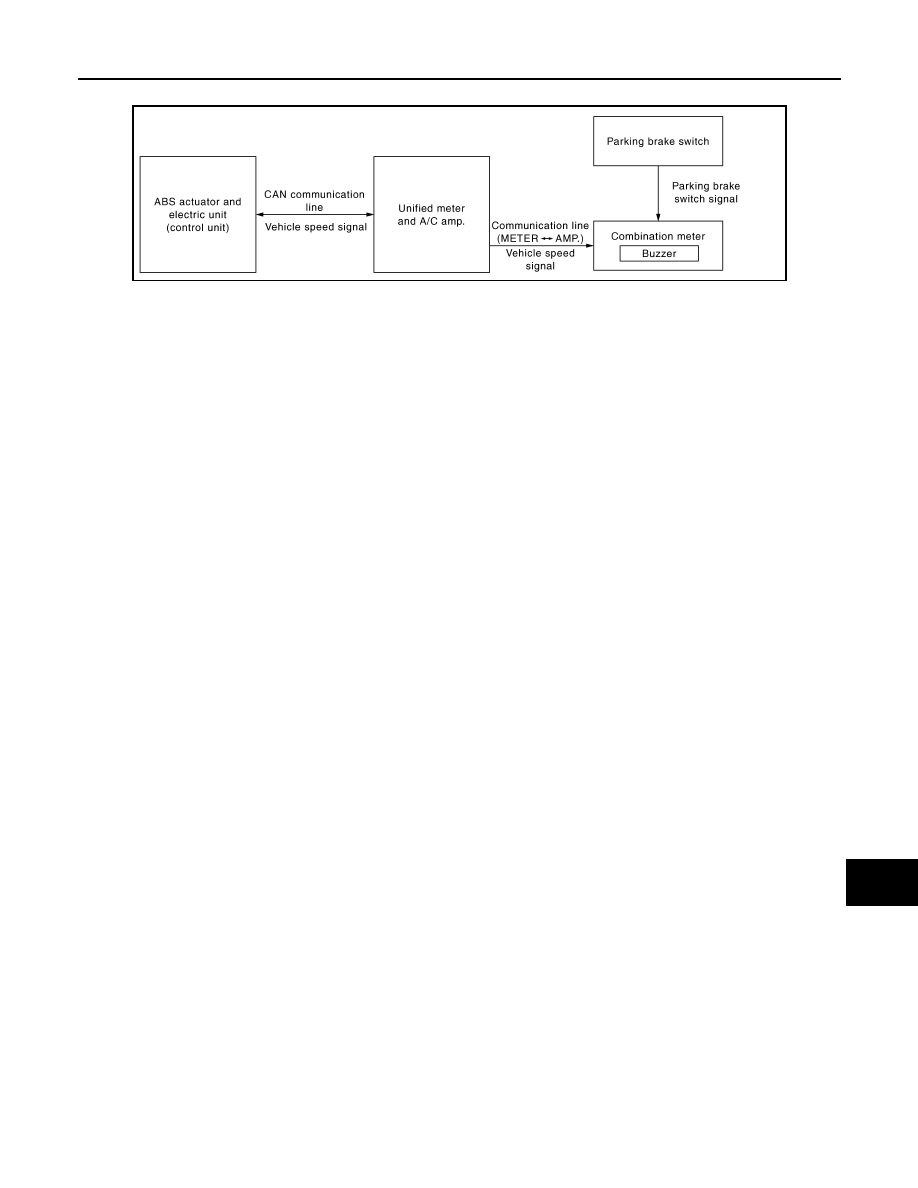

PARKING BRAKE RELEASE WARNING CHIME : System Diagram

INFOID:0000000003135091

PARKING BRAKE RELEASE WARNING CHIME : System Description

INFOID:0000000003135092

DESCRIPTION

• The unified meter and A/C amp. receives the vehicle speed signal from the ABS actuator and electric unit

(control unit) via CAN communication line and transmits it to the combination meter by means of communi-
cation line.

• The combination meter judges whether the parking brake is released from the vehicle speed signal received

from the unified meter and A/C amp. and the parking brake switch signal from the parking brake switch, and
sounds the warning buzzer if necessary.

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled.
• Vehicle speed is 7 km/h (4.3 MPH) or higher
• Parking brake switch ON

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.
• Vehicle speed is approximately 3 km/h (1.9 MPH) or less
• Parking brake switch OFF

JSNIA0036GB

WCS-12

< FUNCTION DIAGNOSIS >

WARNING CHIME SYSTEM

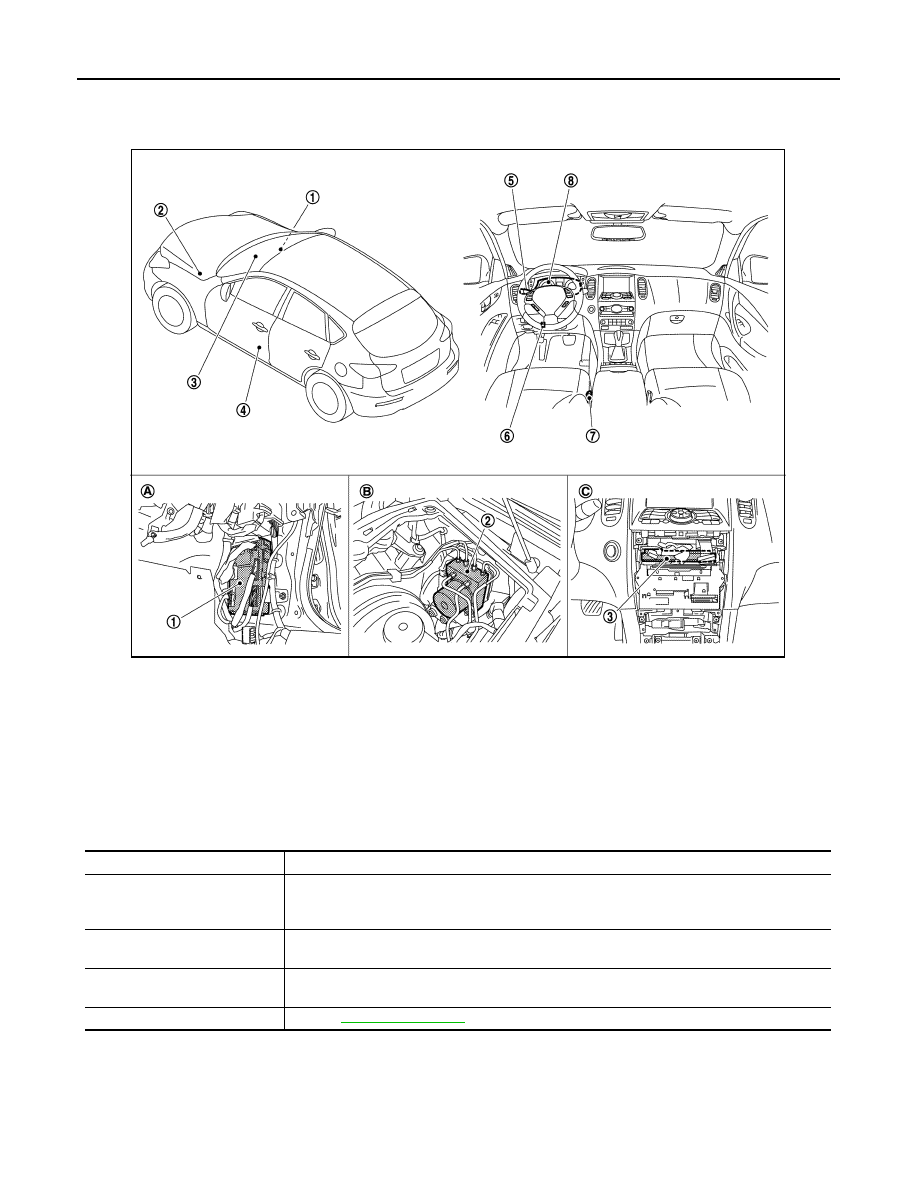

PARKING BRAKE RELEASE WARNING CHIME : Component Parts Location

INFOID:0000000003566467

PARKING BRAKE RELEASE WARNING CHIME : Component Description

INFOID:0000000003135094

1.

BCM

2.

ABS actuator and electric unit (con-
trol unit)

3.

Unified meter and A/C amp.

4.

Front door switch (driver side)

5.

Combination switch
(Lighting switch)

6.

Parking brake switch

7.

Seat belt buckle switch (driver side)

8.

Combination meter

A.

Dash side lower (passenger side)

B.

Hoodledge cover (LH)

C.

Behind cluster lid C

JPNIA0869ZZ

Unit

Description

Combination meter

Judges whether the parking brake is released from the vehicle speed signal received from the
unified meter and A/C amp. via CAN communication line and the parking brake switch signal from
the parking brake switch, and sounds the buzzer if necessary.

Unified meter and A/C amp.

Receives a vehicle speed signal from ABS actuator and electric unit (control unit) via CAN com-
munication line and transmits it to the combination meter by means of communication line.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to combination meter via CAN communication line.

Parking brake switch

Refer to

MWI-65, "Description"

.

WCS

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

WCS-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

CONSULT-III Function (METER/M&A)

INFOID:0000000003554656

CONSULT-III APPLICATION ITEMS

CONSULT-III can perform the following diagnosis modes with CAN communication with the unified meter and
A/C amp.

SELF DIAG RESULT

Refer to

MWI-101, "DTC Index"

.

DATA MONITOR

Display Item List

X: Applicable

System

Diagnosis mode

Description

METER/M&A

Self Diagnostic Result

Unified meter and A/C amp. checks the conditions and displays memorized error.

Data Monitor

Displays unified meter and A/C amp. input/output data in real time.

Display item [Unit]

MAIN

SIGNALS

Description

SPEED METER
[km/h]

X

Value of vehicle speed signal received from ABS actuator and electric unit (control
unit) with CAN communication line.
NOTE:
655.35 is displayed when the malfunction signal is received.

SPEED OUTPUT
[km/h]

X

Vehicle speed signal value transmitted to other units with CAN communication
line.
NOTE:
655.35 is displayed when the malfunction signal is received.

ODO OUTPUT
[km/h or mph]

Odometer signal value transmitted to other units with CAN communication line.

TACHO METER
[rpm]

X

Value of the engine speed signal received from ECM with CAN communication
line.
NOTE:
8191.875 is displayed when the malfunction signal is received.

FUEL METER
[lit.]

X

Fuel level indicated on combination meter.

W TEMP METER
[

°

C]

X

Value of engine coolant temperature signal received from ECM with CAN commu-
nication line.
NOTE:
215 is displayed when the malfunction signal is input.

ABS W/L
[On/Off]

Status of ABS warning lamp judged from ABS warning lamp signal received from
ABS actuator and electric unit (control unit) with CAN communication line.

VDC/TCS IND
[On/Off]

Status of VDC OFF indicator lamp judged from VDC OFF indicator lamp signal re-
ceived from ABS actuator and electric unit (control unit) with CAN communication
line.

SLIP IND
[On/Off]

Status of SLIP indicator lamp judged from slip indicator lamp signal received from
ABS actuator and electric unit (control unit) with CAN communication line.

BRAKE W/L
[On/Off]

Status of brake warning lamp judged from brake warning lamp signal received
from ABS actuator and electric unit (control unit) with CAN communication line.
NOTE:
Displays “Off” if the brake warning lamp is illuminated when the valve check starts,
the parking brake switch is turned ON or the brake fluid level switch is turned ON.

DOOR W/L
[On/Off]

Status of door warning judged from door switch signal received from BCM with
CAN communication line.

HI-BEAM IND
[On/Off]

Status of high beam indicator lamp judged from high beam request signal received
from BCM with CAN communication line.

WCS-14

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

TURN IND
[On/Off]

Status of turn indicator lamp judged from turn indicator signal received from BCM
with CAN communication line.

FR FOG IND
[On/Off]

This item is displayed, but cannot be monitored.

RR FOG IND
[Off]

This item is displayed, but cannot be monitored.

LIGHT IND
[On/Off]

Status of light indicator lamp judged from position light request signal received
from BCM with CAN communication line.

OIL W/L
[On/Off]

Status of oil pressure warning lamp judged from oil pressure switch signal re-
ceived from IPDM E/R with CAN communication line.

MIL
[On/Off]

Status of malfunction indicator lamp judged from malfunctioning indicator lamp
signal received from ECM with CAN communication line.

GLOW IND
[On/Off]

This item is displayed, but cannot be monitored.

C-ENG2 W/L
[On/Off]

This item is displayed, but cannot be monitored.

CRUISE IND
[On/Off]

Status of CRUISE indicator judged from ASCD status signal received from ECM
with CAN communication line.

SET IND
[On/Off]

• Status of set indicator judged from ASCD status signal received from ECM with

CAN communication line.

• Status of set indicator judged from meter display signal received from ICC sen-

sor integrated unit with CAN communication line.

CRUISE W/L
[On/Off]

Status of CRUISE warning lamp judged from meter display signal received from
ICC sensor integrated unit with CAN communication line.

BA W/L
[Off]

This item is displayed, but cannot be monitored.

ATC/T-AMT W/L
[On/Off]

Status of A/T check warning lamp judged from A/T check indicator signal received
from TCM with CAN communication line.

4WD W/L
[On/Off]

Status of AWD warning lamp judged from AWD warning lamp signal received from
AWD control unit with CAN communication line.

4WD LOCK IND
[Off]

This item is displayed, but cannot be monitored.

FUEL W/L
[On/Off]

Low-fuel warning status judged by the identified fuel level.

WASHER W/L
[On/Off]

Status of washer warning judged from washer level switch input to combination
meter.

AIR PRES W/L
[On/Off]

Status of low tire pressure warning lamp judged from tire pressure signal received
from BCM with CAN communication line.

KEY G/Y W/L
[On/Off]

Status of key warning lamp (G/Y) judged from key warning signal received from
BCM with CAN communication line.

AFS OFF IND
[On/Off]

Status of AFS OFF indicator lamp judged from AFS OFF indicator lamp signal re-
ceived from AFS control unit with CAN communication line.

4WAS/RAS W/L
[On/Off]

This item is displayed, but cannot be monitored.

DDS W/L
[On/Off]

This item is displayed, but cannot be monitored.

LANE W/L
[On/Off]

Status of lane departure warning lamp judged from lane departure warning lamp
signal received from lane camera unit with CAN communication line.

LDP IND
[On/Off]

Status of LDP ON indicator lamp judged from LDP ON indicator lamp signal re-
ceived from lane camera unit with CAN communication line.

Display item [Unit]

MAIN

SIGNALS

Description
