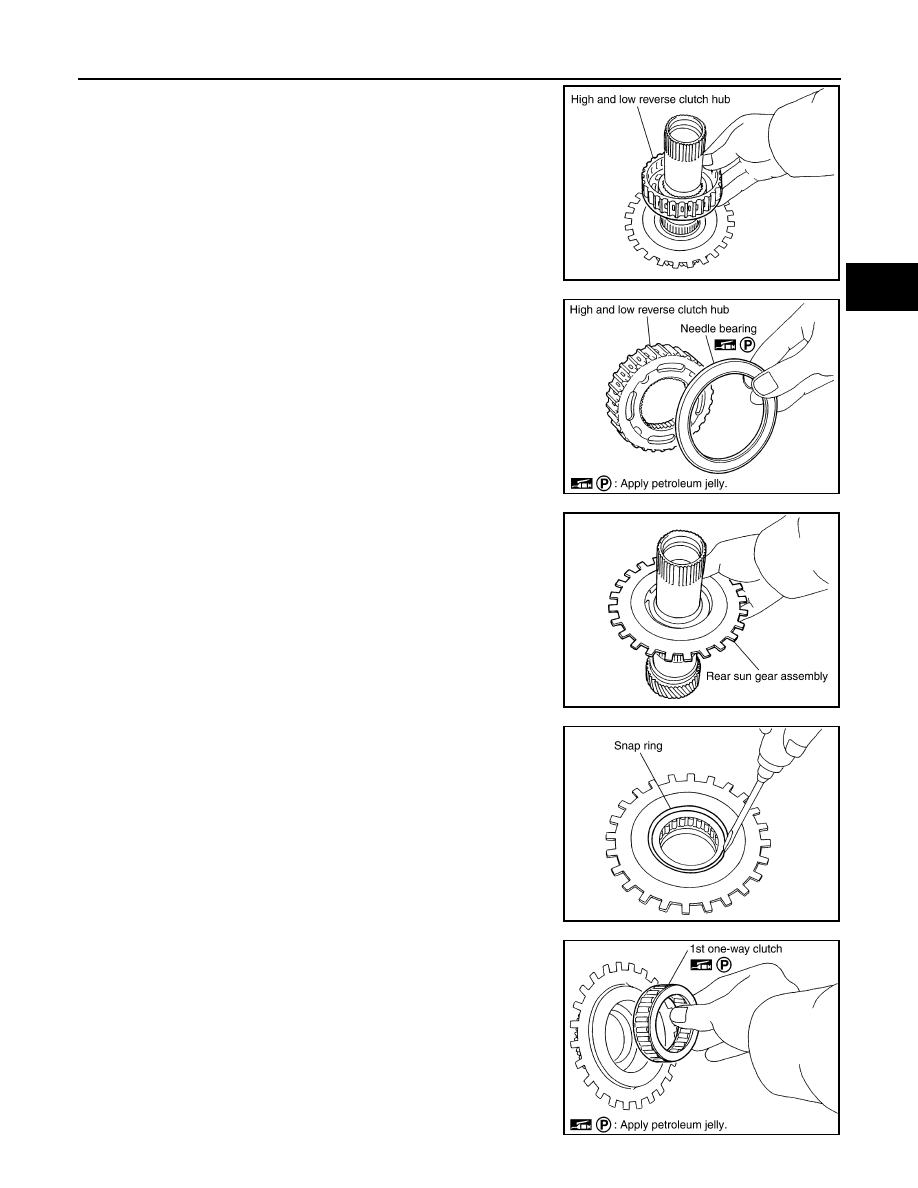

TM-260 < DISASSEMBLY AND ASSEMBLY > [5AT: RE5R05A] MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH HUB MID SUN GEAR, REAR SUN GEAR, HIGH AND LOW REVERSE CLUTCH Exploded View INFOID:0000000003130662 Disassembly INFOID:0000000003130663 1. Remove needle bearing and bearing race from high and low 2. Using pair of snap ring pliers, remove snap ring from mid sun CAUTION: Do not expand snap ring excessively. 1. Needle bearing 2. Bearing race 3. Snap ring 4. High and low reverse clutch hub 5. Needle bearing 6. Snap ring 7. 1st one-way clutch 8. Rear sun gear 9. Seal ring 10. Mid sun gear Refer to for symbols in the figure. SCIA8369E SCIA2854E SCIA2855E |
