TM-240

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

44. Install band servo anchor end pin and lock nut in transmission

case.

45. Install brake band in transmission case.

CAUTION:

Assemble it so that identification to avoid incorrect installa-
tion faces servo side.

46. Install front sun gear to front carrier assembly.

CAUTION:

Apply ATF to front sun gear bearing and 3rd one-way clutch
end bearing.

47. Install needle bearing to front sun gear.

CAUTION:

Check the direction of needle bearing. Refer to

TM-207,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

48. Adjust brake band tilting using a clip so that brake band contacts

front sun gear drum evenly.

SCIA6512E

SCIA5498E

SCIA5014E

SCIA2808E

SCIA5033E

TRANSMISSION ASSEMBLY

TM-241

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

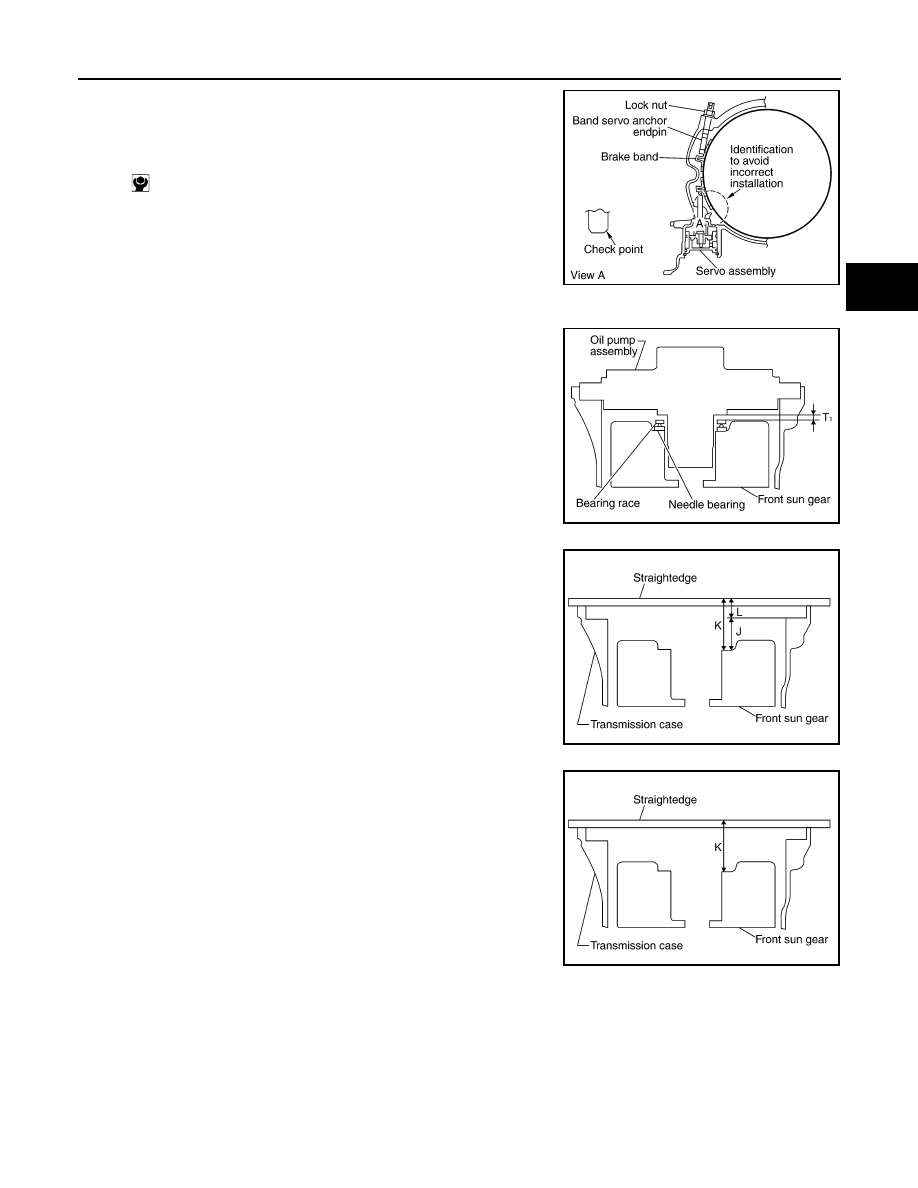

49. Adjust brake band.

a.

Loosen lock nut.

b.

Tighten band servo anchor end pin to specified torque.

c.

Back of band servo anchor end pin three turns.

d.

Holding band servo anchor end pin, tighten lock nut to the spec-
ified torque.

50. Adjustment of total end play.

• Measure clearance between front sun gear and bearing race

for oil pump cover.

• Select proper thickness of bearing race so that end play is

within specifications.

a.

Measure dimensions “K” and “L” and then calculate dimension
“J”.

i.

Measure dimension “K”.

: 5.0 N·m (0.51 kg-m, 44 in-lb)

SCIA5498E

SCIA2810E

SCIA7073E

SCIA7074E

TM-242

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

ii.

Measure dimension “L”.

iii.

Calculate dimension “J”.

b.

Measure dimensions “M

1

” and “M

2

” and then calculate dimen-

sion “M”.

i.

Place bearing race and needle bearing on oil pump assembly.

ii.

Measure dimension “M

1

”.

iii.

Measure dimension “M

2

”.

“J”

: Distance between oil pump fitting surface of
transmission case and needle bearing mating
surface of front sun gear.

J = K – L

SCIA5352E

SCIA3125E

SCIA3124E

SCIA3126E

SCIA3127E

TRANSMISSION ASSEMBLY

TM-243

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

iv.

Calculate dimension “M”.

c.

Adjust total end play “T

1

”.

• Select proper thickness of bearing race so that total end play

is within specifications.

51. Install O-ring to oil pump assembly.

52. Install bearing race to oil pump assembly.

53. Install oil pump assembly in transmission case.

CAUTION:

Apply ATF to oil pump bearing.

“M”

: Distance between transmission case fitting
surface of oil pump and needle bearing on oil
pump.

M = M

1

– M

2

SCIA3125E

T

1

 = J – M

Total end play “T

1

: Refer to

TM-270, "Total End

Play"

.

Bearing races

: Refer to

TM-270, "Total End Play"

.

SCIA2810E

SCIA5172E

SCIA6529E

SCIA2811E
