TM-236

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

iv.

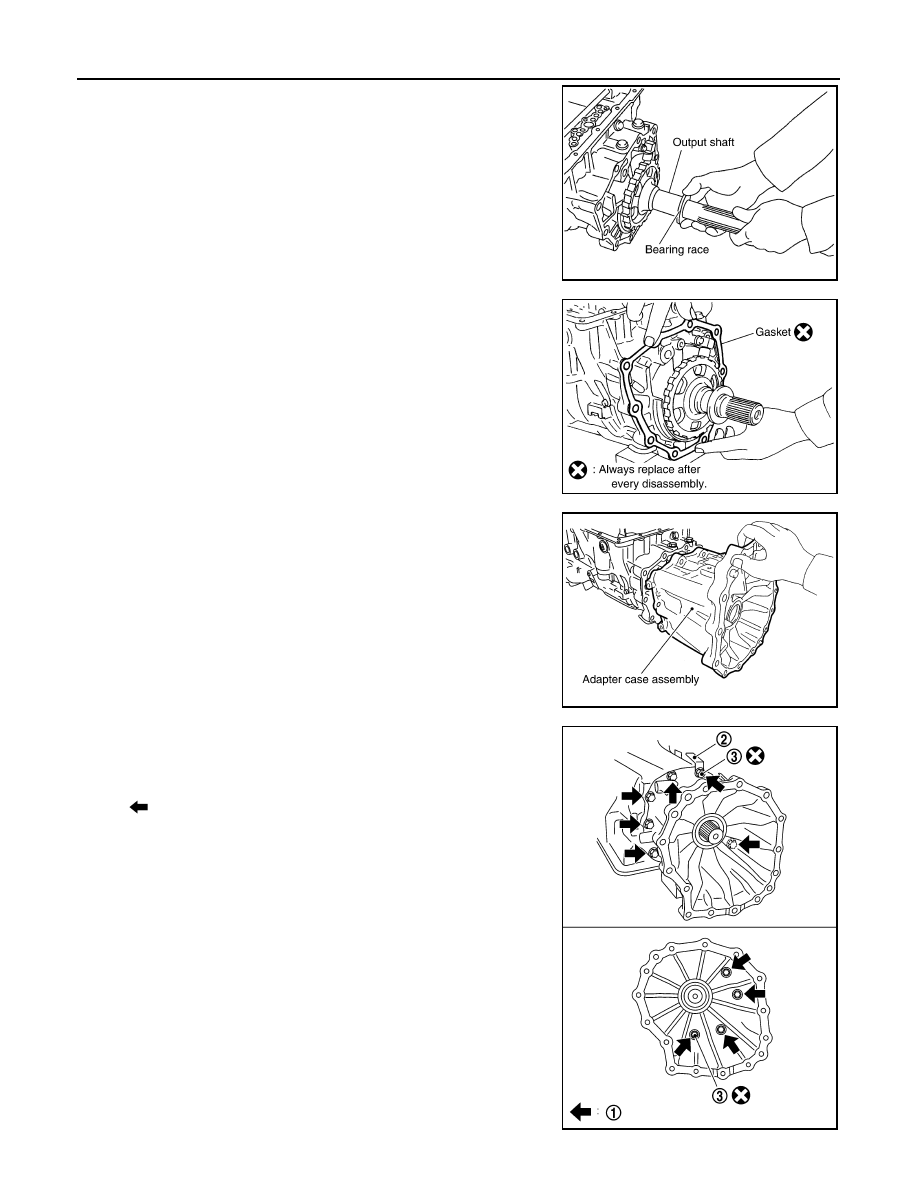

Install bearing race to output shaft.

v.

Install gasket onto transmission case.

CAUTION:

• Completely remove all moisture, oil and old gasket, etc.

from the transmission case and adapter case assembly
mounting surfaces.

• Do not reuse gasket.

vi. Install adapter case assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the adapter
case assembly.

vii. Tighten adapter case assembly bolts (1) to the specified torque.

[With bracket (2).]

SCIA5245E

SCIA5231E

SCIA5186E

3

: Self-sealing bolt

: Bolt

SCIA6910E

TRANSMISSION ASSEMBLY

TM-237

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

31. Install needle bearing in drum support.

CAUTION:

Check the direction of needle bearing. Refer to

TM-207,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

32. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch
inner boss edge surface come to almost same place.

33. Install high and low reverse clutch assembly in direct clutch.

34. Using a flat-bladed screwdriver, align the drive plate.

35. Install high and low reverse clutch hub, mid sun gear assembly

and rear sun gear assembly as a unit.

SCIA5198E

SCIA5019E

SCIA2306E

SCIA3169E

SCIA5018E

TM-238

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

CAUTION:

Make sure that portion “A” of high and low reverse clutch
drum protrudes approximately 2 mm (0.08 in) beyond por-
tion “B” of rear sun gear.

36. Install needle bearing in rear carrier assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-207,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

37. Install bearing race in rear carrier assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-207,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

38. Install rear carrier assembly in direct clutch drum.

SCIA3130E

SCIA2803E

SCIA5175E

SCIA2462E

TRANSMISSION ASSEMBLY

TM-239

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

39. Install needle bearing (rear side) to mid carrier assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-207,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

40. Install needle bearing (front side) to mid carrier assembly.

CAUTION:

Check the direction of needle bearing. Refer to

TM-207,

"Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

41. Install mid carrier assembly in rear carrier assembly.

42. Install front carrier assembly, input clutch assembly and rear

internal gear as a unit.

43. Install seal rings in input clutch assembly.

SCIA2804E

SCIA2805E

SCIA5017E

SCIA5015E

SCIA2470E
