< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

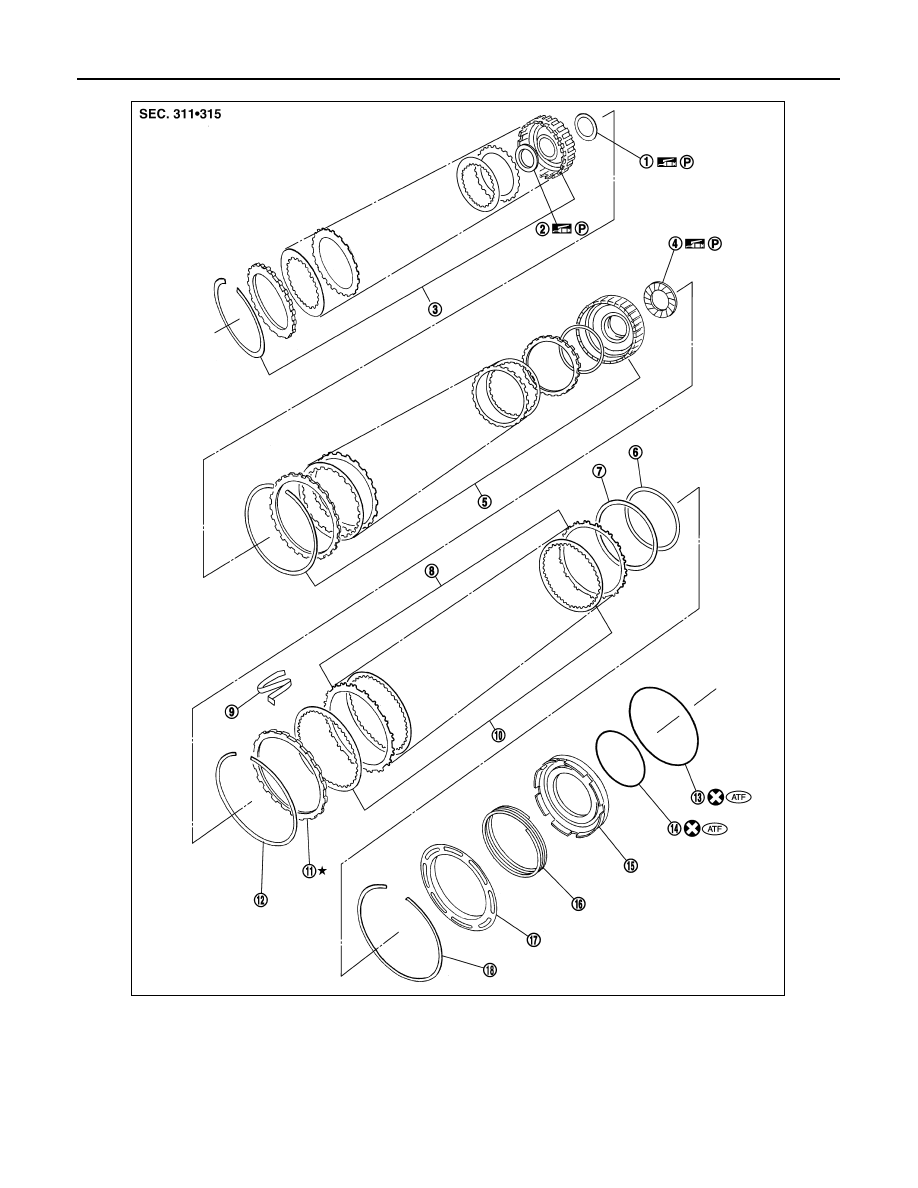

TRANSMISSION ASSEMBLY

1.

Needle bearing

2.

Bearing race

3.

High and low reverse clutch assembly

4.

Needle bearing

5.

Direct clutch assembly

6.

Reverse brake dish plate

7.

Reverse brake dish plate

8.

Reverse brake driven plate

9.

N-spring

10. Reverse brake drive plate

11.

Reverse brake retaining plate

12. Snap ring

13. D-ring

14. D-ring

15. Reverse brake piston

SCIA8365E

TRANSMISSION ASSEMBLY

TM-201

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

2WD

16. Return spring

17. Spring retainer

18. Snap ring

Refer to

GI-4, "Components"

 for symbols in the figure.

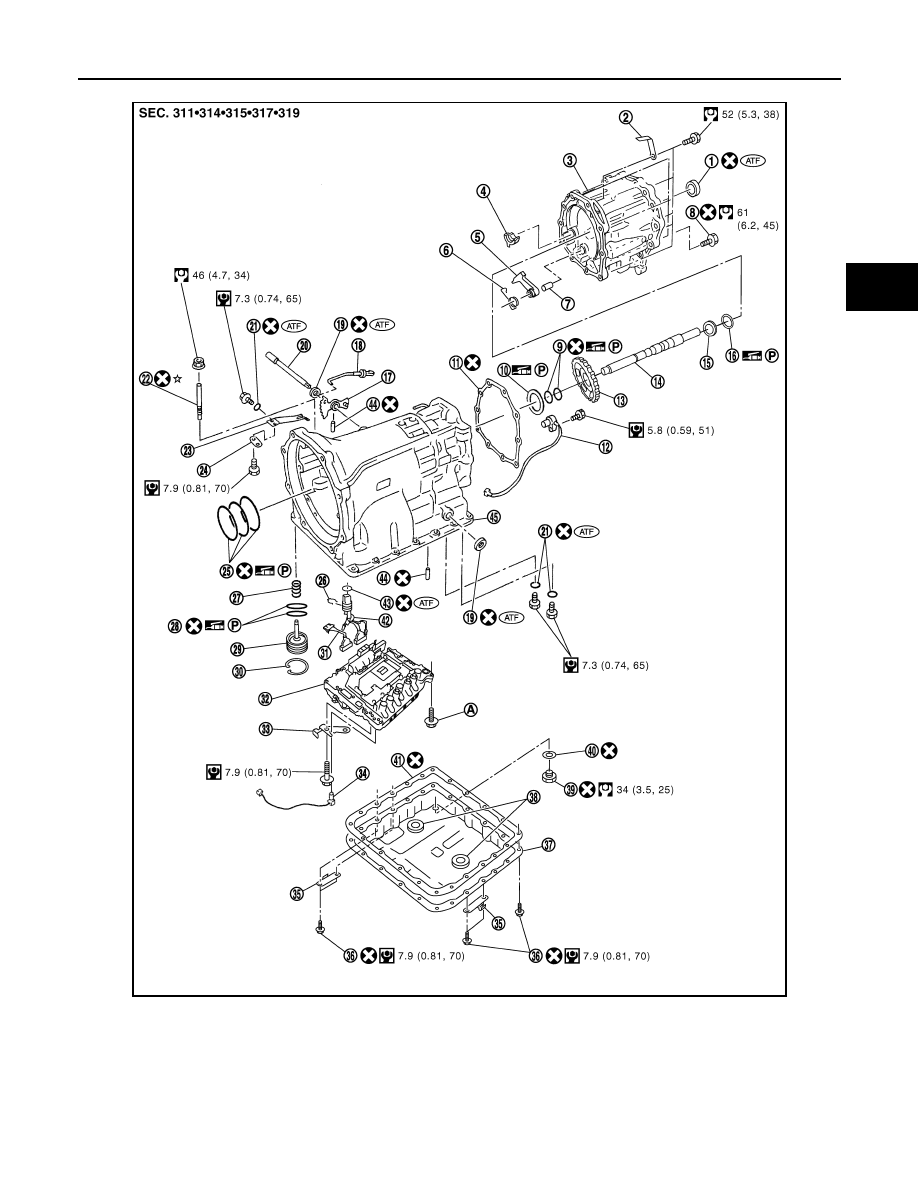

JPDIA0647GB

1.

Rear oil seal

2.

Self-sealing bolt

3.

Rear extension

4.

Parking actuator support

5.

Parking pawl

6.

Return spring

7.

Pawl shaft

8.

Seal ring

9.

Needle bearing

10.

Revolution sensor

11.

Parking gear

12. Output shaft

TM-202

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

13.

Bearing race

14.

Needle bearing

15. Manual plate

16.

Parking rod

17.

Manual shaft oil seal

18. Manual shaft

19.

O-ring

20.

Band servo anchor end pin

21. Detent spring

22.

Spacer

23.

Seal ring

24. Snap ring

25.

Return spring

26.

O-ring

27. Servo assembly

28.

Snap ring

29.

Sub-harness

30. Control valve with TCM

31.

Bracket

32.

A/T fluid temperature sensor 2

33. Clip

34.

Oil pan mounting bolt

35.

Oil pan

36. Magnet

37.

Drain plug

38.

Drain plug gasket

39. Oil pan gasket

40.

Terminal cord assembly

41.

O-ring

42. Retaining pin

43.

Transmission case

A.

For tightening torque, refer to

TM-226, "Assembly"

.

*

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

TRANSMISSION ASSEMBLY

TM-203

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AWD

JPDIA0648GB

1.

Rear oil seal

2.

Bracket

3.

Adapter case

4.

Parking actuator support

5.

Parking pawl

6.

Return spring

7.

Pawl shaft

8.

Self-sealing bolt

9.

Seal ring

10.

Needle bearing

11.

Gasket

12. Revolution sensor

13.

Parking gear

14. Output shaft

15. Bearing race

16.

Needle bearing

17. Manual plate

18. Parking rod
