• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
• Do not place in an area affected by magnetism.

14. Remove starter motor. Refer to

STR-15, "Exploded View"

15. Remove rear plate cover. Refer to

EM-43, "Exploded View (2WD)"

16. Turn crankshaft, and remove the four tightening bolts for drive

plate and torque converter.

CAUTION:

When turning the crankshaft, turn it clockwise as viewed
from the front of the engine.

17. Support A/T assembly with a transmission jack.

CAUTION:

When setting the transmission jack, be careful not to allow
it to collide against the drain plug.

18. Remove rear engine mounting member with power tool. Refer to

EM-79, "2WD : Exploded View"

19. Remove engine mounting insulator (rear). Refer to

EM-79,

"2WD : Exploded View"

20. Disconnect A/T assembly harness connector and harness clips.

21. Remove air breather hose. Refer to

TM-185, "2WD : Exploded View"

22. Remove A/T fluid charging pipe from A/T assembly.

23. Remove O-ring from A/T fluid charging pipe.

24. Disconnect fluid cooler tube from A/T assembly. Refer to

TM-188, "2WD : Exploded View"

25. Plug up openings such as the A/T fluid charging pipe hole, etc.

26. Remove bolts fixing A/T assembly to engine assembly with power tool.

27. Remove A/T assembly from vehicle.

CAUTION:

• Secure torque converter to prevent it from dropping.
• Secure A/T assembly to a transmission jack.

28. Remove dynamic damper. Refer to

EM-79, "2WD : Exploded

View"

INSTALLATION

Note the following, and Install in the reverse order of removal.

: Vehicle front

: Bolt

SCIA8269E

JPDIA0044ZZ

SCIA0499E

TM-194

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

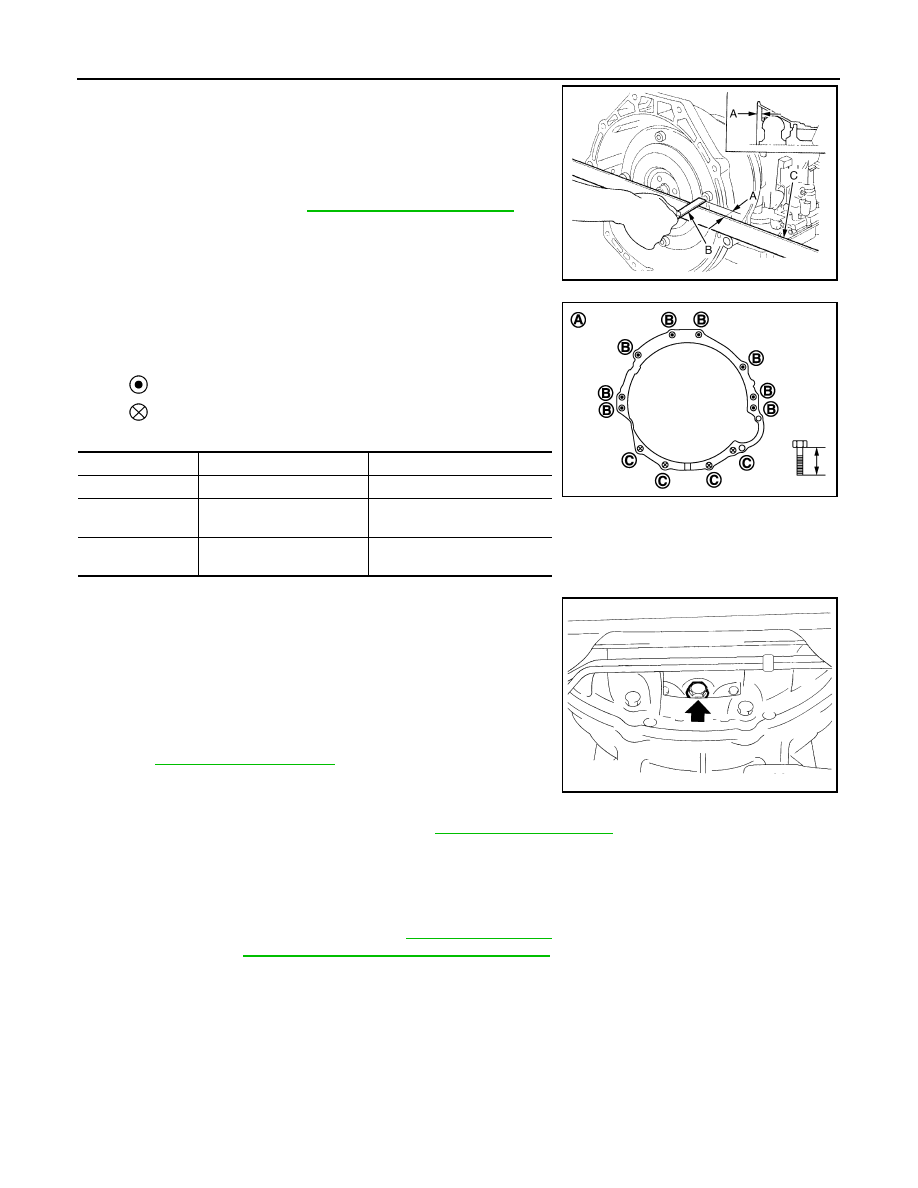

• When installing A/T assembly to the engine assembly, be sure to

check distance (A) to ensure it is within the reference value limit.

• When installing A/T assembly to the engine assembly, attach the

fixing bolts in accordance with the following standard.

• Align the positions of tightening bolts for drive plate with those of

the torque converter, and temporarily tighten the bolts. Then,
tighten the bolts with the specified torque.

CAUTION:

• When turning crankshaft, turn it clockwise as viewed from the

front of the engine.

• When tightening the tightening bolts for the torque converter

after fixing the crankshaft pulley bolts, be sure to confirm the
tightening torque of the crankshaft pulley mounting bolts.
Refer to

EM-50, "Exploded View"

• Rotate crankshaft several turns and check to be sure that A/T

rotates freely without binding after converter is installed to
drive plate.

• Install crankshaft position sensor (POS). Refer to

EM-114, "Exploded View"

2WD : Inspection

INFOID:0000000003130641

INSPECTION AFTER INSTALLATION

Check the following item after completing installation.
• A/T fluid leakage and A/T fluid level. Refer to

TM-141, "Inspection"

• A/T position. Refer to

TM-153, "2WD : Inspection and Adjustment"

AWD

: Scale

: Straightedge

Distance (A)

: Refer to

TM-270, "Torque Converter"

JPDIA0042ZZ

: View from vehicle front

: Transmission to engine

: Engine to transmission

Bolt symbol

Number of bolts

Bolt length
mm (in)

65 (2.56)

35 (1.38)

Tightening torque
N·m (kg-m, ft-lb)

75 (7.7, 55)

46.6 (4.8, 34)

JPDIA0043ZZ

JPDIA0044ZZ

TRANSMISSION ASSEMBLY

TM-195

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

AWD : Exploded View

INFOID:0000000003130642

AWD : Removal and Installation

INFOID:0000000003130643

REMOVAL

CAUTION:

• When removing the A/T assembly from engine, first remove the crankshaft position sensor (POS)

from the A/T assembly.

• Be careful not to damage sensor edge.

Disconnect the battery cable from the negative terminal.

Remove A/T fluid level gauge.

Remove air cleaner case (RH). Refer to

EM-27, "Exploded View"

Remove engine lower cover and front under cover with power tool. Refer to

EXT-31, "Exploded View"

Remove exhaust front tube and center muffler and with power tool. Refer to

EX-5, "Exploded View"

Remove rear propeller shaft. Refer to

DLN-89, "Exploded View"

Remove front cross bar with power tool. Refer to

FSU-37, "Exploded View"

Remove exhaust mounting bracket. Refer to

EX-5, "Exploded View"

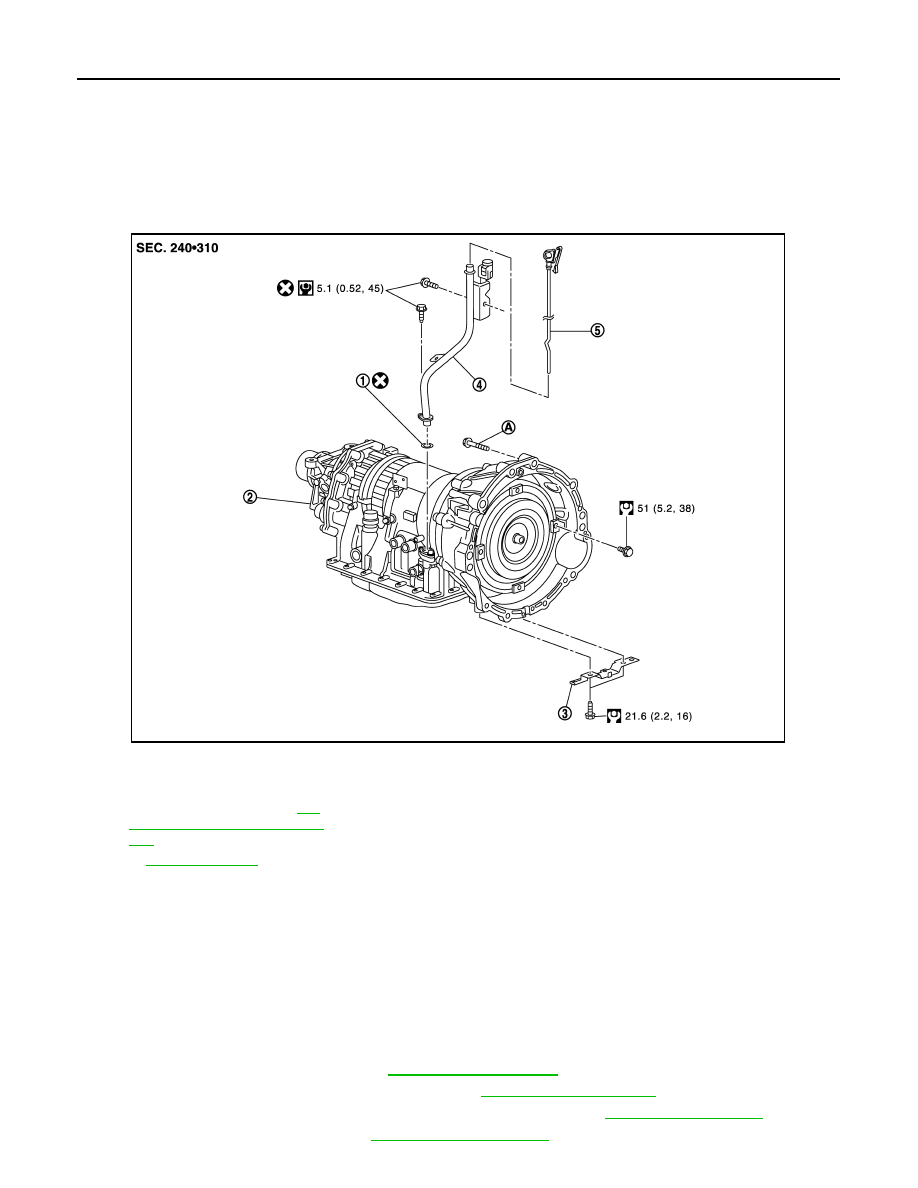

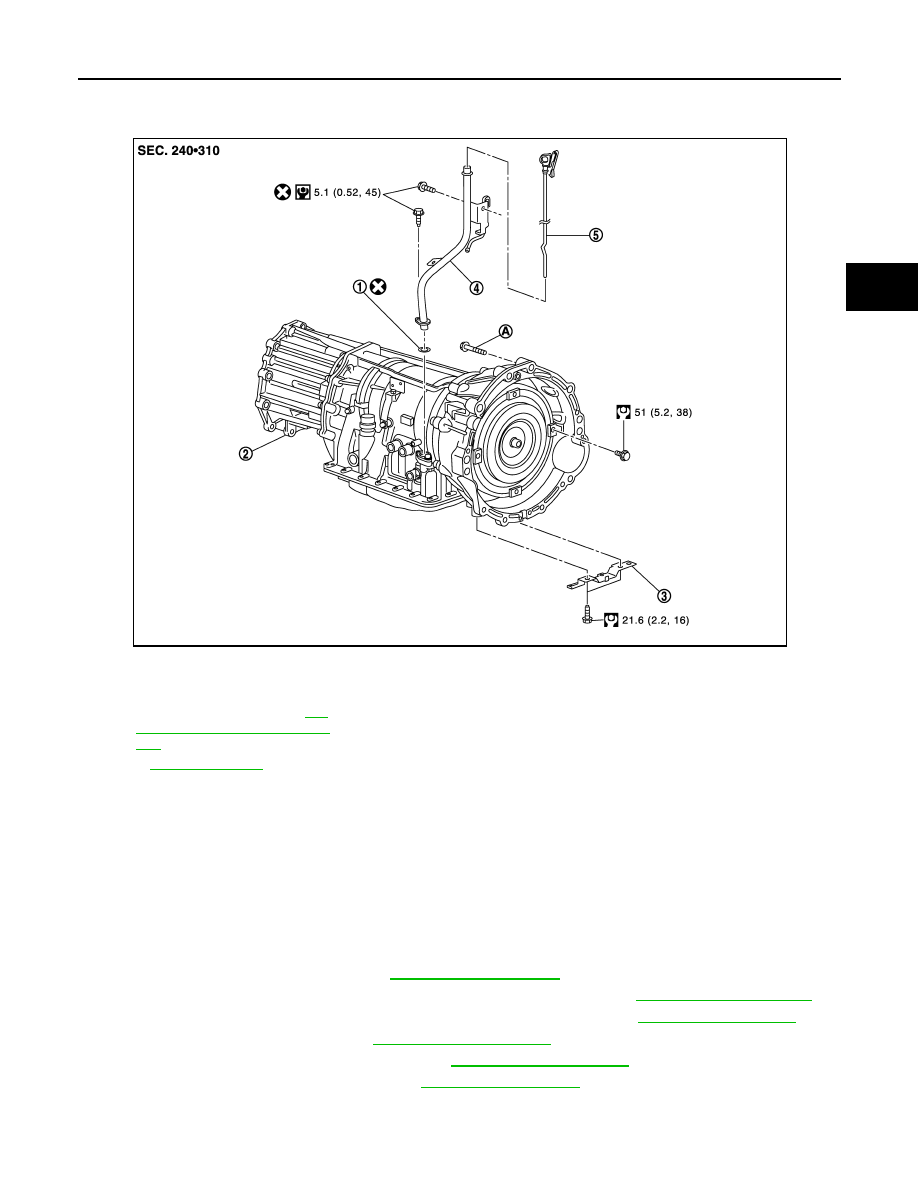

O-ring

A/T assembly

Bracket

A/T fluid charging pipe

A/T fluid level gauge

For tightening torque, Refer to

TM-

192, "2WD : Removal and Installa-
tion"

Refer to

GI-4, "Components"

for symbols in the figure.

JPDIA0718GB
