SHIFT LOCK SYSTEM

SHIFT LOCK SYSTEM

Description

INFOID:0000000003130563

Shift lock system circuit consists of the following part.

Component

Function

Shift lock solenoid

Activated by the ignition switch and stop lamp signals, it holds the relative positions of sliders A and
B.

Shift lock relay

Current flow to stop lamp switch allows shift lock solenoid contact ON, and then power is applied to
shift lock solenoid.

Stop lamp switch

Depressing the brake pedal turns ON the stop lamp switch and energizes the shift lock relay.

SHIFT LOCK SYSTEM

TM-93

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

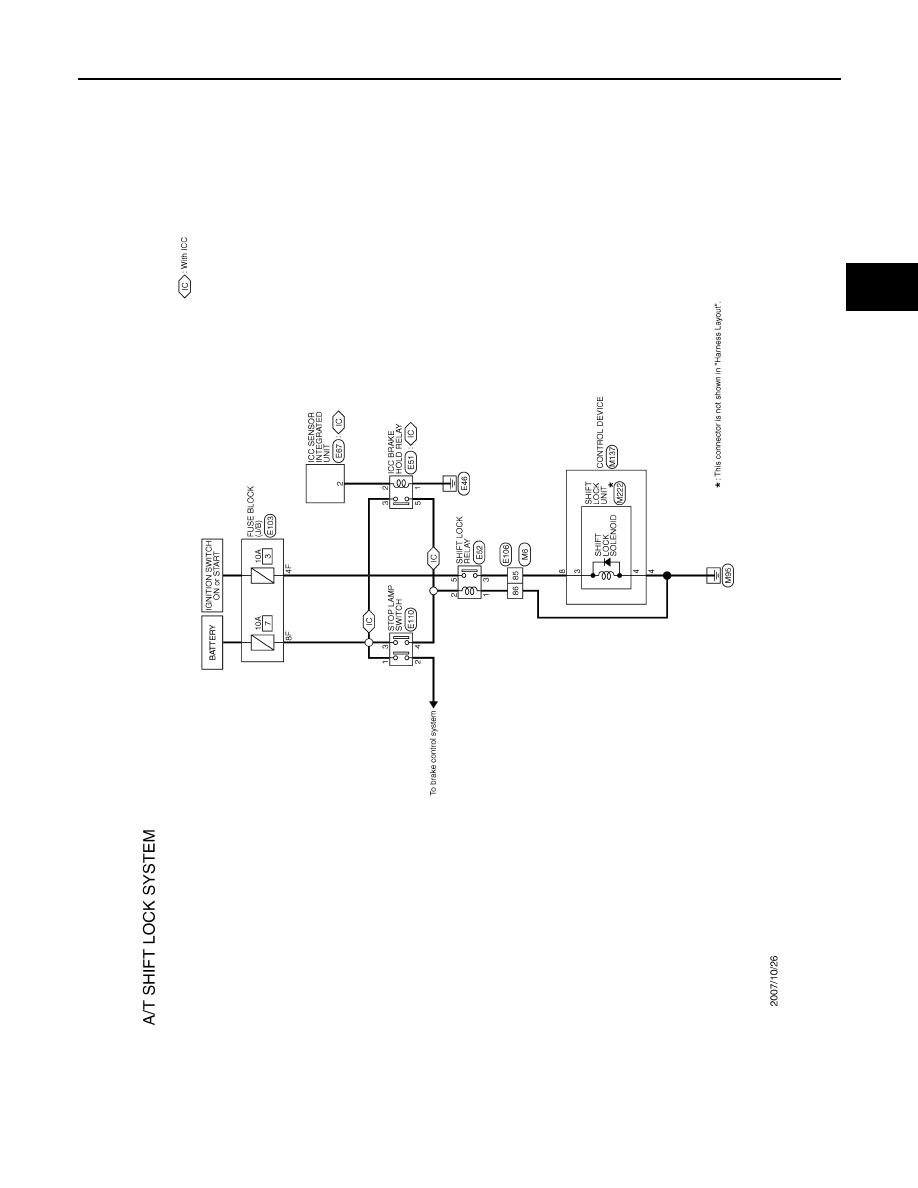

Wiring Diagram - A/T SHIFT LOCK SYSTEM -

INFOID:0000000003130564

JCDWM0201GB

TM-94

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

SHIFT LOCK SYSTEM

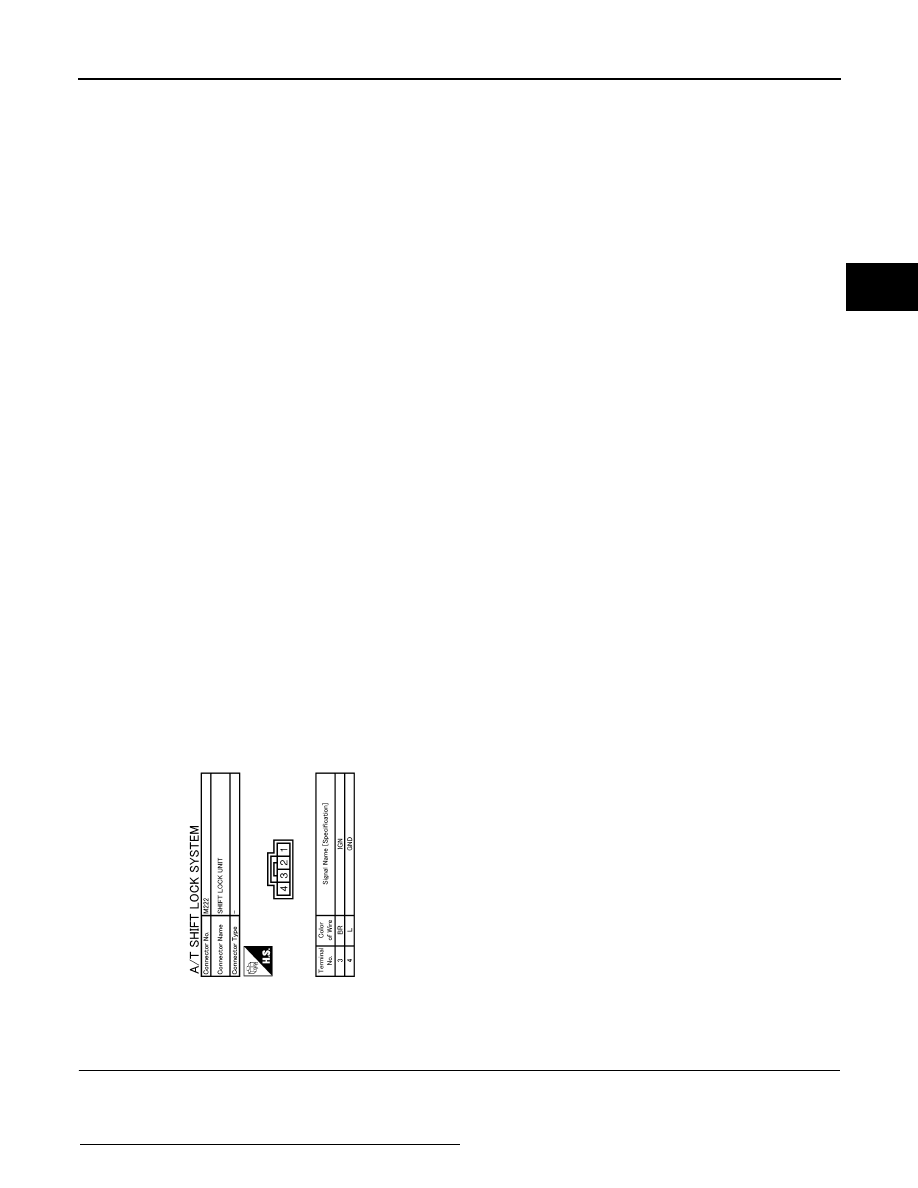

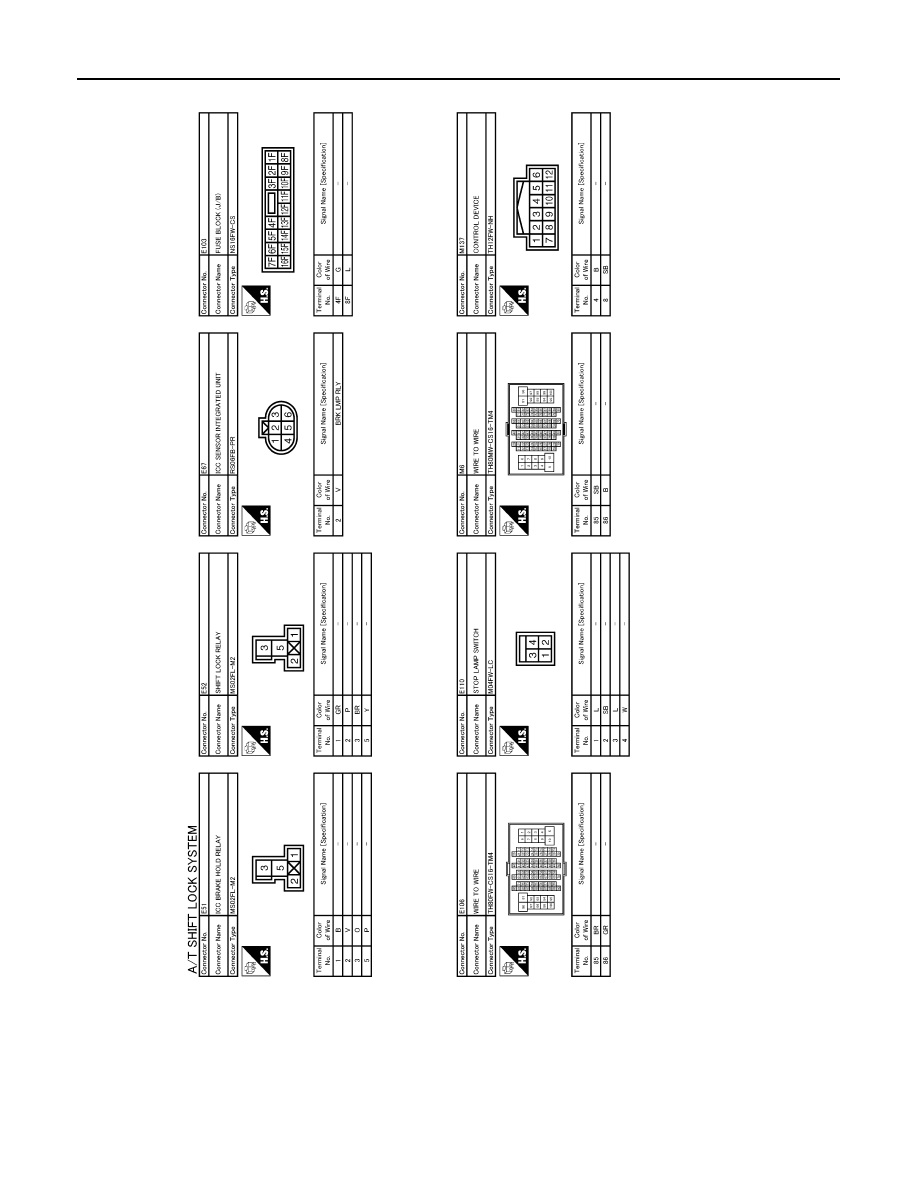

JCDWM0202GB

SHIFT LOCK SYSTEM

TM-95

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Component Function Check

INFOID:0000000003130565

1.

CHECK A/T SHIFT LOCK OPERATION (STEP 1)

1.

Turn ignition switch ON.

2.

Shift the selector lever to the “P” position.

3.

Attempt to shift the selector lever to any other position with the brake pedal released.

Can the selector lever be shifted to any other position?

JCDWM0203GB
