FRONT PASSENGER AIR BAG MODULE

SR-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

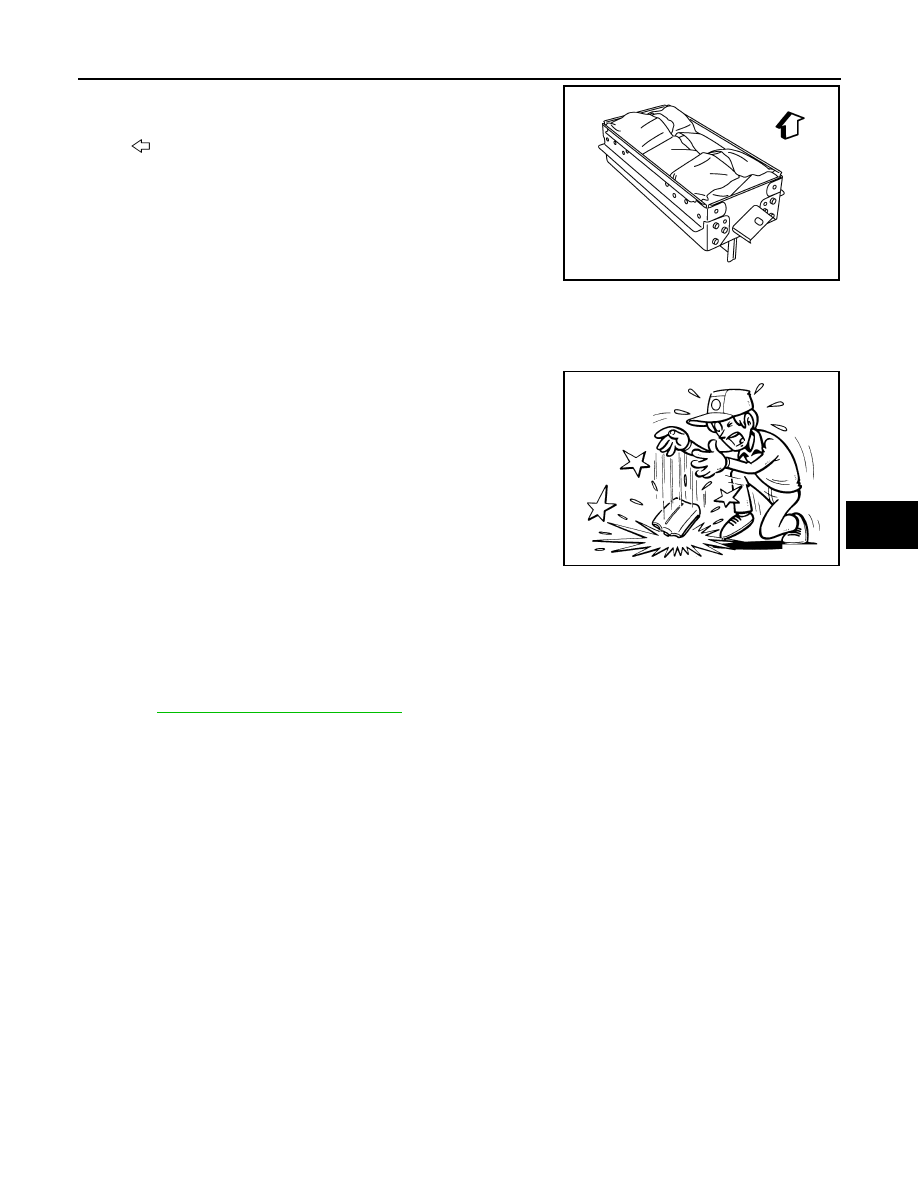

• Always place front passenger air bag module with pad side

facing upward.

• Do not insert any foreign objects (screwdriver, etc.) into front passenger air bag module.
• Do not disassemble front passenger air bag module.
• Do not expose the front passenger air bag module to temperatures exceeding 90

°

C (194

°

F).

• Do not allow oil, grease or water to come in contact with the front passenger air bag module.
• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Do not use old fixing bolt after removal; replace with new bolt.
• In the case that a malfunction is detected by the air bag warning lamp, after reparation or replace-

ment of the malfunctioning parts, reset the memory by self-diagnosis or by the CONSULT-III.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

Refer to

SRC-14, "Diagnosis Description"

.

: Upward

JMHIA0546ZZ

JMHIA0009ZZ

SR-10

< ON-VEHICLE REPAIR >

SIDE CURTAIN AIR BAG MODULE

SIDE CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000003131588

Removal and Installation

INFOID:0000000003131589

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.

• Do not use air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining. Refer to normal roof

INT-27, "NORMAL ROOF : Removal and Installation"

 or sun-

roof

INT-30, "SUNROOF : Removal and Installation"

.

2.

Remove the side curtain air bag harness connector.
NOTE:
• For installing/removing side curtain air bag harness connector,

insert thin screwdriver wrapped in tape into notch, lift lock and
remove connector.

• Install connector with lock raised, and push lock into connec-

tor.

• After installing the connector, check that the lock is pushed

securely into it.

3.

Remove fixing bolts, and then remove side curtain air bag module.

CAUTION:

• Do not insert any foreign objects (screwdriver, etc.) into side curtain air bag module.
• Do not disassemble side curtain air bag module.
• Do not expose the side curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Do not allow oil, grease or water to come in contact with the side curtain air bag module.

1.

Side curtain air bag

2.

Strap

3.

Side curtain air bag inflator

A.

Side curtain air bag harness connec-
tor

B.

Ground bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0547GB

PHIA0953J

SIDE CURTAIN AIR BAG MODULE

SR-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Replace the side curtain air bag module if it has been dropped

or sustained an impact.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• In the case that a malfunction is detected by the air bag warning lamp, after reparation or replace-

ment of the malfunctioning parts, reset the memory by self-diagnosis or by the CONSULT-III.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

Refer to

SRC-14, "Diagnosis Description"

.

JMHIA0009ZZ

SR-12

< ON-VEHICLE REPAIR >

CRASH ZONE SENSOR

CRASH ZONE SENSOR

Exploded View

INFOID:0000000003131590

Removal and Installation

INFOID:0000000003131591

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.

• Do not use air tools or electric tools for servicing.

REMOVAL

1.

Remove the reservoir tank. Refer to

CO-13, "Removal and Installation"

.

2.

Remove the crash zone sensor fixing nuts.

3.

Disconnect crash zone sensor harness connector.

CAUTION:

• Do not use old fixing nuts after removal; replace with new nuts.
• Replace the crash zone sensor if it has been dropped or sus-

tained an impact.

• Replace the crash zone sensor of deployed driver air bag and

deployed front passenger air bag.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

1.

Crash zone sensor

A.

Crash zone sensor harness connector

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure

JMHIA0548GB

JMHIA0009ZZ
