HEADLAMP

HEADLAMP

Description

INFOID:0000000003586635

Headlamp lighting when vehicle security system is alarm phase.

Component Function Check

INFOID:0000000003586636

1.

CHECK HEADLAMP OPERATION

Check if headlamp operate by lighting switch.

Does headlamp come on when turning switch “ON”?

YES

>> Headlamp circuit is OK.

NO

>> Go to

SEC-116, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003586637

1.

CHECK HEADLAMP OPERATION

Refer to

SEC-116, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> repair or replace the malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

VEHICLE SECURITY INDICATOR

SEC-117

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

VEHICLE SECURITY INDICATOR

Description

INFOID:0000000003586638

• Vehicle security indicator is built in combination meter.
• IVIS (Infinity Vehicle Immobilizer System-NATS) and vehicle security system conditions are indicated by

blink or illumination of vehicle security indicator.

Component Function Check

INFOID:0000000003586639

1.

CHECK FUNCTION

1.

Perform “THEFT IND” in the “ACTIVE TEST” mode with CONSULT-III.

2.

Check vehicle security indicator operation.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

SEC-117, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003586640

1.

CHECK DTC WITH “UNIFIED METER AND A/C AMP.”

Perform “Self Diagnostic Result” for unified meter and A/C amp. Refer to

MWI-101, "DTC Index"

.

Is the inspection result is normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Test item

Description

THEFT IND

ON

Vehicle security indicator

Illuminate

OFF

Not illuminate

SEC-118

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

KEY WARNING LAMP

KEY WARNING LAMP

Description

INFOID:0000000003739086

Performs operation method guide and warning together with buzzer.

Component Function Check

INFOID:0000000003739087

1.

CHECK FUNCTION

Check the operation with “INDICATOR” in “Active Test” mode with CONSULT-III.

Is the inspection result normal?

YES

>> Key warning lamp in combination meter is OK.

NO

>> Refer to

SEC-118, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003739088

1.

CHECK KEY WARNING LAMP

Refer to

MWI-38, "Diagnosis Description"

.

Is the inspection result normal?

Yes

>> GO TO 2.

No

>> Repair or replace harness.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Test item

Condition

INDICATOR

RED ON

Key warning lamp (red) illuminates

RED IND

Key warning lamp (red) flashes

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-119

< COMPONENT DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

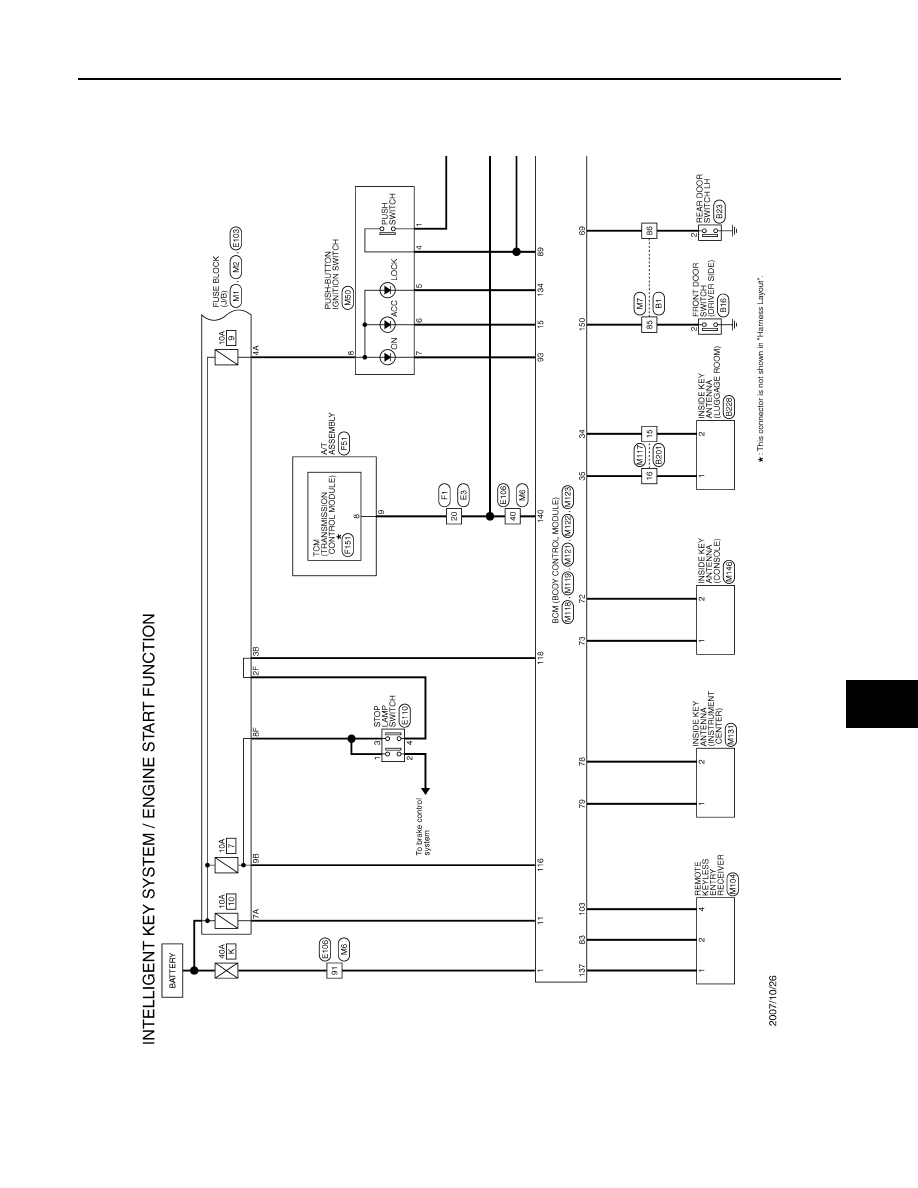

Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

INFOID:0000000003129596

JCKWM1071GB
