Infiniti EX35. Manual - part 1273





REAR SEAT

SE-99

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000003508331

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the seat cushion.

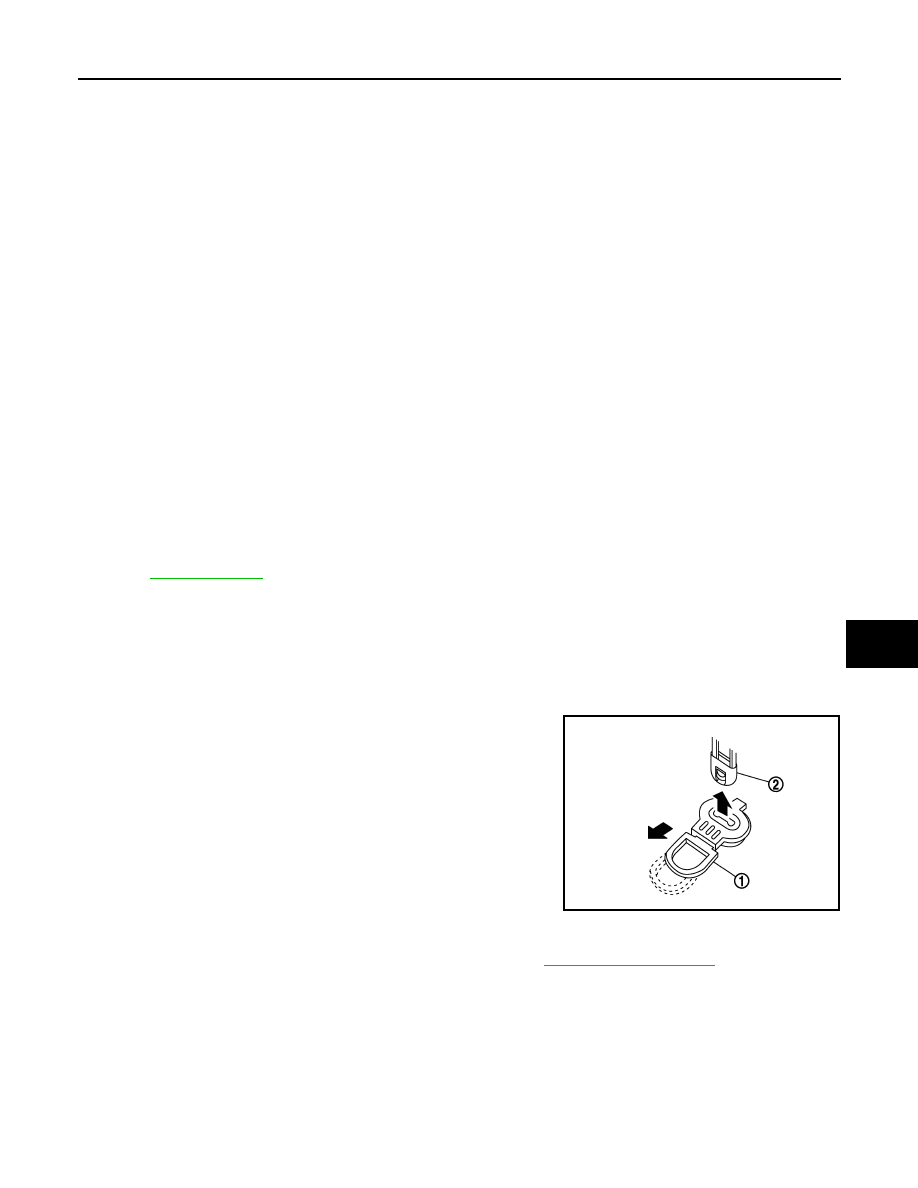

• Pull the lock lever (1) at the front bottom of the seat cushion

forward (1 for each side), and pull the seat cushion upward to
release the wire (2) from the seat cushion hook. Then pull the
seat cushion forward the remove

• Remove the seat cushion from vehicle.

2.

Remove the seatback.
• Remove the luggage floor finisher front LH and RH. Refer to

INT-34, "Exploded View"

.

• Disconnect the rear seat harness connectors.
- With power return seat model

LH seatback

1.

Rear center seat belt

2.

Center seat belt retractor cover

3.

Seat belt guide (upper)

4.

Seat belt guide (lower)

5.

Rear seatback lock cover (RH)

6.

Rear seatback lock knob (RH)

7.

Rear seatback lock knob finisher
(RH)

8.

Headrest holder (free)

9.

Headrest holder (locked)

10. Seat belt finisher

11.

Rear seatback trim (RH)

12. Rear seatback pad (RH)

13. Rear seatback board (RH)

14. Rear seatback board clip (RH)

15. Armrest trim

16. Armrest pad

17. Armrest frame

18. Cup holder

19. Armrest bracket cover (RH)

20. Armrest bracket (RH)

21. Armrest bracket (LH)

22. Armrest bracket cover (LH)

23. Rear seatback lock assembly (RH)

24. Rear seatback frame (RH)

25. Rear seat belt hook (RH)

26. Rear seatback hinge outer cover

(RH)

27. Rear seatback hinge (RH)

28. Rear seatback hinge bracket (RH)

29. Rear seatback hinge bush (RH)

30. Reclining device outer cover (RH)

31. Reclining device assembly (RH)

32. Reclining device inner cover (RH)

33. Rear seat harness (RH)

34. Rear seat cushion trim

35. Rear seat cushion pad

36. Rear seat cushion hook

37. Reclining device outer cover (LH)

38. Reclining device assembly (LH)

39. Reclining device inner cover (LH)

40. Reclining device bush

41. Rear seat harness (LH)

42. Rear seatback hinge outer cover

(LH)

43. Rear seatback hinge (LH)

44. Rear seat belt hook (LH)

45. Rear seatback lock assembly (LH)

46. Rear seatback frame (LH)

47. Rear seatback hinge bracket (LH)

48. Rear seatback hinge bush (LH)

49. Rear seatback lock cover (LH)

50. Rear seatback pad (LH)

51. Rear seatback trim (LH)

52. Rear seatback lock knob (LH)

53. Rear seatback lock knob finisher

(LH)

54. Headrest holder (locked)

55. Headrest holder (free)

56. Rear seatback board (LH)

57. Rear seatback board clip (LH)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMJIA0251ZZ

SE-100

< ON-VEHICLE REPAIR >

REAR SEAT

Disconnect the rear seat harness connectors (A).

RH seatback
Disconnect the rear seat harness connector (A).

- Without power return seat model

LH seatback
Disconnect the rear seat harness connectors (A).

RH seatback
Disconnect the rear seat harness connector (A).

JMJIA1579ZZ

JMJIA1580ZZ

JMJIA1721ZZ

JMJIA1580ZZ

REAR SEAT

SE-101

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Push the seatback lock pin (A).
• Remove the seatback mounting nuts (B), (C) and bolt (D).
• Remove the center seat belt anchor bolt. (RH seatback only)

Refer to

SB-10, "SEAT BELT RETRACTOR : Exploded View"

.

• Remove the seatback from vehicle.

INSTALLATION

1.

Install the rear seatback mounting nuts (1), (2), (3).

2.

Lock the seatback striker (4).

3.

Install the rear seatback mounting botl (5).

4.

Pull the rear seatback lock pin (6).

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• When removing and installing, 2 workers are required so as to prevent it from dropping.

Disassembly and Assembly

INFOID:0000000003508332

SEATBACK

Disassembly

1.

Remove the clips, and then pull out seatback board.

2.

Remove the armrest.
• Remove the armrest hinge covers (1).

JMJIA1499ZZ

JMJIA1711ZZ

: Clip

JMJIA1500ZZ

JMJIA1501ZZ

SE-102

< ON-VEHICLE REPAIR >

REAR SEAT

• Remove the arm rest mounting bolts (A), nuts (B) and hog

rings (C), and then remove the armrest.

3.

Remove the seatback device assembly.
• Remove the seatback trim fixing hog rings.
• Disconnect the seatback lock harness connector.

LH seatback
Disconnect the seatback lock harness connector (A).

RH seatback
Disconnect the seatback lock harness connector (B).

• Remove the seatback device.

Remove the seatback device mounting bolts (C).

JMJIA1502ZZ

JMJIA1581ZZ

JMJIA1582ZZ

JMJIA1583ZZ
