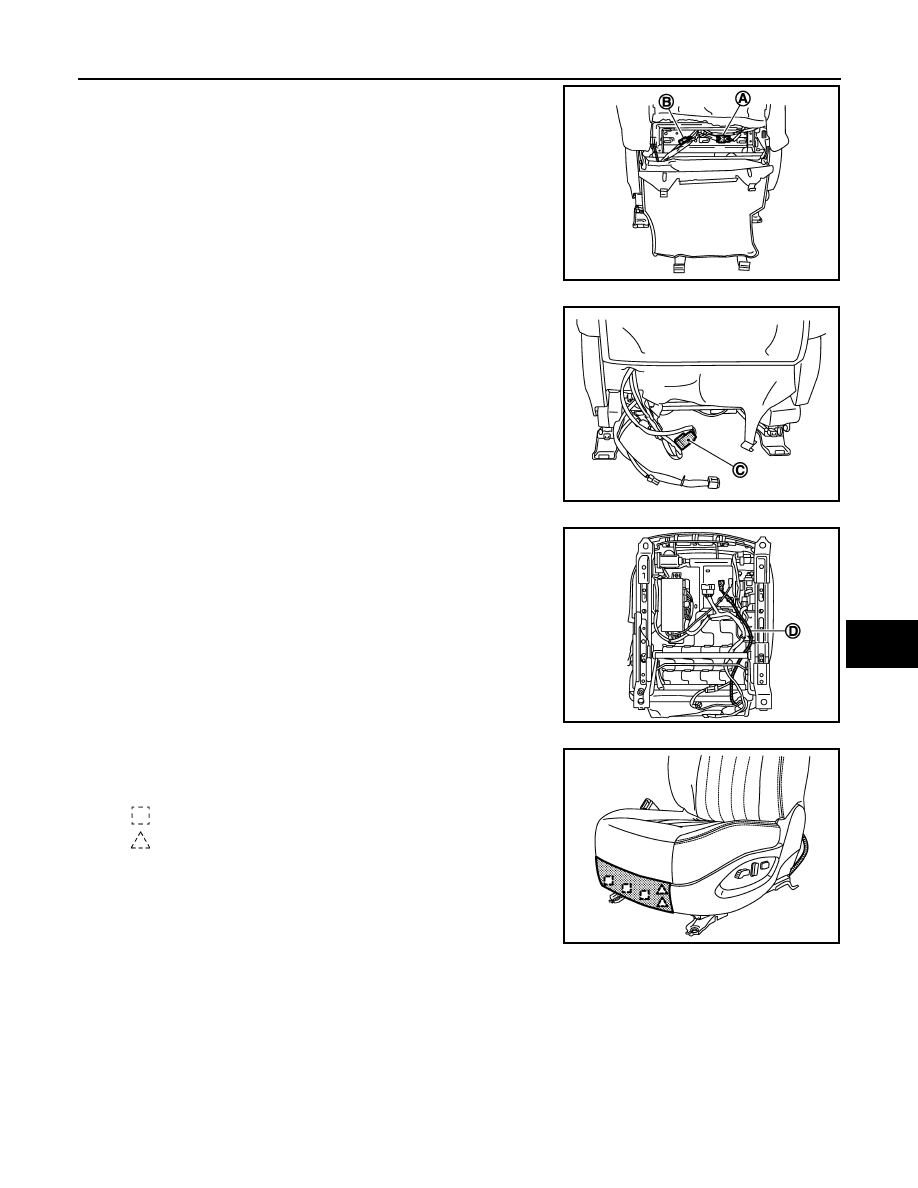

• Disconnect the reclining motor harness connector (A) and

lumbar support harness connector (B) (Driver's seat only).

• Disconnect the seatback heater harness connector (C).

• Remove the side air bag module harness (D).

4.

Remove the metal clips and pawls, and then pull out seat cush-
ion front finisher.

5.

Remove the seat cushion outer finisher.

JMJIA1486ZZ

JMJIA1487ZZ

JMJIA1488ZZ

: Metal clip

: Pawl

JMJIA1489ZZ

SE-96

< ON-VEHICLE REPAIR >

FRONT SEAT

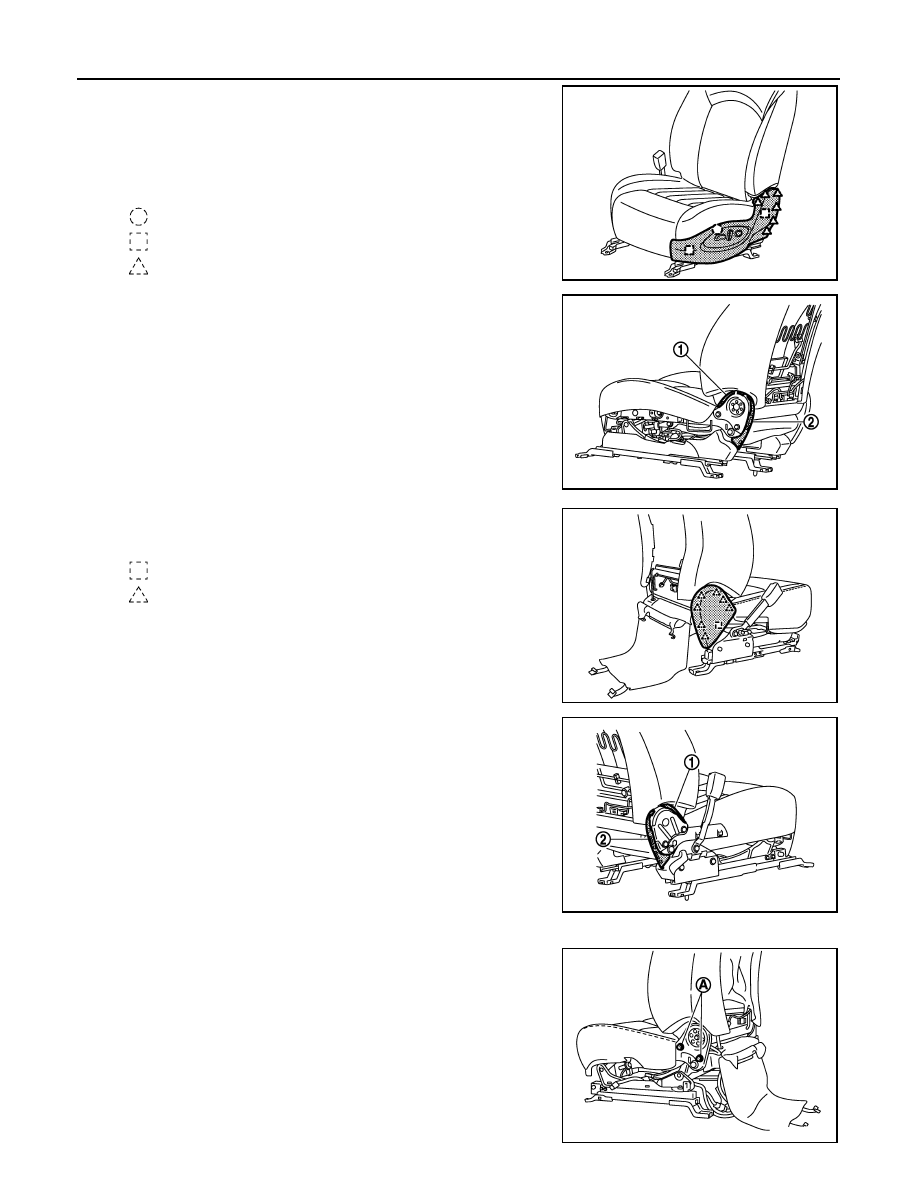

• Remove the seat slide and lifter (With lifter seat), reclining

switch knob.

• Remove the clip, metal clips and pawls, and then pull out seat

cushion outer finisher outside.

• Disconnect the slide & lifter, reclining and lumbar support

switch (Driver's seat only) harness connectors.

6.

Remove the seat cushion outer finisher inside front (1) and rear
(2).

7.

Remove the metal clip and pawls, and then pull out seat cushion
inner finisher outside.

8.

Remove the seat cushion inner finisher inside front (1) and rear
(2).

9.

Remove the seatback assembly.
Remove the seatback assembly mounting bolts (A).

: Clip

: Metal clip

: Pawl

JMJIA1490ZZ

JMJIA1491ZZ

: Metal clip

: Pawl

JMJIA1492ZZ

JMJIA1493ZZ

JMJIA1495ZZ

FRONT SEAT

SE-97

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

10. Remove the metal clips, and then pull out seat cushion outer

lower finisher outside (1) and inside (2).

11. Remove the seat cushion inner lower finisher.

12. Remove the seat cushion trim and seat cushion pad. (Without occupant classification system control unit

model)
• Disconnect the seat cushion heater unit harness connector

(A).

• Remove the seat cushion trim retainer.
• Remove the hog rings, and separate the seat cushion trim and

seat cushion pad.

13. Remove the seat belt buckle.

SB-7, "SEAT BELT BUCKLE : Exploded View"

14. Remove the driver seat control unit. (Driver's power seat only)

ADP-209, "Exploded View"

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord
with the pad side wire.

: Metal clip

JMJIA1496ZZ

: Metal clip

JMJIA1497ZZ

JMJIA1498ZZ
