b.

Rear inner slide cover
• Slide the seat to the front-most position.
• Pull up the rear edge of the rear inner slide cover to release

the pawls.

• Slide the rear inner slide cover rearward to release the pawls.

5.

Remove the mounting bolts on the rear side of the front seat.

6.

Set seatback in a standing position.

7.

Disconnect harness connector under the seat and remove harness securing clips.

CAUTION:

Before removal, turn ignition switch OFF, disconnect battery negative terminal, and then wait for
at least 3 minutes.

8.

Remove seat from the vehicle.

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• When removing and installing, 2 workers are required so as to prevent it from dropping.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Before installation, turn ignition switch OFF, disconnect both battery cables, and then wait for at

least 3 minutes.

• Clamp the harness in position.
NOTE:
After installing the front seat, perform additional service when removing battery negative terminal.(Automatic
drive positioner model only) Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGA-

TIVE TERMINAL : Description"

.

Disassembly and Assembly

INFOID:0000000003508329

SEATBACK

Disassembly

1.

Remove the seatback board.
• Remove the clips and pawls, and then pull out seatback board.
• Pull down the seatback board to release the upper pawls.

2.

Remove the seatback trim retainer and seatback trim band from seat cushion frame.

3.

Disconnect the harness connectors and remove the harness clamps.

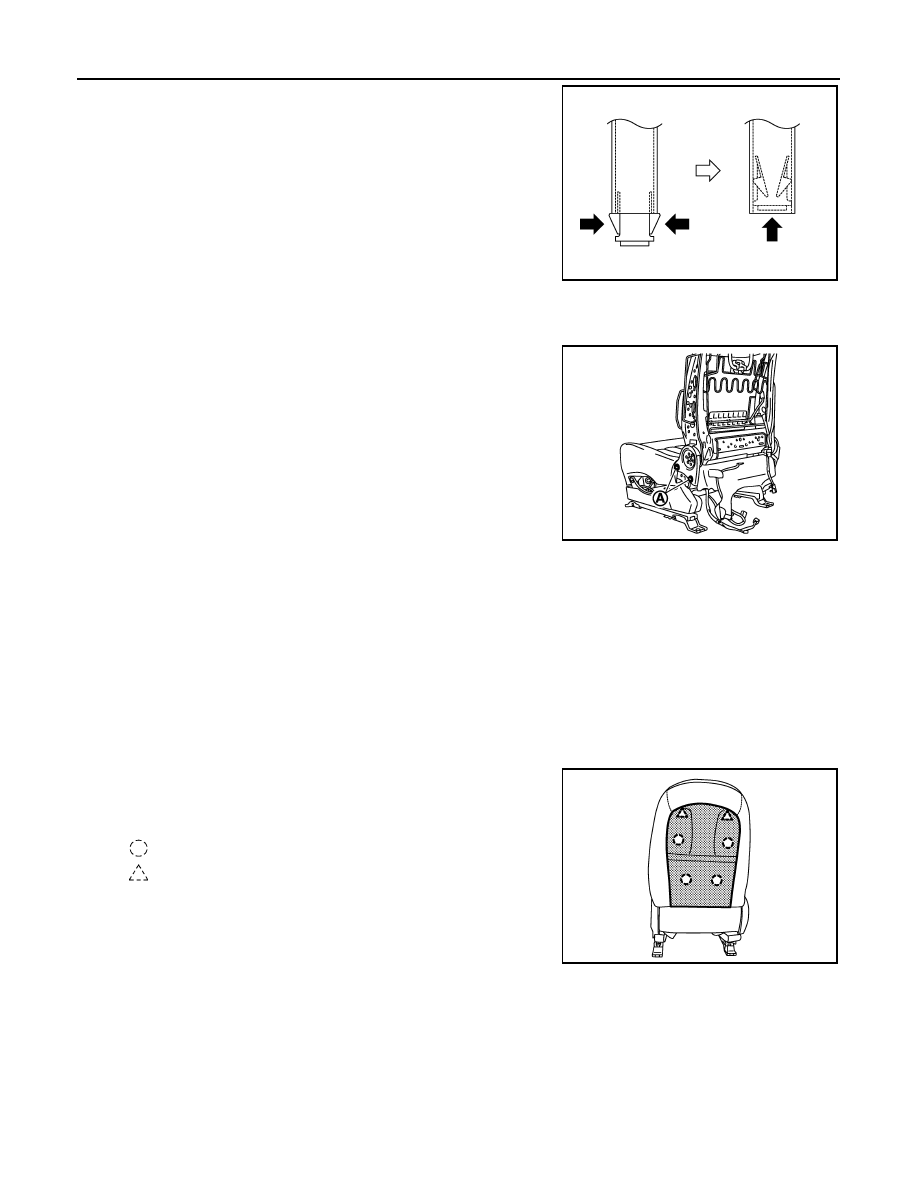

: Pawl

JMJIA1660ZZ

: Clip

: Pawl

JMJIA1485ZZ

SE-92

< ON-VEHICLE REPAIR >

FRONT SEAT

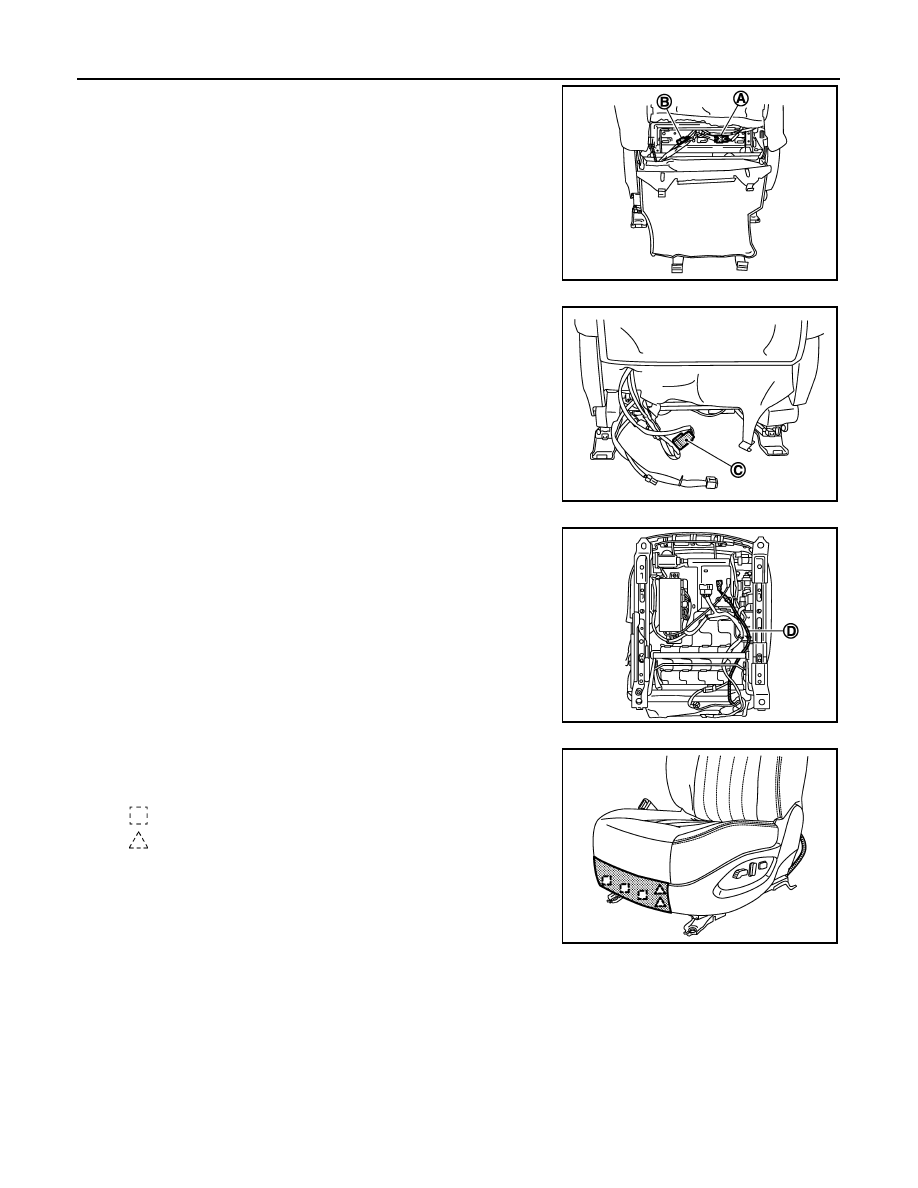

• Disconnect the reclining motor harness connector (A) and

lumbar support harness connector (Driver's seat only) (B).

• Disconnect the seatback heater harness (C).

• Remove the harness clamps, and then side air bag module

harness (D).

4.

Remove the metal clips and pawls, and then pull out seat cush-
ion front finisher.

5.

Remove the seat cushion outer finisher.

JMJIA1486ZZ

JMJIA1487ZZ

JMJIA1488ZZ

: Metal clip

: Pawl

JMJIA1489ZZ

FRONT SEAT

SE-93

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Remove the seat slide and lifter (With lifter seat), reclining

switch knob.

• Remove the clips, metal clips and pawls, and then pull out seat

cushion outer finisher outside.

• Disconnect the slide & lifter, reclining and lumbar support

switch (Driver's seat only) harness connectors.

6.

Remove the seat cushion outer finisher inside front (1) and rear
(2).

7.

Remove the metal clip and pawls, and then pull out seat cushion
inner finisher outside.

8.

Remove the seat cushion inner finisher inside front (1) and rear
(2).

9.

Remove the seatback trim and seatback pad.

: Clip

: Metal clip

: Pawl

JMJIA1490ZZ

JMJIA1491ZZ

: Metal clip

: Pawl

JMJIA1492ZZ

JMJIA1493ZZ

SE-94

< ON-VEHICLE REPAIR >

FRONT SEAT

• Remove the headrest holder.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

• Remove the air bag module.
• Remove the seatback trim and seatback pad from the seat-

back frame.

• Remove the hog rings, and separate the seatback trim and

seatback pad.

10. Remove the seatback silencer.

11. Remove the seatback frame.

Remove the seatback frame mounting bolts (A) and then
remove the seatback frame.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with
the pad side wire.

SEAT CUSHION

Disassembly

CAUTION:

Never disassemble front passenger seat cushion assembly.
Always replace as an assembly.
For front passenger seat service parts, refer to the service part catalogue.

1.

Remove the seatback board.
• Remove the clips and pawls, and then pull out seatback board.
• Pull down the seatback board to release the upper pawls.

2.

Remove the seatback trim retainer and seatback trim band from seat cushion frame.

3.

Disconnect the harness connectors and remove the harness clamps.

PIIB8351J

JMJIA1494ZZ

: Clip

: Pawl

JMJIA1485ZZ
