REAR SEAT BELT
SB-11
< ON-VEHICLE REPAIR >
C
D
E
F
G
I
J
K
L
M
A
B
SB
N
O
P

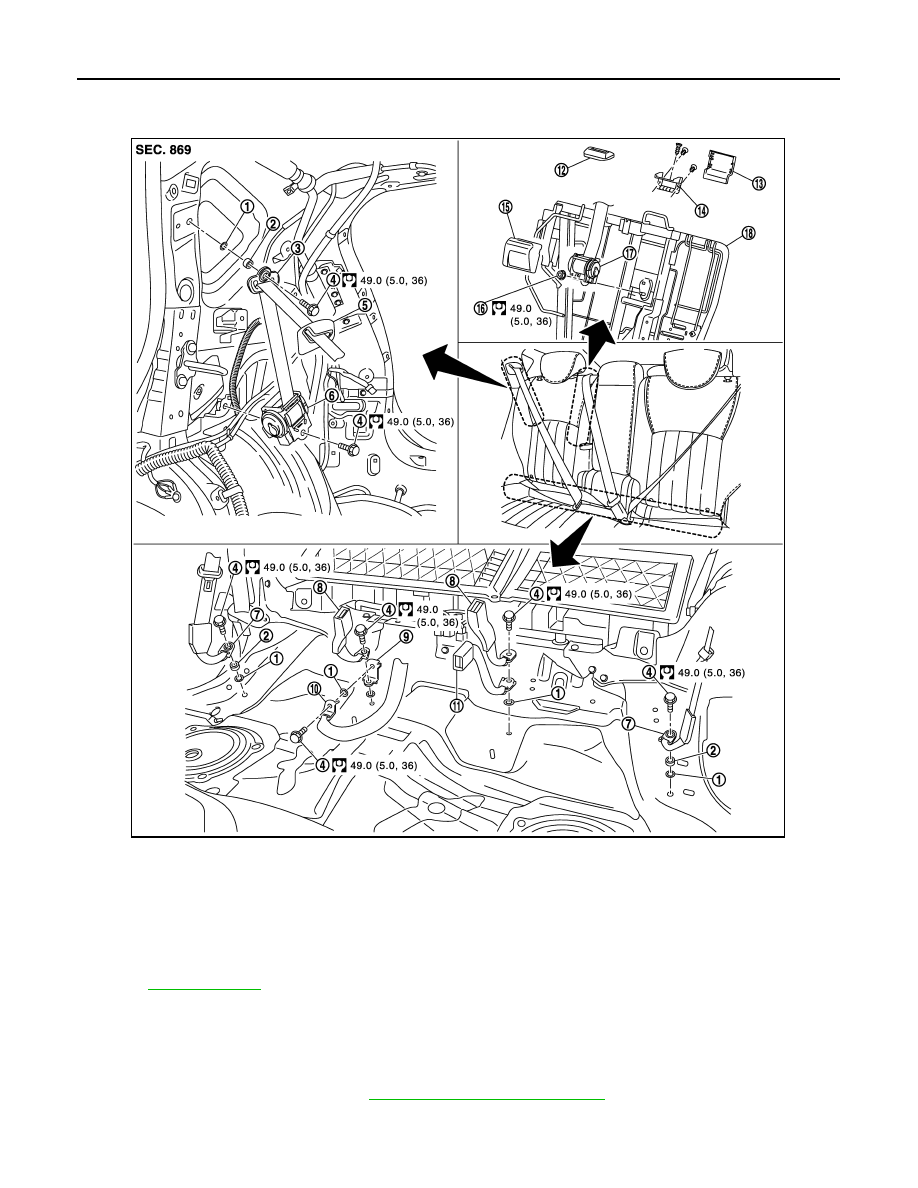

Remove the inner anchor fixing anchor bolt and remove the inner anchor.
3.
Remove the shoulder anchor.
• Remove the luggage side upper and lower finisher. Refer to
INT-20, "Removal and Installation"
.
• Remove the shoulder anchor fixing anchor bolt and remove the shoulder anchor.
4.
Remove the outer seat belt retractor.
• Remove the luggage side upper and lower finisher. Refer to
INT-20, "Removal and Installation"
.
• Remove the fixing anchor bolt and remove the outer seat belt retractor.
5.
Remove the center seat belt retractor.
• Remove the rear seatback. Refer to
SE-99, "Removal and Installation"
.
• Remove the pawls, and then remove seat belt finisher.
• Remove the rear seatback trim and pad. Refer to
SE-101, "Disassembly and Assembly"
.
• Remove the seat belt guide (upper)
• Remove the screws, and then remove seat belt guide (lower)
• Remove the center seat belt retractor cover.
• Remove the fixing anchor nut and remove the center seat belt retractor.
INSTALLATION
Install in the reverse order of removal.

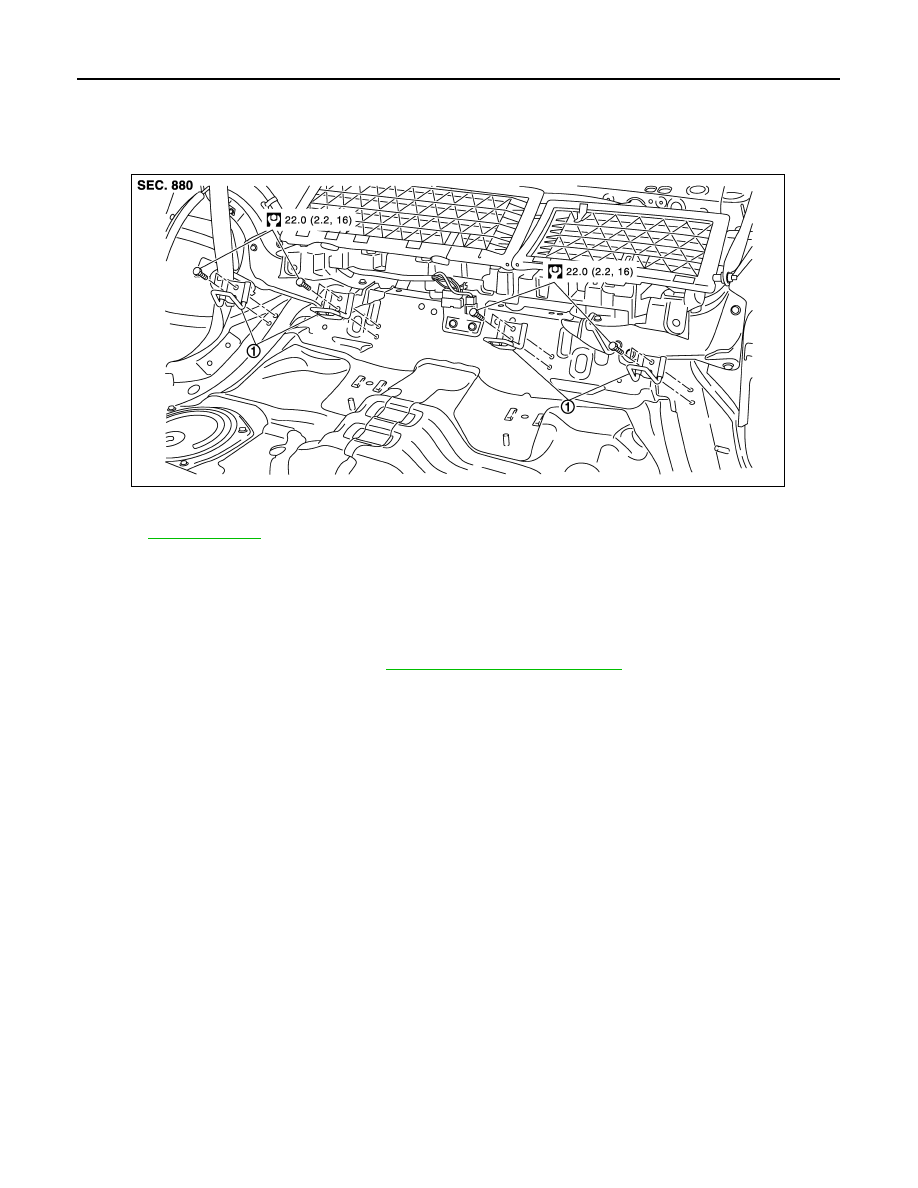

SEAT BELT BUCKLE
SEAT BELT BUCKLE : Inspection
INFOID:0000000003514974
AFTER A COLLISION
WARNING:
Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation was noted. Seat belt
pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in
which the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and
buckles show no damage and continue to operate properly).
• The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage
or distortion and repair if necessary before installing a new seat belt assembly.
• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner should be replaced even if the seat belts were not in use during the collision in
which the air bags are deployed.
PRELIMINARY CHECKS
1.
Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.
2.
Repeat step above if necessary to check the other seat belts.

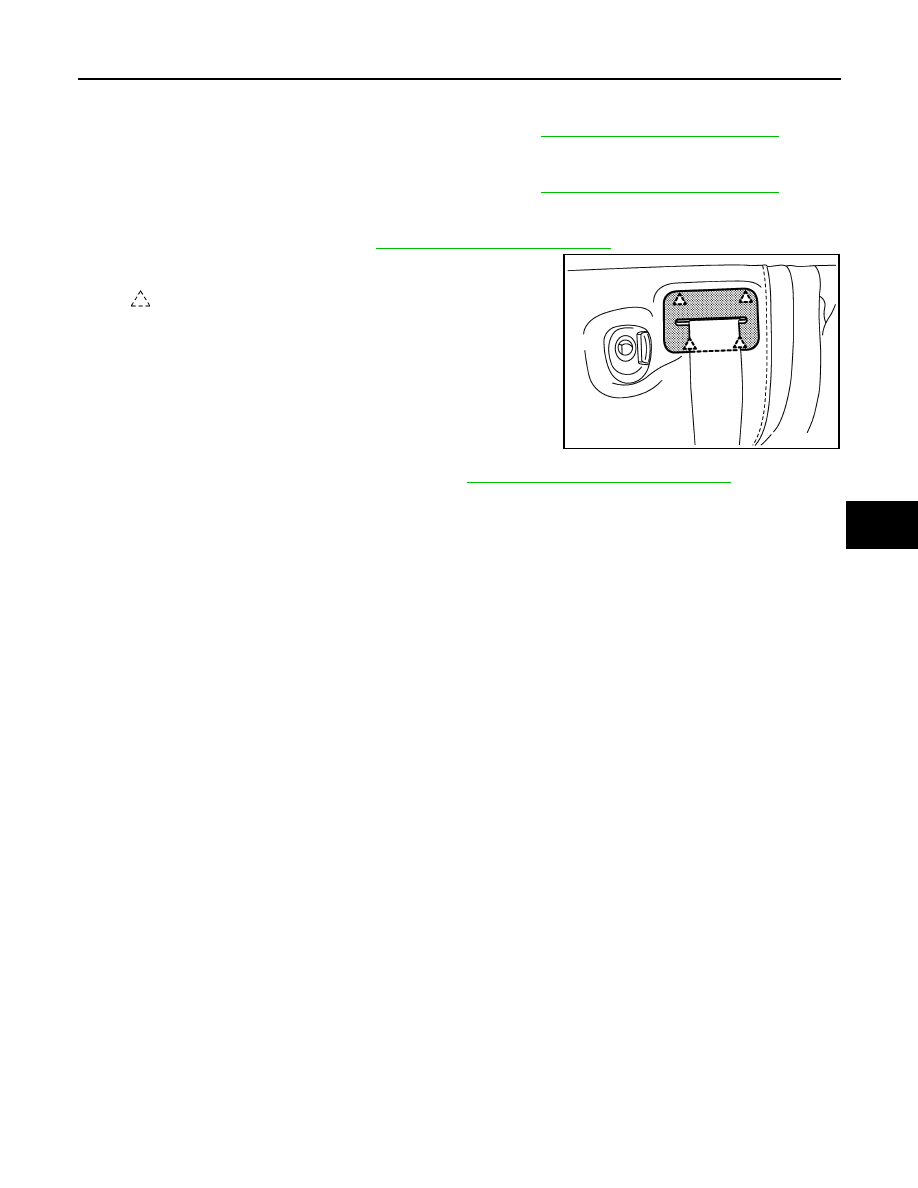

: Pawl
JMHIA0562ZZ
