RSU-14

< ON-VEHICLE REPAIR >

RADIUS ROD

RADIUS ROD

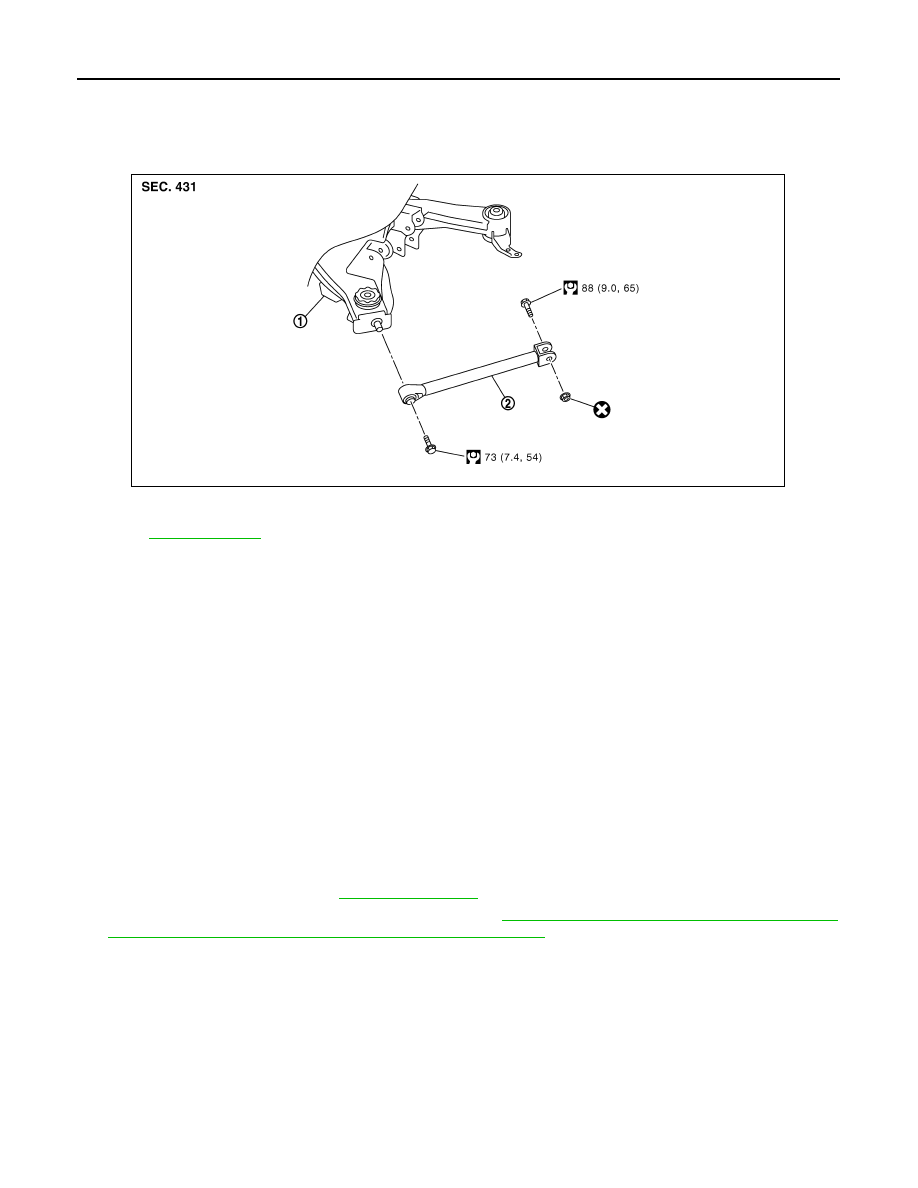

Exploded View

INFOID:0000000003130388

Removal and Installation

INFOID:0000000003130389

REMOVAL

1.

Remove tire with power tool.

2.

Remove radius rod mounting bolt and nut (axle housing side) with power tool.

3.

Remove radius rod mounting bolt (rear suspension member side) with power tool, and remove radius rod.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

Inspection

INFOID:0000000003130390

INSPECTION AFTER REMOVAL

Check radius rod and bushing for any deformation, cracks, or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

2.

Adjust neutral position of steering angle sensor. Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

1.

Rear suspension member

2.

Radius rod

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0092GB

FRONT LOWER LINK

RSU-15

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

FRONT LOWER LINK

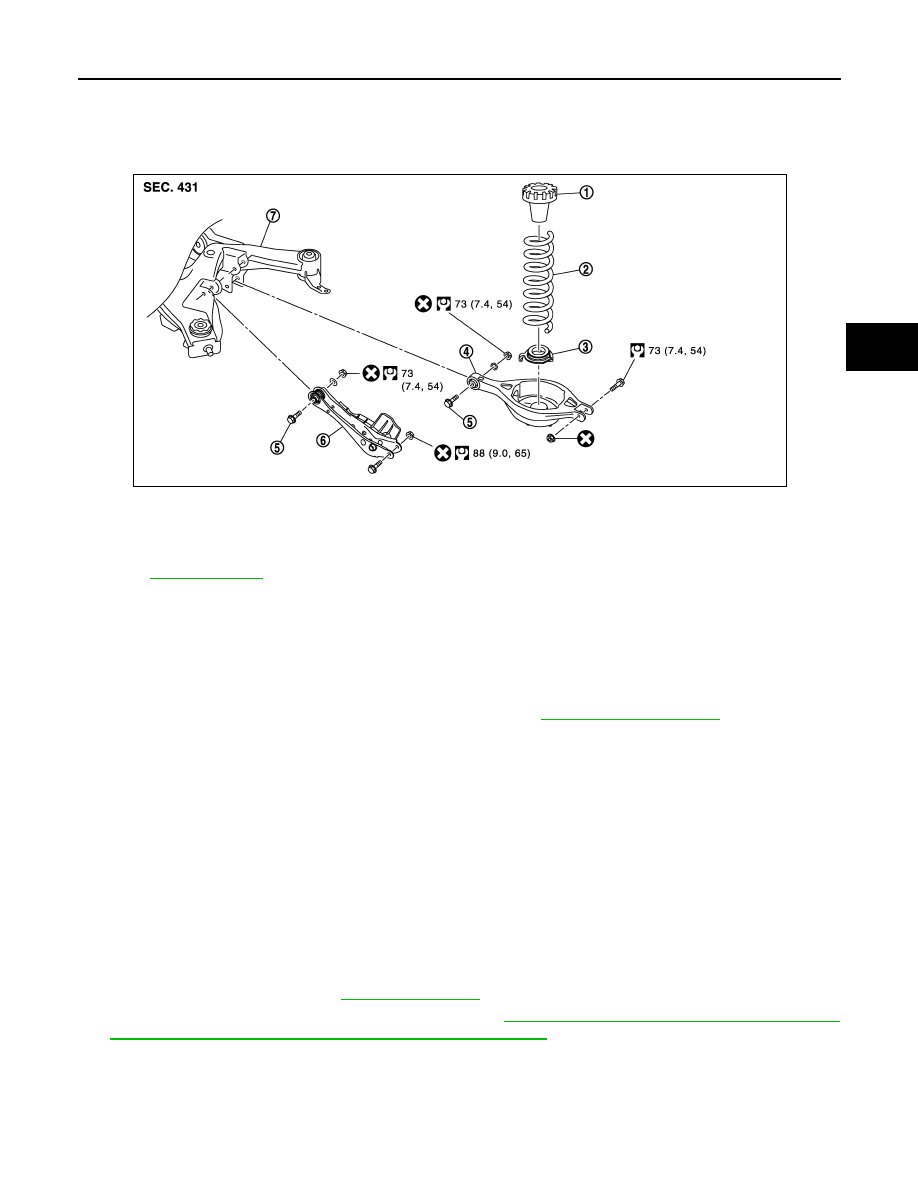

Exploded View

INFOID:0000000003579573

Removal and Installation

INFOID:0000000003130392

REMOVAL

1.

Remove tire with power tool.

2.

Set suitable jack under axle assembly to relieve the coil spring tension.

3.

Remove shock absorber mounting bolts (lower side). Refer to

RSU-10, "Exploded View"

.

4.

Remove front lower link mounting bolts and nuts (rear suspension member side) with power tool.

5.

Remove front lower link mounting bolts and nuts (axle housing side) with power tool, and remove front
lower link.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

Inspection

INFOID:0000000003130393

INSPECTION AFTER REMOVAL

Check front lower link and bushing for any deformation, cracks, or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

2.

Adjust neutral position of steering angle sensor. Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

1.

Upper seat

2.

Coil spring

3.

Rubber seat

4.

Rear lower link

5.

Adjusting bolt

6.

Front lower link

7.

Rear suspension member

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0089GB

RSU-16

< ON-VEHICLE REPAIR >

REAR STABILIZER

REAR STABILIZER

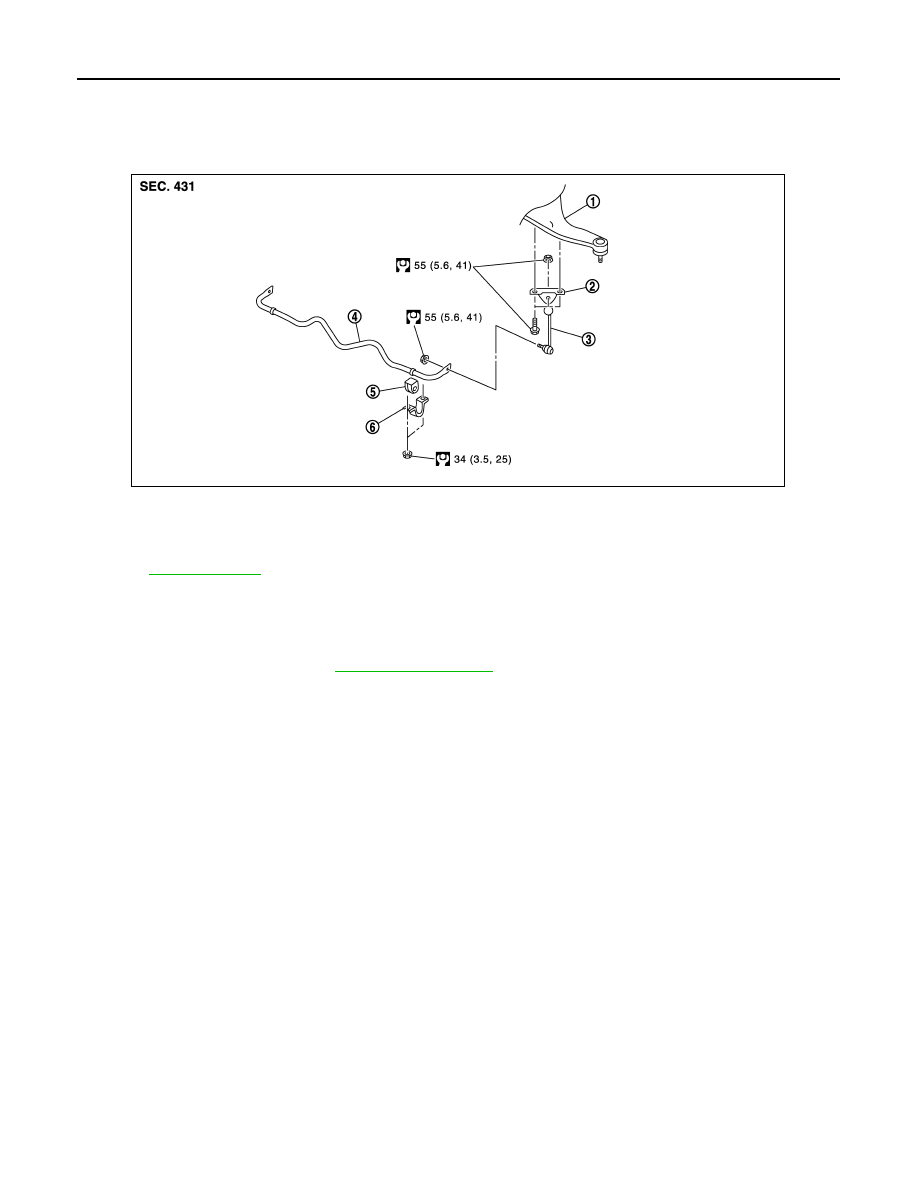

Exploded View

INFOID:0000000003130394

Removal and Installation

INFOID:0000000003130395

REMOVAL

1.

Remove center muffler. Refer to

EX-5, "Exploded View"

.

2.

Remove under cover.

3.

Remove stabilizer connecting rod mounting nuts (lower side), and remove stabilizer connecting rod from
stabilizer bar with power tool.

4.

Remove stabilizer connecting rod mounting nuts (upper side), and remove stabilizer connecting rod from
stabilizer connecting rod mounting bracket with power tool.

5.

Remove mounting nuts on stabilizer clamp and remove stabilizer bar with power tool.

6.

Remove stabilizer connecting rod mounting bracket.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Tighten the mounting nut to the specified torque while holding a hexagonal part of stabilizer connecting rod

side.

Inspection

INFOID:0000000003130396

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp for deformation, cracks
or damage. Replace it if necessary.

1.

Suspension arm

2.

Stabilizer connecting rod mounting
bracket

3.

Stabilizer connecting rod

4.

Stabilizer bar

5.

Stabilizer bushing

6.

Stabilizer clamp

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0093GB

REAR SUSPENSION MEMBER

RSU-17

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

REMOVAL AND INSTALLATION

REAR SUSPENSION MEMBER

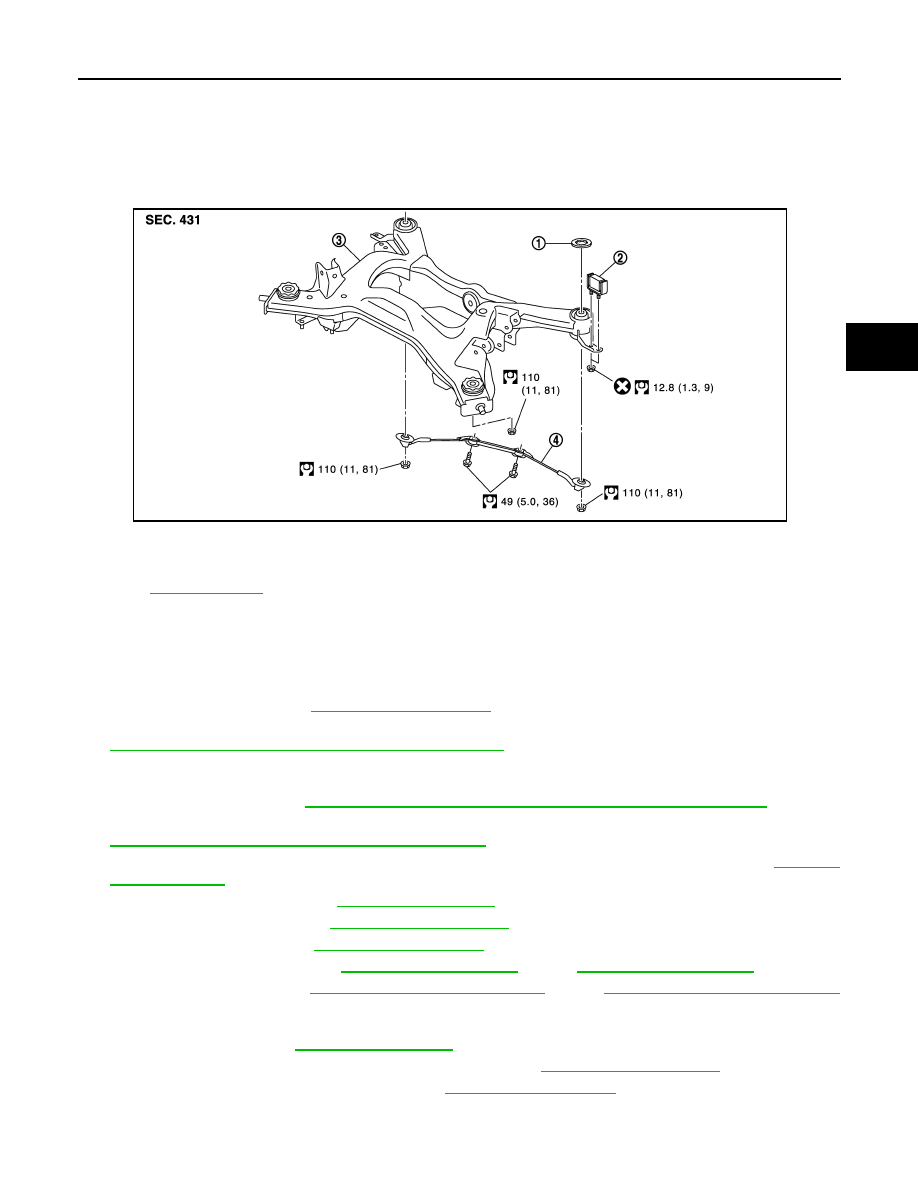

Exploded View

INFOID:0000000003130397

Removal and Installation

INFOID:0000000003130398

REMOVAL

1.

Remove tires with power tool.

2.

Remove radius rod. Refer to

RSU-14, "Exploded View"

.

3.

Remove caliper assembly with power tool. Hang it in a place where it will not interfere with work. Refer to

BR-40, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

CAUTION:

Avoid depressing brake pedal while brake caliper is removed.

4.

Remove disc rotor. Refer to

BR-41, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

5.

Remove wheel sensor and sensor harness from rear suspension member and suspension arm. Refer to

BRC-108, "REAR WHEEL SENSOR : Exploded View"

.

6.

Remove height sensor harness from rear suspension member (with xenon head lamp). Refer to

EXL-203,

"Exploded View"

.

7.

Remove center muffler. Refer to

EX-5, "Exploded View"

.

8.

Remove stabilizer bar. Refer to

RSU-16, "Exploded View"

.

9.

Remove drive shaft. Refer to

RAX-9, "Exploded View"

.

10. Remove propeller shaft. Refer to

DLN-81, "Exploded View"

 (2WD),

DLN-89, "Exploded View"

 (AWD).

11. Remove final drive. Refer to

DLN-160, "2WD : Exploded View"

 (2WD),

DLN-161, "AWD : Exploded View"

(AWD).

12. Remove parking brake cable mounting bolt and separate parking brake cable from vehicle and rear sus-

pension member. Refer to

PB-7, "Exploded View"

.

13. Remove shock absorber mounting bolts (lower side). Refer to

RSU-10, "Exploded View"

.

14. Remove rear lower link and coil spring. Refer to

RSU-8, "Exploded View"

15. Remove under cover.
16. Set suitable jack under rear suspension member.

1.

Mount stopper

2.

Dynamic damper

3.

Rear suspension member

4.

Pin stay

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0094GB
