SUNROOF UNIT ASSEMBLY

RF-77

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF UNIT ASSEMBLY

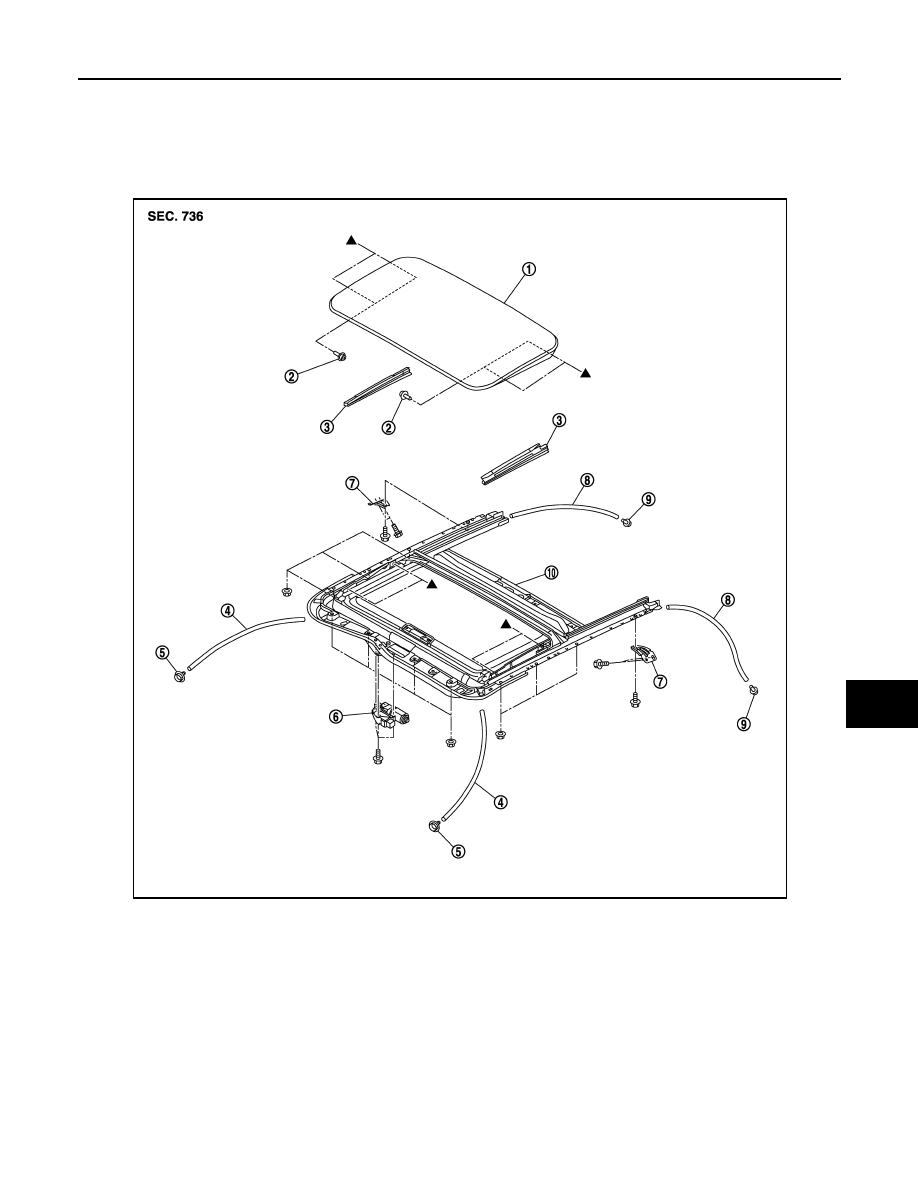

Exploded View

INFOID:0000000003545369

REMOVAL

DISASSEMBLY

1.

Glass lid

2.

TORX bolt

3.

Inner blind (LH/RH)

4.

Drain hose (front)

5.

Drain connector (front)

6.

Sunroof motor assembly

7.

Sunroof bracket (LH/RH)

8.

Drain hose (rear)

9.

Drain connector (rear)

10. Sunroof unit assembly

JMKIA2041ZZ

RF-78

< ON-VEHICLE REPAIR >

SUNROOF UNIT ASSEMBLY

Removal and Installation

INFOID:0000000003545370

REMOVAL

CAUTION:

• Always work with a helper.
• Fully close the glass lid, before removal, then do not operate sunroof motor assembly after removal.
• When taking sunroof unit assembly out, use cloths to protect the seats and trim from damage.
1.

Remove the headlining. Refer to

INT-30, "SUNROOF : Removal and Installation"

.

2.

Remove the glass lid. Refer to

RF-73, "Removal and Installation"

.

3.

Remove the sunroof motor assembly. Refer to

RF-75, "Removal and Installation"

4.

Disconnect drain hoses.

5.

Remove the assistance grip brackets.

6.

Remove the sunroof brackets (LH/RH).

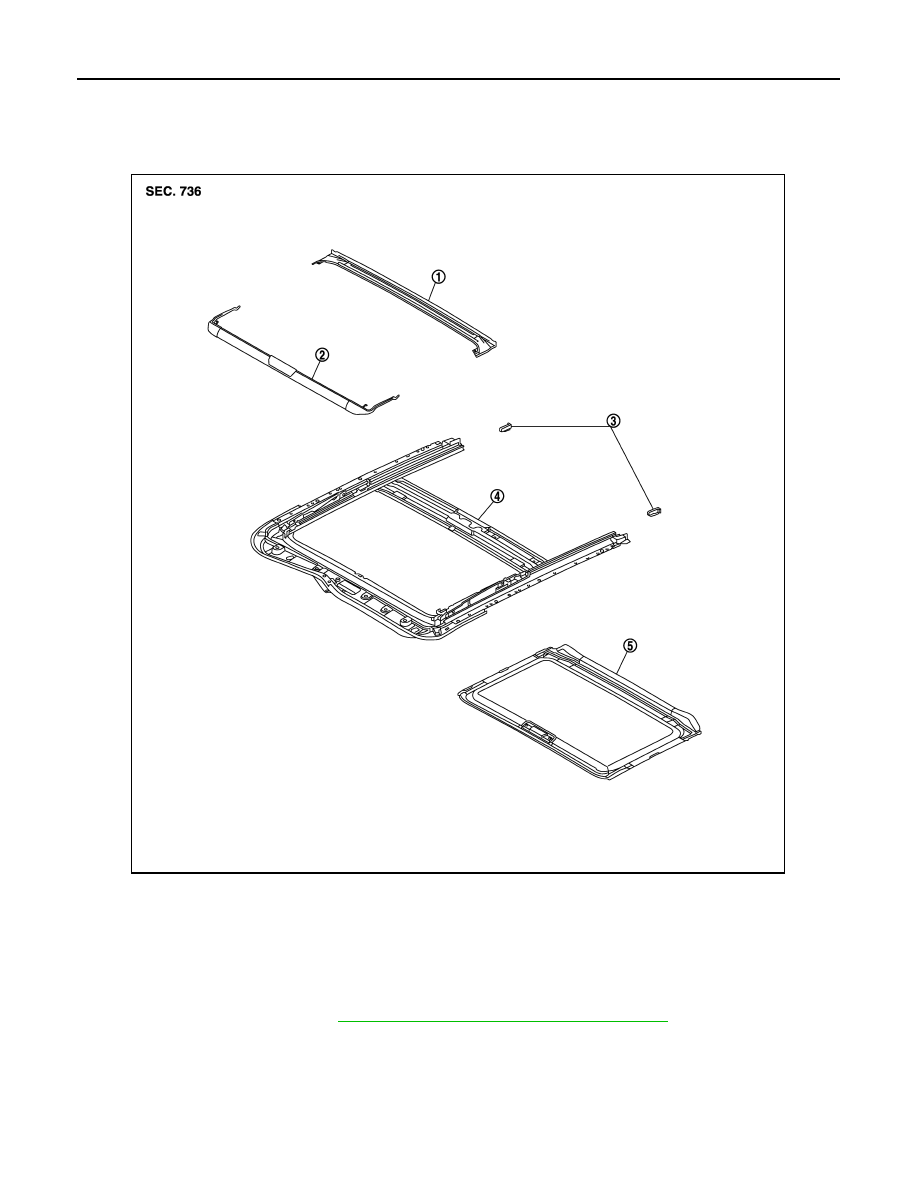

1.

Rear drain

2.

Wind deflector

3.

Sunshade stopper (LH/RH)

4.

Sunroof frame

5.

Sunshade

JMKIA2042ZZ

SUNROOF UNIT ASSEMBLY

RF-79

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

7.

Remove nuts from the front end and side rail, and then remove sunroof unit assembly from roof panel.

8.

Remove sunroof unit assembly through the back door while being careful not to damage the seats and
trim.

INSTALLATION

CAUTION:

After installing the sunroof unit assembly and glass lid, perform the leak test and check that there is
no malfunction.

1.

Bring sunroof unit into back door.

2.

Temporarily tighten the mounting nuts to the side rail of sunroof unit assembly.

3.

Temporarily tighten the mounting nuts to the front end of sunroof unit assembly.

4.

Temporarily tighten the mounting bolts to the sunroof brackets (LH/RH)

5.

Tighten the installation points diagonally excluding the installation points of the sunroof brackets around
the roof opening.

6.

Tighten the mounting nuts to the front end and side rail.

7.

Tighten the sunroof bracket bolts of the vehicle side, and then tighten the bolt of the rail side.

8.

Install the assistance grip bracket.

9.

Install the sunroof motor assembly. Refer to

RF-75, "Removal and Installation"

.

10. Install the glass lid. Refer to

RF-73, "Removal and Installation"

.

NOTE:
After installation, perform fitting adjustment. Refer to

RF-74, "Adjustment"

.

11. Connect drain hoses.
12. Install the headlining. Refer to

INT-30, "SUNROOF : Removal and Installation"

.

Disassembly and Assembly

INFOID:0000000003545371

DISASSEMBLY

1.

Remove the screw, and then rear drain.

2.

Remove sunshade. Refer to

RF-80, "Removal and Installation"

.

ASSEMBLY

Assemble in the reverse order of disassembly.

RF-80

< ON-VEHICLE REPAIR >

SUNSHADE

SUNSHADE

Exploded View

INFOID:0000000003545372

Removal and Installation

INFOID:0000000003545373

REMOVAL

1.

Remove the headlining. Refer to

INT-30, "SUNROOF : Removal and Installation"

.

1.

Rear drain

2.

Wind deflector

3.

Sunshade stopper (LH/RH)

4.

Sunroof frame

5.

Sunshade

JMKIA2042ZZ
