PCS

PRECAUTIONS

PCS-33

< PRECAUTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

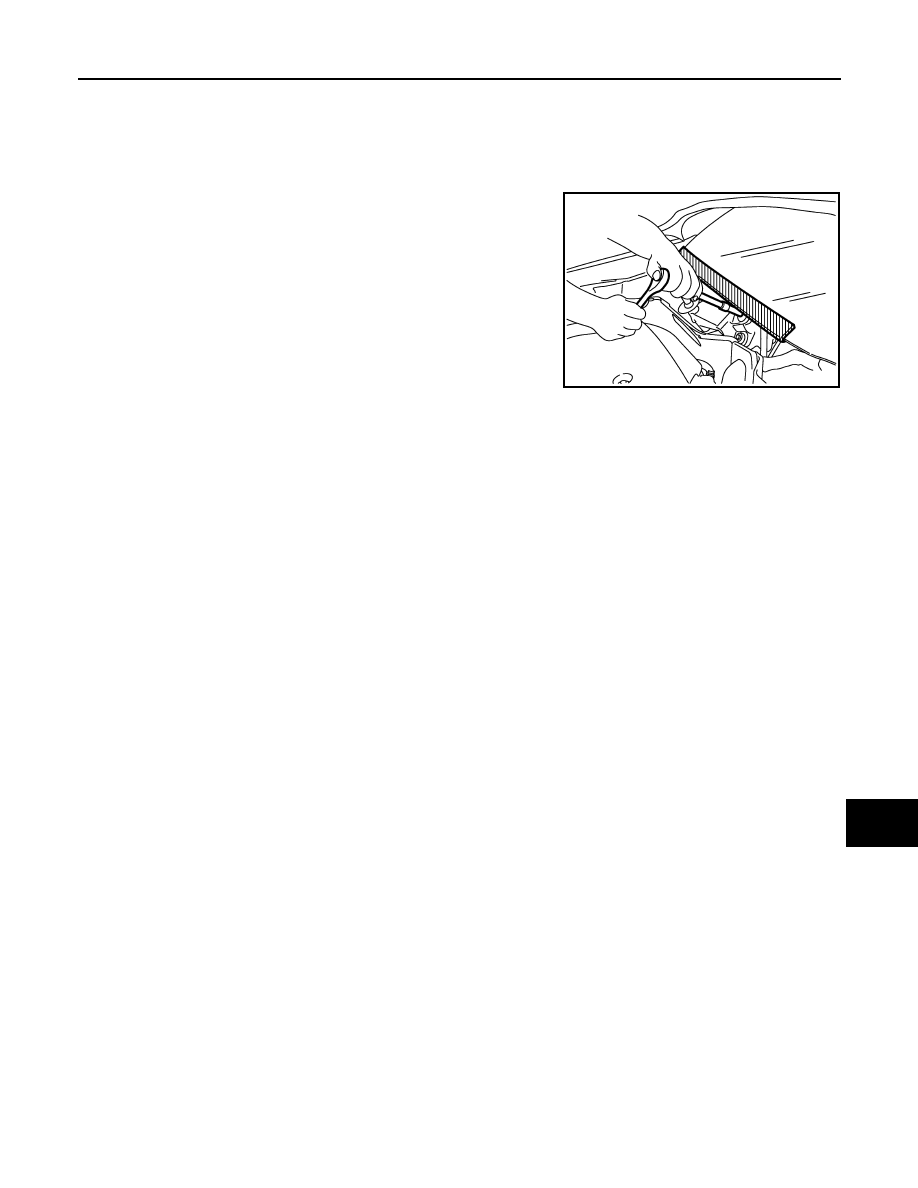

Precaution for Procedure without Cowl Top Cover

INFOID:0000000003737083

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

PIIB3706J

PCS-34

< ON-VEHICLE REPAIR >

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

ON-VEHICLE REPAIR

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

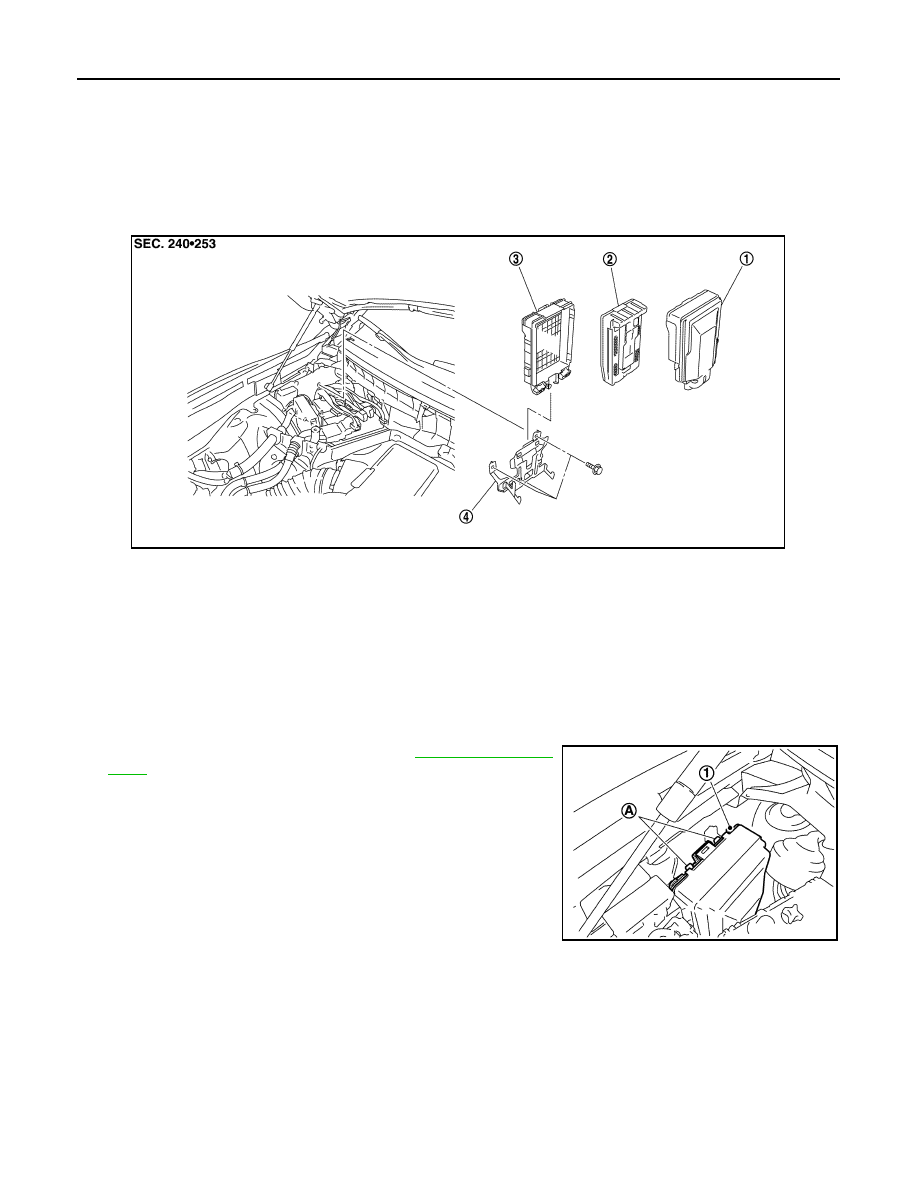

Exploded View

INFOID:0000000003132011

Removal and Installation

INFOID:0000000003132012

CAUTION:

IPDM E/R integrated relays are not serviceable parts, and must not be removed from the unit.

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove cowl top cover (RH). Refer to

EXT-22, "Exploded

View"

.

3.

Pull up the IPDM E/R assembly while pressing the pawl (A) on
the back of the IPDM E/R cover B (1).

1.

IPDM E/R cover A

2.

IPDM E/R

3.

IPDM E/R cover B

4.

Bracket

JPMIA0948ZZ

JPMIA0949ZZ

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-35

< ON-VEHICLE REPAIR >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

4.

Remove the IPDM E/R cover A while pressing the pawl (A) at
the lower end of the IPDM E/R cover A (1).

5.

Disconnect the harness connector and remove IPDM E/R (2).

6.

Remove the bolt (A) and remove the bracket (1) from the vehi-
cle.

INSTALLATION

Install in the reverse order of removal.

JPMIA0060ZZ

JPMIA0061ZZ

PCS-36

< BASIC INSPECTION >

[POWER DISTRIBUTION SYSTEM]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

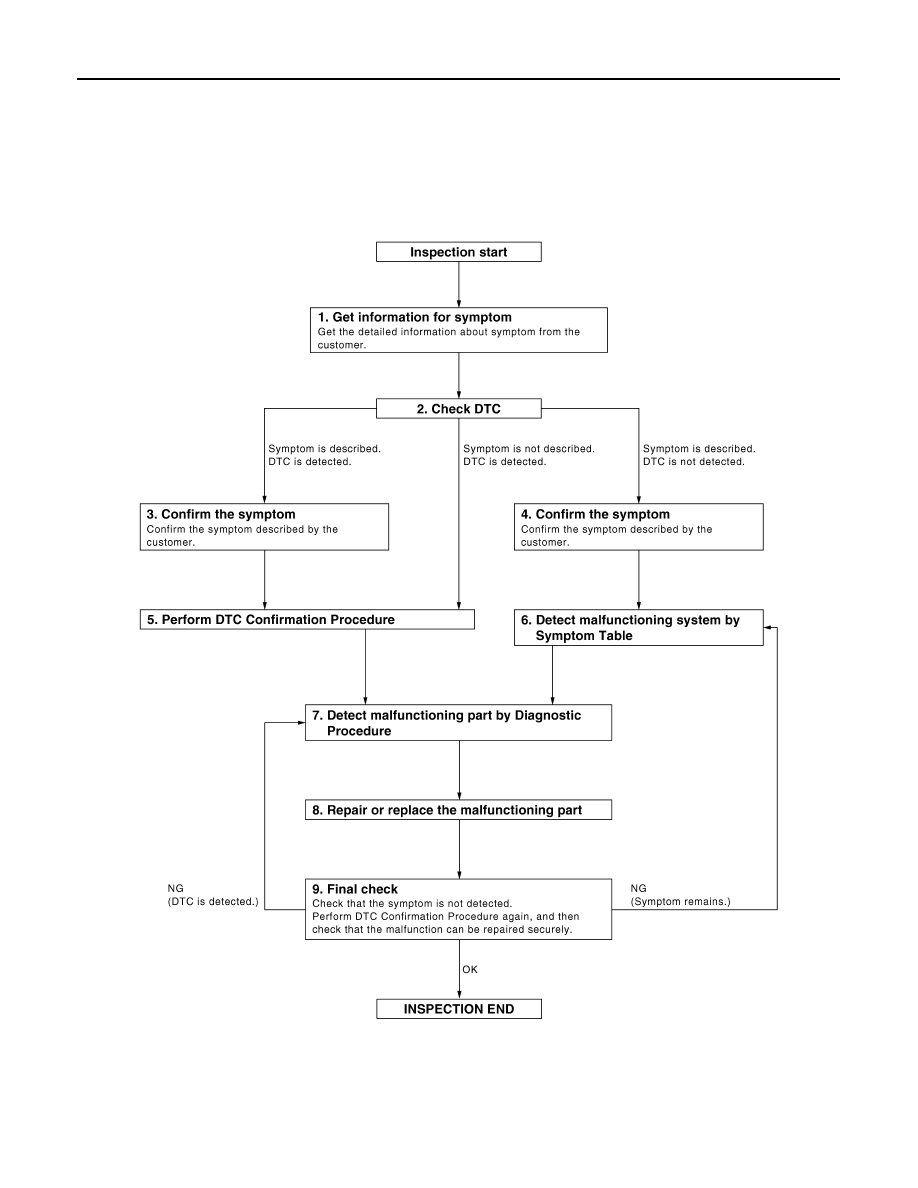

Work Flow

INFOID:0000000003132013

OVERALL SEQUENCE

DETAILED FLOW

JMKIA0676GB
