Infiniti EX35. Manual - part 1117





MWI-146

< ECU DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

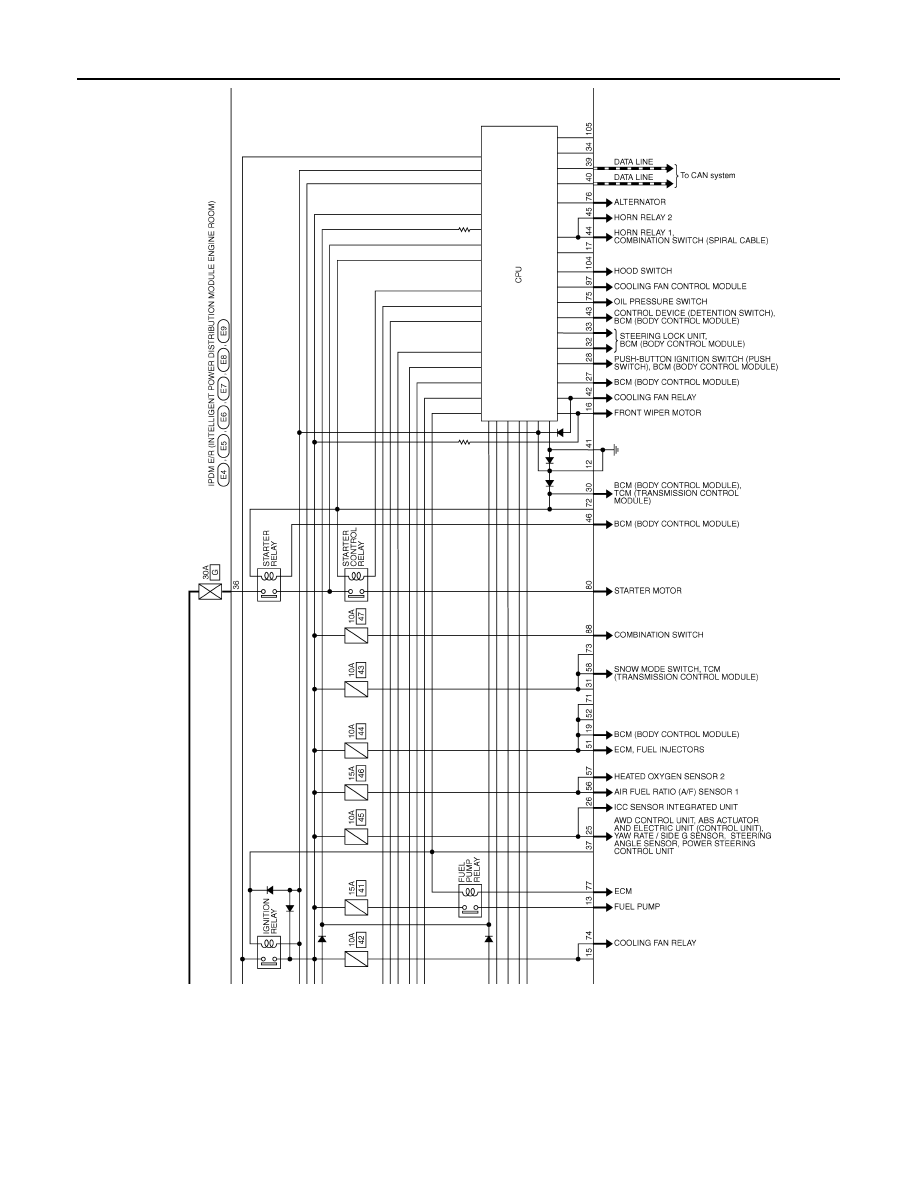

JCMWM1412GB

MWI

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

MWI-147

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

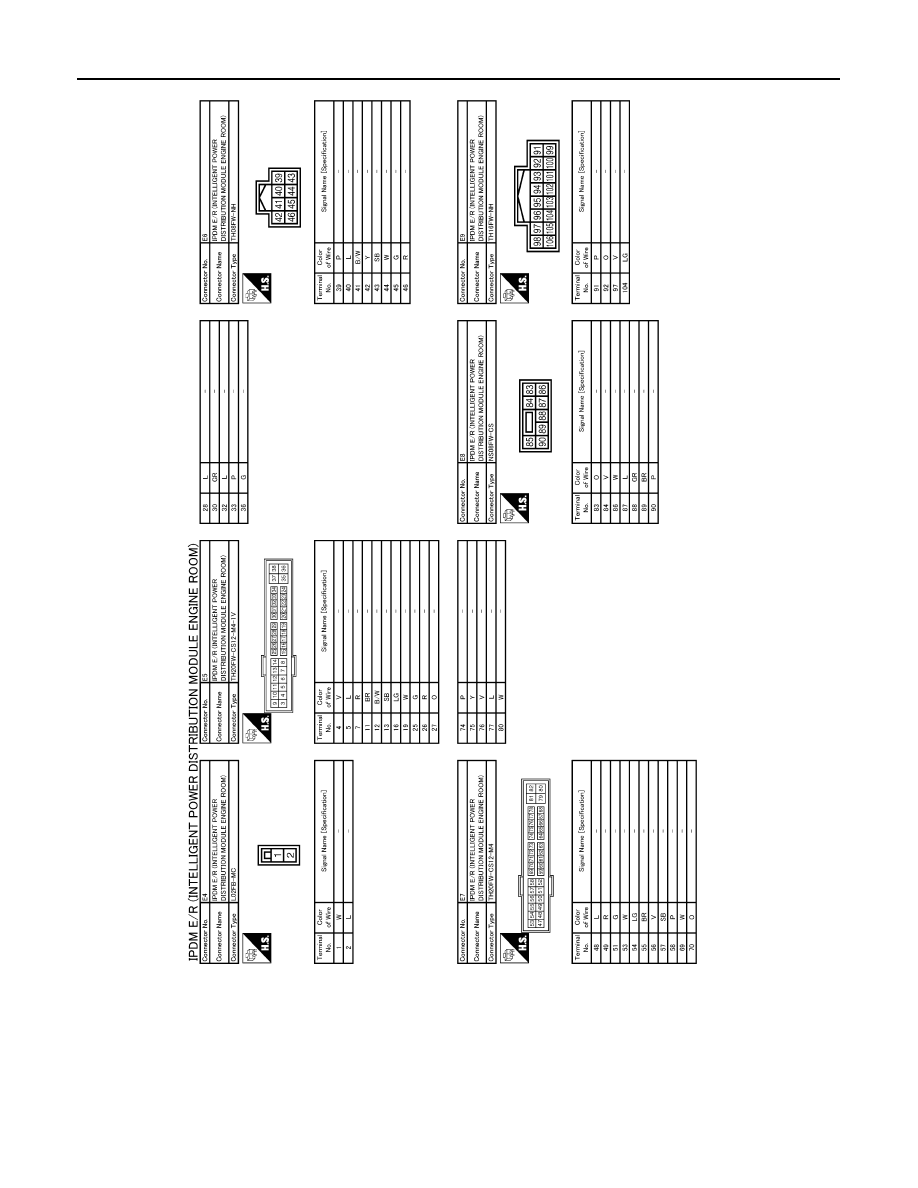

JCMWM1413GB

MWI-148

< ECU DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Fail-safe

INFOID:0000000003777655

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With ECM

JCMWM1414GB

MWI

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

MWI-149

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

If No CAN Communication Is Available With BCM

IGNITION RELAY MALFUNCTION DETECTION FUNCTION

• IPDM E/R monitors the voltage at the contact circuit and excitation coil circuit of the ignition relay inside it.
• IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the excitation

coil circuit.

• If the ignition relay cannot turn OFF due to contact seizure, it activates the tail lamp relay for 10 minutes to

alert the user to the ignition relay malfunction when the ignition switch is turned OFF.

FRONT WIPER CONTROL

IPDM E/R detects front wiper stop position by a front wiper auto stop signal.
When a front wiper auto stop signal is in the conditions listed below, IPDM E/R stops power supply to wiper
after repeating a front wiper 10 seconds activation and 20 seconds stop five times.

Control part

Fail-safe operation

Cooling fan

• Outputs the pulse duty signal (PWM signal) 100% when the ignition switch is turned

ON

• Outputs the pulse duty signal (PWM signal) 0% when the ignition switch is turned OFF

A/C compressor

A/C relay OFF

Alternator

Outputs the power generation command signal (PWM signal) 0%

Control part

Fail-safe operation

Headlamp

• Turns ON the headlamp low relay when the ignition switch is turned ON
• Turns OFF the headlamp low relay when the ignition switch is turned OFF
• Headlamp high relay OFF

• Parking  lamps
• License plate lamps
• Side maker lamps
• Illuminations
• Tail lamps

• Turns ON the tail lamp relay when the ignition switch is turned ON
• Turns OFF the tail lamp relay when the ignition switch is turned OFF

Front wiper

• The status just before activation of fail-safe control is maintained until the ignition

switch is turned OFF while the front wiper is operating at LO or HI speed.

• The wiper is operated at LO speed until the ignition switch is turned OFF if the fail-

safe control is activated while the front wiper is set in the INT mode and the front wiper
motor is operating.

Front fog lamps

Front fog lamp relay OFF

Horn

Horn OFF

Ignition relay

The status just before activation of fail-safe is maintained.

Starter motor

Starter control relay OFF

Steering lock unit

Steering lock relay OFF

Voltage judgment

IPDM E/R judgment

Operation

Ignition relay contact side

Ignition relay excitation coil

side

ON

ON

Ignition relay ON normal

OFF

OFF

Ignition relay OFF normal

ON

OFF

Ignition relay ON stuck

• Detects DTC “B2098: IGN RELAY ON”
• Turns ON the tail lamp relay for 10 min-

utes

OFF

ON

Ignition relay OFF stuck

Detects DTC “B2099: IGN RELAY OFF”
