MWI-14

< FUNCTION DIAGNOSIS >

METER SYSTEM

SPEEDOMETER : Component Description

INFOID:0000000003140144

TACHOMETER

TACHOMETER : System Diagram

INFOID:0000000003140145

TACHOMETER : System Description

INFOID:0000000003140146

• ECM converts the pulse signal provided by the crankshaft position sensor to an engine speed signal and

transmits it to the unified meter and A/C amp. with CAN communication line.

• Unified meter and A/C amp. transmits engine speed signal to combination meter with communication line.
• The unified meter and A/C amp. receives the engine speed signal from ECM with CAN communication line

and transmits it to the combination meter by means of communication line.

• Combination meter converses engine speed signal to the angle signal, and commands to tachometer.

7.

ABS actuator and electric unit (con-
trol unit)

8.

Unified meter and A/C amp.

9.

Combination meter

10. Fuel level sensor unit (sub)

A.

Rear seat (inside right)

B.

Dash side finisher (passenger side)

C.

Hoodledge cover (RH)

D.

2WD [oil pan (upper) RH side]

E.

AWD (oil filter bracket part)

F.

Condenser (front)

G.

Hoodledge cover (LH)

H.

Behind cluster lid C

I.

Rear seat (inside left)

Unit

Description

Combination meter

Indicates the vehicle speed according to the vehicle speed signal received from the unified meter
and A/C amp. by means of communication line.

Unified meter and A/C amp.

Transmits the vehicle speed signal received from ABS actuator and electric unit (control unit) with
CAN communication line to the combination meter by means of communication line.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the unified meter and A/C amp. with CAN communication
line.

JSNIA0160GB

MWI

METER SYSTEM

MWI-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

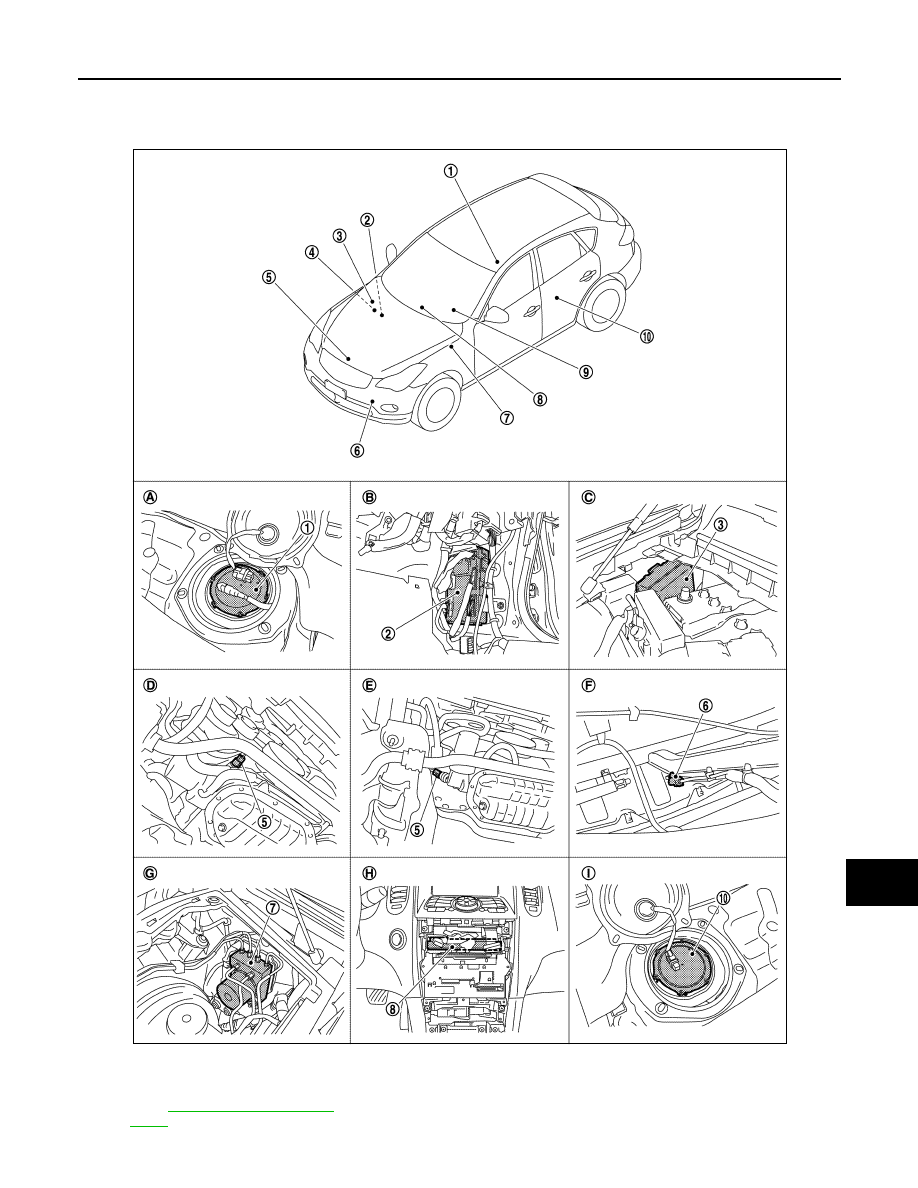

TACHOMETER : Component Parts Location

INFOID:0000000003732997

1.

Fuel level sensor unit and fuel pump
(main)

2.

BCM

3.

IPDM E/R

4.

ECM :

EC-22, "Component Parts Lo-

cation"

5.

Oil pressure switch

6.

Ambient sensor

JPNIA0868ZZ

MWI-16

< FUNCTION DIAGNOSIS >

METER SYSTEM

TACHOMETER : Component Description

INFOID:0000000003140148

ENGINE COOLANT TEMPERATURE GAUGE

ENGINE COOLANT TEMPERATURE GAUGE : System Diagram

INFOID:0000000003140149

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000003140150

• ECM converses a signal from engine coolant temperature sensor to engine coolant temperature signal, and

transmits to unified meter and A/C amp. with CAN communication line.

• Unified meter and A/C amp. transmits engine coolant temperature signal to combination meter with commu-

nication line.

• Combination meter converses engine coolant temperature signal to the angle signal, and commands to

engine coolant temperature gauge.

7.

ABS actuator and electric unit (con-
trol unit)

8.

Unified meter and A/C amp.

9.

Combination meter

10. Fuel level sensor unit (sub)

A.

Rear seat (inside right)

B.

Dash side finisher (passenger side)

C.

Hoodledge cover (RH)

D.

2WD [oil pan (upper) RH side]

E.

AWD (oil filter bracket part)

F.

Condenser (front)

G.

Hoodledge cover (LH)

H.

Behind cluster lid C

I.

Rear seat (inside left)

Unit

Description

Combination meter

Indicates the engine speed according to the engine speed signal received from the unified meter
and A/C amp. by means of communication line.

Unified meter and A/C amp.

Transmits the engine speed signal received from ECM with CAN communication line to the com-
bination meter by means of communication line.

ECM

Transmits the engine speed signal to the unified meter and A/C amp. with CAN communication
line.

JSNIA0162GB

MWI

METER SYSTEM

MWI-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ENGINE COOLANT TEMPERATURE GAUGE : Component Parts Location

INFOID:0000000003732999

1.

Fuel level sensor unit and fuel pump
(main)

2.

BCM

3.

IPDM E/R

4.

ECM :

EC-22, "Component Parts Lo-

cation"

5.

Oil pressure switch

6.

Ambient sensor

JPNIA0868ZZ
