Infiniti EX35. Manual - part 1074





INSIDE MIRROR

MIR-51

< ON-VEHICLE REPAIR >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

1.

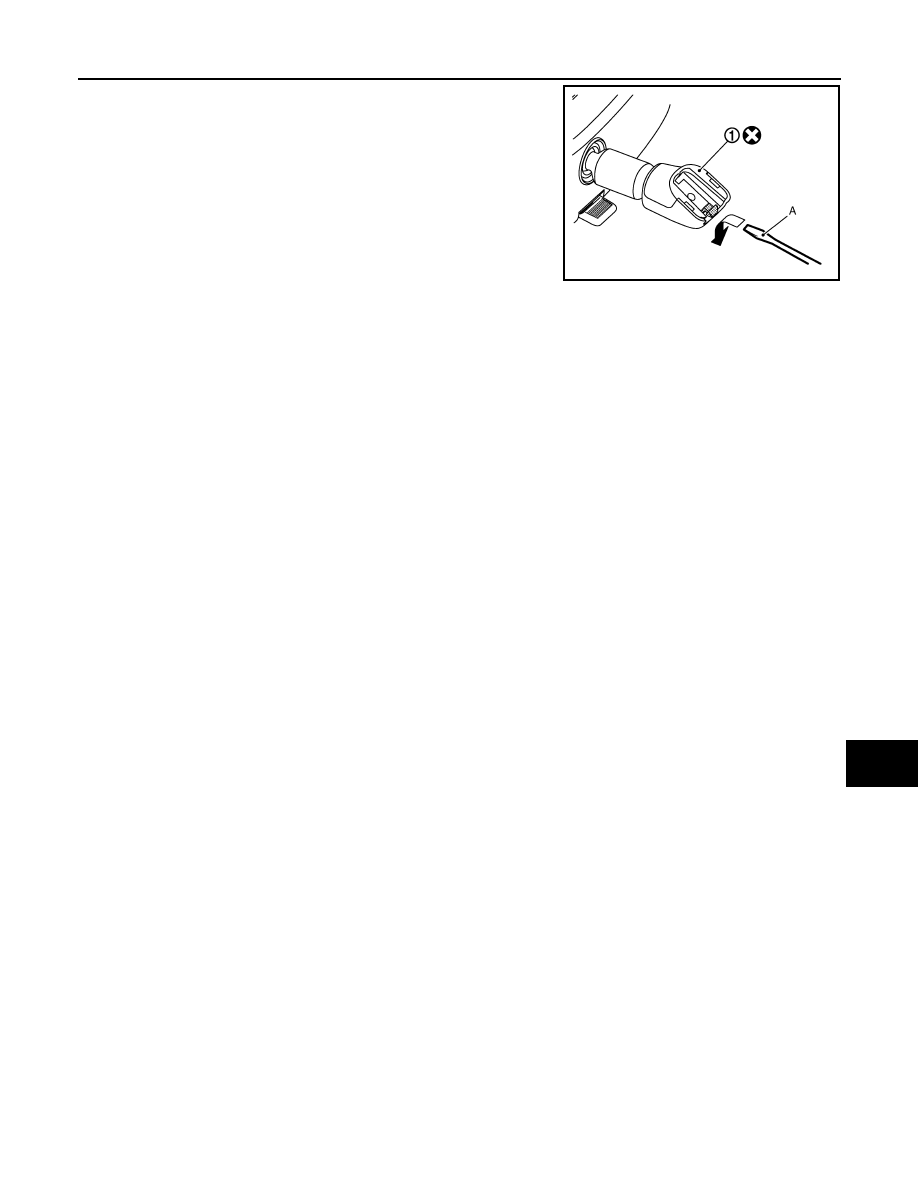

Insert minus driver (A) under the inside mirror (1).

2.

Slide the inside mirror to the upper side while pushing the pqwl
downward.

CAUTION:

Never use excessive force to remove the inside mirror because
it is inserted tightly into the miror base.

Option model

1.

Remove the inside mirror cover.

2.

Remove TORX bolt.

3.

Disconnect harness connector.

4.

Slide the inside mirror upward to remove.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When inserting the inside mirror into the mirror base, be sure to push the pawl until it get connected to
the mirror base.

JMLIA0055ZZ

MIR-52

< ON-VEHICLE REPAIR >

[WITH ADP]

OUTSIDE MIRROR

OUTSIDE MIRROR

DOOR MIRROR ASSEMBLY

DOOR MIRROR ASSEMBLY : Exploded View

INFOID:0000000003136552

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000003136553

REMOVAL

1.

Remove front door finisher. Refer to

INT-11, "DRIVER SIDE : Removal and Installation"

 (driver side) or

INT-14, "PASSENGER SIDE : Removal and Installation"

 (passenger side).

2.

Remove clips and remove corner cover.

3.

Disconnect door mirror harness connector.

4.

Remove door mirror mounting nuts, and remove door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Perform camera image calibration. Refer to

AV-438, "CALIBRATING CAMERA IMAGE (AROUND VIEW

MONITOR) : Special Repair Requirement"

.

DOOR MIRROR ASSEMBLY : Disassembly and Assembly

INFOID:0000000003774530

DISASSEMBLY

1.

Door mirror cover

2.

Mirror assembly

3.

Glass mirror

4.

Side camera assembly (with side
camera model)

5.

Side  camera finisher assembly (with
side camera model)

6.

Base cover

7.

Puddle lamp

8.

Corner cover

: Clip

: Pawl

JMKIA2089ZZ

OUTSIDE MIRROR

MIR-53

< ON-VEHICLE REPAIR >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

1.

Remove door mirror cover. Refer to

MIR-55, "DOOR MIRROR COVER : Disassembly and Assembly"

2.

Remove side camera after removing door mirror assembly (BOSE audio with navigation model). Refer to

AV-928, "Removal and Installation"

(RH) or

AV-927, "Removal and Installation"

(LH)

3.

Remove base cover and puddle lamp.

ASSEMBLY

Assemble in the reverse order of disassemble.

GLASS MIRROR

GLASS MIRROR : Exploded View

INFOID:0000000003691831

GLASS MIRROR : Disassembly and Assembly

INFOID:0000000003136555

DISASSEMBLY

1.

Place the glass mirror upward.

2.

Put a strip of protective tape (B) on housing assembly.

3.

As shown in the figure, insert a small slotted screwdriver (A) into the recess between glass mirror (1) and
actuator (2). Push up both pawls (3) simultaneously to remove glass mirror lower half side.
NOTE:

1.

Door mirror cover

2.

Mirror assembly

3.

Glass mirror

4.

Side camera assembly (with side
camera model)

5.

Side  camera finisher assembly (with
side camera model)

6.

Base cover

7.

Puddle lamp

8.

Corner cover

: Clip

: Pawl

JMKIA2089ZZ

MIR-54

< ON-VEHICLE REPAIR >

[WITH ADP]

OUTSIDE MIRROR

Insert screwdriver into recesses, and push up while rotating (twisting) to make work easier.

4.

Remove two terminals of mirror heater attachment.

5.

Lightly lift up lower side of glass mirror, and detach both pawls of upper side as if pulling it out. Disassem-
ble glass mirror from actuator.
NOTE:
Be certain not to allow grease on sealing agent in center of mirror or back side of glass mirror.

ASSEMBLY

Assemble in the reverse order of disassemble.

CAUTION:

After installation, visually check that pawls are securely engaged.

DOOR MIRROR COVER

DOOR MIRROR COVER : Exploded View

INFOID:0000000003691832

JMLIA0056ZZ

1.

Door mirror cover

2.

Mirror assembly

3.

Glass mirror

4.

Side camera assembly (with side
camera model)

5.

Side  camera finisher assembly (with
side camera model)

6.

Base cover

7.

Puddle lamp

8.

Corner cover

: Clip

: Pawl

JMKIA2089ZZ
