DOOR MIRROR REMOTE CONTROL SWITCH

MIR-15

< COMPONENT DIAGNOSIS >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace door mirror remote control switch. Refer to

MIR-56, "Removal and Installation"

.

Door mirror remote control switch

Condition

Continuity

Connector

Terminal

D17

10

7

Changeover switch

LEFT

Existed

Other than above

Not existed

11

RIGHT

Existed

Other than above

Not existed

MIR-16

< COMPONENT DIAGNOSIS >

[WITH ADP]

AUTO ANTI-DAZZLING INSIDE MIRROR SYSTEM

AUTO ANTI-DAZZLING INSIDE MIRROR SYSTEM

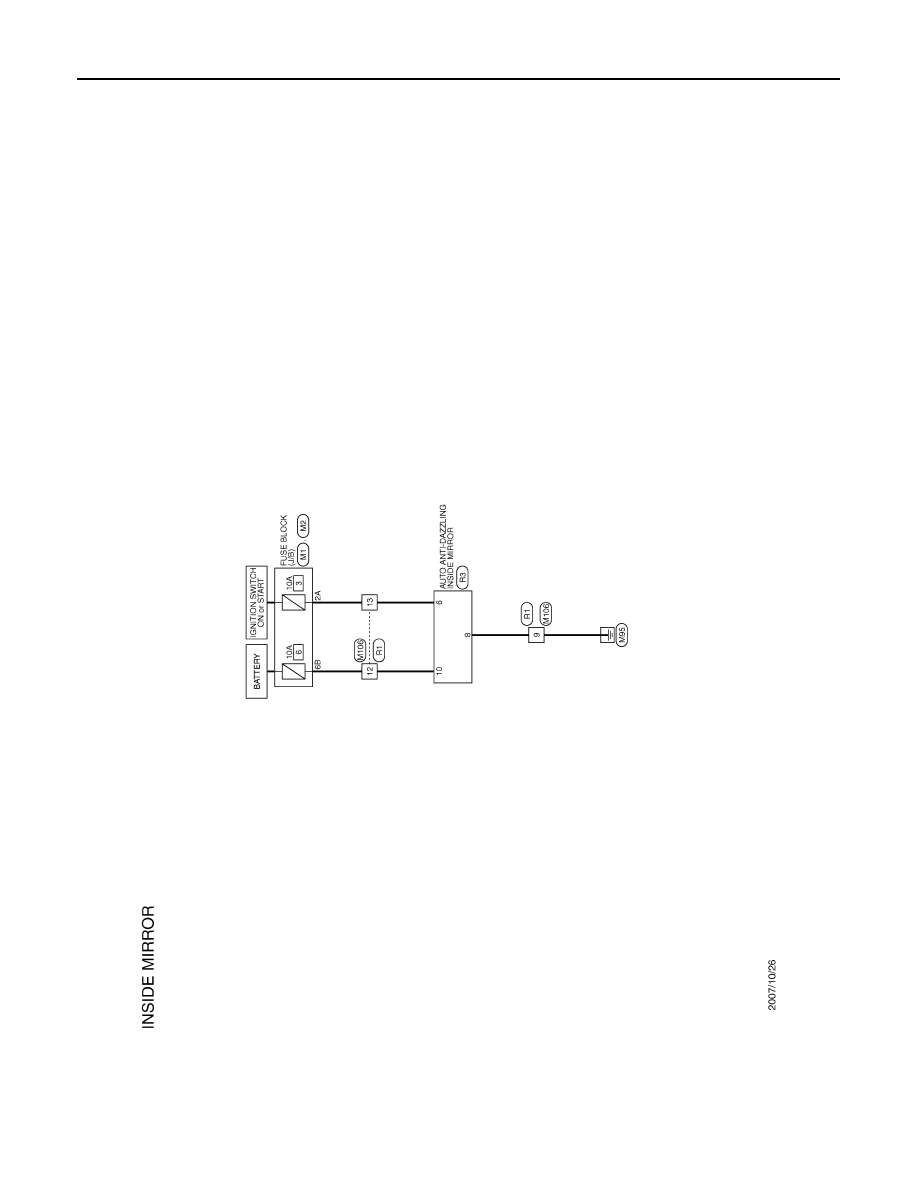

Wiring Diagram - INSIDE MIRROR SYSTEM -

INFOID:0000000003136537

JCLWM1230GB

AUTO ANTI-DAZZLING INSIDE MIRROR SYSTEM

MIR-17

< COMPONENT DIAGNOSIS >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

JCLWM1231GB

MIR-18

< ECU DIAGNOSIS >

[WITH ADP]

DRIVER SEAT CONTROL UNIT

ECU DIAGNOSIS

DRIVER SEAT CONTROL UNIT

Reference Value

INFOID:0000000003698493

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III MONITOR ITEM

Monitor Item

Condition

Value/Status

SET SW

Set switch

Push

ON

Release

OFF

MEMORY SW1

Memory switch 1

Push

ON

Release

OFF

MEMORY SW2

Memory switch 2

Push

ON

Release

OFF

SLIDE SW–FR

Sliding switch (front)

Operate

ON

Release

OFF

SLIDE SW–RR

Sliding switch (rear)

Operate

ON

Release

OFF

RECLN SW–FR

Reclining switch (front)

Operate

ON

Release

OFF

RECLN SW–RR

Reclining switch (rear)

Operate

ON

Release

OFF

LIFT FR SW–UP

Lifting switch front (up)

Operate

ON

Release

OFF

LIFT FR SW–DN

Lifting switch front (down)

Operate

ON

Release

OFF

LIFT RR SW–UP

Lifting switch rear (up)

Operate

ON

Release

OFF

LIFT RR SW–DN

Lifting switch rear (down)

Operate

ON

Release

OFF

MIR CON SW–UP

Mirror switch

Up

ON

Other than above

OFF

MIR CON SW–DN

Mirror switch

Down

ON

Other than above

OFF

MIR CON SW–RH

Mirror switch

Right

ON

Other than above

OFF

MIR CON SW–LH

Mirror switch

Left

ON

Other than above

OFF

MIR CHNG SW–R

Changeover switch

Right

ON

Other than above

OFF

MIR CHNG SW–L

Changeover switch

Left

ON

Other than above

OFF

TILT SW-UP

Tilt switch

Up

ON

Other than above

OFF

TILT SW-DOWN

Tilt switch

Down

ON

Other than above

OFF
