Infiniti EX35. Manual - part 98





A V

DIAGNOSIS AND REPAIR WORKFLOW

AV-173

< BASIC INSPECTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1.

Connect CONSULT-III and perform a self-diagnosis for “MULTI AV”. Refer to

AV-201, "CONSULT-III Func-

tion (MULTI AV)"

.

NOTE:
Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2.

Check if any DTC is displayed in the self-diagnosis results.

Is DTC displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

TROUBLE DIAGNOSIS FOR DTC

1.

Check the DTC indicated in the self-diagnosis results.

2.

Perform the relevant diagnosis referring to the DTC Index. Refer to

AV-278, "DTC Index"

.

>> GO TO 5.

4.

TROUBLE DIAGNOSIS FOR SYMPTOMS

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-403, "Symptom

Table"

.

>> GO TO 5.

5.

ERROR PART REPAIR

1.

Repair or replace the identified malfunctioning parts.

2.

Perform a self-diagnosis for “MULTI AV” with CONSULT-III.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC
has been indicated in the self-diagnosis results.

3.

Check that the symptom does not occur.

Does the symptom occur?

YES

>> GO TO 1.

NO

>> INSPECTION END

AV-174

< BASIC INSPECTION >

[BOSE AUDIO WITHOUT NAVIGATION]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : De-
scription

INFOID:0000000003528840

WITH REAR VIEW MONITOR

Always correct the center position of the predicted course line after disconnecting the battery negative termi-
nal.

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement

INFOID:0000000003528841

1.

CORRECTION OF CENTER POSITION OF PREDICTED COURSE LINE

Refer to the following for details.

>> Refer to

AV-174, "PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Special

Repair Requirement"

.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000003528842

When camera control unit is replaced, the center position of predicted course line shall be corrected.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000003528843

1.

CORRECTION OF CENTER POSITION OF PREDICTED COURSE LINE

Refer to the following for details.

>> Refer to

AV-174, "PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Special

Repair Requirement"

.

PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT

PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Description

INFOID:0000000003528844

Adjust the center position of the predicted course line of the rear view monitor if it is shifted.

PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Special Repair
Requirement

INFOID:0000000003528845

1.

STEERING OPERATION

Steer the steering wheel to the leftmost and rightmost ends.

>> GO TO 2

2.

DRIVING

Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.

>> END

AV

MULTI AV SYSTEM

AV-175

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUNCTION DIAGNOSIS

MULTI AV SYSTEM

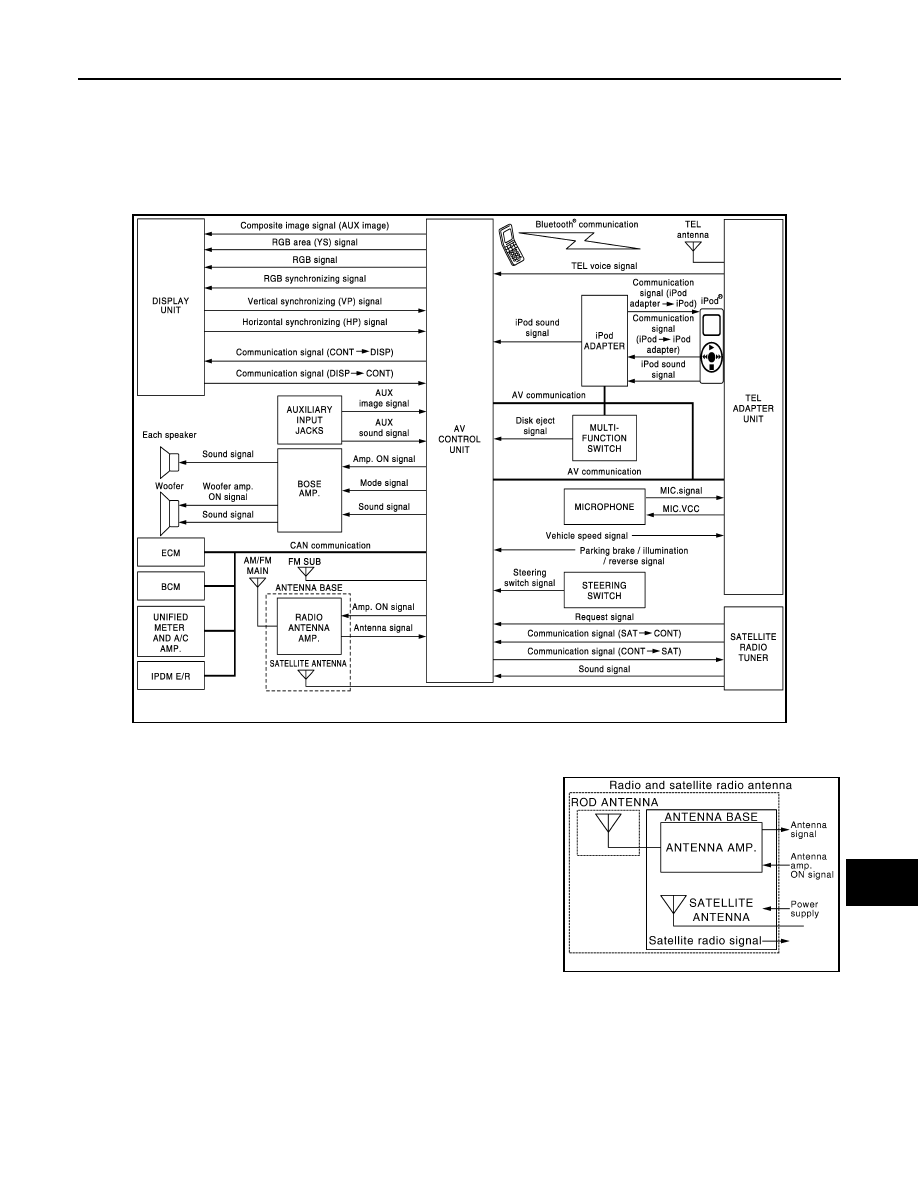

System Diagram

INFOID:0000000003508650

WITHOUT REAR VIEW MONITOR

NOTE:
• The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION

SWITCH virtually.

• A radio antenna base integrated with radio antenna and satellite

radio antenna is adopted.

JSNIA0692GB

JSNIA1062GB

AV-176

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

MULTI AV SYSTEM

WITH REAR VIEW MONITOR

NOTE:
• The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION

SWITCH virtually.

• A radio antenna base integrated with radio antenna and satellite

radio antenna is adopted.

System Description

INFOID:0000000003508651

Multi AV system means that the following systems are integrated.

JSNIA0693GB

JSNIA1062GB

System name

System explanation

AUDIO SYSTEM

AV-181, "System Diagram"

VEHICLE INFORMATION SYSTEM

• Indicates the status of audio, climate control system, fuel econ-

omy and maintenance.

• AV control unit displays the fuel consumption status while re-

ceiving data signal through CAN communication from ECM, uni-
fied meter and A/C amp.

• AV control unit is connected to BCM via CAN communication

transmitting/receiving for the vehicle settings function.
