Infiniti EX35. Manual - part 80





AV

DISPLAY UNIT

AV-101

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

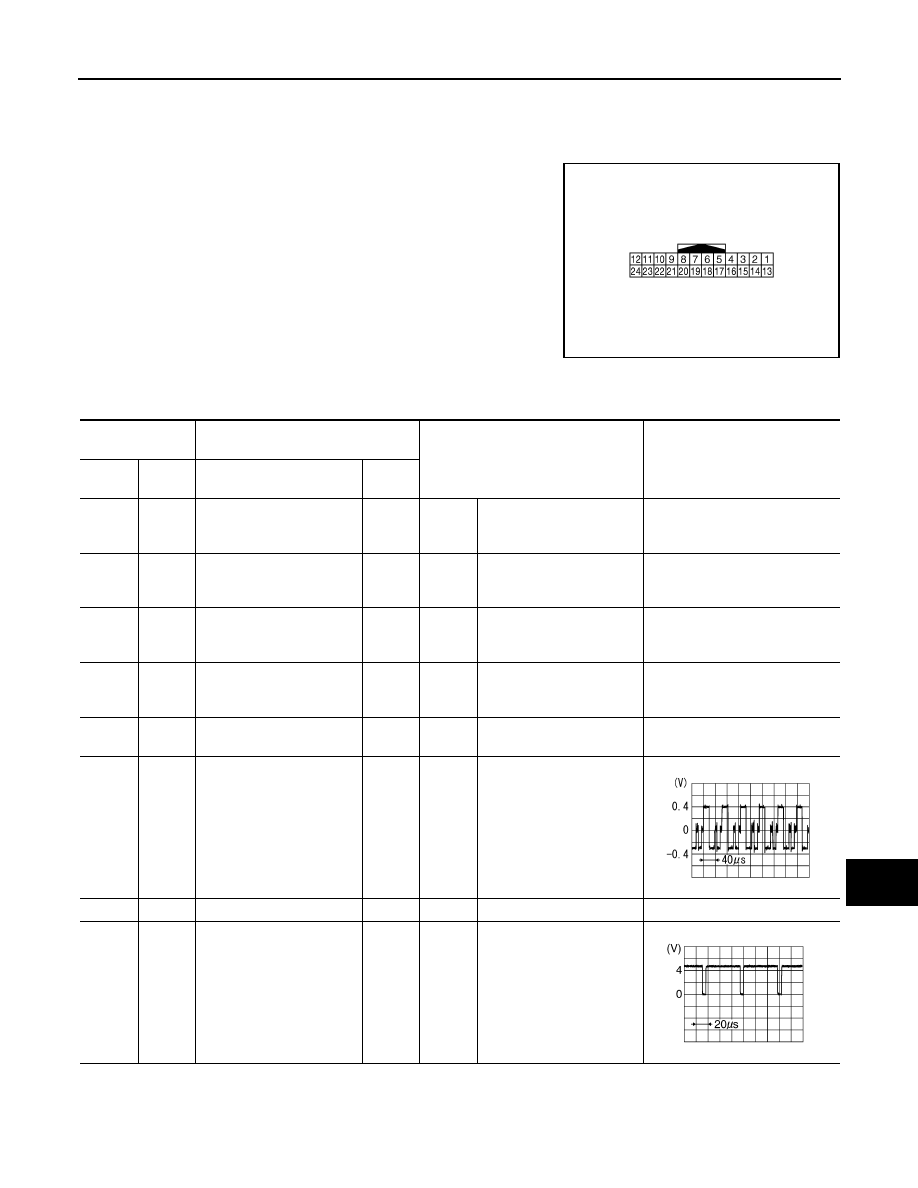

DISPLAY UNIT

Reference Value

INFOID:0000000003508430

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0006ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

1

(B)

Ground

Ground

Ignition

switch

ON

0  V

2

(Y)

Ground

Inverter VCC

Input

Ignition

switch

ACC

9.0  V

3

(O)

Ground

Signal VCC

Input

Ignition

switch

ACC

9.0  V

4

(V)

Ground

Composite image ground

Ignition

switch

ON

0  V

5

(Y)

Shield

6

(L)

Ground

RGB signal (G: green)

Input

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

7

Shield

8

(R)

Ground

Horizontal synchronizing
(HP) signal

Output

Ignition

switch

ON

SKIB2236J

SKIB3601E

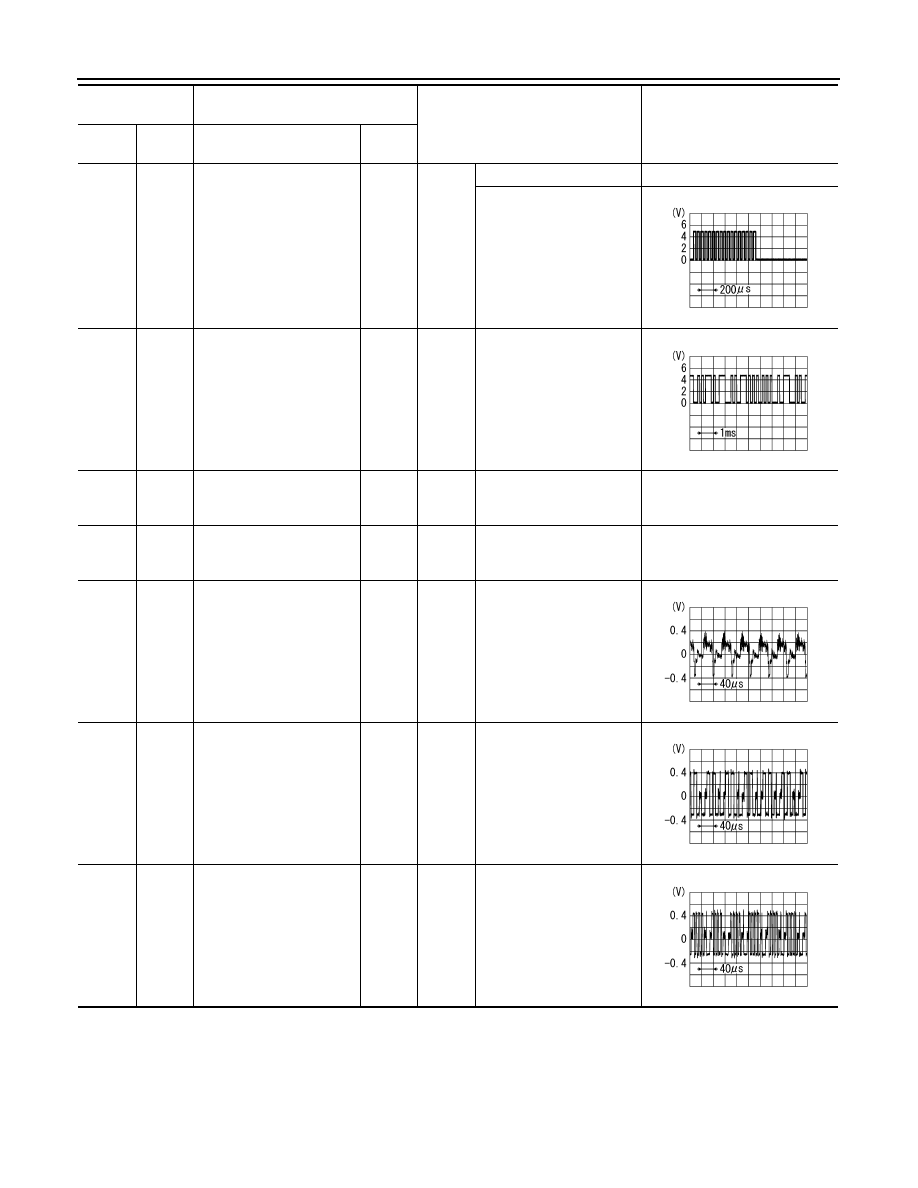

AV-102

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

DISPLAY UNIT

9

(B)

Ground

RGB area (YS) signal

Input

Ignition

switch

ON

At RGB image display

5.0 V

At AUX image display

11

(Y)

Ground

Communication signal
(CONT

DISP)

Input

Ignition

switch

ON

When adjusting display
brightness.

13

(BR)

Ground

Inverter ground

Ignition

switch

ON

0  V

14

(LG)

Ground

Signal ground

Ignition

switch

ON

0  V

15

(SB)

Ground

Composite image signal

Input

Ignition

switch

ON

At AUX image display

17

(G)

Ground

RGB signal (R: red)

Input

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

18

(P)

Ground

RGB signal (B: blue)

Input

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

PKIB4948J

PKIB5039J

SKIB2251J

SKIB2238J

SKIB2237J

AV

DISPLAY UNIT

AV-103

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

19

(W)

Ground

RGB synchronizing signal

Input

Ignition

switch

ON

20

(G)

Ground

Vertical synchronizing (VP)
signal

Output

Ignition

switch

On

21

Shield

22

(BR)

Ground

Communication signal
(DISP

CONT)

Output

Ignition

switch

ON

When adjusting display
brightness.

23

Shield

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

SKIB3603E

SKIB3598E

PKIB5039J

AV-104

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

DISPLAY UNIT

Wiring Diagram - BASE AUDIO WITHOUT NAVIGATION SYSTEM -

INFOID:0000000003737119

Click here to view the eWD.

JCNWM0730GB
