AV

AV CONTROL UNIT

AV-97

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

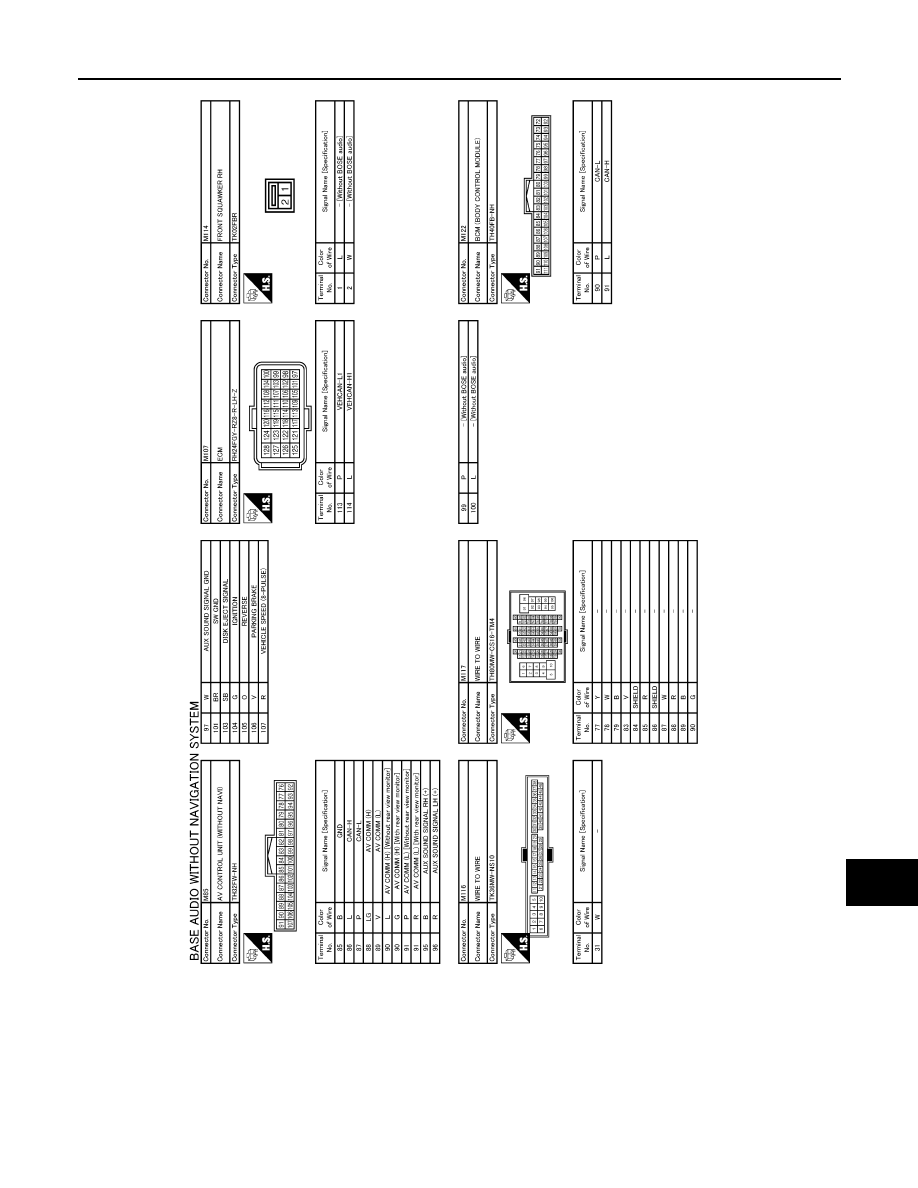

JCNWM0740GB

AV-98

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

JCNWM0741GB

AV

AV CONTROL UNIT

AV-99

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

DTC Index

INFOID:0000000003508429

SELF-DIAGNOSIS RESULTS DISPLAY ITEM

JCNWM0742GB

AV-100

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

AV CONTROL UNIT

DTC

Display item

Refer to

U1000

CAN COMM CIRCUIT [U1000]

AV-40, "Diagnosis Procedure"

U1010

CONTROL UNIT (CAN) [U1010]

AV-41, "Diagnosis Procedure"

U1310

CONTROL UNIT (AV) [U1310]

AV-42, "DTC Logic"

U1200

Control Unit FLASH-ROM [U1200]

AV-43, "DTC Logic"

U1216

CAN CONT [U1216]

AV-44, "DTC Logic"

U1243

FRONT DISP CONN [U1243]

AV-45, "Diagnosis Procedure"

U1250

CAMERA CONT. CONN [U1250]

AV-47, "Diagnosis Procedure"

U1255

SAT CONN [U1255]

AV-48, "Diagnosis Procedure"

U1300
U1240

• AV COMM CIRCUIT [U1300]
• SWITCH CONN [U1240]

AV-50, "Description"

U1300
U1252

• AV COMM CIRCUIT [U1300]
• REAR CAMERA LAN CONN [U1252]

AV-50, "Description"

U1300
U1240
U1252

• AV COMM CIRCUIT [U1300]
• SWITCH CONN [U1240]
• REAR CAMERA LAN CONN [U1252]

AV-50, "Description"
