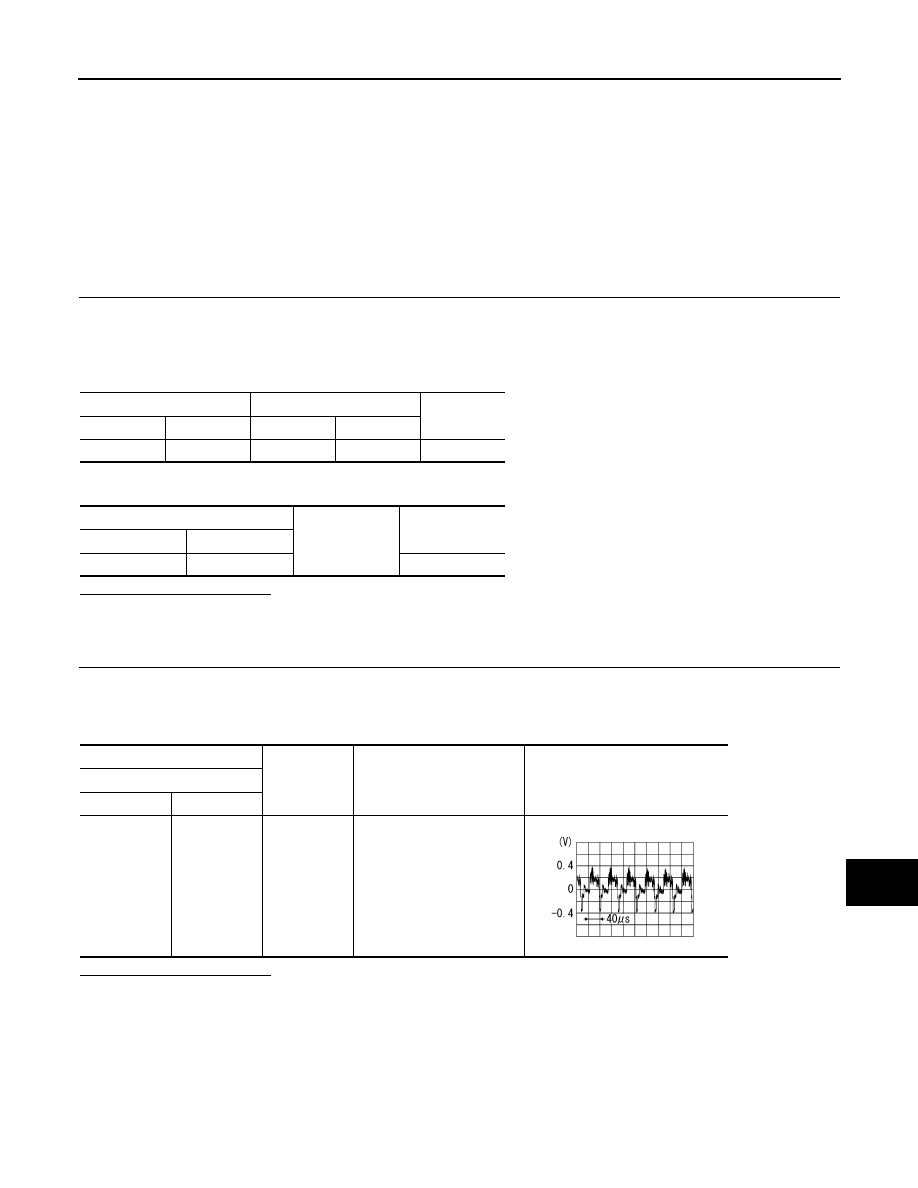

REAR VIEW CAMERA IMAGE SIGNAL CIRCUIT

Description

INFOID:0000000003529077

• Camera control unit outputs camera ON signal to rear view camera and inputs rear view camera image sig-

nal from rear view camera when the reverse signal is input.

• The camera control unit that inputs the camera image signal transmits the camera image signal to the AV

control unit.

Diagnosis Procedure

INFOID:0000000003529078

1.

CHECK CONTINUITY CAMERA IMAGE SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect camera control unit connector and rear view camera connector.

3.

Check continuity between camera control unit harness connector and rear view camera harness connec-
tor.

4.

Check continuity between camera control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK CAMERA IMAGE SIGNAL

1.

Connect camera control unit connector and rear view camera connector.

2.

Turn ignition switch ON.

3.

Check signal between camera control unit harness connector and ground.

Is inspection result normal?

YES

>> Replace camera control unit.

NO

>> Replace rear view camera.

Camera control unit

Rear view camera

Continuity

Connector

Terminal

Connector

Terminal

B50

6

D121

3

Existed

Camera control unit

Ground

Continuity

Connector

Terminal

B50

6

Not existed

(+)

(

−

)

Condition

Reference value

Camera control unit

Connector

Terminal

B50

6

Ground

At rear view camera image
is displayed.

SKIB2251J

AV-66

< COMPONENT DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

REAR VIEW CAMERA POWER SUPPLY

REAR VIEW CAMERA POWER SUPPLY

Description

INFOID:0000000003529081

• Camera control unit outputs camera ON signal to rear view camera and inputs rear view camera image sig-

nal from rear view camera when the reverse signal is input.

• The camera control unit that inputs the camera image signal transmits the camera image signal to the AV

control unit.

Diagnosis Procedure

INFOID:0000000003529082

1.

CHECK CONTINUITY CAMERA ON SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect camera control unit connector and rear view camera connector.

3.

Check continuity between camera control unit harness connector and rear view camera harness connec-
tor.

4.

Check continuity between camera control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK VOLTAGE CAMERA ON SIGNAL

1.

Connect camera control unit connector and rear view camera connector.

2.

Turn ignition switch ON.

3.

Check signal between camera control unit harness connector and ground.

Is inspection result normal?

YES

>> Replace rear view camera.

NO

>> Replace camera control unit.

Camera control unit

Rear view camera

Continuity

Connector

Terminal

Connector

Terminal

B50

8

D121

1

Existed

Camera control unit

Ground

Continuity

Connector

Terminal

B50

8

Not existed

(+)

(

−

)

Condition

Reference

value

(Approx.)

Camera control unit

Connector

Terminal

B50

8

Ground

Shift position
is “R”

6.0 V

AV

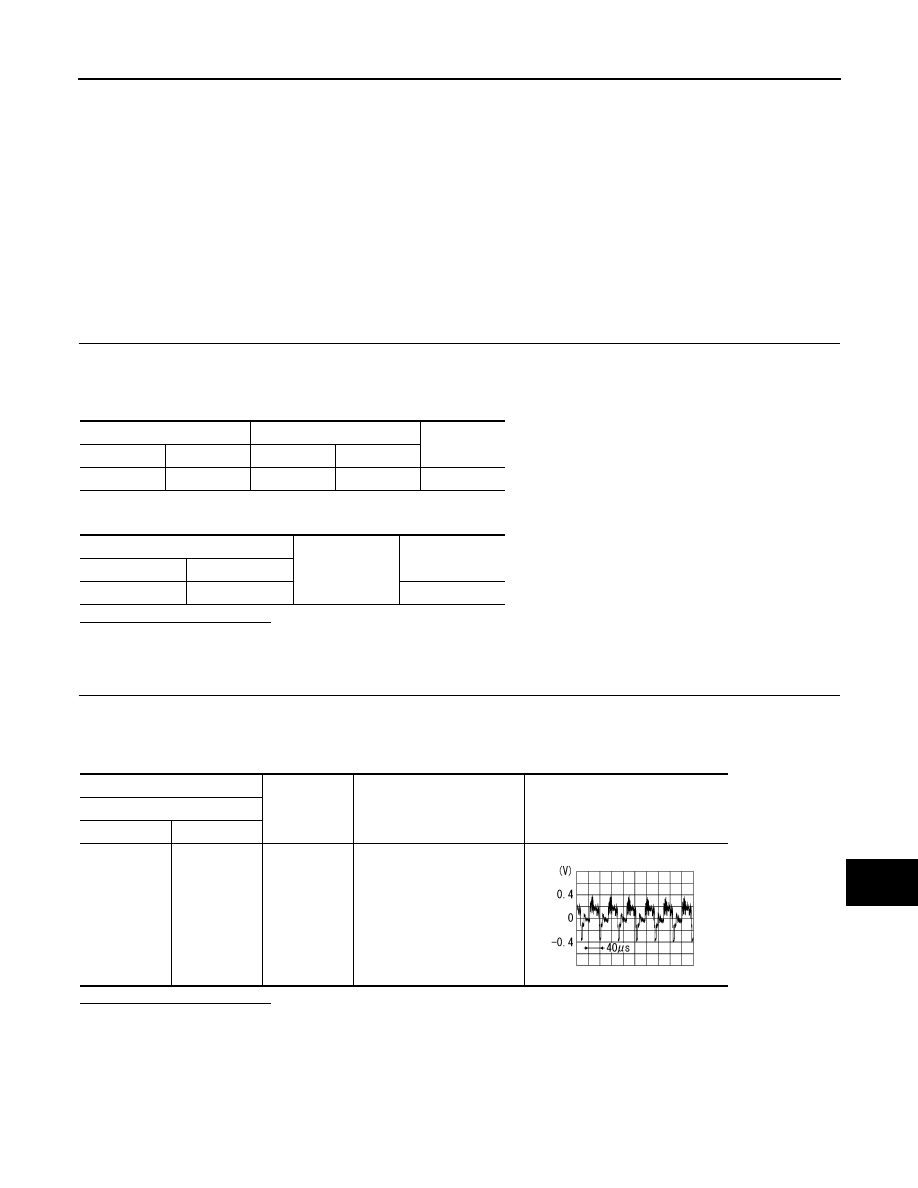

CAMERA IMAGE SIGNAL CIRCUIT (CAMERA CONTROL UNIT TO AV CON-

TROL UNIT)

AV-67

< COMPONENT DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CAMERA IMAGE SIGNAL CIRCUIT (CAMERA CONTROL UNIT TO AV
CONTROL UNIT)

Description

INFOID:0000000003529083

• Camera control unit outputs camera ON signal to rear view camera and inputs rear view camera image sig-

nal from rear view camera when the reverse signal is input.

• The camera control unit that inputs the camera image signal transmits the camera image signal to the AV

control unit.

Diagnosis Procedure

INFOID:0000000003529084

1.

CHECK CONTINUITY CAMERA IMAGE SIGNAL CIRCUIT (CAMERA CONTROL UNIT TO AV CONTROL

UNIT)

1.

Turn ignition switch OFF.

2.

Disconnect camera control unit connector and AV control unit connector.

3.

Check continuity between camera control unit harness connector and AV control unit harness connector.

4.

Check continuity between camera control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK CAMERA IMAGE SIGNAL (CAMERA CONTROL UNIT TO AV CONTROL UNIT)

1.

Connect camera control unit connector and AV control unit connector.

2.

Turn ignition switch ON.

3.

Check signal between camera control unit harness connector and ground.

Is inspection result normal?

YES

>> Replace AV control unit.

NO

>> Replace camera control unit.

Camera control unit

AV control unit

Continuity

Connector

Terminal

Connector

Terminal

B50

12

M84

65

Existed

Camera control unit

Ground

Continuity

Connector

Terminal

B50

12

Not existed

(+)

(

−

)

Condition

Reference value

Camera control unit

Connector

Terminal

B50

12

Ground

At rear view camera image
is displayed.

SKIB2251J

AV-68

< COMPONENT DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

COMPOSITE IMAGE SIGNAL CIRCUIT

COMPOSITE IMAGE SIGNAL CIRCUIT

Description

INFOID:0000000003529085

AV control unit that inputs the camera image signal and AUX image signal transmits the composite image sig-
nal to the display unit.

Diagnosis Procedure

INFOID:0000000003529086

1.

CHECK CONTINUITY COMPOSITE IMAGE SIGNAL CIRCUIT (AV CONTROL UNIT TO DISPLAY UNIT)

1.

Turn ignition switch OFF.

2.

Disconnect AV control unit connector and display unit connector.

3.

Check continuity between AV control unit harness connector and display unit harness connector.

4.

Check continuity between AV control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK COMPOSITE IMAGE SIGNAL (AV CONTROL UNIT TO DISPLAY UNIT)

1.

Connect AV control unit connector and display unit connector.

2.

Turn ignition switch ON.

3.

Check signal between AV control unit harness connector and ground.

Is inspection result normal?

YES

>> Replace display unit.

NO

>> Replace AV control unit.

AV control unit

Display unit

Continuity

Connector

Terminal

Connector

Terminal

M83

36

M71

15

Existed

AV control unit

Ground

Continuity

Connector

Terminal

M83

36

Not existed

(+)

(

−

)

Condition

Reference value

AV control unit

Connector

Terminal

M83

36

Ground

At rear view camera or AUX
image is displayed.
