Infiniti EX35. Manual - part 54





ADP-210

< ON-VEHICLE REPAIR >

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Exploded View

INFOID:0000000003134807

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000003134808

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

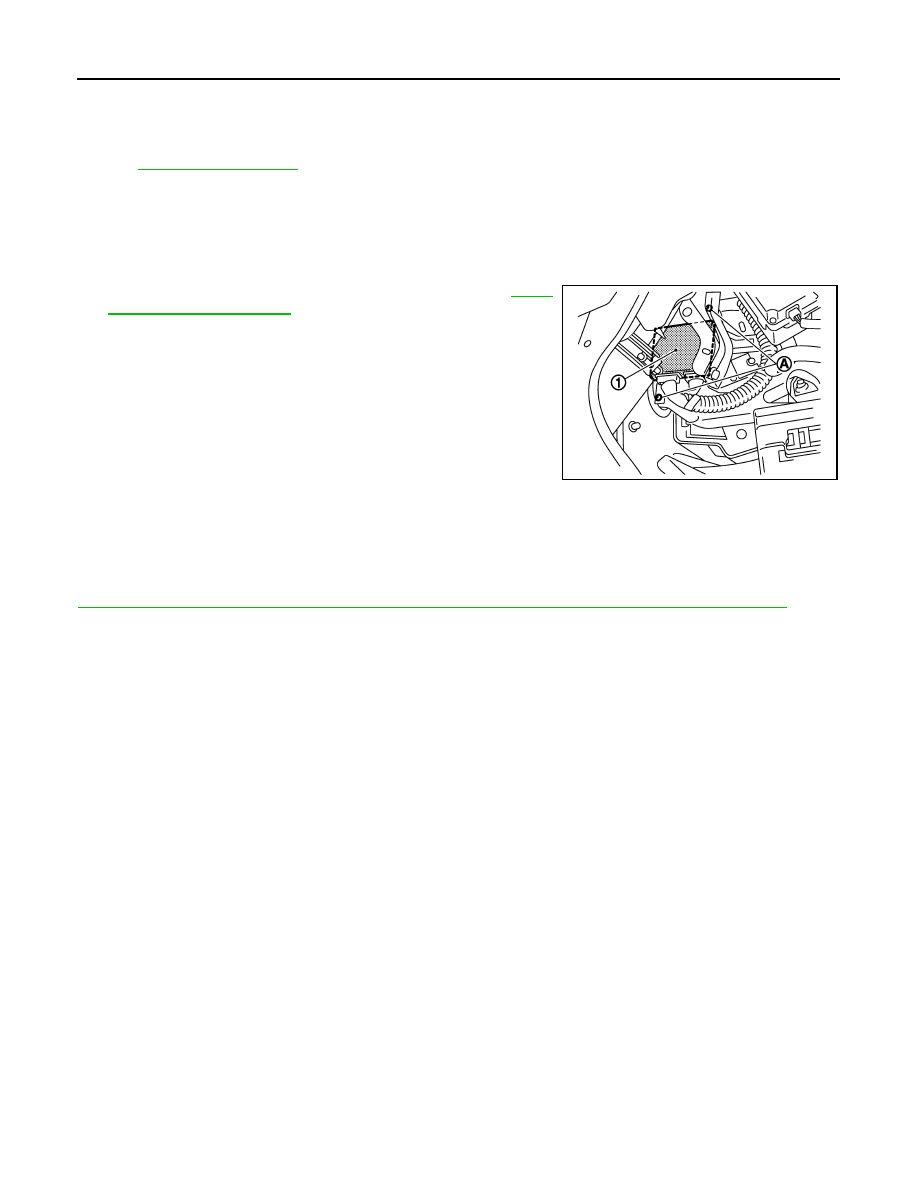

1.

Remove the instrument driver lower panel. Refer to

IP-12,

"Removal and Installation"

.

2.

Remove the screws (A).

3.

Remove automatic drive positioner control unit (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

JMJIA0198ZZ

SEAT MEMORY SWITCH

ADP-211

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

SEAT MEMORY SWITCH

Exploded View

INFOID:0000000003134809

Refer to

INT-17, "Exploded View"

.

Removal and Installation

INFOID:0000000003134810

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

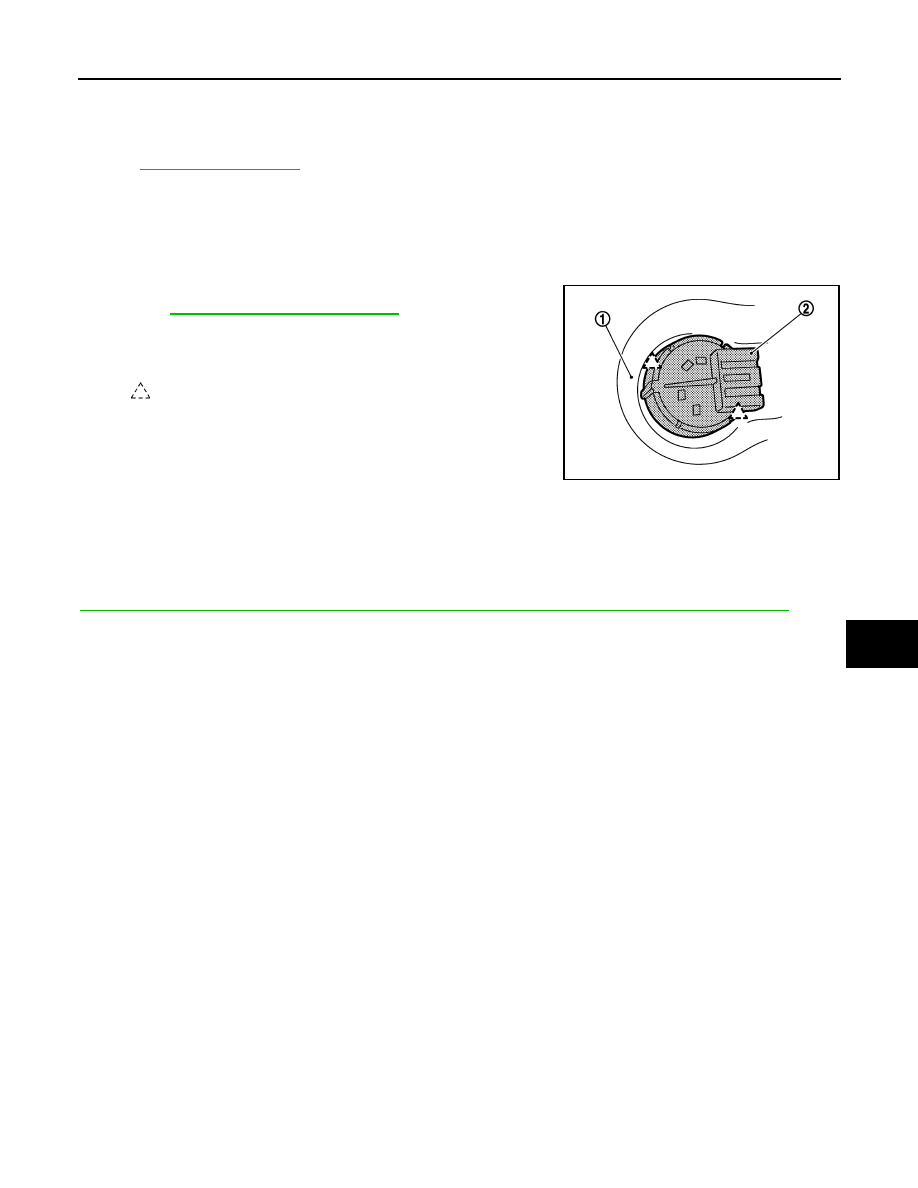

1.

Remove the front door finisher (1). Refer to

SE-91, "Disassem-

bly and Assembly"

.

2.

Press pawls and remove seat memory switch (2) from front door
finisher (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

:

Pawl

JMJIA1474ZZ

ADP-212

< ON-VEHICLE REPAIR >

POWER SEAT SWITCH

POWER SEAT SWITCH

Exploded View

INFOID:0000000003134811

Refer to

SE-87, "Exploded View"

.

Removal and Installation

INFOID:0000000003134812

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

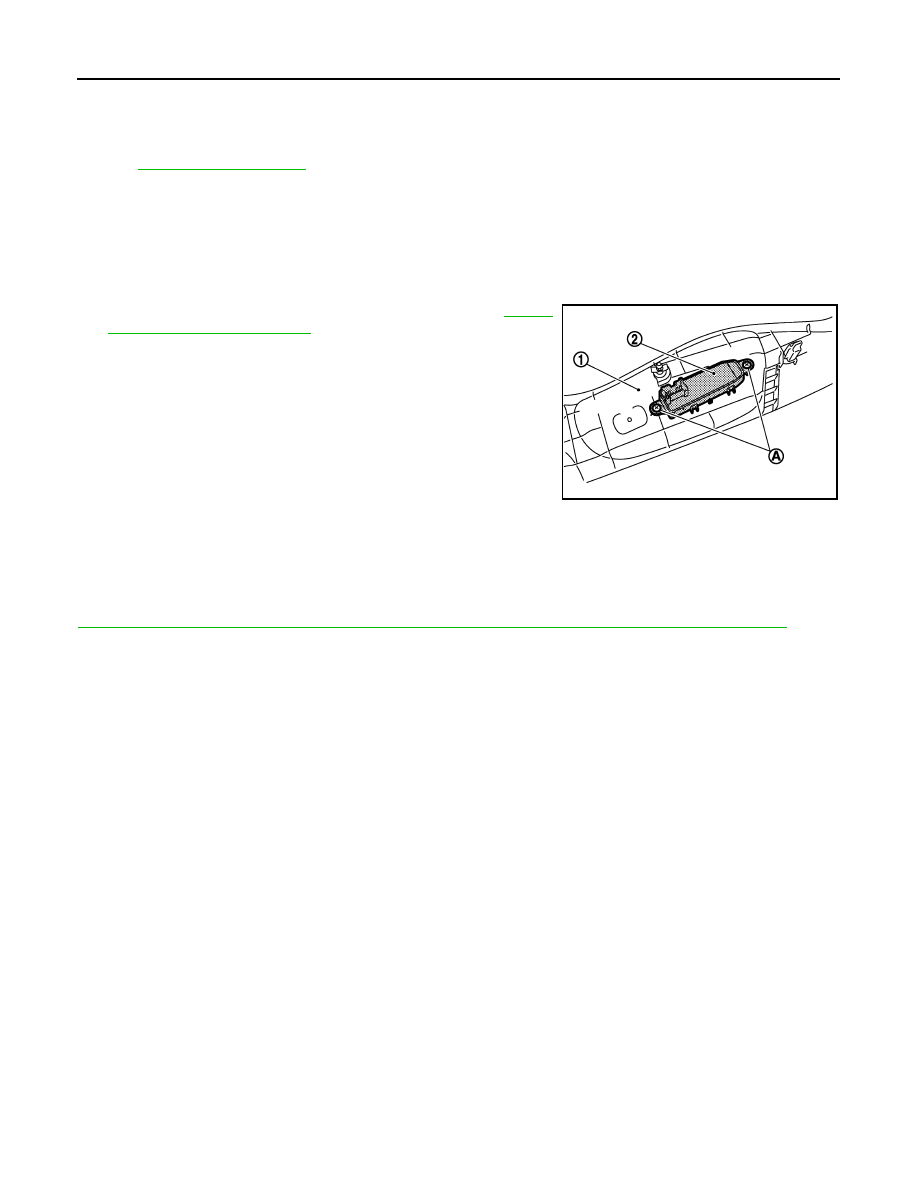

1.

Remove the seat cushion outer finisher (1). Refer to

SE-91,

"Disassembly and Assembly"

.

2.

Remove the screws (A).

3.

Remove the power seat switch (2) from the seat cushion outer
finisher (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

JMJIA0319JP

TILT&TELESCOPIC SWITCH

ADP-213

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

TILT&TELESCOPIC SWITCH

Exploded View

INFOID:0000000003134813

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000003134814

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the steering column mask (1).
Refer to

IP-12, "Removal and Installation"

.

2.

Press pawls and remove tilt & telescopic switch (2) from the
steering column mask (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

:

Pawl

JMJIA1467ZZ
