Infiniti EX35. Manual - part 46





ADP-178

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

144

(G)

Ground

Combination switch
OUTPUT 2

Output

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

0 V

Front washer switch ON
(Wiper intermittent dial 4)

10.7 V

Rear wiper switch ON
(Wiper intermittent dial 4)

Rear washer switch ON
(Wiper intermittent dial 4)

Any of the conditions below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 5
• Wiper intermittent dial 6

145

(L)

Ground

Combination switch
OUTPUT 3

Output

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Front wiper switch INT

10.7 V

Front wiper switch LO

Lighting switch AUTO

146

(SB)

Ground

Combination switch
OUTPUT 4

Output

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Front fog lamp switch ON

10.7 V

Lighting switch 2ND

Lighting switch PASS

Turn signal switch LH

149
(W)

Ground

Tire pressure warn-
ing check switch

Input

Ignition switch ON

11.8 V

150

(LG)

Ground

Driver door switch

Input

Driver door
switch

OFF (Door close)

11.8 V

ON (Door open)

0 V

151

(G)

Ground

Rear window defog-
ger relay

Output

Rear window de-
fogger

Active

0 V

Not activated

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JPMIA0033GB

JPMIA0034GB

JPMIA0035GB

JPMIA0011GB

JPMIA0011GB

BCM (BODY CONTROL MODULE)

ADP-179

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

NOTE:

*: With auto light system

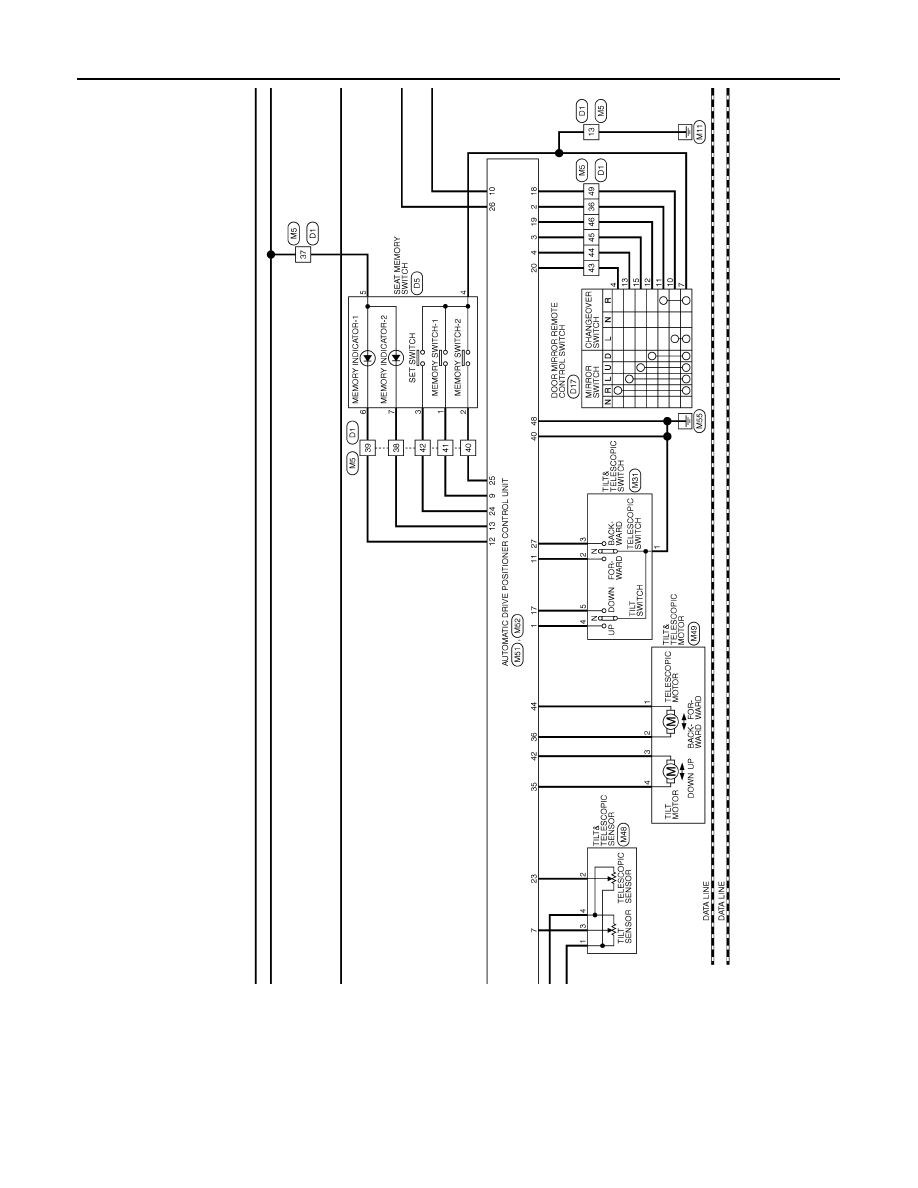

Wiring Diagram - AUTOMATIC DRIVE POSITIONER CONTROL SYSTEM -

INFOID:0000000003733245

JCJWM0268GB

ADP-180

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

JCJWM0269GB

BCM (BODY CONTROL MODULE)

ADP-181

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

JCJWM0270GB
