Infiniti EX35. Manual - part 33





ADP-126

< ECU DIAGNOSIS >

DRIVER SEAT CONTROL UNIT

*1

: The value at the position attained when the battery is connected is regarded as 32768.

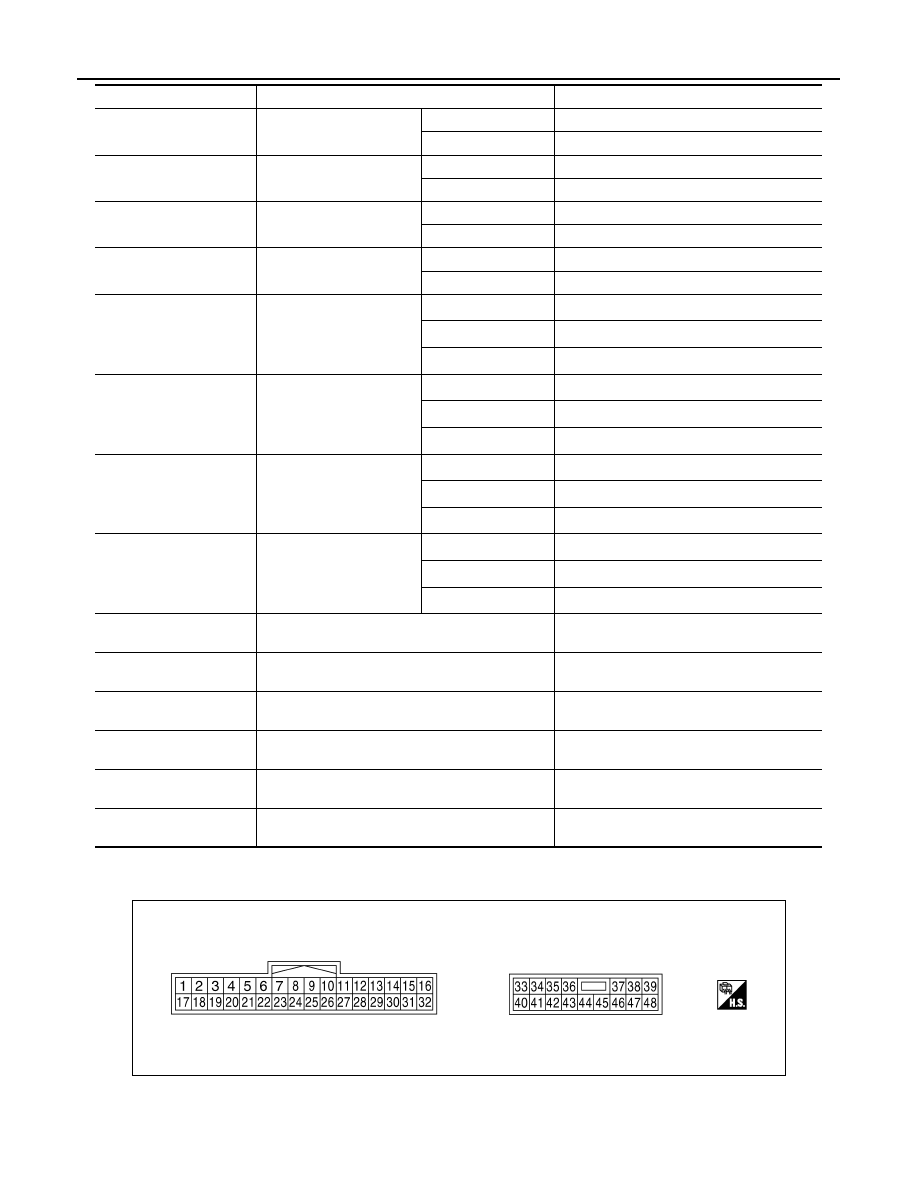

TERMINAL LAYOUT

PHYSICAL VALUES

TELESCO SW-FR

Telescopic switch

Forward

ON

Other than above

OFF

TELESCO SW-RR

Tilt switch

Backward

ON

Other than above

OFF

DETENT SW

AT selector lever

P position

OFF

Other than above

ON

STARTER SW

Ignition position

Cranking

ON

Other than above

OFF

SLIDE PULSE

Seat sliding

Forward

The numeral value decreases

*1

Backward

The numeral value increases

*1

Other than above

No change to numeral value

*1

RECLN PULSE

Seat reclining

Forward

The numeral value decreases

*1

Backward

The numeral value increases

*1

Other than above

No change to numeral value

*1

LIFT FR PULSE

Seat lifter (front)

Up

The numeral value decreases

*1

Down

The numeral value increases

*1

Other than above

No change to numeral value

*1

LIFT RR PULSE

Seat lifter (rear)

Up

The numeral value decreases

*1

Down

The numeral value increases

*1

Other than above

No change to numeral value

*1

MIR/SEN RH U–D

Door mirror (passenger side)

Change between 3.4 (close to peak)

0.6 (close to valley)

MIR/SEN RH R–L

Door mirror (passenger side)

Change between 3.4 (close to left edge)

0.6 (close to right edge)

MIR/SEN LH U–D

Door mirror (driver side)

Change between 3.4 (close to peak)

0.6 (close to valley)

MIR/SEN LH R–L

Door mirror (driver side)

Change between 0.6 (close to left edge)

3.4 (close to right edge)

TILT SEN

Tilt position

Change between 1.2 (close to top)

3.4 (close to bottom)

TELESCO SEN

Telescopic position

Change between 3.4 (close to top)

0.8 (close to bottom)

Monitor Item

Condition

Value/Status

JMJIA0199ZZ

DRIVER SEAT CONTROL UNIT

ADP-127

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

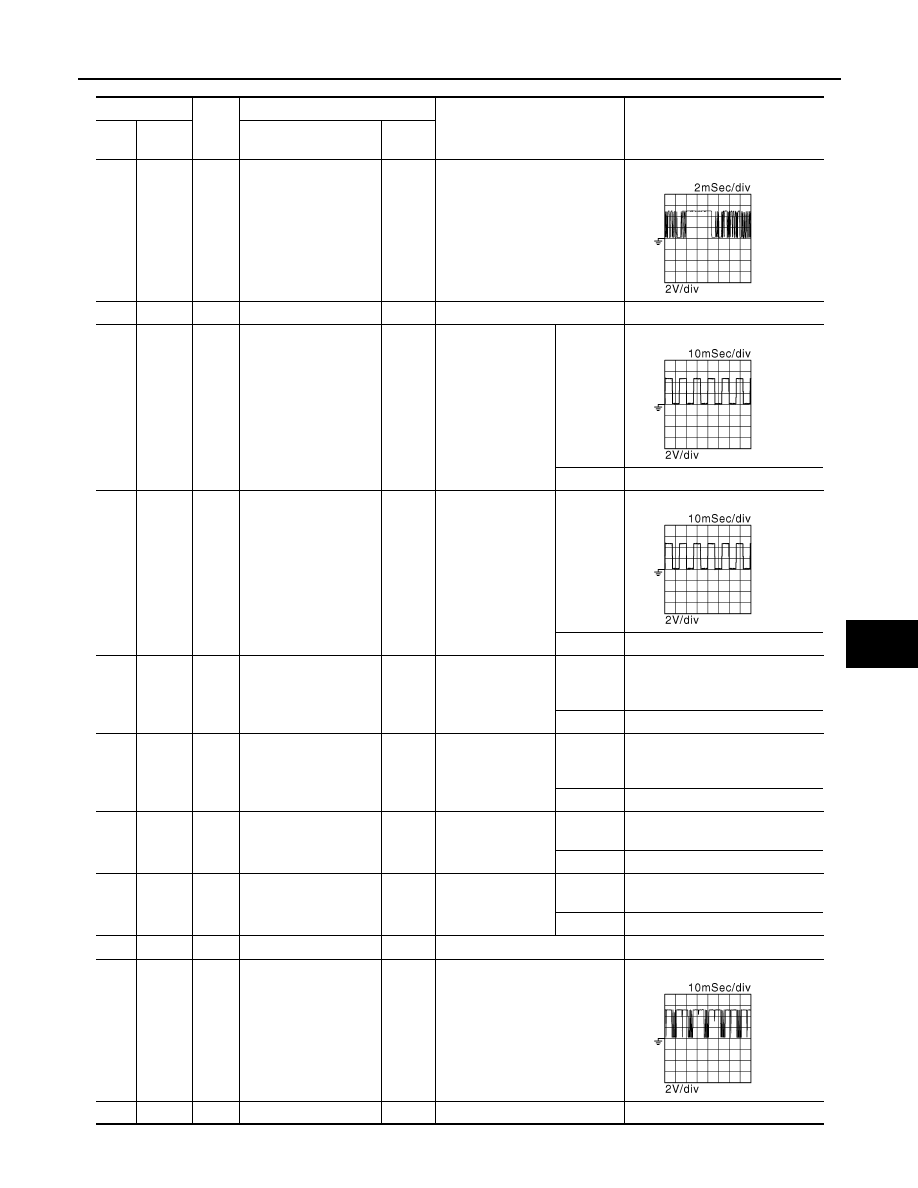

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx)

+

-

Signal name

Input/

Output

1

Ground

L/W

UART communication
(RX)

Input

Ignition switch ON

3

R/Y

CAN-H

9

Ground

W/G

Reclining sensor sig-
nal

Input

Seat reclining

Operate

Stop

0 or 5

10

Ground

P/B

Lifting sensor (rear)
signal

Input

Seat lifting (rear)

Operate

Stop

0 or 5

11

Ground

BR

Sliding switch back-
ward signal

Input

Sliding switch

Operate

(back-

ward)

0

Release

Battery voltage

12

Ground

SB

Reclining switch back-
ward signal

Input

Reclining switch

Operate

(back-

ward)

0

Release

Battery voltage

13

Ground

LG/R

Lifting switch (front)
down signal

Input

Lifting switch
(front)

Operate

(down)

0

Release

Battery voltage

14

Ground

G/B

Lifting switch (rear)
down signal

Input

Lifting switch (rear)

Operate

(down)

0

Release

Battery voltage

16

Ground

O

Sensor power supply

Output

5

17

Ground

Y/R

UART communication
(TX)

Output

Ignition switch ON

19

V

CAN-L

JMJIA0118ZZ

JMJIA0119ZZ

JMJIA0119ZZ

JMJIA0121ZZ

ADP-128

< ECU DIAGNOSIS >

DRIVER SEAT CONTROL UNIT

21

Ground

L/Y

Detention switch

Input

A/T selector lever

P position

0

Except P

position

24

Ground

R

Sliding sensor signal

Input

Seat sliding

Operate

Stop

0 or 5

25

Ground

Y/B

Lifting sensor (front)
signal

Input

Seat lifting (front)

Operate

Stop

0 or 5

26

Ground

Y

Sliding switch forward
signal

Input

Sliding switch

Operate

 (forward)

0

Release

Battery voltage

27

Ground

R/G

Reclining switch for-
ward signal

Input

Reclining switch

Operate

 (forward)

0

Release

Battery voltage

28

Ground

W/B

Lifting switch (front) up
signal

Input

Seat lifting switch
(front)

Operate

 (up)

0

Release

Battery voltage

29

Ground

P/L

Lifting switch (rear) up
signal

Input

Seat lifting switch
(rear)

Operate

 (up)

0

Release

Battery voltage

31

Ground

GR

Sensor ground

0

32

Ground

B/W

Ground (signal)

0

33

Ground

R

Power source (C/B)

Input

Battery voltage

35

Ground

W/R

Sliding motor forward
output signal

Output

Seat sliding

Operate

 (forward)

Battery voltage

Release

0

36

Ground

G/Y

Reclining motor for-
ward output signal

Output

Seat reclining

Operate

 (forward)

Battery voltage

Release

0

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx)

+

-

Signal name

Input/

Output

JMJIA0120ZZ

JMJIA0119ZZ

JMJIA0119ZZ

DRIVER SEAT CONTROL UNIT

ADP-129

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

37

Ground

G/W

Lifting motor (front)
down output signal

Output

Seat lifting (front)

Operate

(down)

Battery voltage

Stop

0

38

Ground

L/Y

Lifting motor (rear) up
output signal

Output

Seat lifting (rear)

Operate

(up)

Battery voltage

Stop

39

Ground

R/B

Lifting motor (rear)
down output signal

Output

Seat lifting (rear)

Operate

(down)

Battery voltage

Stop

0

40

Ground

R/W

Power source (Fuse)

Input

Battery voltage

42

Ground

W/B

Sliding motor back-
ward output signal

Output

Seat sliding

Operate

(back-

ward)

Battery voltage

Stop

0

44

Ground

P

Reclining motor back-
ward output signal

Output

Seat reclining

Operate

(back-

ward)

Battery voltage

Stop

0

45

Ground

L/R

Lifting motor (front) up
output signal

Output

Seat lifting (front)

Operate

(up)

Battery voltage

Stop

 0

48

Ground

B

Ground (power)

 0

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx)

+

-

Signal name

Input/

Output
