ADP-34

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

ENTRY ASSIST FUNCTION

ENTRY ASSIST FUNCTION : System Diagram

INFOID:0000000003134635

ENTRY ASSIST FUNCTION : System Description

INFOID:0000000003134636

OUTLINE

The seat is in the exiting position when either following condition (A or B) is satisfied, the seat returns from
exiting position to the previous driving position.
NOTE:
• This function is set to OFF before delivery (initial setting).
• Further information for the system setting procedure. Refer to

ADP-11, "SYSTEM SETTING : Description"

.

OPERATION PROCEDURE

1.

A: Turn the ignition switch ON.
B: Turn the ignition switch from OFF to ACC after closing the driver door.

2.

Driver seat and steering column will return from the exiting position to entry position.

OPERATION CONDITION

Satisfy all of the following items. The entry assist function is not performed if these items are not satisfied.

Item

Function

Tilt and telescopic motor

Move the steering column upward/downward and frontward/rearward.

Sliding motor

Slide the seat frontward/rearward.

JMJIA0116GB

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-35

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

DETAIL FLOW

Item

Request status

Seat, steering column

The vehicle is not moved after performing the

exit assist function.

Switch inputs
• Power seat switch
• Tilt & telescopic switch
• Door mirror control switch
• Set switch
• Memory switch

OFF

(Not operated)

A/T selector lever

P position

Order

Input

Output

Control unit condition

1

Door switch/Ignition
switch

Driver seat control unit receives the signals of [ignition switch signal]
and [driver side door switch] from BCM via CAN communication.

2

Motors
(Sliding, tilt, tele-
scopic)

Driver side control unit operates the sliding motor when the operating
conditions are satisfied and requests the operations of tilt motor and
telescopic motor to automatic drive positioner control unit via UART
communication. The automatic drive positioner operates each motor.

Sensors
(Sliding, tilt, telescop-
ic)

Each sensor monitors the operating positions of seat and steering,
and then stops the operation of each motor when each part reaches
the recorded address.

ADP-36

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

ENTRY ASSIST FUNCTION : Component Parts Location

INFOID:0000000003586970

1.

BCM M118, M119, M122, M123

2.

Automatic drive positioner control unit
M51, M52

3.

Tilt motor M49

4.

Telescopic motor M49

5.

Unified meter and A/C amp. M67

6.

AV control unit
With NAVI M87, M88
Without NAVI M83, M85

7.

AT assembly connector F51

8.

Tilt & telescopic switch M31

9.

Key slot M22

10. Tilt sensor M48

11.

Telescopic sensor M48

12. Seat memory switch D5

13. Door mirror remote control switch

D17

A.

Dash side lower (Passenger side)

B.

View with instrument driver lower
panel removed

C.

View with steering column cover low-
er and upper removed

D.

Behind cluster lid C

E.

A/T assembly
(TCM is built in A/T assembly)

F.

View with instrument driver lower
panel removed

G

View with steering column cover low-
er and upper removed

JMJIA1472ZZ

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-37

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

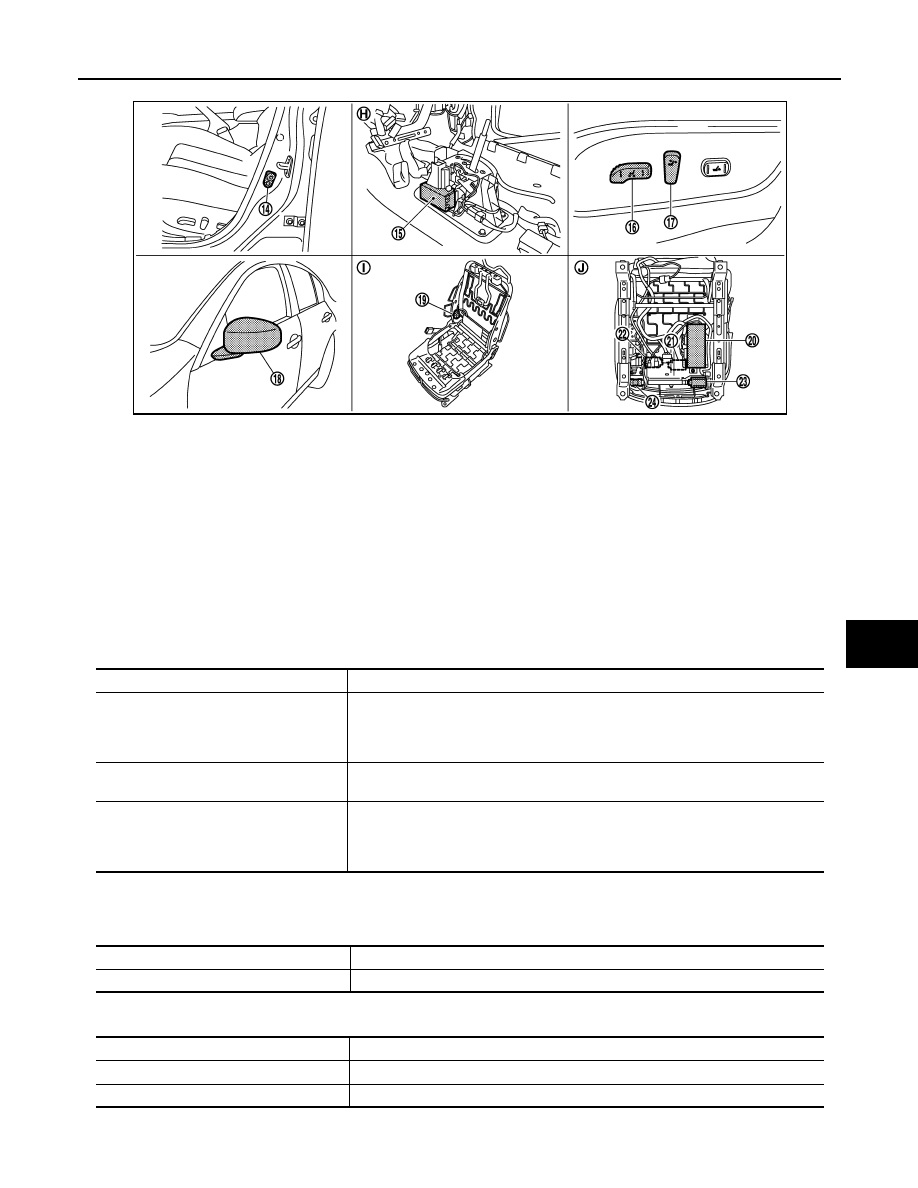

ENTRY ASSIST FUNCTION : Component Description

INFOID:0000000003134638

CONTROL UNITS

INPUT PARTS

Switches

Sensors

OUTPUT PARTS

14. Front door switch (driver side) B16

15. Control device (detention switch)

M137

16. Sliding, lifting switch

 (Power seat switch B459)

17. Reclining switch (power seat switch

B459)

18.  Door mirror (driver side) D3

19. Reclining motor B454

20.  Driver seat control unit B451, B452

21. Lifting motor (front) B455

22. Lifting motor (rear) B456

23. Sliding motor B461

24. Sliding sensor B453

H.

View with center console assembly
removed

I.

View with seat cushion pad and seat-
back pad removed

J.

Backside of the seat cushion

JMJIA1473ZZ

Item

Function

Driver seat control unit

According to the ignition signal and door switch signal (driver side) from BCM,
• Operates the seat sliding motor for a constant amount.
• Requests the operations of tilt motor and telescopic motor to automatic drive po-

sitioner control unit.

Automatic drive positioner control unit

Operates the tilt motor and telescopic motor with the instructions from the driver seat
control.

BCM

Recognizes the following status and transmits it to the driver seat control unit via
CAN communication.
• Driver door: OPEN/CLOSE
• Ignition switch position: ACC/ON

Item

Function

Front door switch (driver side)

Detect front door (driver side) open/close status.

Item

Function

Tilt & telescopic sensor

Detect the up/down and left/right position of steering column.

Sliding sensor

Detect the front/rear position of seat.
