Honda Ridgeline. Manual - part 589





01

02

SJC8A00H46400012802LBAT00

Special Tools Required

Driver’s Airbag

Front Passenger’s Airbag

Deploying Airbags in the Vehicle

24-181

Airbag and Tensioner Disposal

A

B

A

Deployment tool 07HAZ-SG00500

Before scrapping any airbags, side airbags, side curtain
airbags, or seat belt tensioners (including those in a
whole vehicle to be scrapped), the part(s) must be
deployed. If the vehicle is still within the warranty
period, the Honda District Parts & Service Manager
must give approval and/or special instruction before
deploying the part(s). Only after the part(s) have been
deployed (as the result of vehicle collision, for example),
can they be scrapped. If the parts appear intact (not
deployed), treat them with extreme caution. Follow this
procedure.

If an SRS equipped vehicle is to be entirely scrapped, its
airbags, side airbags, side curtain airbags, and seat belt
tensioners should be deployed while still in the vehicle.
These parts should not be considered as salvageable
parts and should never be installed in another vehicle.

1. Turn the ignition switch OFF, then disconnect the

negative cable from the battery, then wait 3
minutes before starting work.

2. Confirm that each airbag, side airbag, side curtain

airbag, or seat belt tensioner is securely mounted.

3. Confirm that the special tool is functioning properly

by following the check procedure on the tool label.

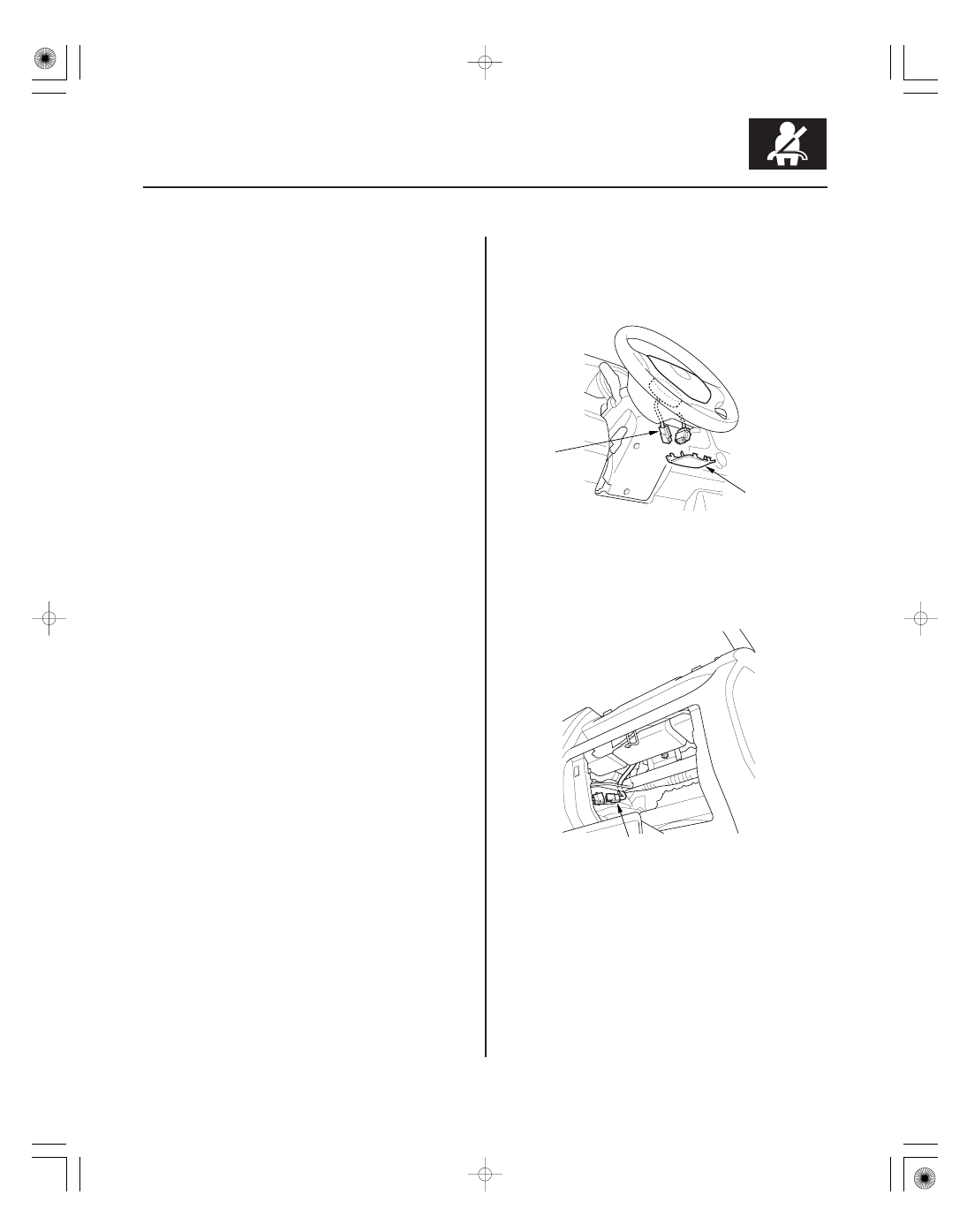

4. Remove the access panel (A) from the steering

wheel, then disconnect the driver’s airbag 4P
connector (B) from the cable reel.

5. Remove the glove box, then disconnect the front

passenger’s airbag 4P connector (A) from the
dashboard wire harness.

(cont’d)

03

01

02

06

07

Side Airbag

Side curtain airbag

Seat belt tensioner

24-182

SRS

Airbag and Tensioner Disposal (cont’d)

A

A

A

A

30 ft
(10 m)

07HAZ-SG00500

A

A

30 ft
(10 m)

07HAZ-SG00500

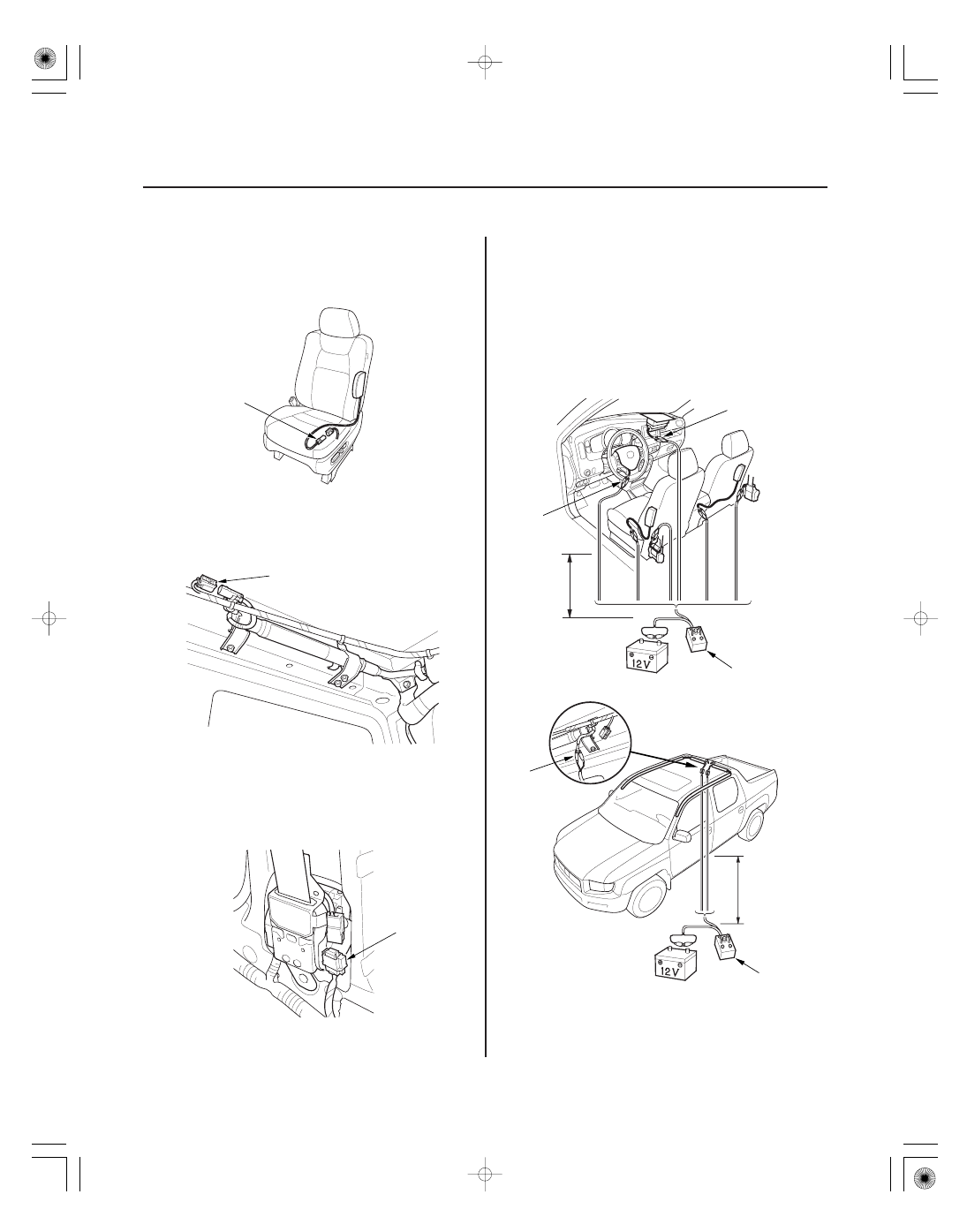

6. Disconnect the side airbag 2P connector (A) from

the floor wire harness.

7. Disconnect the roof wire harness 2P connector (A)

from the side curtain airbag.

8. Disconnect the floor wire harness 4P connector (A)

from the seat belt tensioner. Pull the seat belt out
all the way and cut it.

9. Cut off each connector, strip the ends of the wires.

Twist each pair of unlike colored wires together,
and clip an alligator clip (A) to each pair. Place the
deployment tool at least 30 feet (10 meters) away
from the vehicle.

NOTE: The driver’s and front passenger’s airbags
have dual inflators. Twist each pair of unlike
colored wires together, and clip an alligator clip to
each pair.

08

09

Deploying Components Out of the Vehicle

24-183

A

10. Connect a 12 volt battery to the tool.

• If the green light on the tool comes on, the igniter

circuit is defective and cannot deploy the
component. Go to Disposal of Damaged
Components.

• If the red light on the tool comes on, the

component is ready to be deployed.

11. Push the tool’s deployment switch. The airbags and

tensioners should deploy (deployment is both
highly audible and visible: a loud noise and rapid
inflation of the bag, followed by slow deflation).

• If the components deploy and the green light on

the tool comes on, continue with this procedure.

• If a component does not deploy, and the green

light comes ON, its igniter is defective. Go to
Disposal of Damaged Components.

• During deployment, the airbags can become hot

enough to burn you. Wait 30 minutes after
deployment before touching the airbags.

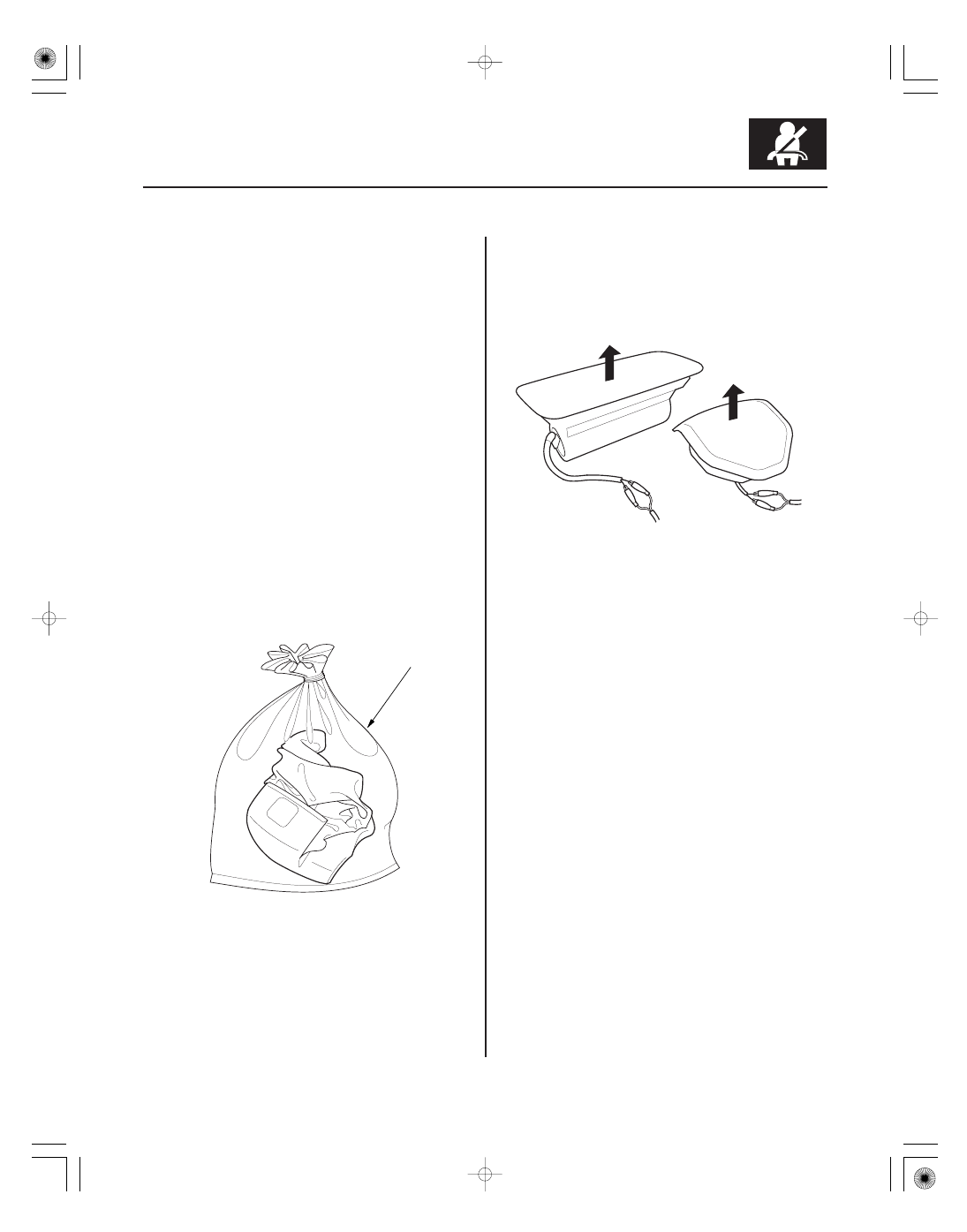

12. Dispose of the complete airbag. No part of it can be

reused. Place it in a sturdy plastic bag (A), and seal
it securely. Dispose of the deployed airbag
according to your local regulations.

If an intact airbag or tensioner has been removed from
a scrapped vehicle, or has been found defective or
damaged during transit, storage, or service, it should be
deployed as follows:

1. Confirm that the deployment tool is functioning

properly by following the check procedure
Deploying Airbags in the Vehicle on the tool label.

2. Position the airbag face up, outdoors, on flat

ground, at least 30 feet (10 meters) from any
obstacles or people.

3. Follow steps 9 through 12 of the in-vehicle

deployment procedure.

NOTE: The driver’s and front passenger’s airbags
have dual inflators. Twist each pair of unlike
colored wires together, and clip an alligator clip to
each pair.

(cont’d)

Disposal of Damaged Components

Deployment Tool Check

24-184

SRS

Airbag and Tensioner Disposal (cont’d)

1. If installed in a vehicle, follow the removal

procedure for the driver’s airbag (see page 24-174),
front passenger’s airbag (see page 24-175), side
airbag (see page 24-176), side curtain airbag
(see page 24-177), and seat belt tensioner (see page
24-4).

2. In all cases, make a short circuit by cutting,

stripping, and twisting together the two inflator
wires.

NOTE: The driver’s and front passenger’s airbags
have dual inflators. The like color wires go to the
individual inflators.

3. Package the component in exactly the same

packaging that the new replacement part came in.

4. Mark the outside of the box ‘‘DAMAGED AIRBAG

NOT DEPLOYED,’’ ‘‘DAMAGED SIDE AIRBAG NOT
DEPLOYED,’’ ‘‘DAMAGED SIDE CURTAIN AIRBAG
NOT DEPLOYED,’’ ‘‘DAMAGED SEAT BELT
TENSIONER NOT DEPLOYED’’ so it does not get
confused with your parts stock.

5. Contact your Honda District Parts and Service

Manager for how and where to return it for
disposal.

1. Connect the yellow clips to both the switch

protector handles on the tool.

2. Push the operation switch: The green light should

come on, indicating that the tool is operating
properly and is ready for use. If the red light stays
on, the tool is faulty, and another one must be used
for the procedure.

3. Disconnect the tool clips and connectors from the

protector handles and the battery.
